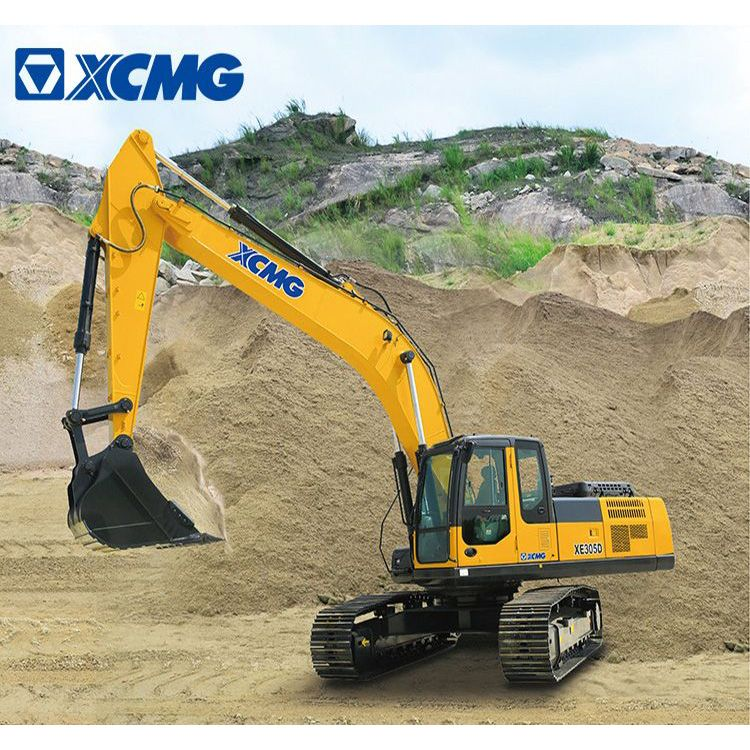

XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments

  • XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments
  • XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments
  • XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments
  • XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments
  • XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments
  • XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments
  • XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments

Share:
XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments
FOB for Excavator Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XE305D
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments
XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
  • 360-degree VR videos
  • Product Catalog
Summary
  • Rated Speed:9.8r/min
  • Max Digging Radius:10665mm
  • Machine Weight:30800kg
  • Maximum Digging Depth:7200mm
  • Maximum Digging Height:10146mm
  • Bucket capacity:1.6m3
  • Operating Weight:32500kg
  • Model Number:XE305D
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
Details
  • Product Name:G603C5F95B3566
  • Display online time:2021-03-01
  • weight:30800.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler

XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments

XCMG Manufacture 30 Ton Excavators Chinese Hydraulic Excavator XE305D.



XCMG XE305D hydraulic excavator has fully solved many key technologies of 30 ton hydraulic excavator. The fully upgraded XE305D hydraulic excavator has more power, lower fuel consumption and stronger working performance. It can be widely used in farmland water conservancy, river dredging, municipal construction and small mine construction, and can also realize different operations such as excavating, breaking and dismantling. The adaptability of working conditions has been further strengthened.

Main technical performance and characteristics:
1. Ecological and economical

* Cummins three stage 169kW high-power engine is more fuel savin.
* New Japan Kawasaki main pump can ensure high efficiency and reduced leakage.
* Efficiency main valve increases overflow pressure and reduces pressure loss.
* Smart matching technology ensures higher operating efficiency and lower fuel consumption.

2. Multiple applications
* Variety of boom, stick and bucket matching to maximize utilization in different conditions.
* Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismanting.
* The plateau mode can easily cope with the high-altitude operating environment.
* The new control system can achieve faster data management and more efficient control.

XCMG Manufacture XE305D 30 Ton Excavators Chinese Hydraulic Pump Excavator With Attachments

Model

Unit

XE305D

Operating weight

Kg

32500

Bucket capacity

1.27-1.6

Main performance

Travel speed

km/h

5.2/3.1

Swing speed

r/min

9.8

Gradeability

°

35

Ground pressure

kPa

56.4

Bucket digging force

kN

198

Arm digging force

kN

138

Maximum tractive force

kN

252

Hydraulic system

Rated flow of main pump

L/min

2×259

Travel system pressure

MPa

34.3

Swing system pressure

MPa

30

Pilot system pressure

MPa

3.9

Oil Capacity

Fuel tank capacity

L

520

Hydraulic tank capacity

L

270

Engine oil capacity

L

20

Appearance size

Overall length

mm

10645

Overall width

mm

3190

Overall height

mm

3410

Width of platform

mm

3050

Total width of chassis

mm

3190

Track shoe width

mm

600

Wheel base of crawler

mm

4028

Track gauge

mm

2590

Counterweight clearance

mm

1198

Min. ground clearance

mm

538

Working range

Max. digging height

mm

10146

Max. digging depth

mm

7200

Max. vertical wall digging depth

mm

5190

Max. digging radius

mm

10665

Min. swing radius

mm

3076

Standard

Length of boom

mm

6200

Length of arm

mm

3110

Bucket capacity

1.4
