- Brand name:KENDE
- Place of Origin:China
- Type:IGBT Module
- Packing:Color box
- Technology:IGBT Inverter Welding
- Certification:provide relevant certification,such as GS/CE and EMF safety certificates etc
- Accessories:TIG torch ,electrode holder,earth clamp,welding cable,brush/hammer,protective mask.

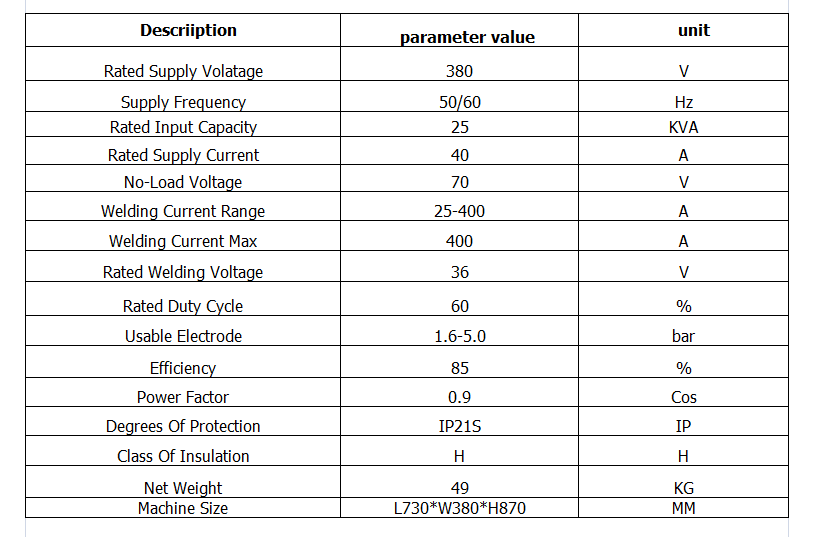

- Rated supply voltage:380V
- Supply frequency:50/60Hz
- Rated input capacity:25KVA
- Rated supply current:40A
- No-load voltage:70V
- Welding current range:25-400A
- Welding current max:400A
- Rated welding voltage:36V
- Rated duty cycle:60%
- Usable electrode:1.6-5.0mm
- Power factor:0.9Cos
- Degrees of protecction:IP21S
- Class of insulation:H
- Net weight:49kg
- Machine size:L730*W380*H870mm
1.Use powerful IGBT switches and advanced inverter control technology.
2.Digital control technology,The products belong to a high technology inverter welding machines.
3.Use PWM control technology and constant current (CC) output control,welding current can be exactly controlled.
4.AC TIG ,DC TIG,DC Pulse TIG and MMA welding process methods.special design of the circuit and structure of these welding power sources.
5.Excellent arc characteristics,good welding performance and little spatter.
6.Strong ability of the anti-fluctuating of power supply voltage.
7.High weld quality ,Lower heat input,small deformation after welding.
8.Minimizing,lightness,it can be moved easily,and energy savings up to 30%.
9.With auto protection functions of over current and over-heat.
10.The welding material of the thin ,medium and heavy plate can be welded.
11.Be able to weld all kinds of metal,for example,aluminum and aluminum alloy,carbon steel,stainless steel,,alloy steel,etc.
With complete accessories:
TIG torch ,electrode holder,earth clamp,welding cable,brush/hammer,protective mask.
Kende:The home of Welding,Cutting,Charging and Heating.Kende leads the market of arc welding,spot welding,plasma cutting,heaters,chargers and starters.we are always ready to exceed to our customer's expectations.Kende is a company system certified according to ISO9001:2008，ISO 14001:2004 and OHSMS1800.Kende as a leader in technology,all design activities must aim not only for high performance,but also for reducing energy consumption and RoHS-compliant raw material/components,within the framework of sustainable development.the first chinese enterprise who obtains GS/CE and EMF safety certificates of welding machine.and we fulfill the sound quality management system,all the products meet the safety standard requiement of the selling countries(EN60974-1 or IEC60974-1 for European countries UL551 for America,etc.)
Q1:Are you original manufacture?
A:Yes,We Kende are a official leading manufacture in welding machinery in china and we have the whole series products you need.
Q2. How could I know if this machine is suitable for me?
A: Before ordering, we will provide every details of the machine for your reference, or you could tell us your detailed requirements, our technician will recommend the most suitable machine for you.
Q3.How long is the warranty time for your products?
A:We offer 1 year warranty for your welding machine.
Q4.I haven't done business with you guys before,how can i trust your company?
A: We would trade on online to make sure your money is safely; Kende build on 2001, we has rich experience of intelligent welding factory solutions. Kende had established business relationship with so many famous brands. Quality is reliable.
Q5:How about your Kende service?
A:365x24 Year-round service
we have profressional overseas service center available after you purchase our goods if have any issue.We are committed to year-roung 24-hour service during holidays,in line policy of always providing “a response within 15 minutes and job completion within 24 hours.
After-market worry-free service
We are committed to providing after-market services,including trade-ins,overhauls,and recycling.we always stick to responsibility and mission of handing your concerns as best we can.Quality warranty
We grant our clients a twelve-month or 2000-hour warranty for any machine purchased from us .
