- Brand name:KENDE
- Place of Origin:China
- Type:IGBT Module
- Packing:Color box
- Technology:IGBT Inverter Welding
- Certification:CE,GS,EMC,EMF,CSA etc
- Accessories:TIG torch ,electrode holder,earth clamp,welding cable,brush/hammer,protective mask.

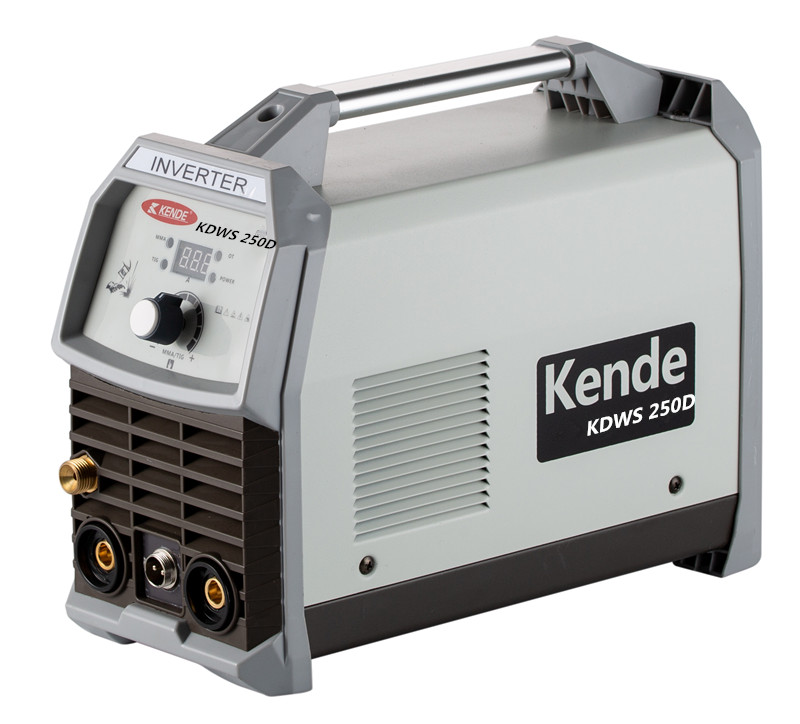

- Product Name:KDWS-250D
- Display online time:2019-01-25
- After-sales Service Provided:Overseas service center available
- Warranty:12 Months

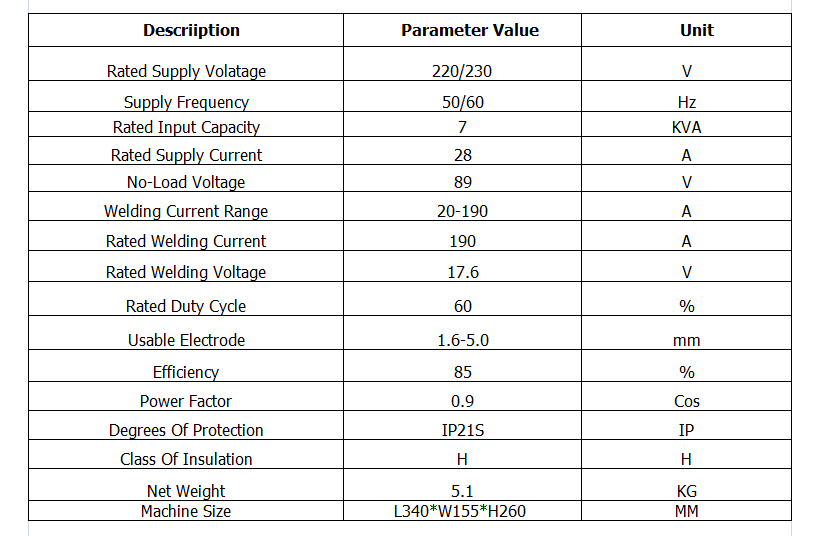

- Rated supply voltage:220/230V
- Supply frequency:50/60Hz
- Rated input capacity:7KVA
- Rated supply current:28A
- No-load voltage:89V
- Welding current range:20-190A
- Rated welding current:190A
- Rated welding voltage:17.6V
- Rated duty cycle:60%
- Usable electrode:1.6-5.0mm
- Power factor:0.9Cos
- Degrees of protection:IP21S
- Class of insulation:H
- Net weight:5.1KG
- Machine size:L340*W155*H260mm
1.Use powerful IGBT switches and advanced inverter control technology.
2.Use PWM control technology and constant (CC) output control,welding current can be exactly controlled.The products belong to a high technology inverter welding machine.
3.TIG welding process method.special design of the circuit and structure of these welding power sources.
4.Excellent arc characteristics,good welding performance and little spatter.
5.Strong ability of the anti-fluctuating of power supply voltage.
6.High weld quality ,Lower heat input,small deformation after welding.
7.Minimizing,lightness,it can be moved easily,and energy savings up to 30%.
8.With outo protection functions of over current and over-heat.
9.The welding material of the thin ,medium and heavy plate can be welded.
10.Be able to weld all kinds of metal,for example,carbon steel,stainless steel,,alloy steel,etc.
With complete accessories:
TIG torch ,electrode holder,earth clamp,welding cable,brush/hammer,protective mask.
Kende:The home of Welding,Cutting,Charging and Heating.Kende leads the market of arc welding,spot welding,plasma cutting,heaters,chargers and starters.we are always ready to exceed to our customer's expectations.Kende is a company system certified according to ISO9001:2008，ISO 14001:2004 and OHSMS1800.Kende as a leader in technology,all design activities must aim not only for high performance,but also for reducing energy consumption and RoHS-compliant raw material/components,within the framework of sustainable development.the first chinese enterprise who obtains GS/CE and EMF safety certificates of welding machine.and we fulfill the sound quality management system,all the products meet the safety standard requiement of the selling countries(EN60974-1 or IEC60974-1 for European countries UL551 for America,etc.)
