- Brand name:KENDE
- Place of Origin:China
- Type:IGBT Module
- Packing:Color box
- Technology:IGBT Inverter Cutting
- Certification:CE,GS,EMC,EMF,CSA etc
- Accessories:Plasma cutting torch,earth clamp,cutting cable,brush/hammer,protective mask.

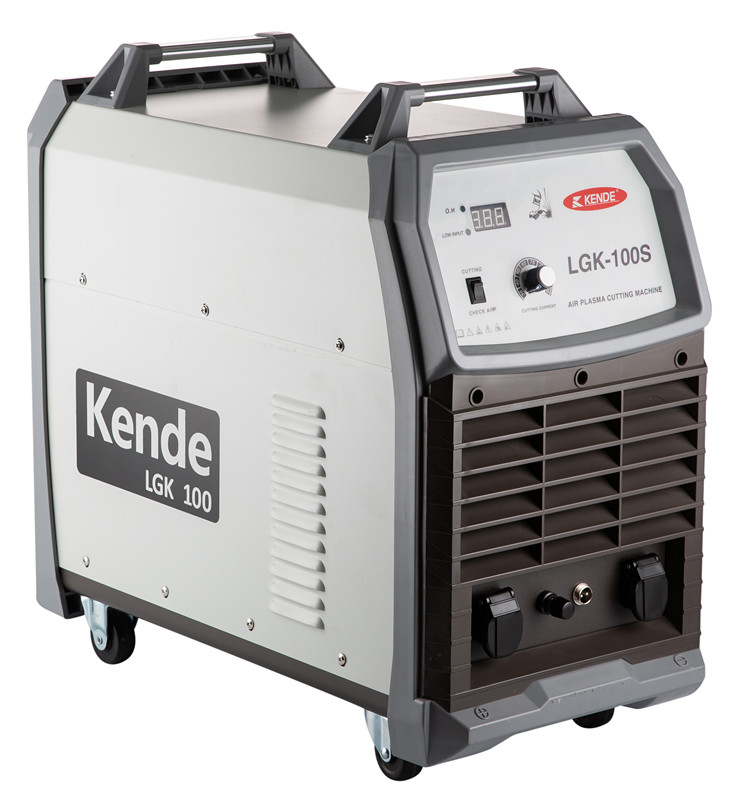

- Product Name:LGK-100S
- Display online time:2019-03-09
- After-sales Service Provided:Overseas service center available
- Warranty:12 Months

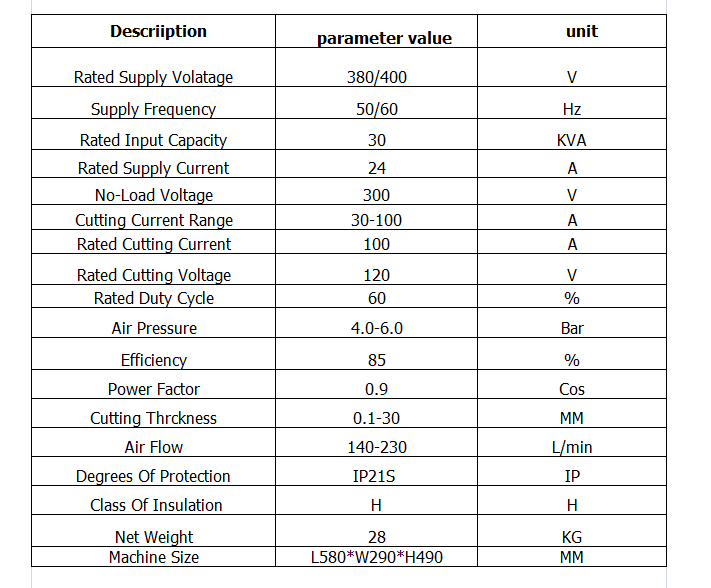

- Rated supply voltage:380/400V
- Supply frequency:50/60Hz
- Rated input capacity:30KVA
- Rated supply current:24A
- No-load voltage:300V
- Cutting current range:30-100A
- Rated cutting current:100A
- Rated cutting voltage:120V
- Rated duty cycle:60%
- Air pressure:4.0-6.0bar
- Power factor:0.9Cos
- Cutting thrckness:0.1-30mm
- Air flow:140-230L/min
- Degrees of protection :IP21S
- Class of insulation:H
- Net weight:28kg
- Machine size:L580*W290*H490mm
1.Use powerful IGBT switches and advanced inverter control technology.
2.The products belong to a high technology inverter cutting machine.
3.Use PWM control technology and constant current (CC) output control,cutting current can be exactly controlled.
4.Air plasma arccutting process method.Special design of the circuit and structure of these cutting power sources.
5.Excellent arc characteristics.
6.Strong ability of the anti-fluctuating of power supply voltage .
7.High cutting quality.small deformation after cutting.
8.Minimizing,lightness,it can be moved easily,and energy savings up to 30%.
9.with auto protection functions of over current and over-heat.
10.The thin,medium and heavy platematerial can be cut.
11.Be able to cut all kinds of metal,for example,carbon steel,stainees steel,alloy steel,aluminum alloy,etc.
With complete accessories:
Plasma cutting torch,earth clamp,cutting cable,brush/hammer,protective mask.
Kende:The home of Welding,Cutting,Charging and Heating.Kende leads the market of arc welding,spot welding,plasma cutting,heaters,chargers and starters.we are always ready to exceed to our customer's expectations.Kende is a company system certified according to ISO9001:2008，ISO 14001:2004 and OHSMS1800.Kende as a leader in technology,all design activities must aim not only for high performance,but also for reducing energy consumption and RoHS-compliant raw material/components,within the framework of sustainable development.the first chinese enterprise who obtains GS/CE and EMF safety certificates of welding machine.and we fulfill the sound quality management system,all the products meet the safety standard requiement of the selling countries(EN60974-1 or IEC60974-1 for European countries UL551 for America,etc.)
