- Brand name:KENDE
- Place of Origin:China
- Type:IGBT Module
- Packing:Color box
- Technology:IGBT Inverter Welding
- Certification:provide relevant certification,such as GS/CE and EMF safety certificates etc
- Accessories:Electrode holder,earth clamp,welding cable,brush/hammer,protrctive mask,carton box.

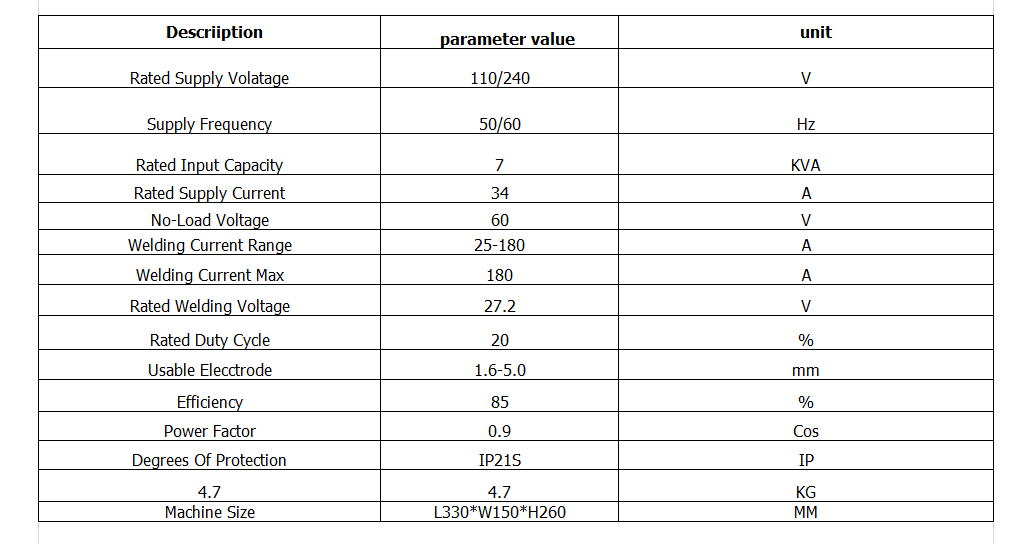

- Rated supply voltage:110/240V
- Supply frequency:50/60Hz
- Rated input capacity:7KVA
- Rated supply current:34A
- No-load voltage:60V
- Welding current range:25-180A
- Welding current max:180A
- Rated welding voltage:27.2V
- Rated duty cycle:20%
- Usable electrode:1.6-5.0mm
- Power factor:0.9Cos
- Degrees of protection:IP21S
- Net weight:4.7KG
- Machine size:L330*W150*H260
1.Special design of the circuit and structure of these welding power sources.
2.Has been authorized China and patent of utility.
3.Super strong ability of the anti-fluctuating of power supply voltage.Under 130-270V,the welding power source will has output current,and can weld.
4.Under longer welding cable,the welding machine can weld.
5.Good waterproof,moisture-proof,mould proof,anti-corrosion,anti-vibration or vibration-proof and anti-conductive dust.
6.Practical protection class exceed IP23.
7.Use powerful IGBT switches and advanced inverter control technology.
8.Use PWM control technology and constant current (CC) output control,welding current can be exactly controlled,Continuous adjustment on welding current in large scale.
9.Excellent are characteristics and good welding performance,with anti-stick,hot start are force.
10.Minimizing,lightness,it can be moved easily,high quality and energy savings up to 30%.
11.With auot protection functions of over-current and over-heat.
12.Be able to weld all kinds of metal,for example carbon steel,alloy steel,cast iron as well as stainless steel etc.with complete accessories.
Electrode holder,earth clamp,welding cable,brush/hammer,protective mask,carton box.
