KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

  • KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140
  • KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

Share:
KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140
Express Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140
KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Brand name:KENDE
  • Place of Origin:China
  • Type:IGBT Module
  • Usage:Welding
  • Packing:Color box
  • Technology:IGBT Inverter Welding
  • Certification:CE,GS,EMC,EMF,CSA etc
  • Accessories:Electrode holder and welding cable,brush/hammer,protective mask,etc.
Specifications
  • weight:8.200kg
  • Condition:New
  • Rated supply voltage:220/230V
  • Supply frequency:50/60Hz
  • Rated input capacity:4.4KVA
  • Rated supply current:21.7A
  • No-load voltage:53V
  • Welding current range:40-140A
  • Rated welding current:140A
  • Rated welding voltage:21V
  • Rated duty cycle:30%
  • Usable wire:0.6-1.0mm
  • Efficiency:85%
  • Power factor:0.9Cos
  • Degrees of protecction:IP21S
  • Class of insulation:H
  • Net weight:8.2kg
  • Machine size:L350*W180*H300mm

KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

                                                                                                         Product Description

1.Use powerful IGBT,advanced microcomputer and inverter control technology.

2.Use PMW control technology ,constant voltage ( CV) and constant current (CC) output control,welding current and voltage can be exactly controlled.

continuous adjustment on welding current and voltage in large scale.

3.Welding method:MIG/MAG,MMA and TIG welding.

4.Welding wire diameter:0.6,0.8 and 1.0mm.

5.Touch key operation.

6.MMA welding with VRD (Low voltage output while the welding machine is no-load under MMA).

7.Good arc characteristics and welding performance.with strong ability of the anti-fluctuating of power supply voltage.

8.Minimizing,lightness,it can be moved easily ,high quality and energy savings up to 30%.

9.With auto protection function of over-current and over-heat.

10.Be able to welding all kinds of metal,for example carbon steel,alloy steel,cast iron as well as stainless steel ect.

With complete accessories:

Electrode holder and welding cable,brush/hammer,protective mask,etc.

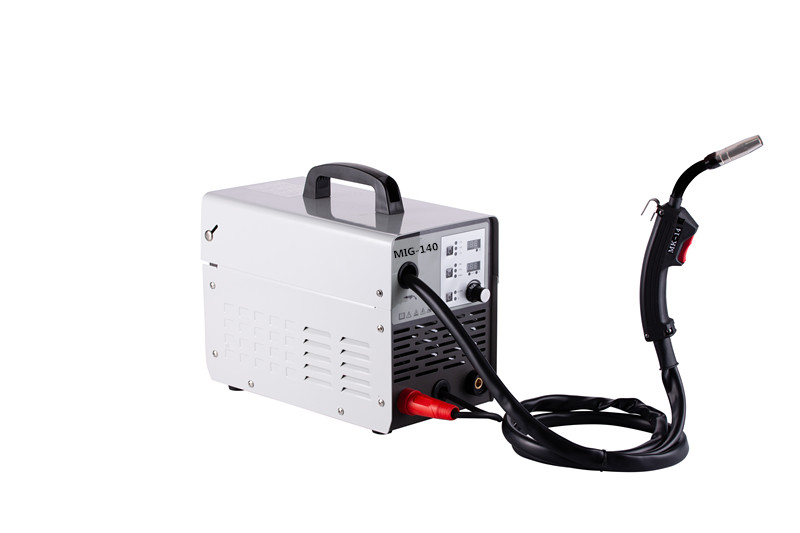

                                    Product Show

KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

                                      Other products

KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

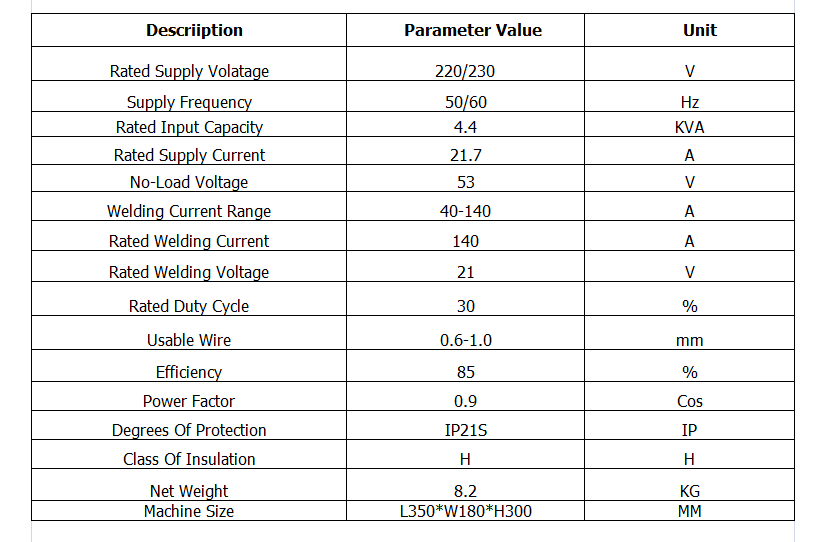

                                          Specification

KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

                                          Company Profile

KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

Company Profile

Kende:The home of Welding,Cutting,Charging and Heating.Kende leads the market of arc welding,spot welding,plasma cutting,heaters,chargers and starters.we are always ready to exceed to our customer's expectations.Kende is a company system certified according to ISO9001:2008,ISO 14001:2004 and OHSMS1800.Kende as a leader in technology,all design activities must aim not only for high performance,but also for reducing energy consumption and RoHS-compliant raw material/components,within the framework of sustainable development.the first chinese enterprise who obtains GS/CE and EMF safety certificates of welding machine.and we fulfill the sound quality management system,all the products meet the safety standard requiement of the selling countries(EN60974-1 or IEC60974-1 for European countries UL551 for America,etc.)

KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

                                         Certification

KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140


                                            Exhibition

KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

                                       Why choose us

KENDE gmaw MMA TIG MIG MAG IGBT inverter plasma welding machine Multi-MIG-140

                                                                                                                                                         FAQ

Q1:Are you original manufacture?

A:Yes,We Kende are a official leading manufacture in welding machinery in china and we have the whole series products you need.

Q2. How could I know if this machine is suitable for me?

A: Before ordering, we will provide every details of the machine for your reference, or you could tell us your detailed requirements, our technician will recommend the most suitable machine for you.

Q3.How long is the warranty time for your products?

A:We offer 1 year warranty for your welding machine.

Q4.I haven't done business with you guys before,how can i trust your company?

A: We would trade on online to make sure  your money is safely; Kende build on 2001, we has rich experience of intelligent welding factory solutions. Kende had established business relationship with so many famous brands. Quality is reliable.

Q5:How about your Kende service?

A:365x24 Year-round service

we have profressional overseas service center available after you purchase our goods if have any issue.We are committed to year-roung 24-hour service during holidays,in line policy of always providing “a response within 15 minutes and job completion within 24 hours.

After-market worry-free service

We are committed to providing after-market services,including trade-ins,overhauls,and recycling.we always stick to responsibility and mission of handing your concerns as best we can.Quality warranty

We grant our clients a twelve-month or 2000-hour warranty for any machine purchased from us .
