LC Type Rupture Disc

  • LC Type Rupture Disc

Share:
LC Type Rupture Disc
EXPRESS Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
LC Type Rupture Disc
LC Type Rupture Disc
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Application:Overpressure Relief
  • Brand Name:BasCo
  • Model Number:LC Type
  • Place of Origin:China
  • Media:Liquid or Gas
  • Material:SS
Specifications
  • Weight:0.500kg
  • Condition:New
  • Moving Type:Other

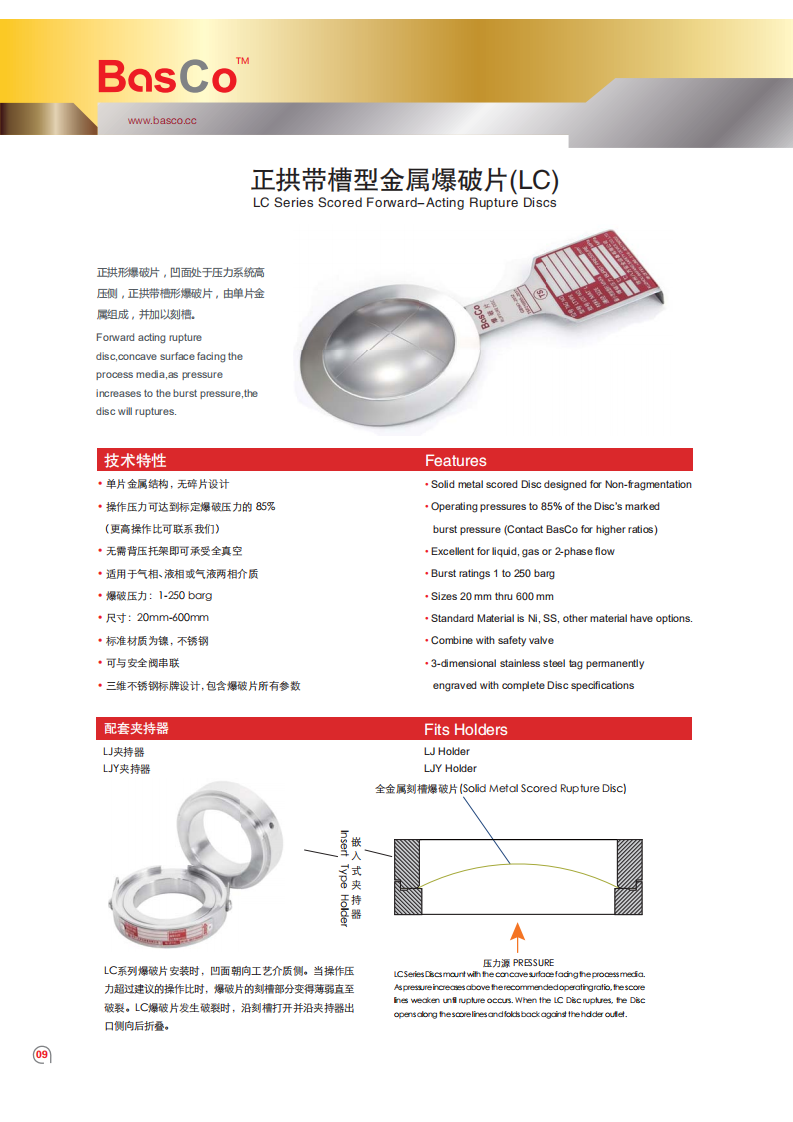

Forward acting rupture disc, with the concave on the high pressure side. Forward acting scored rupture disc consists of a single piece of scored metal.


Features

• Solid metal scored disc designed for Non-fragmentation

• Operating ratios to 90% of the marked bursting pressure on disc tag (Contact BasCo for higher ratios)

• Withstands full vacuum without additional support

• Suitable for liquid, gas, or two-phase applications

• Sizes from 20mm to600mm

• Burst ratings from 1barg to 250 barg

Standard materials: Nickel, Stainless Steel

Able to be combined with safety valve

Attached 3-dimensional stainless steel tag is engraved with complete disc specifications


How LC Works

LC Series Discs mount with the concave surface facing the process media. As pressure increases above the recommended operating ratio, the score lines weaken until rupture occurs. When the LC Disc ruptures, the disc opens along the score lines and folds back against the holder outlet.
