LF Type Rupture Disc

  • LF Type Rupture Disc
  • LF Type Rupture Disc
  • LF Type Rupture Disc


LF Type Rupture Disc

Chat Now 1 / EA (Min. Order)
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
LF Type Rupture Disc
LF Type Rupture Disc
- + /EA



Full Name:

Mobile phone:

  • Summary
  • Specifications


  • Application:Overpressure Relief
  • Brand Name:BasCo
  • Model Number:LF Type
  • Place of Origin:China
  • Media:Liquid or Gas
  • Material:SS/TEF/SS


  • Weight:0.500kg
  • Condition:New
  • Moving Type:Other

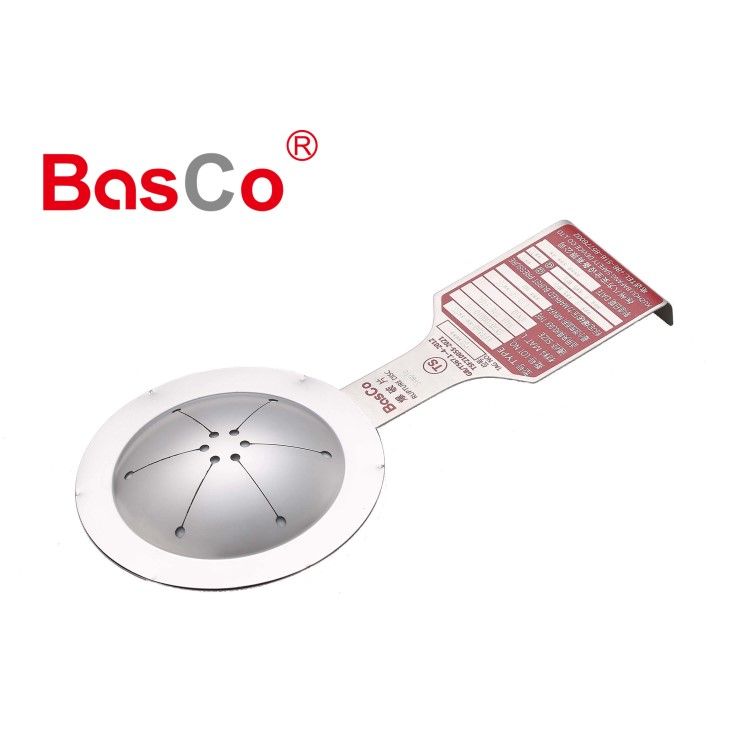

Forward acting rupture disc, with the concave on the high pressure side. LF Type rupture disc consists of three parts: slotted burst cap,sealing film and backpressure support.


• Forward-acting composite rupture disc

• State-of-the-art laser slotted metal section

• Operating pressures to 80% of the Disc’s marked burst pressure

Fragment resistant design

• Standard Material:SS/FEP/SS. Other seal materialsare available

Suitable for liquid, gas, or two-phase applications

• Sizes from 15mm to 1100mm

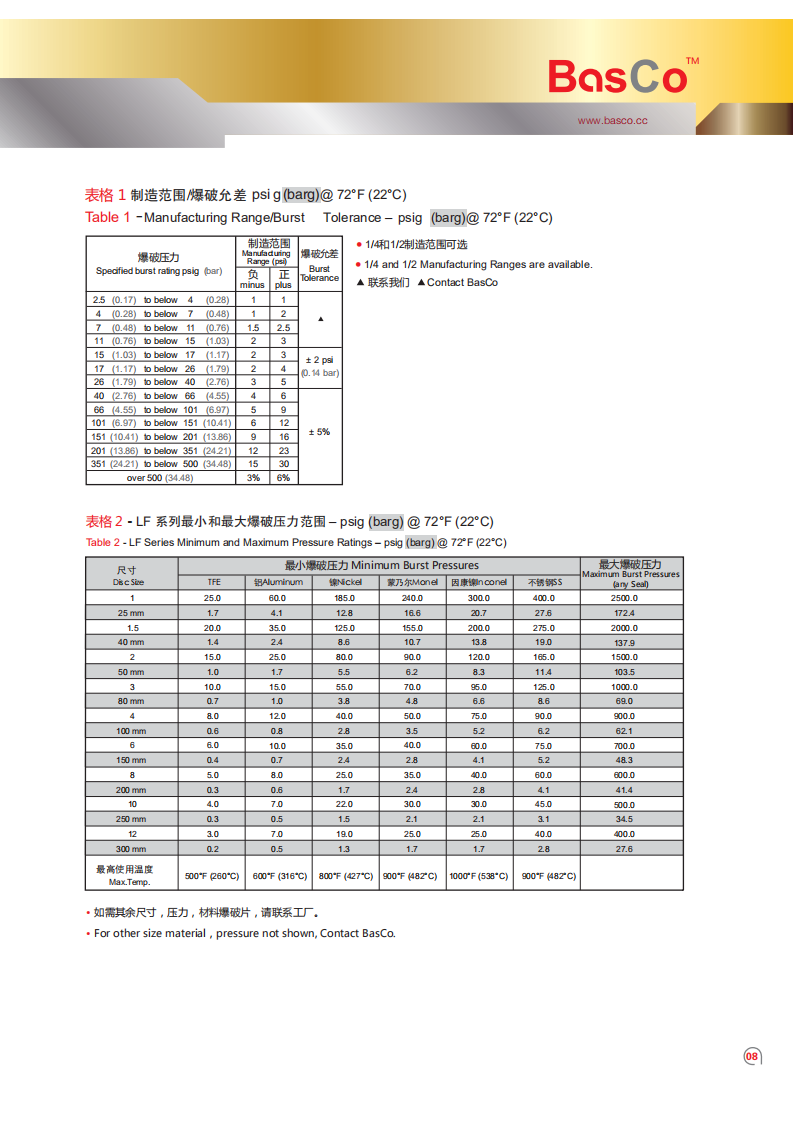

• Burst ratings from 0.02barg to 2000 barg

• Attached 3-dimensional stainless steel tag is engraved with complete disc specifications

Storage Tank Protection

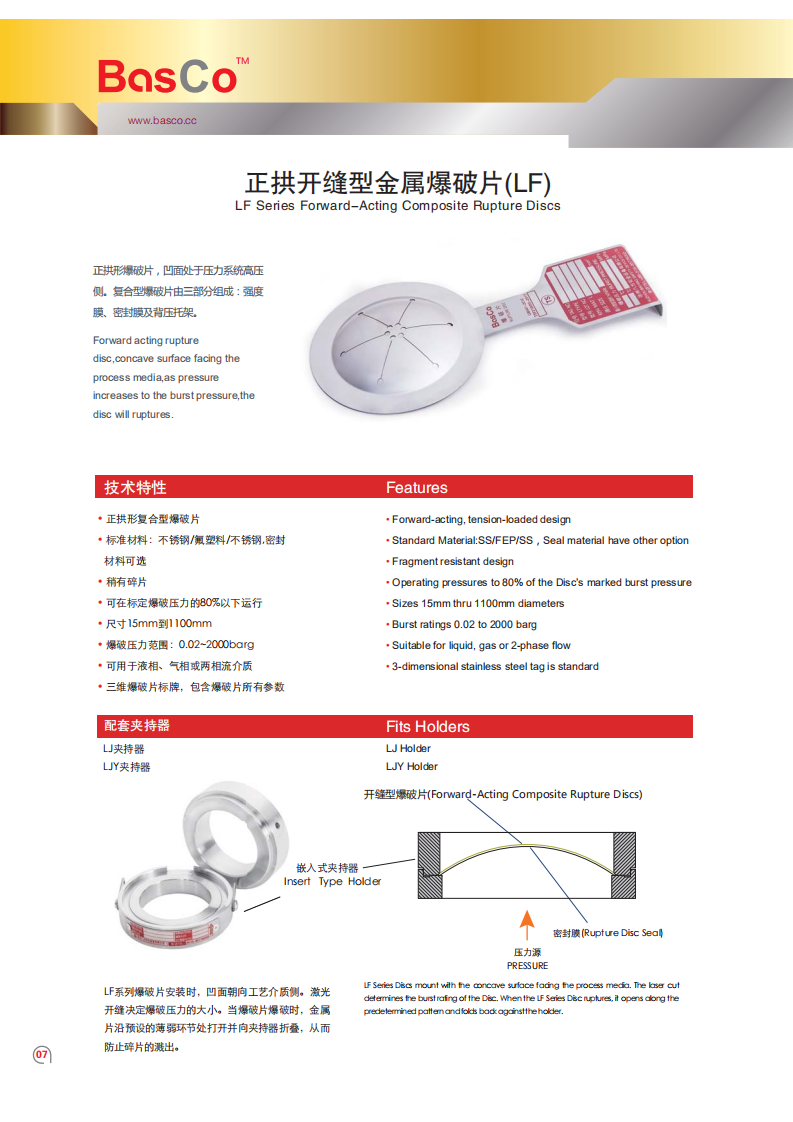

LF Series Discs mount with the concave surface facing the process media. The laser cut slit

determines the burst rating of the Disc. When the LF Series Disc ruptures, it opens along thepredetermined slit and folds back against the holder to resist fragment from getting out.LF Type Rupture DiscLF Type Rupture Disc
