LW400KN wheel loader for sale | XCMG 4 ton loader machine price
Summary
- Rated Load:4 ton
- Dimension(Long* Breadth * High):7420*2718*3450mm
- Type:wheel loader
- Place of Origin:Xuzhou, China
- Model Number:LW400KN
- Brand Name:XCMG
Specifications
- Weight:13300.000kg
- Moving Type:Other
- Engine Brand:WEICHAI
- Rated Load:3-5 ton
- Bucket Capacity:2.5 - 3.5m³

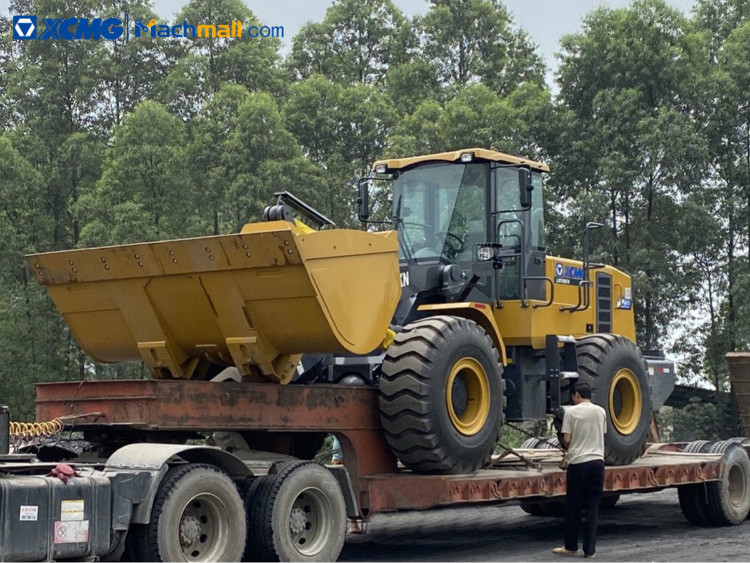

Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

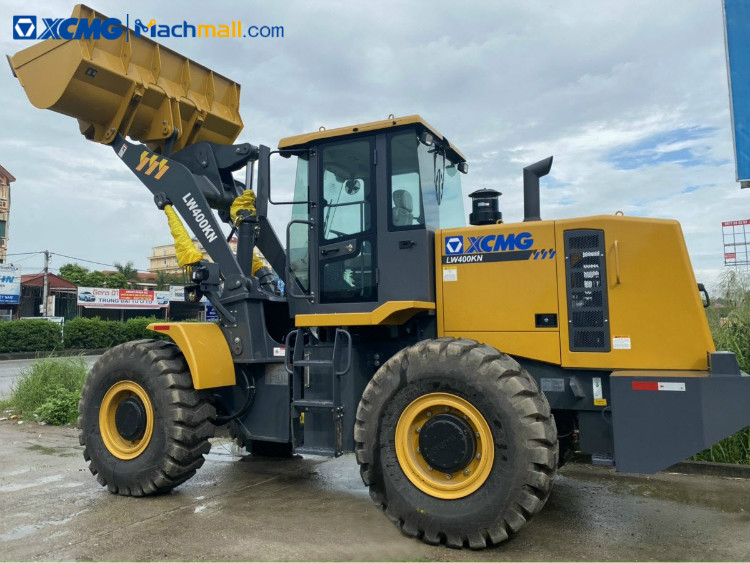

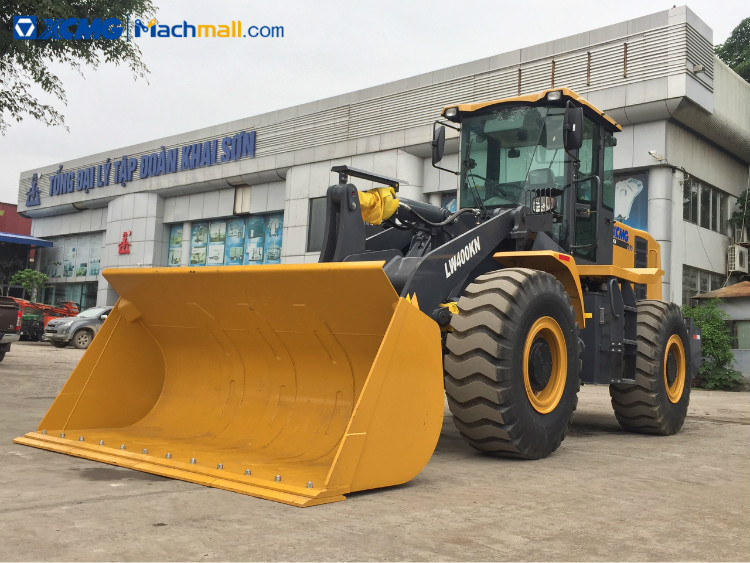

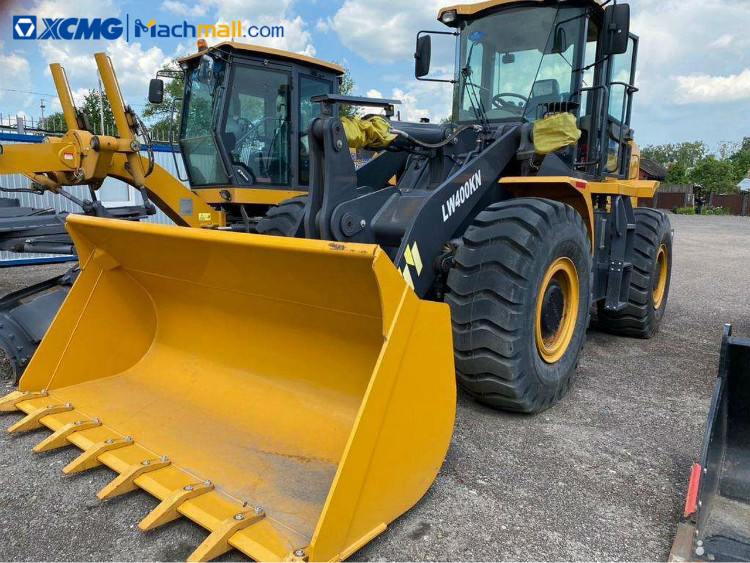

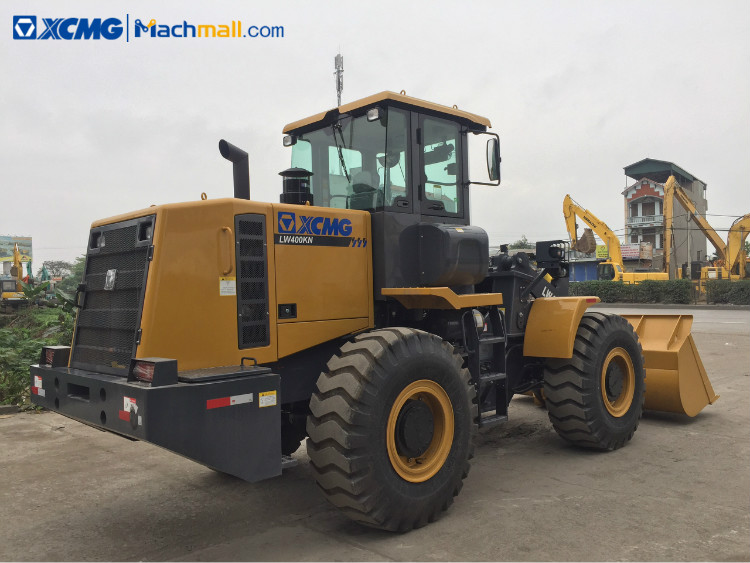

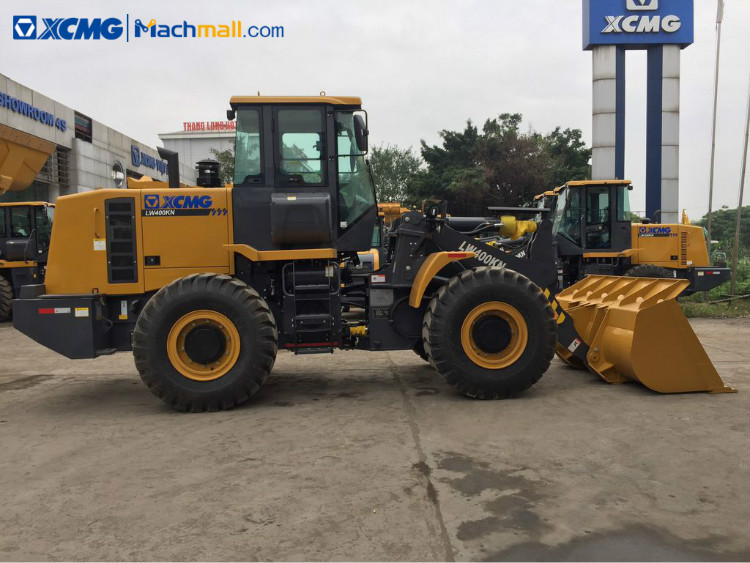

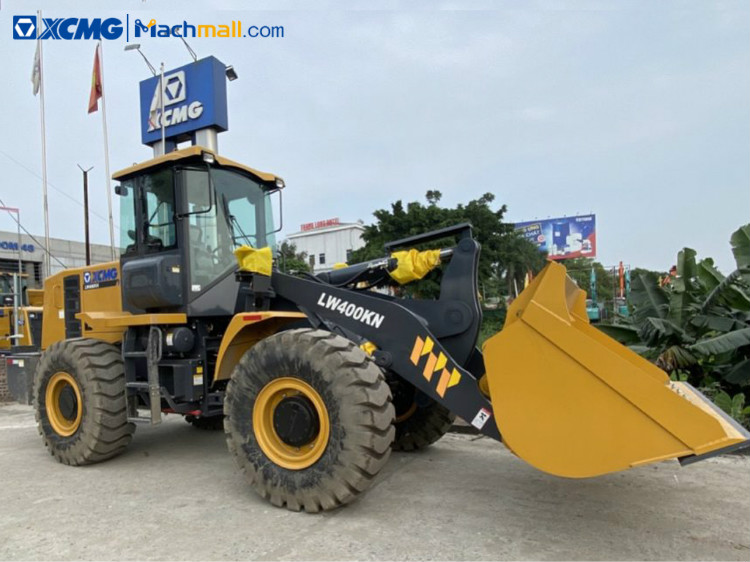

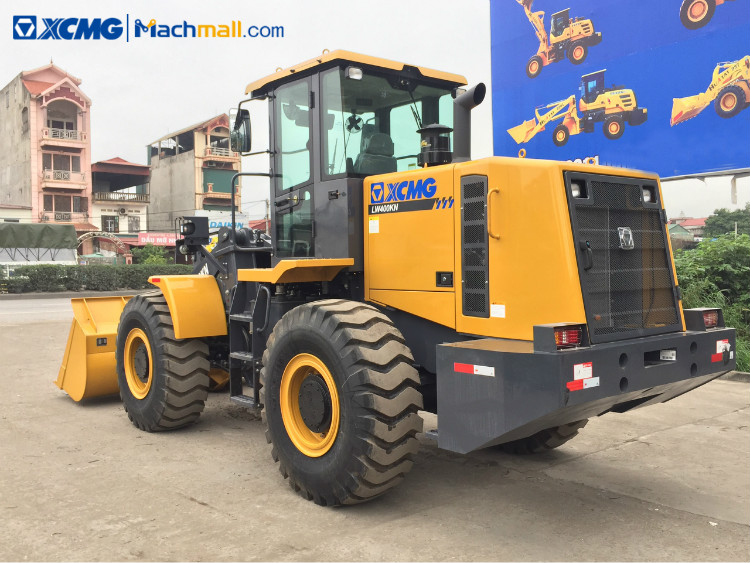

XCMG 4 ton loader machine LW400KN.
The working performance of 4 ton wheel loader LW400KN is closing to that of a 5t product. LW400KN adopts the super-strong structural design to achieve super-strong power performance, especially for super-heavy-duty working conditions.
With the largest machine weight, super-long machine body, and super-strong power performance and efficiency, LW400KN is leading the like products.
1. Outstanding performance
* High power performance: The 13t industry-leading powerful bucket breakout force guarantees outstanding adaptability under diversi- fied severe working conditions.
* High working stability: 2,900mm extended wheelbase, 7,250mm extended machine body, and rear-mounted diesel tank ensure excellent working stability of the machine.
* High loading capacity: The standard bucket of up to 2.4m3 capacity is leading the industry like products. Fast motions: The total cycle time is only 10s, leading the industry.
2. High strength
* Both front and rear frames adopt super-heavy-duty structure design, featuring thick plates and high strength.
* The finite element analysis is applied for the critical structural parts to ensure that such parts can meet the demands of diversified dangerous and heavy-load conditions.
* The gross machine weight is 13.5t, featuring high firmness and mightiness.
3. Convenient maintenances
* The engine hood adopts large upturning gate design in large opening angle to ease the maintenances.
* The detail design, including central pressure measurement, partially central lubrication, and central water drainage, brings you with really comfortable operation convenience.
|
Description |
Specification |
Unit |
|
Rated operating load |
4000 |
kg |
|
Bucket capacity |
2.4 |
m³ |
|
Machine weight |
13300±200 |
kg |
|
Dump clearance at maximum lift |
2850 |
mm |
|
Reach at maximum lift |
1020 |
mm |
|
Wheel base |
2900 |
mm |
|
Tread |
2060 |
mm |
|
Max.breakout force |
130±5 |
kN |
|
Max.traction force |
120±5 |
kN |
|
Hydraulic cycle time-raise |
5.6 |
s |
|
Total hydraulic cycle time |
9.8 |
s |
|
Min circle radius over outside bucket |
6180±50 |
mm |
|
Min. turning radius over tyres |
5570±50 |
mm |
|
Articulation angle |
38 |
° |
|
Gradeability |
28 |
° |
|
Tyre size |
20.5-25-16PR |
|
|
Overall machine dimension L×W×H |
7420×2718×3450 |
mm |
|
Model |
WP6G175E22 |
|
|
Rated Power/Speed |
129/2200 |
kW/rpm |
