LW500KN front end loader prices | XCMG LW500KN 3 cubic meters 5 ton wheel loader for sale

$20000.00-$40000.00 1 / EA (Min. Order)
Model: LW300KN
Engine: WEICHAI
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
LW500KN front end loader prices | XCMG LW500KN 3 cubic meters 5 ton wheel loader for sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos

Summary

  • Rated Load:5 ton
  • Dimension(Long* Breadth * High):8225*3016*3515mm
  • Type:front loader
  • Place of Origin:Xuzhou, China
  • Model Number:LW500KN
  • Brand Name:XCMG
  • Certification:CE, ISO

Specifications

  • Weight:17200.000kg
  • Engine Brand:WEICHAI
  • Rated Load:3-5 ton
  • Bucket Capacity:4 - 6m³
  • Power: 162 kW
  • Operation mass:17200KG
  • Maximum breakout force:170KN

LW500KN front end loader prices | XCMG LW500KN 3 cubic meters 5 ton wheel loader for sale

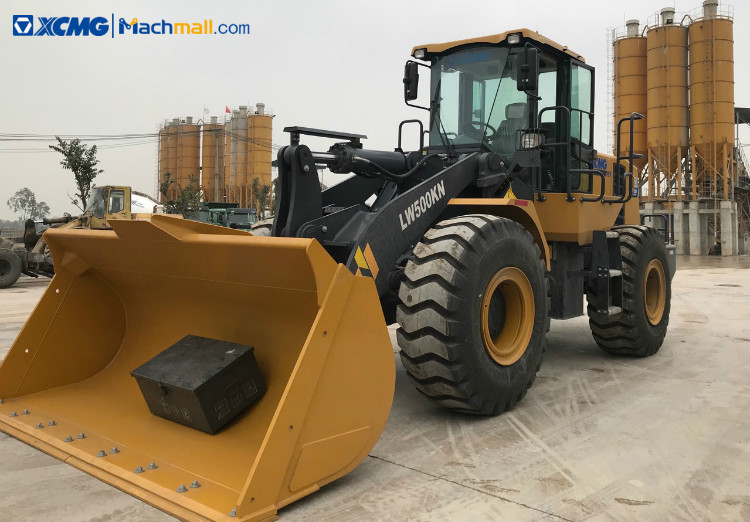

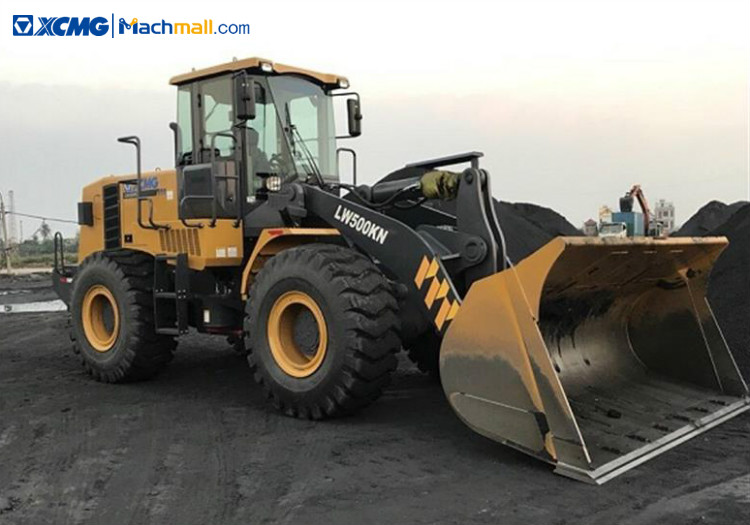

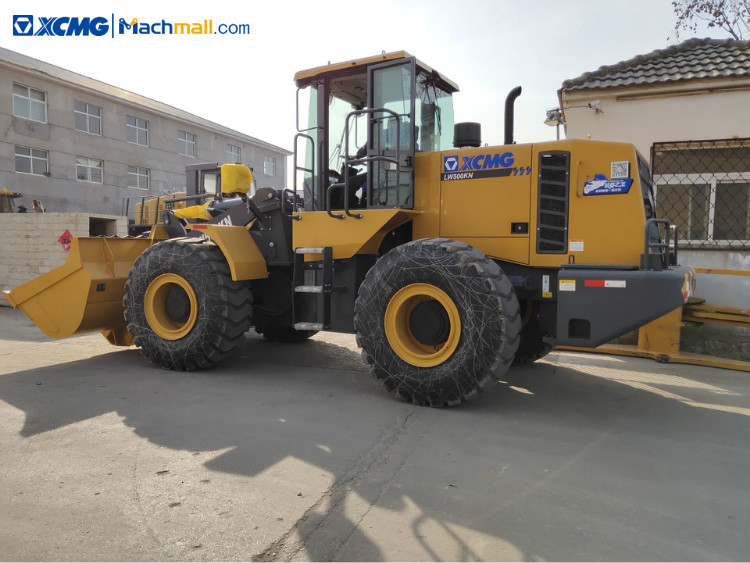

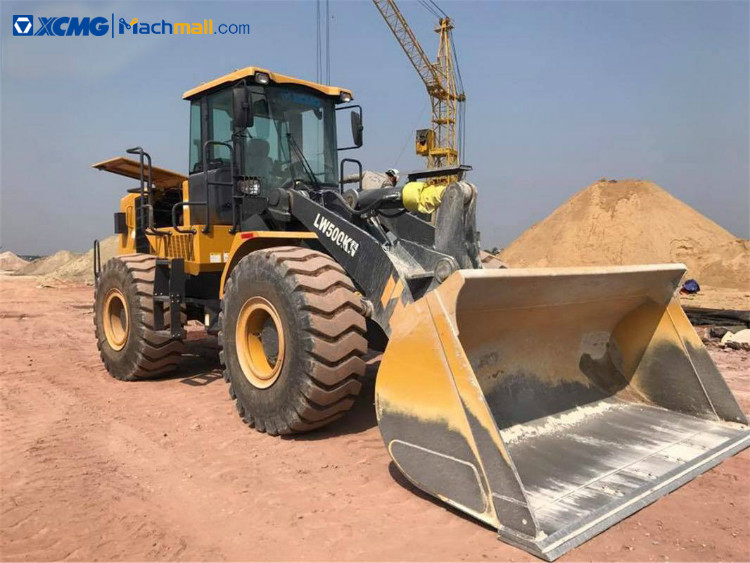

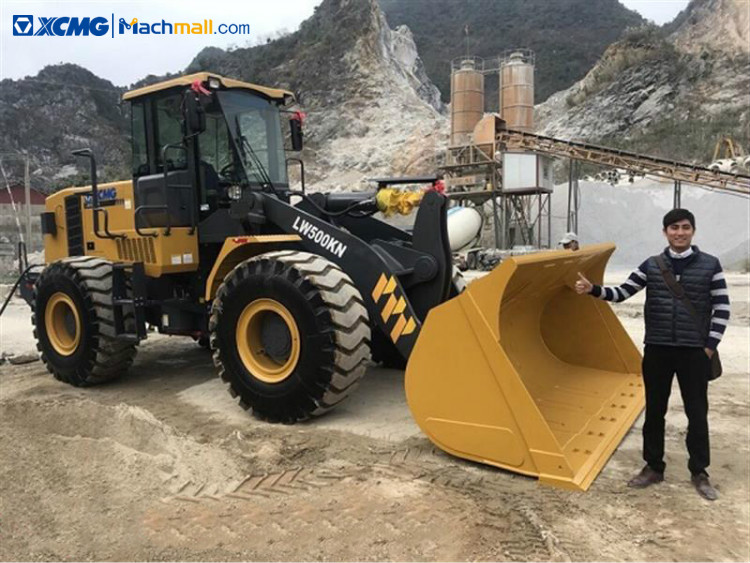

XCMG LW500KN 3 cubic meters 5 ton front end loader.



1, XCMG LW500KN front end loader: heavy-load design, robot welding, thick plate, secure welding joint, high anti-torque coefficient and high overload capacity. Technology of finite element analysis is employed to decrease stress concentration and eliminate local weaknesses. Frame is resistant to impact and overload and capable in various overload working conditions.

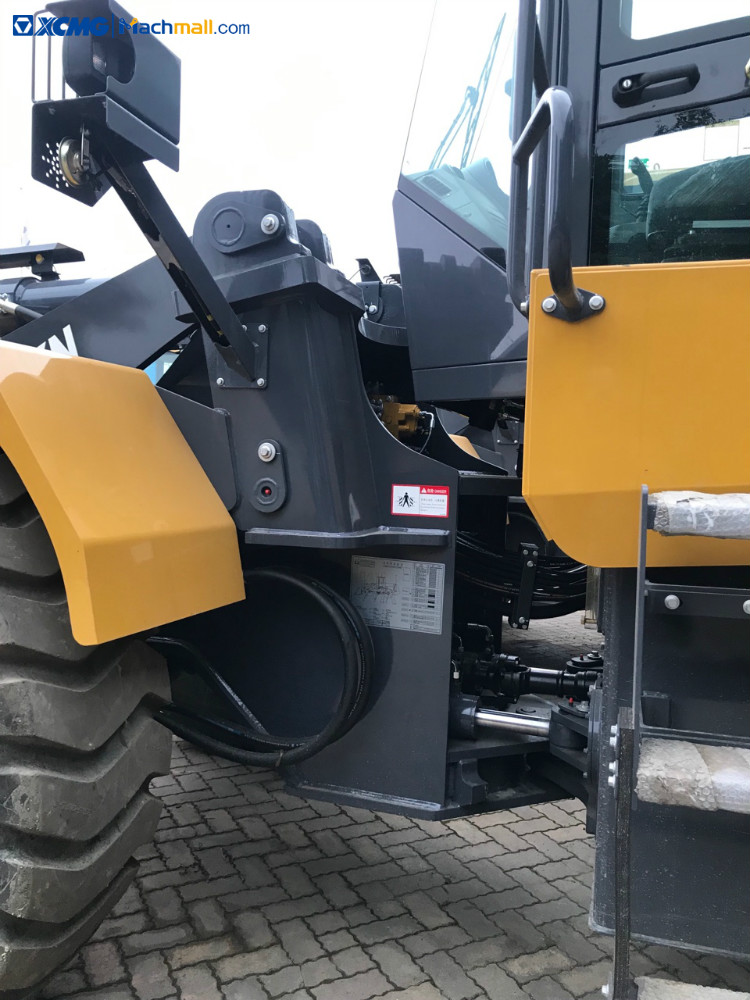

2, Alignment design of main hinge joint decrease s turn radius and reduces tire wear and energy loss. Large spacing between upper and lower hinged plates, high structural strength and sufficient repair space. The first manufacturer to apply double-row tapered roller bearing to main hinge joint, featuring strong bearing capacity and long service life.



3, Implementation of “service throughout full life cycle” brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.



4, First-rate hydraulic element, featuring low pressure loss, little system radiation and high part reliability. Hydraulic pump of international brand provides stronger hydraulic power. Italian α hydraulic hose featuring resistance to heat and pressure, and long service life. Two layers of sealing, i.e. 24° cone plus O-ring up to DIN international standard are employed for hydraulic pipeline, which features better tightness and effectively resolves the issue of leakage. Imported materials are used for harness with optimized process layout for guaranteeing circuit system reliability.



LW500KN front end loader prices | XCMG LW500KN 3 cubic meters 5 ton wheel loader for sale

Overall 1ength (bucket on the ground)

8225 mm

Overall width

2850 mm

Bucket width

3016 mm

Overall height

3515 mm

Wheel base

3300 mm

Tread

2250 mm

Min. ground clearance

440 mm

4.2.2 Specification



Rated capacity

5000 kg

Bucket volume

2.7 m3 (Bucket for rock)

3 m3 (Standard bucket)

3.5 m3 (Bucket for light material)

4 m3  (Bucket for light material)

4.5 m3  (Bucket for light material)

Operating weight

17200kg±300kg

Forward/Reverse

6.5/6.5 km/h

Forward /Reverse

11/11 km/h

Forward /Reverse

24/24 km/h

Forward/Reverse

38 km/h

Max. tractive force

165±5kN

Max. climbing gradient

30 º

Max. dumping angle

45 º

Max. dumping height

≥3090 mm (main cutting edge)

Dumping reach

≥1130 mm (main cutting edge)

Dumping angle of bucket

≥45 º

    Breakout force of bucket

170 KN

Lifting time of boom

≤6.5 s

Total cycling time

≤11 s

Outside of the bucket

6910 mm

    Center of the tyre

5925 mm

Turning angle of the chassis

38 º

Oscillating angle of the rear axle

±12 º
