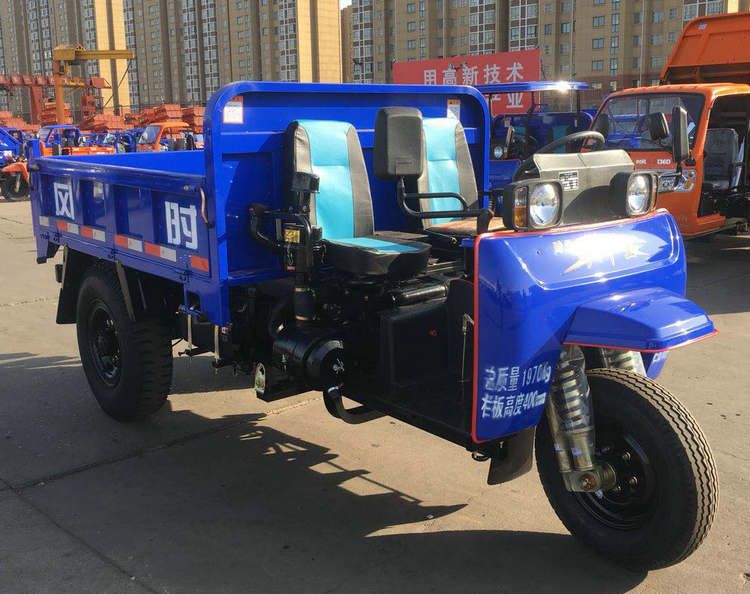

MINING TRICYCLE

  • MINING TRICYCLE

Share:
MINING TRICYCLE
Shandong Shifeng (Group) Co., Ltd. Reference Price:Get Latest Price
Chat Now 16 / UNI (Min. Order)
Shipping
Payment Terms:
MINING TRICYCLE
  • Summary
  • Details
Summary
  • Brand Name:SHIFENG
  • Model Number:7YP-1750D
  • Place of Origin:LIAOCHENG, CHINA
  • Load weight:3000kGS
  • Type:MINIING MACHINARY
  • Certification:ISO9000
Details
  • Product Name:G5E5617478E673
  • Display online time:2020-02-27
  • weight:1200.000kg
  • After-sales Service Provided:Overseas third-party support available
  • Warranty:3 Months
  • Condition:NEW
  • Moving Type:other

MODEL7YP-1750D
CABIN HALF CABIN
OVERALL DIEMENTION4270×1600×1650
CARGO BODY DIEMENTION2500×1550×400
CURB WEIGHT 1360 KGS
LOADING CAPACITY4000 KGS
FUEL DIESEL
WHEELBASE(mm)2660
REAR TREAD(mm)1240
FRONR TYRE500-16
REAR TYRE700-16
TRANSMITING TYPE  BELT
ENGINE SF24
OUTPUT  24 HP
ENGINE BORE X STROKE 120X115
ENGINE RATED SPEED(r/min)2200
ENGINE TOTAL DISPLACEMENT(L)1.3
MAX SPEED (KM/H)49
MINI GROUD CLEARANCE (mm)220
STEERING GEAR TYPEMECHNICAL
CLUTCH TYPEDUAI, DRY
GEAR BOX8+2
SERVICE BRAKE AND BOOSTING TYPEOIL BRAKE
OPTION ROPS
