XCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T price

Chat Now 1 / EA (Min. Order)
Model: NXG5480D3T
Engine: WEICHAI
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • Product PDF

Summary

Specifications

  • Weight:17000.000kg
  • Condition:New
  • Moving Type:Wheel
  • GVW:17000kg
  • GCW:47000kg
  • Drive form:6*4
  • Cargo size:5800*2400*1500mm

XCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T price

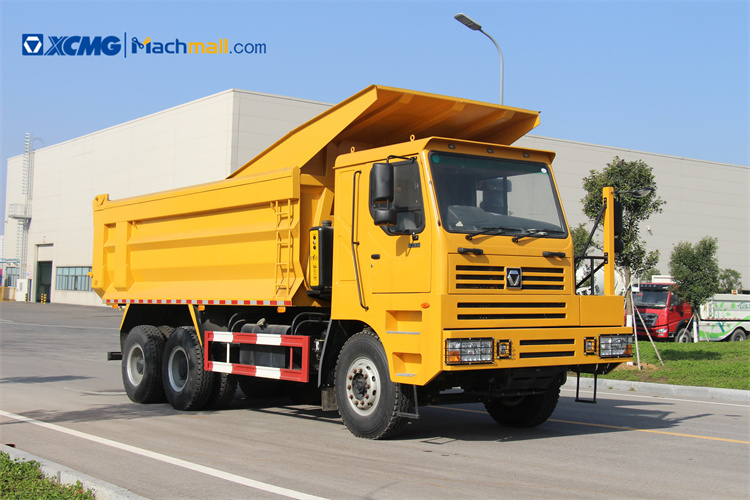

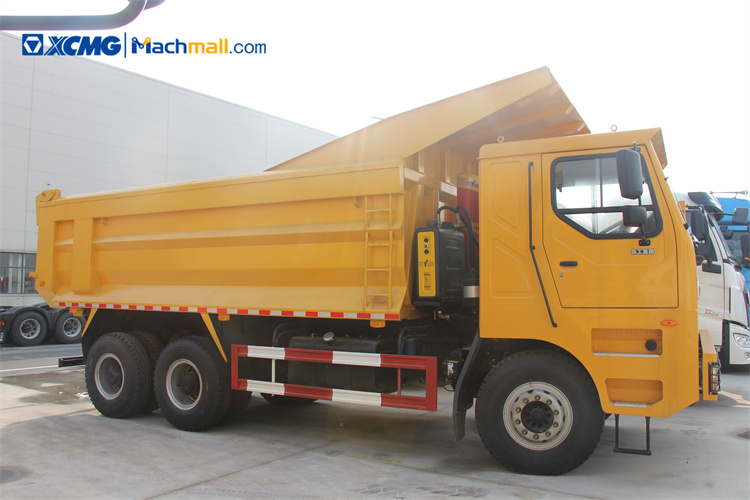

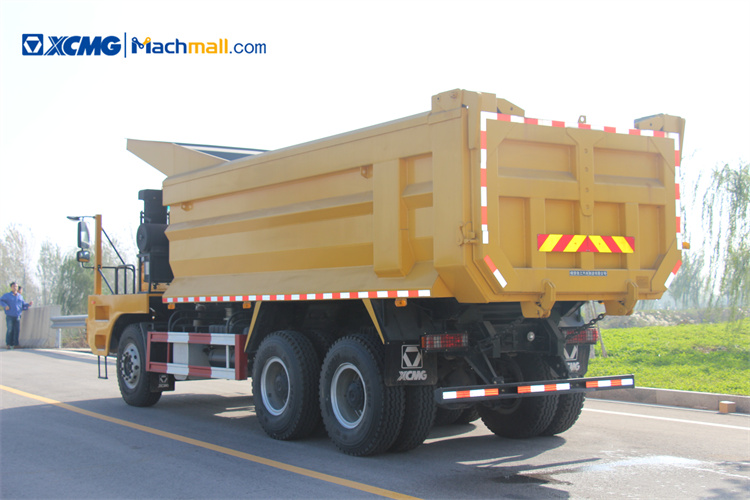

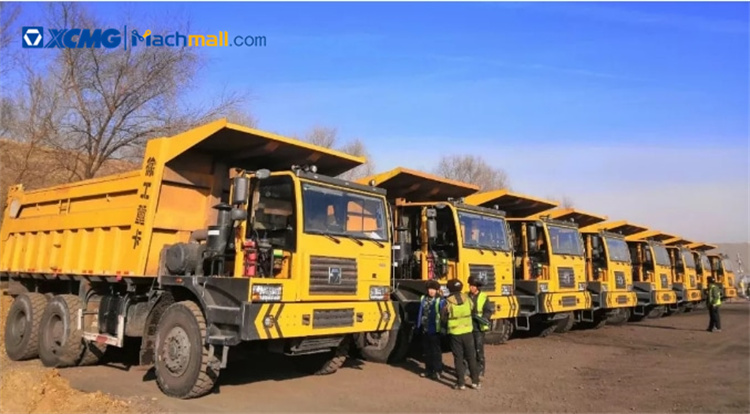

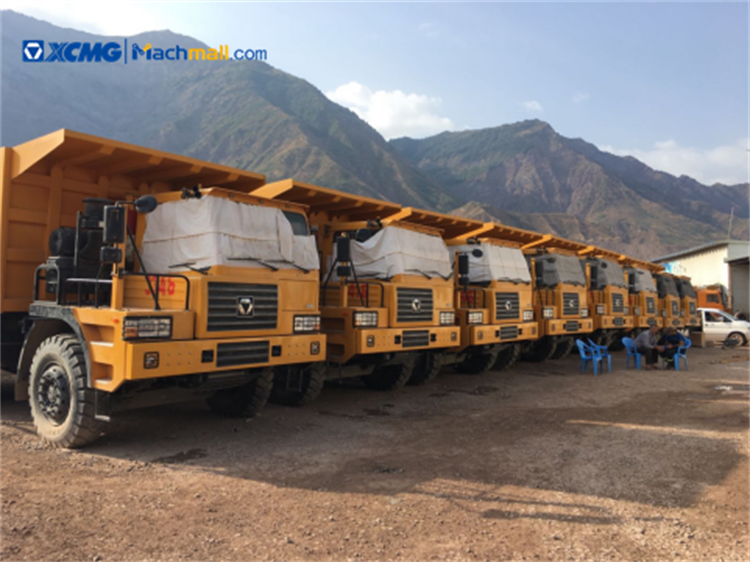

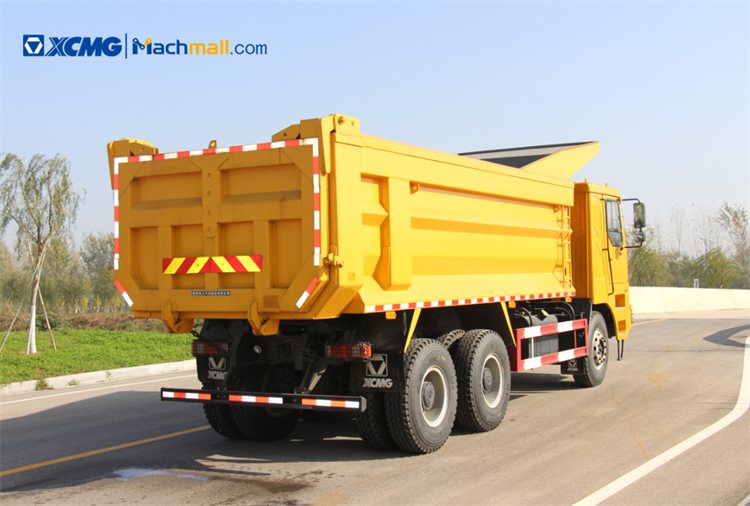

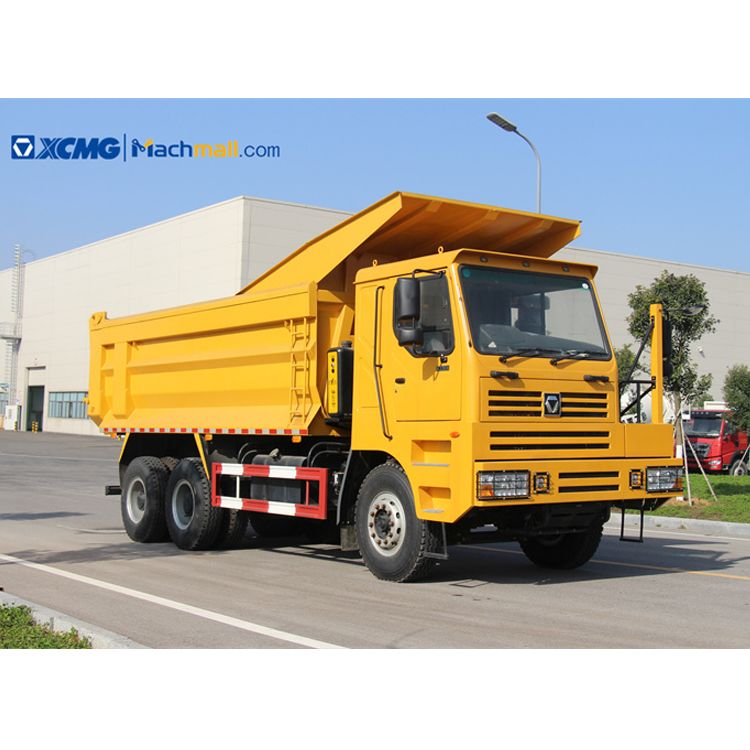

XCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T.

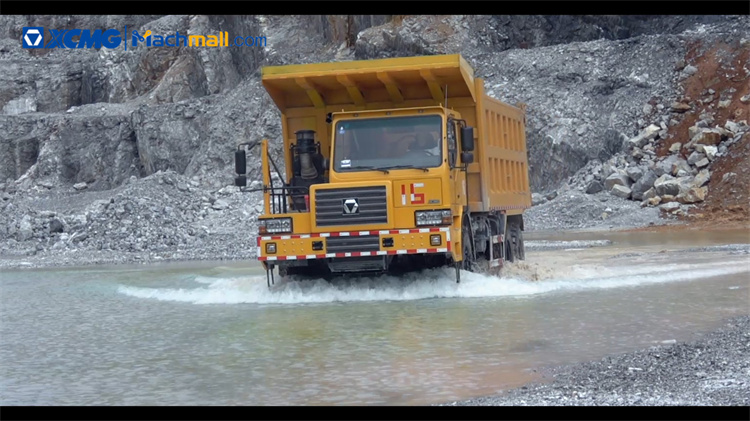

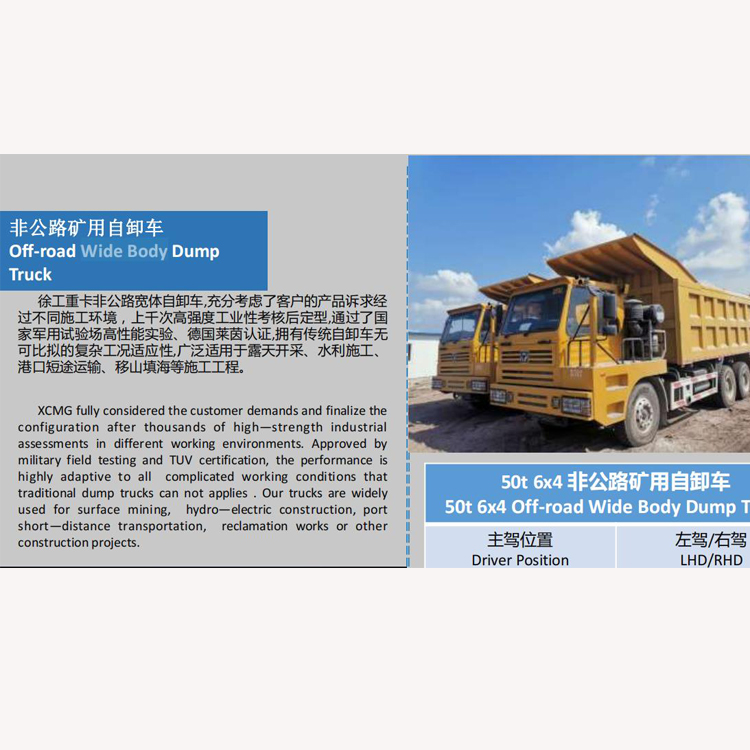

XCMG mining dump truck approved by military field testing and TUV certification, the performance is highly adaptive to all complicated working conditions that traditional dump trucks can not applies .

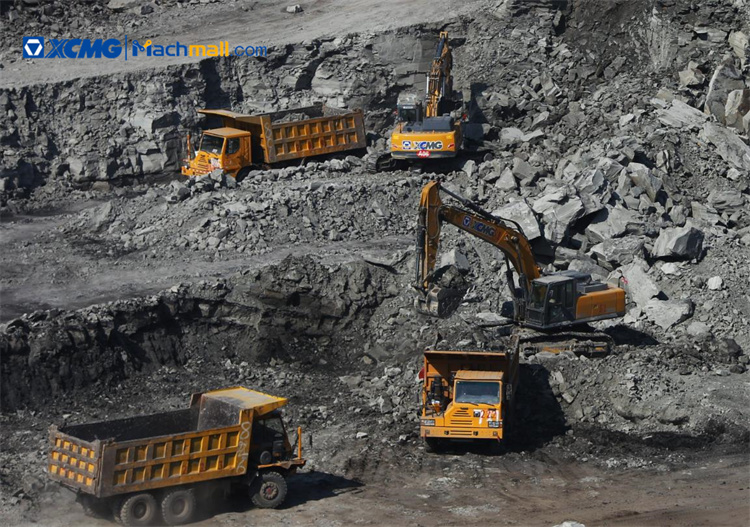

XCMG mining dump truck NXG5480D3T are widelyused for surface mining, hydro—electric construction, port short—distance transportation, reclamation works or other construction projects.



Powerful chassis system, the body and the cab are designed with steel structure, which is firm, safe and durable.



The cab has a wide view, equipped with air purifier, air conditioning, rear view camera and adjustable comfort seat to reduce the impact of vibration.



Euro 5 compliant engine that can be used anywhere in the world in different weather and operating conditions.



XCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T price



Vehicle model



NXG5480D3T

Mass parameter

GVW



17000kg

Kerb axle load

Front axle

5667kg

Rear axle

11333kg

GCW



47000kg

Max axle load

Front axle

11000kg

Rear axle

36000kg

Performance

Drive form



6×4

Max. speed



59km/h

Min. turning diameter



9.4m

Grade ability



42%

Fuel tank



300L

Dimensions

Overall dimensions

Length

8755mm

Width

2600mm

Height

3650mm

Wheelbase



4000+1400

Wheel track

Front tire

2025mm

Rear tire

1868mm

Min.Clearance



258mm

Approach angle



23°

Departure angle



36°

Front overhang



1460mm

Rear overhang



1895mm

Cargo size



5800×2400×1500

Cab

Model



2.5m Right dislocation cab

Passengers



1

Engine

Model



WP10.380E32

Displacement



9.726L

Output power



280kW/(r/min)

Max. torque speed



1460N·m/(r/min)

Clutch

Model



Φ430



Pull type diaphragm spring clutch

Operation



Hydraulic manual

Transmission

Model



7JSD180A+Retarder

PTO



QH50

Operation



Flexible shaft

Forward ratio



9.14/6.70/4.85/3.60/2.65/1.61/1

Reverse ratio



8.51

Driven axle

Model



16T HANDE

Main reducer ratio



8.88

Brake type



Drum

Differential lock



Inter-axle differential lock

Front axle

Model



9.5T HANDE

Brake type



Drum

Wheel

Rim



8.5V-20

Tire



12.00R20

Frame

Model



Groove straight beam

HxW-t



320mm

Frame Width



865mm

Suspension

Front

Type

Leaf spring

Leaf springs

10



XCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T priceXCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T priceXCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T priceXCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T priceXCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T priceXCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T priceXCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T priceXCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T priceXCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T priceXCMG 6*4 Mining Dump Truck 50 ton NXG5480D3T price
