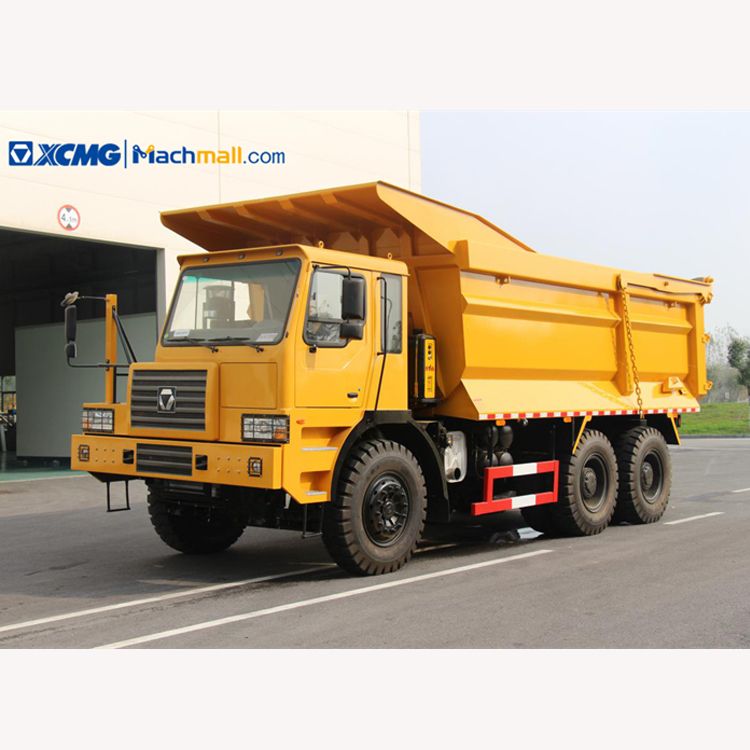

XCMG 65 ton LHD Off Road Widebody Mining Dump Truck for sale

Chat Now 1 / EA (Min. Order)
Model: NXG5650D3T
Engine: WEICHAI
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 65 ton LHD Off Road Widebody Mining Dump Truck for sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • Product PDF

Summary

  • Certification:CE/TUV
  • Dimension(L*W*H):8860*3275*3740mm
  • Weight:25500kg
  • Power(W):280kW
  • Model Number:NXG5650D3T
  • Place of Origin:Xuzhou, China
  • Max. Speed:45km/h
  • Brand Name:XCMG

Specifications

  • Weight:25500.000kg
  • Condition:New
  • Moving Type:Wheel
  • Wheel tread:2505mm
  • GVW:65000kg
  • Cargo size:5800*3000*1600mm
  • Left/Right Driving:LHD
  • Emission Standard:EUR III

XCMG 65 ton LHD Off Road Widebody Mining Dump Truck for sale

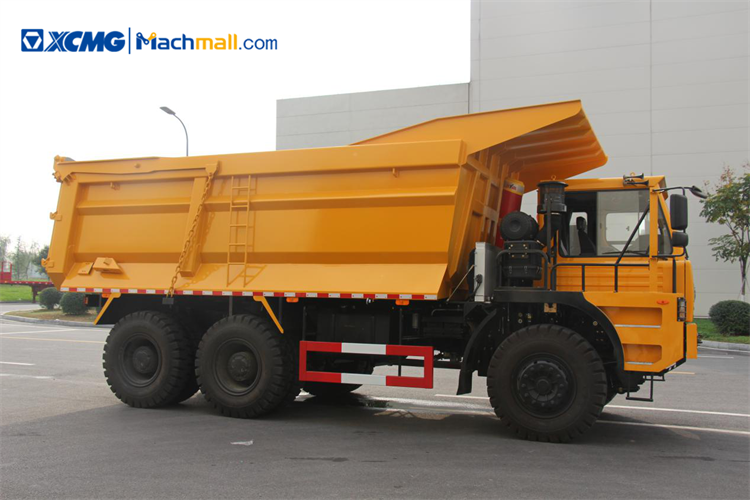

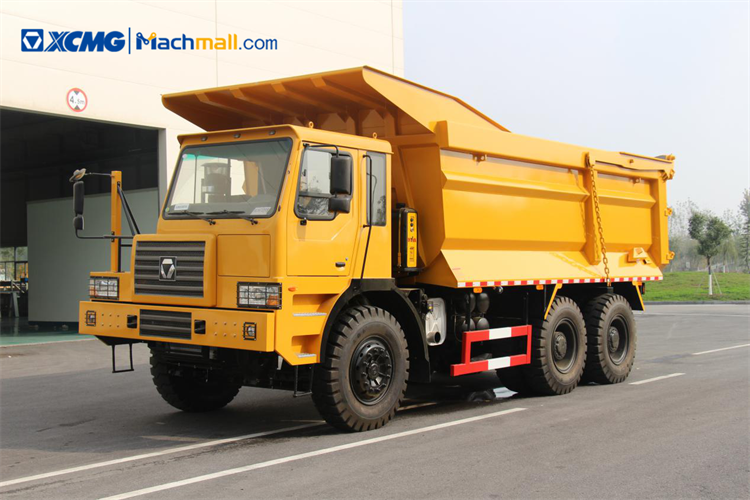

XCMG 65 ton LHD Off Road Widebody Mining Dump Truck.

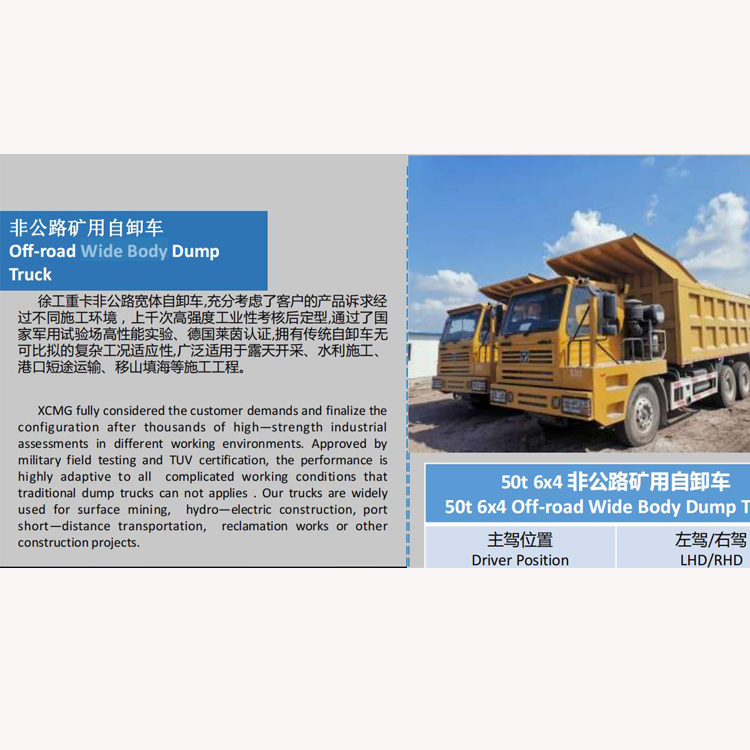

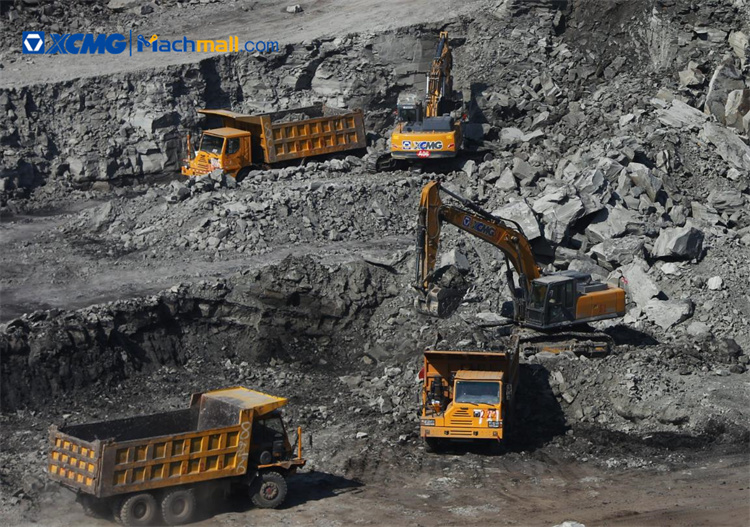

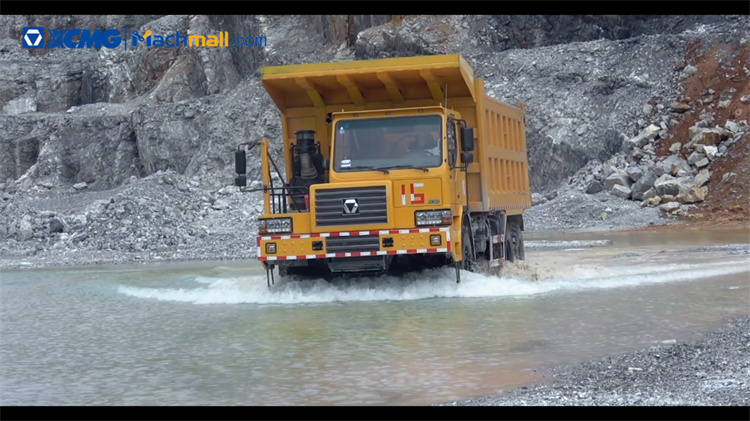

XCMG 65 ton LHD off road widebody mining dump truck NXG5650D3T are widelyused for surface mining, hydro—electric construction, port short—distance transportation, reclamation works or other construction projects.



XCMG off road widebody mining dump truck approved by military field testing and TUV certification, the performance is highly adaptive to all complicated working conditions that traditional dump trucks can not applies.



Highlights:



1. The drive shaft of XCMG off road widebody mining dump truck is upgraded to mine specific use, with a larger diameter, higher strength and more durable. High-strength spring steel is selected for the front and rear suspensions and the topology is optimized to significantly improve reliability while reducing weight, making it more robust in harsh road conditions.



2. The chassis of XCMG mining dump truck NXG5650D3T adopts high-strength double-layer frame structure and local three-layer reinforcement, which makes the truck more reliable and a stronger bearing capacity. Large flow steering machine makes steering is still easy under heavy load conditions.



3. The water-proof performance of the chassis has been improved by optimizing the location of parts and upgrading the water-proof measures. Standard desert air filter, optional oil filter air filter.



4· Superior power. The special mobile version of the mobile assembly composed of Weichai, Fast, and Hande is adopted, with strong performance, quick start and super easy. The engine is equipped with a four-wheeled engine as standard, which has more complete combustion, strong explosion, and torque up to 2200N.m.



5. The gearbox adopts a cast iron box body, which is durable and suitable for severe road conditions. The rear axle is preferably a 16-ton MAN rear axle or a 16-ton Mercedes-Benz rear axle, which has strong load-bearing capacity and has no pressure when climbing a pit.



6· The overall cage structure is adopted, and the thickest part of the steel plate is up to 4mm, which significantly improves the impact resistance and deformation resistance, and the safety reaches the international level.



7. High-grade sound insulation, heat insulation materials, and many vibration and noise reduction techniques are used in all-face applications to effectively block noise and vibration. Adopting excellent man-machine design concepts, the internal space is spacious and comfortable, the layout of various operating parts is reasonable, and the materials used are high-quality, making driving a pleasure.



Service:

1. Maximum warranty period is 60 months for the whole machine.

2. Three parts are only replaced but not repaired: engine, gearbox, and drive axle.

3. Free warranty: the first maintenance materials and all working hours are free after the customer purchases the engine, gearbox, and drive axle.

4. Fast channel for emergency accessories: exclusive procurement channel .



XCMG 65 ton LHD Off Road Widebody Mining Dump Truck for sale

PERFORMANCE PARAMETERS

Drive Type

6×4

Kerb Mass

25500kg

GVW

65000kg

Max. Speed

45km/h

Min. Turning Diameter

9.4m

Grade Ability

≥42%

Fuel Tank

400L

DIMENSIONS

Dimension (mm)

8860×3275×3740

Wheelbase (mm)

3800+1560

Min. Clearance

380mm

Approach Angle

30°

Departure Angle

48°

Front Overhang

1685mm

Rear Overhang

1815mm

Cargo size (mm)

5800×3000×1600

CABIN

Model

3.0m Left dislocation cab

Left/Right Driving

LHD

AC

Optional

Person Allowed in

1

ENGINE

Model

WP12G380E310

Emission Standard

EUR III

Displacement

11.596L

Output Power

280kW

Max Torque Speed

1650N·m
