QY25 crane price | XCMG QY25 25 ton mobile crane for sale
FOB for Cranes Reference Price:Get Latest Price
$90000.00-$100000.00 1 / EA (Min. Order)
Model: QY25K-II
Engine: SHANGCHAI
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
QY25 crane price | XCMG QY25 25 ton mobile crane for sale
QY25 crane price | XCMG QY25 25 ton mobile crane for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
  • Product Brochure
Summary
  • Model Number:QY25K-II
  • Brand Name:XCMG
  • Place of Origin:XUZHOU, CHINA
  • Max. Lifting Height:43m
  • Max. Lifting Load:25ton
Details
  • weight:29400.000kg
  • Condition:New
  • Moving Type:Other

QY25 crane price | XCMG QY25 25 ton mobile crane for sale

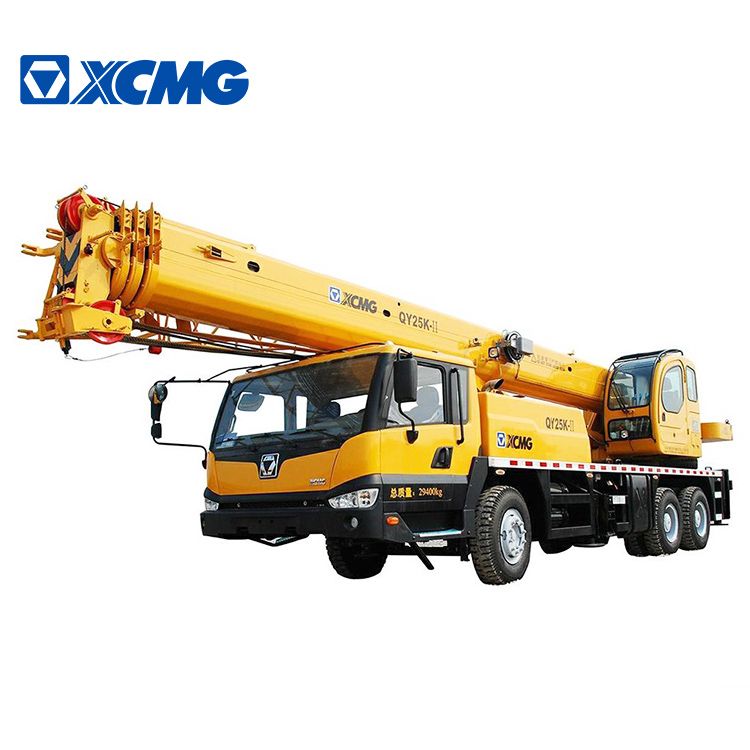

XCMG QY25 25 ton mobile crane.



XCMG QY25 25 ton mobile crane is the product with high reliability inheriting XCMG classical and advanced technology about design and manufacture truck crane of many years and based on mature technology.



The operations of  25 ton mobile crane QY25 are very simple, convenient and flexible. It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.



QY25 mobile crane advantages and highlights:

1. Bi-hexagonal cross-section boom has small depth-width ratio, strong bearing capacity, small deformation, strong anti-bending and powerful lifting capacity. The main boom length is 10.7m to 34m, completely surpassing its rivals with excellent lifting capacity. Steel plate for main boom is BS700MC, lifting performance of fully-extended boom improves 10~20%, exceeding its rival 1~7%.

2. Plug-in boom head effectively increases the boom connect length and reduces boom deformation.

3. QY25 has superior travel and grade ability. The max. grade ability is 40%, max. travel speed is 80km/h.

4. Open fixed displacement pump and variable displacement motor system is adopted. The load sensitive system that researched and developed by ourselves contributes to smooth operation, high efficiency and energy saving. High pressure variable displacement motor contributes to light load with high speed and heavy load with low speed.

5. The boom telescoping system of XCMG had obtained Chinese patent, effectively prevent occurrence of telescoping cylinder bending and boom broking cause by mis- operation, and therefore operation safety is improved.

6. Duplex mode of the engine working condition, uses less power when working on the superstructure as much as possible to reduce fuel consumption.



QY25 crane price | XCMG QY25 25 ton mobile crane for sale

Description



Unit

Parameter value

Overall length



mm

12650

Overall width



mm

2500

Overall Height



mm

3380

Wheel Base



mm

4425+1350

Track



mm

2074/1834/1834

Total vehicle mass in travel configuration



kg

29400

Axle load

Front axle

kg

6600



Rear axle



22800

Engine Model





SC8DK280Q3

Engine rated power



kw/(r/min)

206/2200

Engine rated torque



N.m/(r/min)

1112/1400

Max. travel speed



km/h

75

Min. travel speed



km/h

2.9

Min. turning diameter



m

22

Min. ground clearance



mm

260

Max. grade ability



%

30

Approach angle



°

16

Departure angle



°

13

Braking distance (at 30 km/h, full load )



m

≤10

Oil consumption per 100km



L

≤37

Exterior noise level during acceleration traveling



dB (A)

84

Noise level at seated position



dB (A)

90
