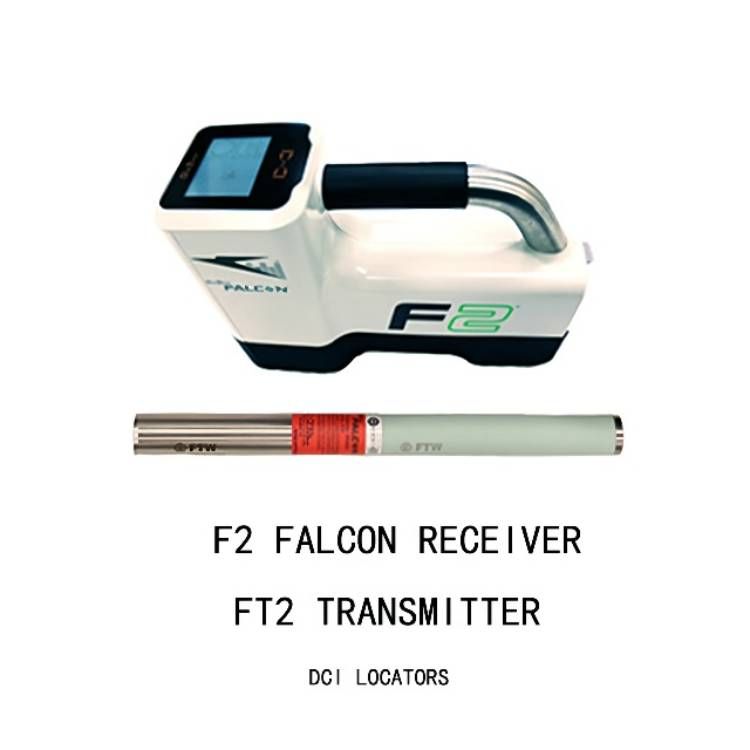

DCI  F2+ FALCON RECEIVER AND FT2 TRANSMITTER

  • DCI  F2+ FALCON RECEIVER AND FT2 TRANSMITTER
  • DCI  F2+ FALCON RECEIVER AND FT2 TRANSMITTER
  • DCI  F2+ FALCON RECEIVER AND FT2 TRANSMITTER
  • DCI  F2+ FALCON RECEIVER AND FT2 TRANSMITTER
  • DCI  F2+ FALCON RECEIVER AND FT2 TRANSMITTER

Share:

DCI F2+ FALCON RECEIVER AND FT2 TRANSMITTER

$1.00-$10000.00 1 / EA (Min. Order)
Model: F2+/FT2
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
DCI  F2+ FALCON RECEIVER AND FT2 TRANSMITTER
DCI  F2+ FALCON RECEIVER AND FT2 TRANSMITTER
Quantity:
- + /EA

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

Specifications

  • Weight:1.000kg
  • Condition:New
  • Moving Type:Other
  • Wideband Range ::4.5 – 45 kHz
  • Depth Range ::100 ft
  • Data Range : :125 ft
  • Place of Origin ::MADE IN THE USA

PRODUCT DESCRIPTION

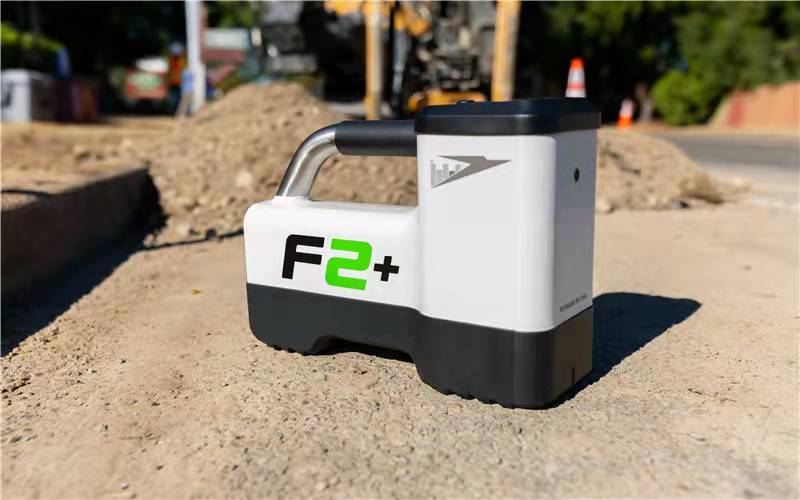

F2+ Falcon Receiver measures jobsite noise and clearly displays several bands of the quietest transmitter frequencies to select from. Falcon F2+ enables an operator to choose two of the best bands of frequencies and complete more HDD projects at greater depths in the noisiest environments.


Product ID/Model Number

FF2+/FAR2

Receiving Frequencies

4.5-45KHz

Accuracy

±5%up to max depth range

Transmitter Depth Range

Up to 160ft(48m)

Transmitter Date Range

Up to 200ft(61m)

Compatible Transmitters

FT2L+,FT2,FT25

Compatible Receiver Batteries

Lithium-lon FBP and NiMH SBP

Receiving battery Life

Up to 14hrs

Compatible Remote Dispiays

Aurora and FCD

Telemetry Range

Up to 3000ft(914m)

– The DigiTrak Falcon Frequency Optimizer measures active interference found at any jobsite, every day, every time
– Provides two frequency bands optimized for each bore
– A single, wide band frequency transmitter supports the use of hundreds of frequencies between 4.5 kHz and 45 kHz
– Pair two optimized frequency bands in one with a single transmitter using an IR port
– Seamlessly boosts data range and stabilizes depth readings in extreme interference with Max Mod
– 0.1% pitch resolution
– Increased power provides 100 ft. (30 m) depth and 125 ft. (38 m) data range
– Supports both Roll Offset and Target Steering™
– Compatible with the DigiTrak Aurora
– Features the widest range of frequencies in the industry
– Analyzes active interference at every jobsite
– Provides nine bands of optimized frequencies to help avoid active interference
– Uses the most powerful 15-inch transmitter available

Active interference is one of the primary obstacles to completing HDD projects. It blocks a locating system from receiving data that enables a crew to navigate the drill head. It can also impair the accuracy of depth measurements. The ability of a locating system to perform well in interference has become a crucial factor in maintaining productivity and completing jobs on time.DCI has taken a revolutionary approach to tackling active interference. DigiTrak Falcon receivers analyze jobsite interference across hundreds of frequencies, then group the best frequencies into each of nine bands. You choose the two best bands—every bore, every day. Using frequencies tailored to every bore, you’ll complete more challenging HDD projects at greater depths—with just one wideband transmitter.
