XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E price

$90000.00-$130000.00 1 / EA (Min. Order)
Model: XR160E
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • Product PDF

Summary

  • Certification:CE
  • Dimension(L*W*H):14053 x 2960 x 3295mm
  • Weight:53ton
  • Power(W):150kw
  • Usage:Euro Ⅲ
  • Model Number:XR160E
  • Brand Name:XCMG
  • Place of Origin:XUZHOU, CHINA

Specifications

  • Weight:53000.000kg
  • Condition:New
  • Moving Type:Other

XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E price

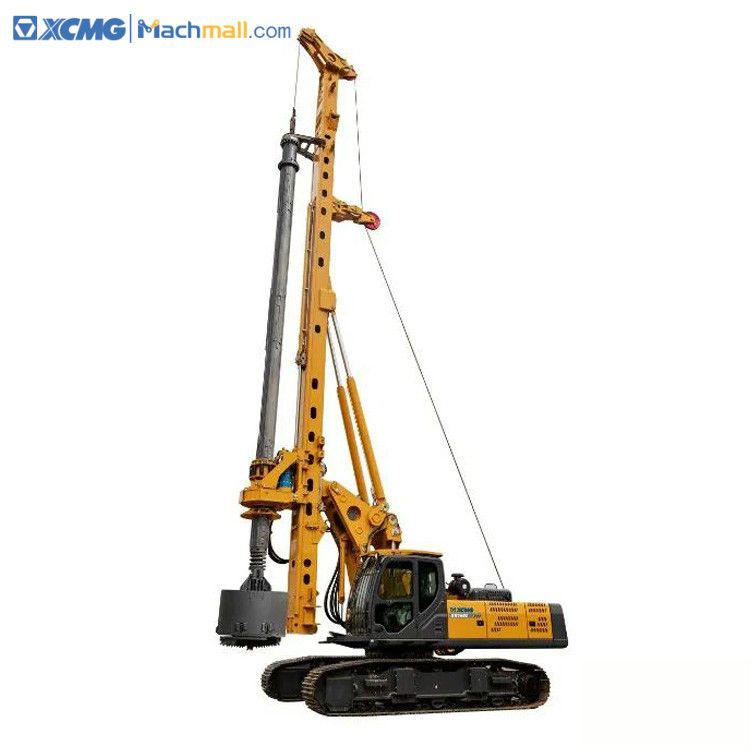

XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E



1, XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E: One machine multi-energy, can achieve cylinder pressure, rolling pressure, long spiral, double power head and other functions to quickly switch, To meet the needs of more different projects;



2, The configuration of Cummins electric turbo engine, strong power, convenient and fast service;



3, The maximum output torque of the powerhead can reach 160kN.m, speed up to 35r/min, higher operating efficiency;



4, Powerhead optional with high-speed soil-throwing function;



5, The main and sub-rolled are using single-row rope technology, wire rope life than multi-layer rope 2 to 4 times longer, lower cost of use;



6, The use of the two-boom large parallelly deformed mechanism, large support angle, support range increased by 24%, more stable operation;



7, A hydraulic main system using negative flow control technology, fast response, good handling performance;



8, High-power dual hydraulic oil cooler, to meet the high-temperature area construction;



9, Intelligent control system to achieve the verticality of the drill mast automatic adjustment and display, automatic swing, automatic soil and other functions;



10, The use of TDP series rotary drilling rig dedicated hydraulic track chassis, large-diameter swing support, better work stability.



XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E price

Project.

Unit.

Parameters.

The working parameters.





Maximum drilling diameter.

Mm.

1500 / 1300

Maximum drilling depth.

M.

56

Engine parameters.





Model.

-

QSB7.

Rated power.

kW.

150

Power head parameters.





Maximum output torque.

kN.m.

160

Speed.

r/min.

5-35

Pressurized cylinder parameters.





Maximum pressure.

Kn.

160

Maximum lift force.

Kn.

160

Maximum travel.

M.

4.2

Pressurized roll-up parameters.





Maximum pressure.

Kn.

160*

Maximum lift force.

Kn.

180*

Maximum travel.

M.

13*

The main roll-up parameter.





Maximum lift force.

Kn.

160

Maximum roll-up speed.

m/min.

80

Sub-roll-up parameters.





Maximum lift force.

Kn.

60

Maximum roll-up speed.

m/min.

80

Drill mast tilt side/forward/back tilt.

°

4/5/15.

Chassis parameters.





Maximum walking speed.

km/h.

2.5

Maximum climb.

%

40

Track plate width.

Mm.

700

The maximum total width of the track.

Mm.

2960-4200

System parameters.





Work pressure.

MPa.

35

The quality of the whole machine.

T.

53

Dimensions.





The working state.

Mm.

7862 x 4200 x 19028.

The shipping status.

Mm.

14053 x 2960 x 3295.
