XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale

  • XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale
  • XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale
  • XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale
  • XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale
  • XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale
  • XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale

Share:
XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale
FOB for Cranes Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: SQ10SK3Q
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale
XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Certification:CE/ISO
  • Model Number:SQ10SK3Q
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Span:5.6m
  • Max. Lifting Height:14m
  • Rated Lifting Moment:25t*m
  • Rated Loading Capacity:10 ton
  • Application:Construction
Specifications
  • weight:4060.000kg
  • Condition:New
  • Moving Type:Other

XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale

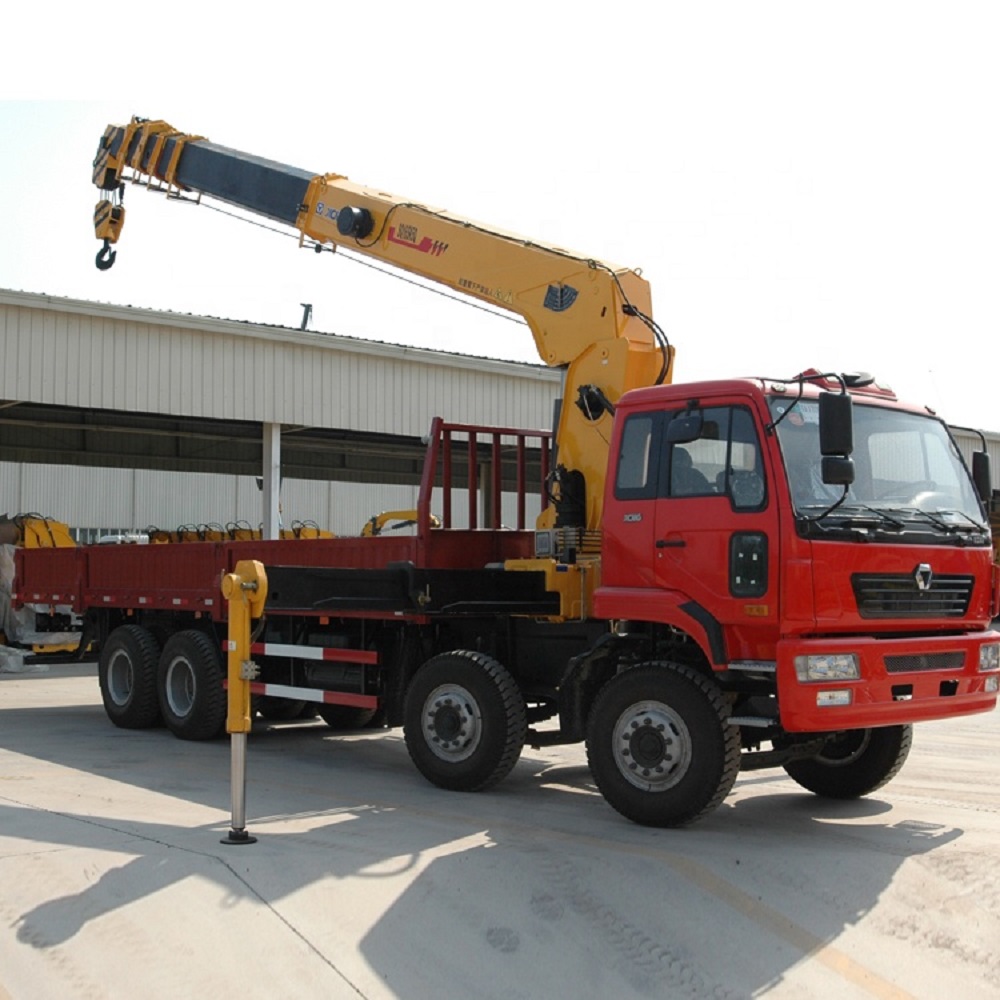

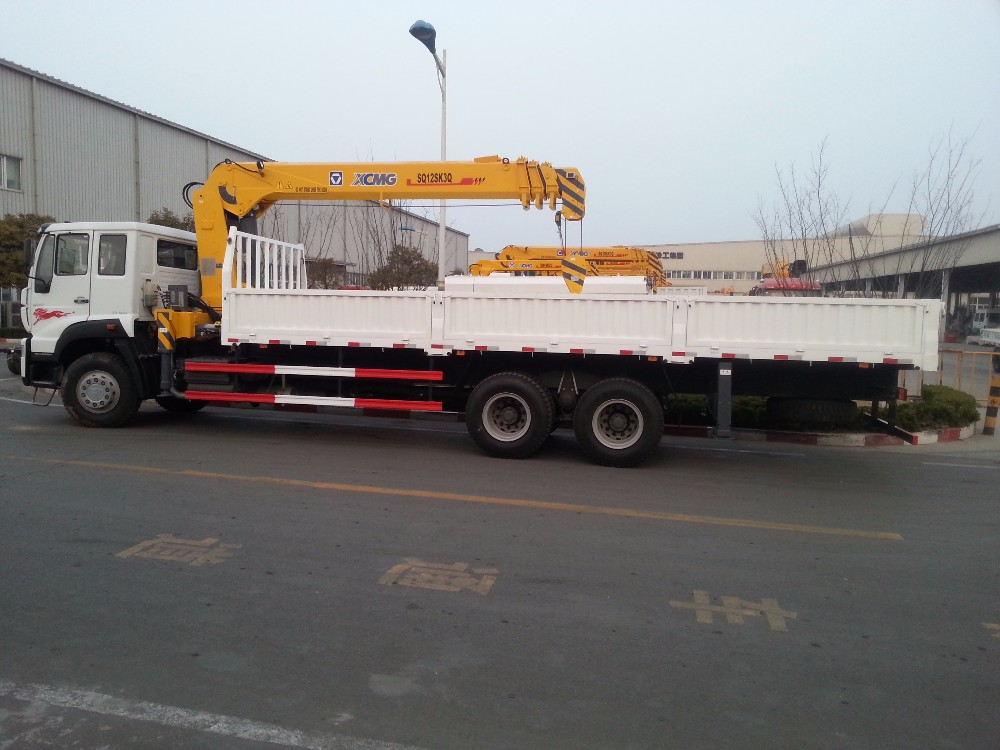

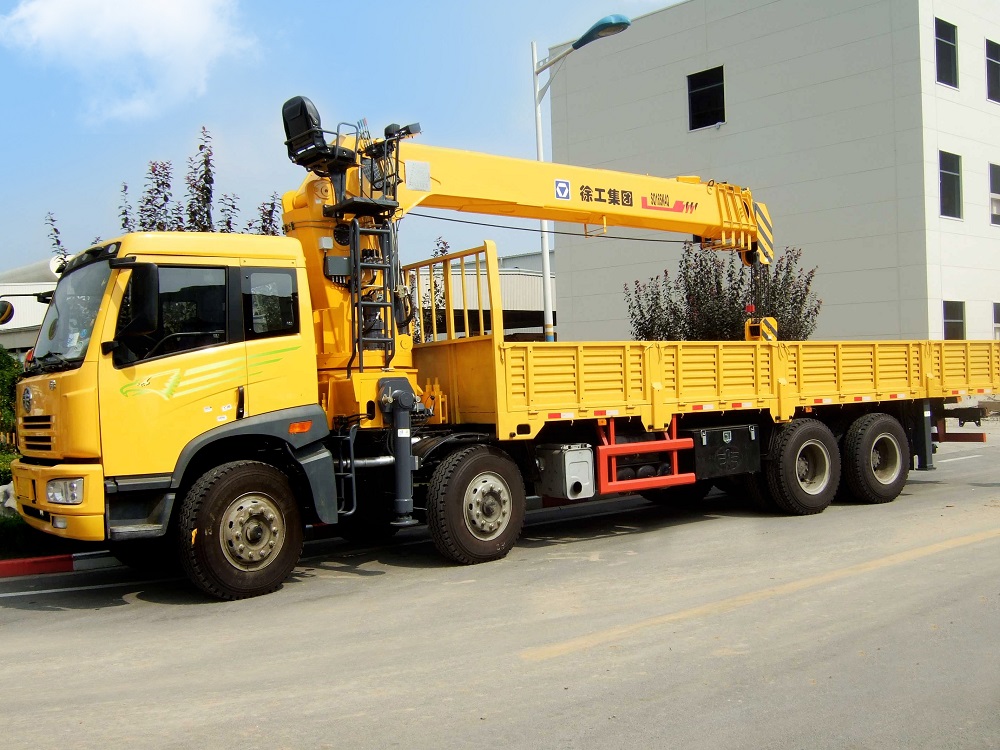

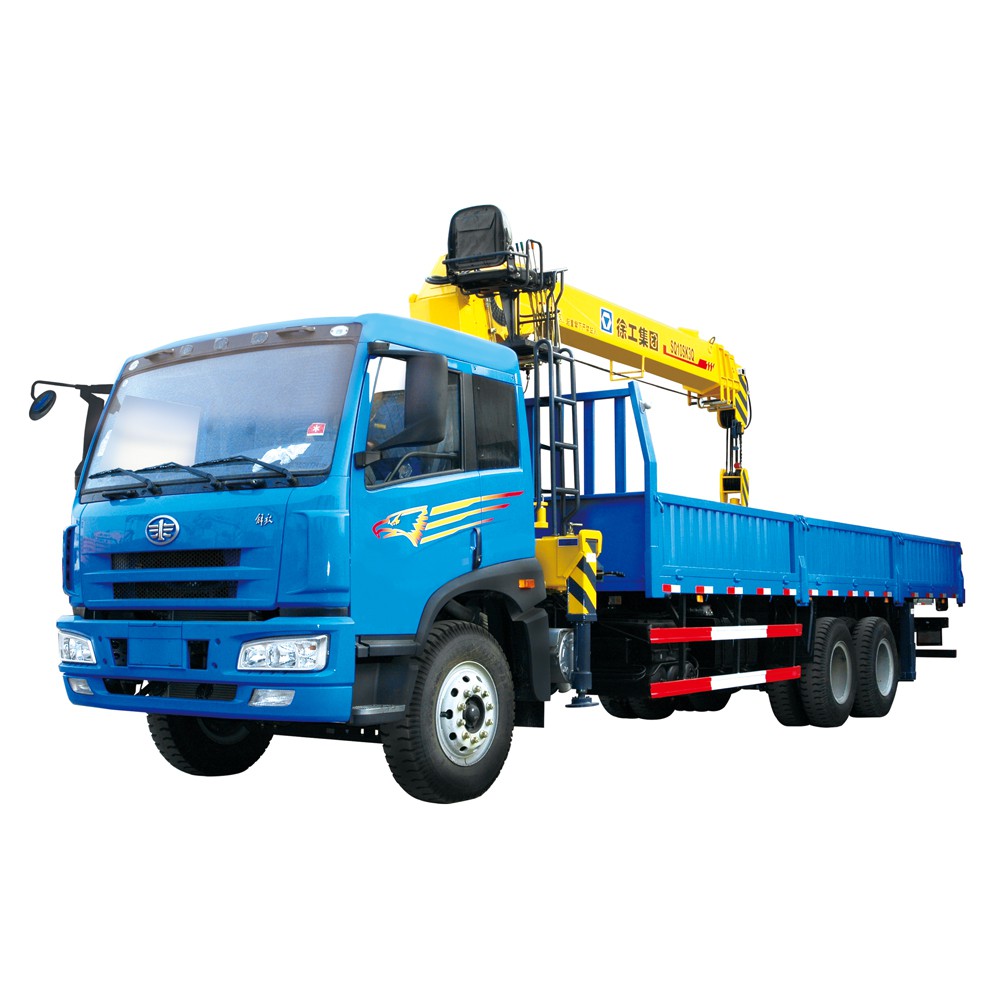

XCMG 10 ton New Telescopic Boom Truck Mounted Crane SQ10SK3Q.



1,Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.

2,End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.

3,Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.

4,Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.

5,Dual pump converging
The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.

6,Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.



XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale

Ltem

Unit

References

Max Lifting Moment

t*m

25

Max Lifting Capacity

kg

10000

Boom length

m

5.02~12.36

Max Lifting Height

m

14

Derricking range

°

0~75°

Outrigger span

mm

2280~5580

Size(length×width×height)

mm

5350×2430×3290



XCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for saleXCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for saleXCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for saleXCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for saleXCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for saleXCMG New Truck Mounted Crane SQ10SK3Q truck with crane 10 ton for sale
