- Overall Dimension:2480*1190*2600mm
- Table Size:2275*1120mm
- Max Lifting Height:16m
- Min Lifting Height:1.47m
- Rated Loading Capacity:320kg
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:XG1412HD
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Product Name:G60225A7B550FC
- Display online time:2021-03-13
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Moving Type:other

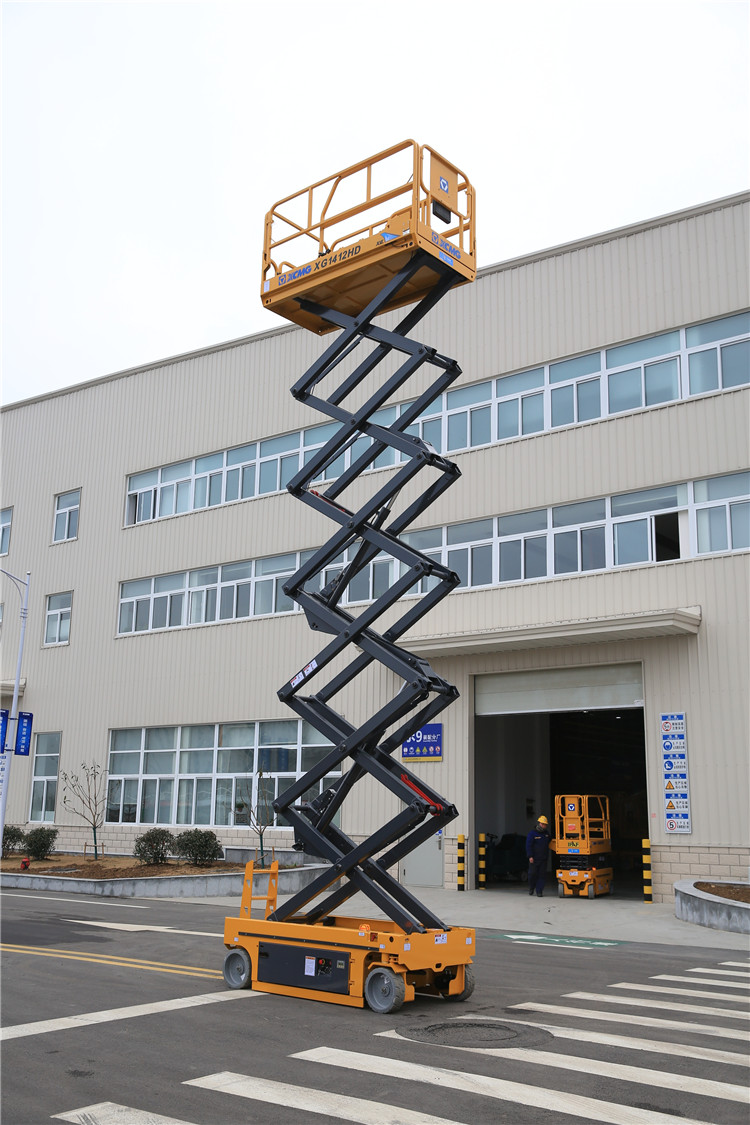

XCMG manufacturer 14m XG1412HD hydraulic scissor lift.
New XG1412HD scissor lift elevated work platform developed by XCMG has the work height at 16m, the vehicle width at 1.47m, the rated load at 320kg, max. platform length at 3.2m and max. gradeability at 25%.
This kind of platforms are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.
Advantages and features:
1.Effective and energy-saving electric-drive system features zero emission and low noise.
2.features compact structure, advanced performance, completed safety devices.
3.Meeting the customer needing for safety, reliability and intelligence.
4."Zero Turning Radius "is unique and enable machine to corner in narrow room.
5.Max. payload at 320kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.
Dimension of machine Length (without ladder)
Dimension of machine Width
Dimension of machine Height (platform folded)
Min. ground clearance
Dimension of working platform Length
Dimension of working platform Width
Dimension of working platform Height
Total mass of machine
Max. height of platform
Min. height of platform
Max. working height
Min. turning radius (inner wheel/outer wheel)
Payload of extended platform
Lifting / traveling motor Rated power
Traceless and solid /381×127
