Shangruo Technology Active Power Filter SR-APF-025-RE

$1000.00-$30000.00 1 / EA (Min. Order)
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Shangruo Technology  Active Power Filter SR-APF-025-RE

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Brand name:Shangruo Technology
  • Place of Origin:China
  • Type:Active Power Filter
  • Packing:Wooden case

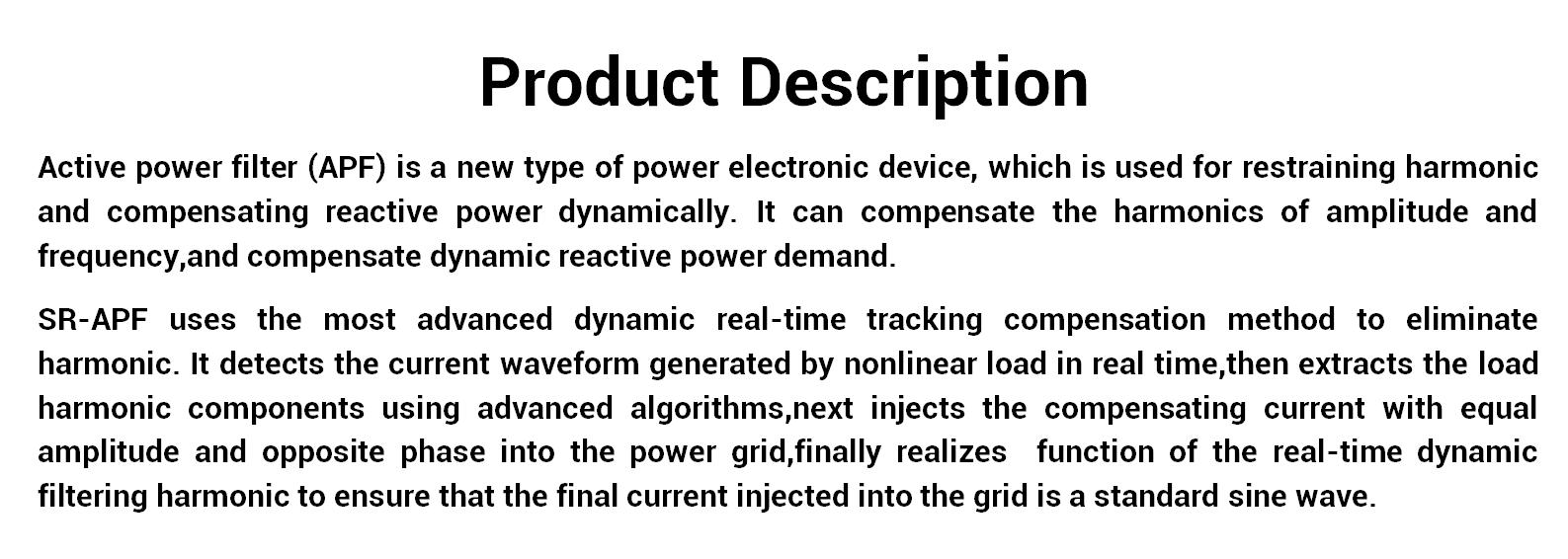

  • Technology:Uses the most advanced dynamic real-time tracking compensation method to eliminate harmonic.
  • Accessories:Product Description and Qualification Certificate
  • Usage: Parallel to power supply
  • Certification:CE, ETL certification (UL508), Ministry of Information Industry inspection report, Ministry of Electric Power Industry test report, IEEE 61000, GJB, CE101 and CE102 Tests, CQC Accreditation Laboratory Type Test Repor

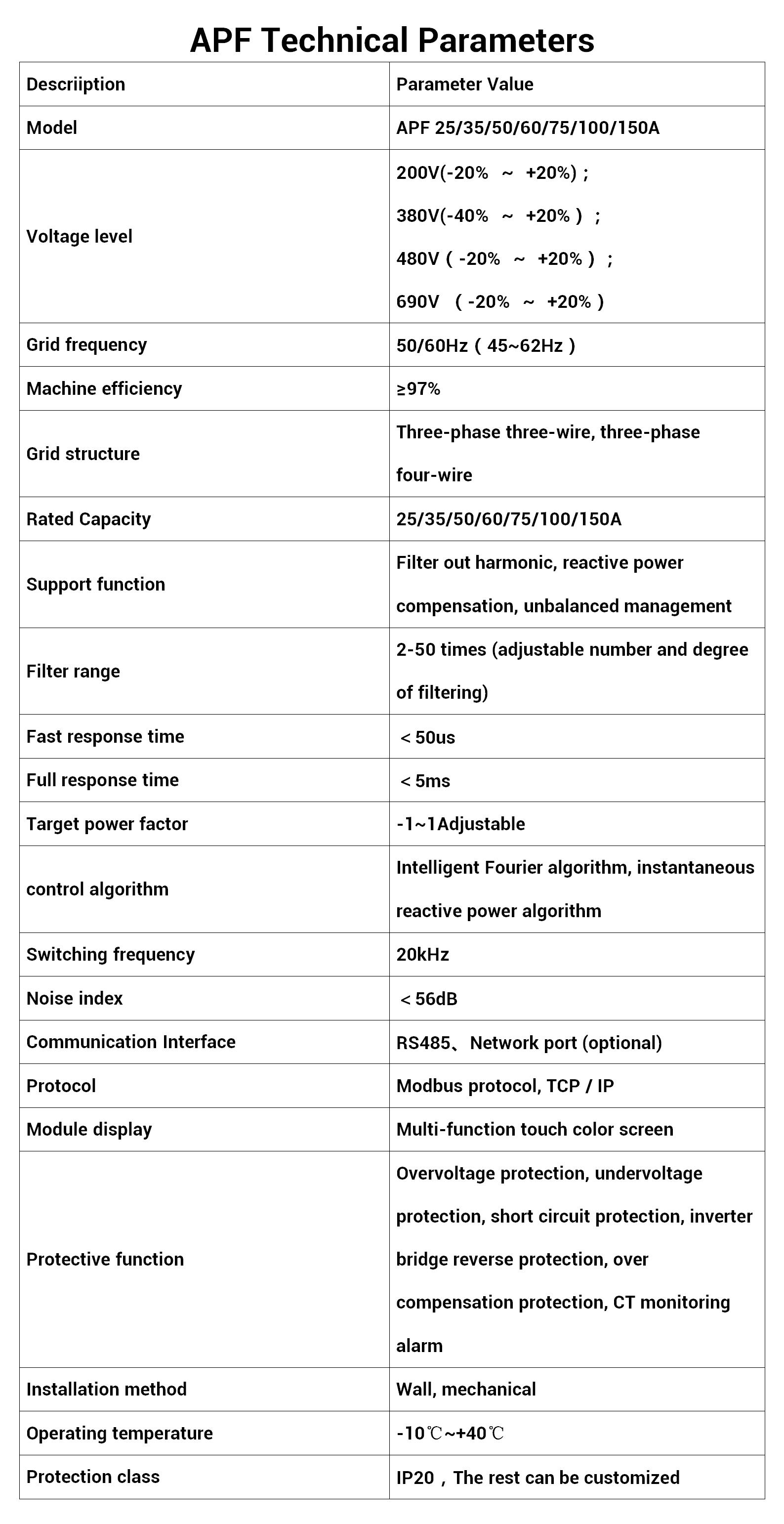

Specifications

  • Weight:18.000kg
  • Certification:CE/ISO9001
  • Condition:New

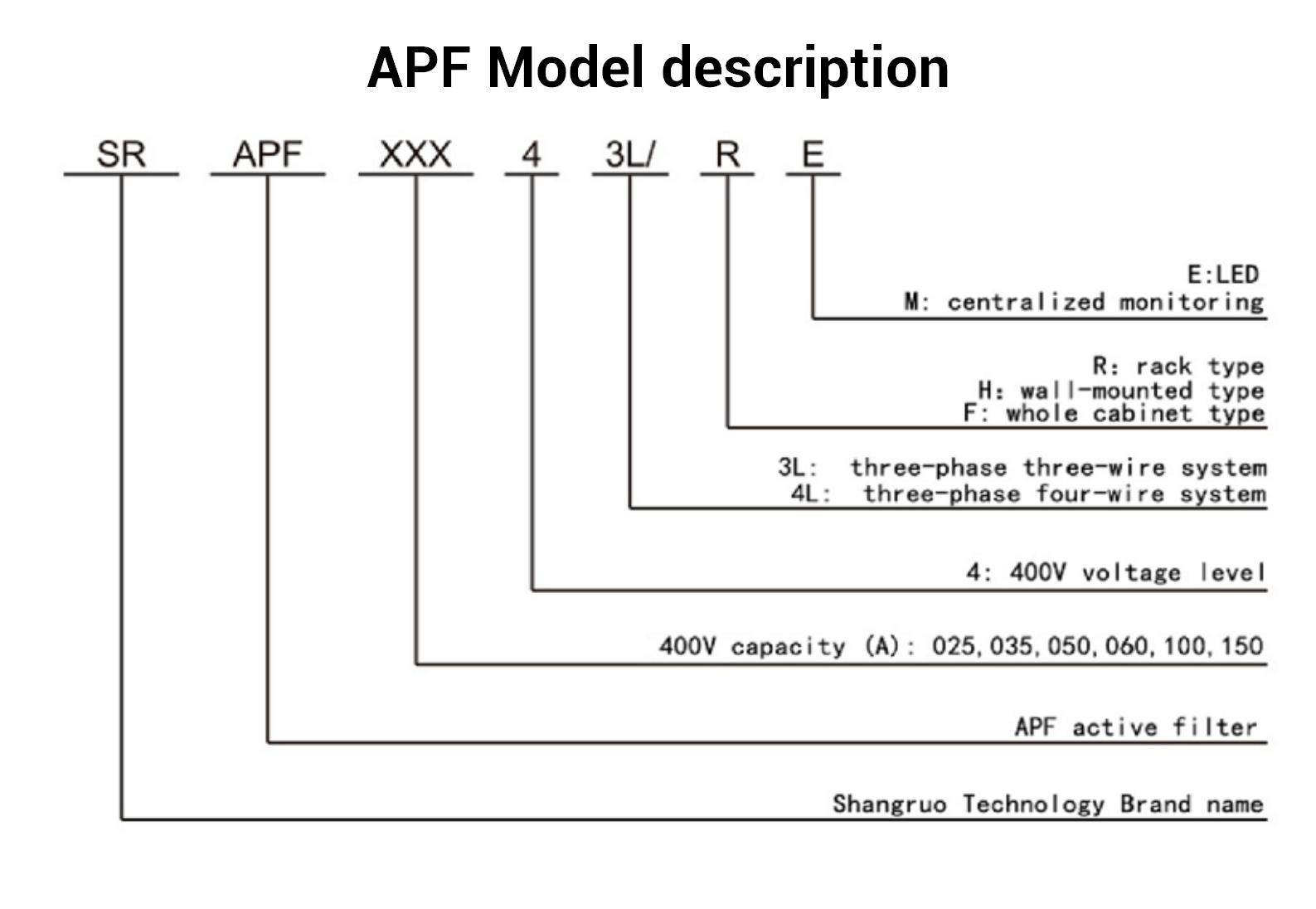

  • Product Name:SR-APF-025-RE
  • Display online time:2019-4-1
  • weight:18KG
  • Voltage level:200V(-20% ~ +20%);400V(-40% ~ +20%);480V(-20% ~ +20%);690V (-20% ~ +20%)
  • Grid frequency:50/60Hz(45~62Hz)
  • Rated output capacity:25/35/50/60/75/100/150A
  • Machine efficiency:≥97%
  • Grid structure:Three-phase three-wire, three-phase four-wire
  • Support function:Filter out harmonic, reactive power compensation, unbalanced management
  • Filter range:2-50 times (adjustable number and degree of filtering)
  • Fast response time:<50us
  • Full response time:<5ms
  • Noise index:<56dB
  • Installation method:Wall mounted
  • Communication Interface:RS485、Network port (optional)
  • Protocol:Modbus protocol, TCP / IP
  • Module display:Multi-function touch color screen
  • Operating temperature:-10℃~+40℃
  • Protection class:IP20,The rest can be customized

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

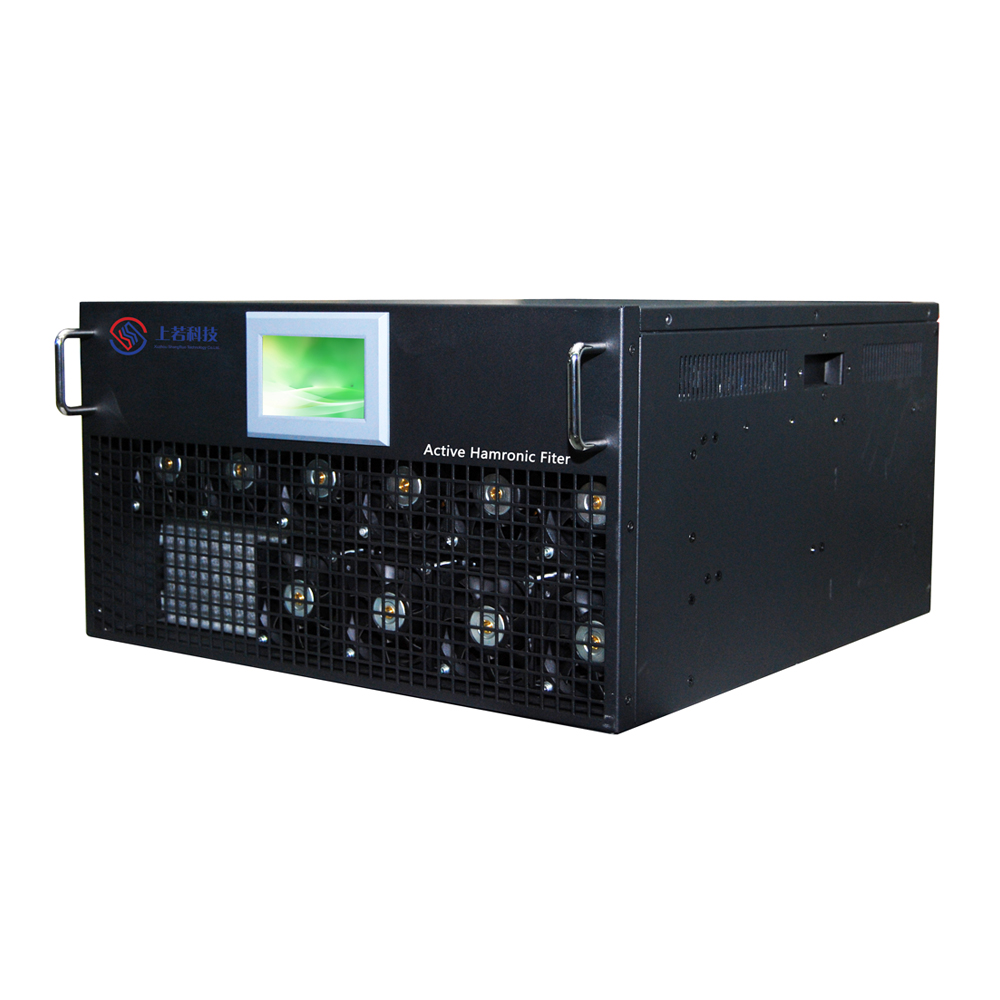

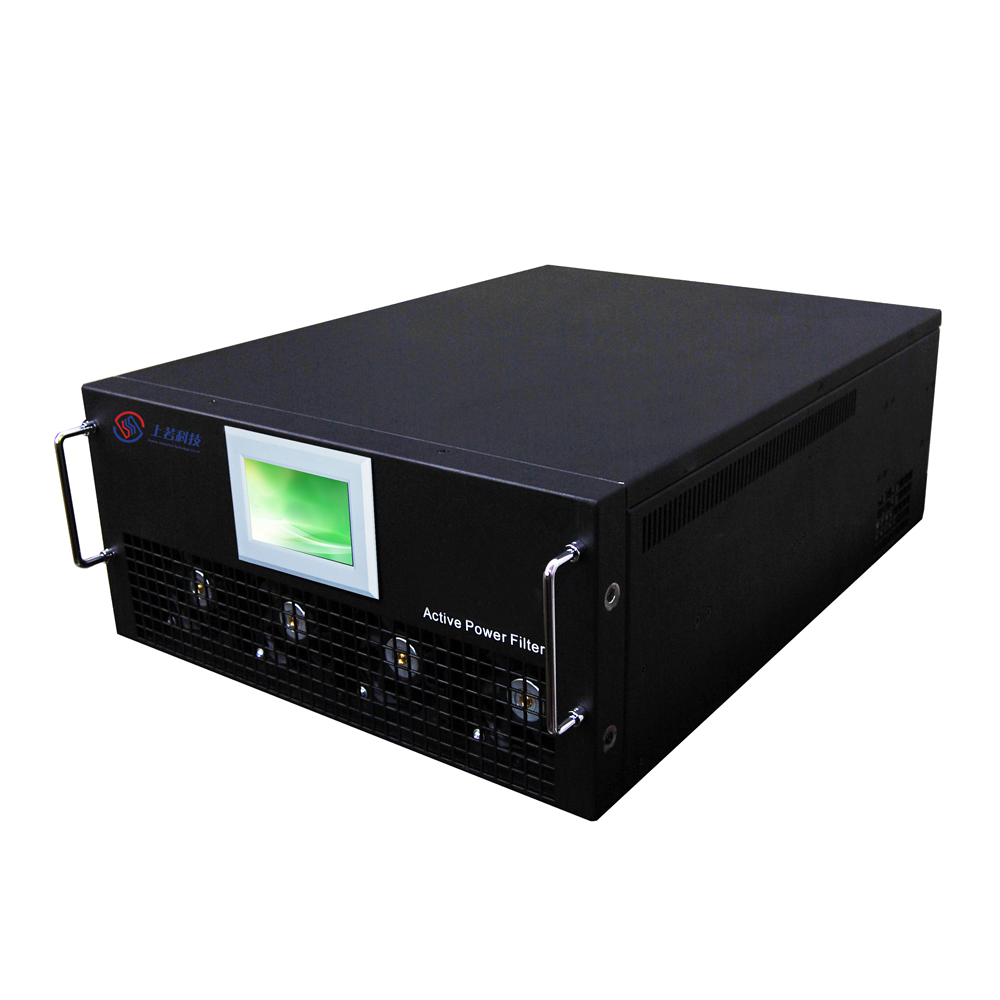

                                   Product Show

Shangruo Technology  Active Power Filter SR-APF-025-REShangruo Technology  Active Power Filter SR-APF-025-REShangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE


Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

                                   Company Profile

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

                                         Certification
Shangruo Technology  Active Power Filter SR-APF-025-RE


Shangruo Technology  Active Power Filter SR-APF-025-RE

Shangruo Technology  Active Power Filter SR-APF-025-RE

Send your message to this supplier:

Email:
to:
Xuzhou Shangruo Technology Co.,Ltd
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
back to top
Response Time : 12 hours
Shangruo Technology has always focused on smart power solutions, specializing in solving power quality problems such as reactive power, harmonics, and three-phase current imbalance in power systems.
