FOB Price: $1000.00-$30000.00
View All >
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Shangruo Technology  Static Var Generator SR-SVG-030-RE

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare
Details
Specs & Compare
Select 3 models for comparison
Brand name
Place of Origin
Type
Packing
Technology
Accessories
Usage
Certification
Electrical Engineering
Shangruo Technology
China
Static Var Generator
Wooden case
The most advanced dynamic real-time tracking compensation method is used to compensate reactive power.
Product Description and Qualification Certificate
Parallel to power supply
CE, ETL certification (UL508), Ministry of Information Industry inspection report, Ministry of Electric Power Industry test report, IEEE 61000, GJB, CE101 and CE102 Tests, CQC Accreditation Laboratory Type Test Repor
+   Add a Product
+   Add a Product

Summary

  • Brand name:Shangruo Technology
  • Place of Origin:China
  • Type:Static Var Generator
  • Packing:Wooden case
  • Technology:The most advanced dynamic real-time tracking compensation method is used to compensate reactive power.
  • Accessories:Product Description and Qualification Certificate
  • Usage: Parallel to power supply
  • Certification:CE, ETL certification (UL508), Ministry of Information Industry inspection report, Ministry of Electric Power Industry test report, IEEE 61000, GJB, CE101 and CE102 Tests, CQC Accreditation Laboratory Type Test Repor

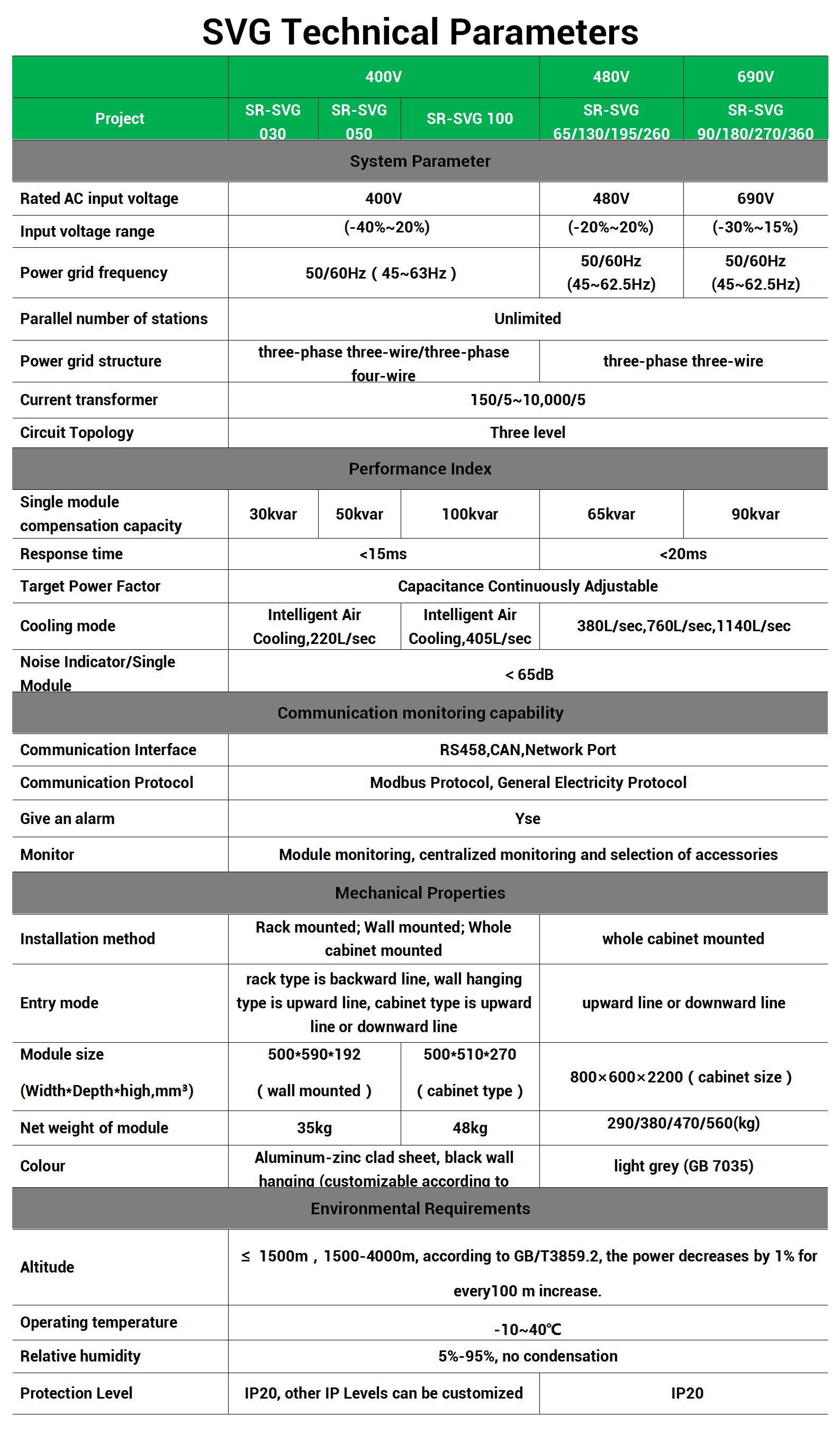

Specifications

  • weight:35.000kg
  • Certification:CE/ISO9001
  • Condition:New
  • Product Name:SR-SVG-030-RE
  • Display online time:2019-4-1
  • weight:35KG
  • Voltage level:400V(-40% ~ +20%);480V(-20% ~ +20%);690V (-30% ~ +15%)
  • Grid frequency:50/60Hz(45~63Hz)
  • Rated capacity of single module:30/50/100/65/90kvar
  • Machine efficiency:≥97%
  • Grid structure:Three-phase three-wire, three-phase four-wire

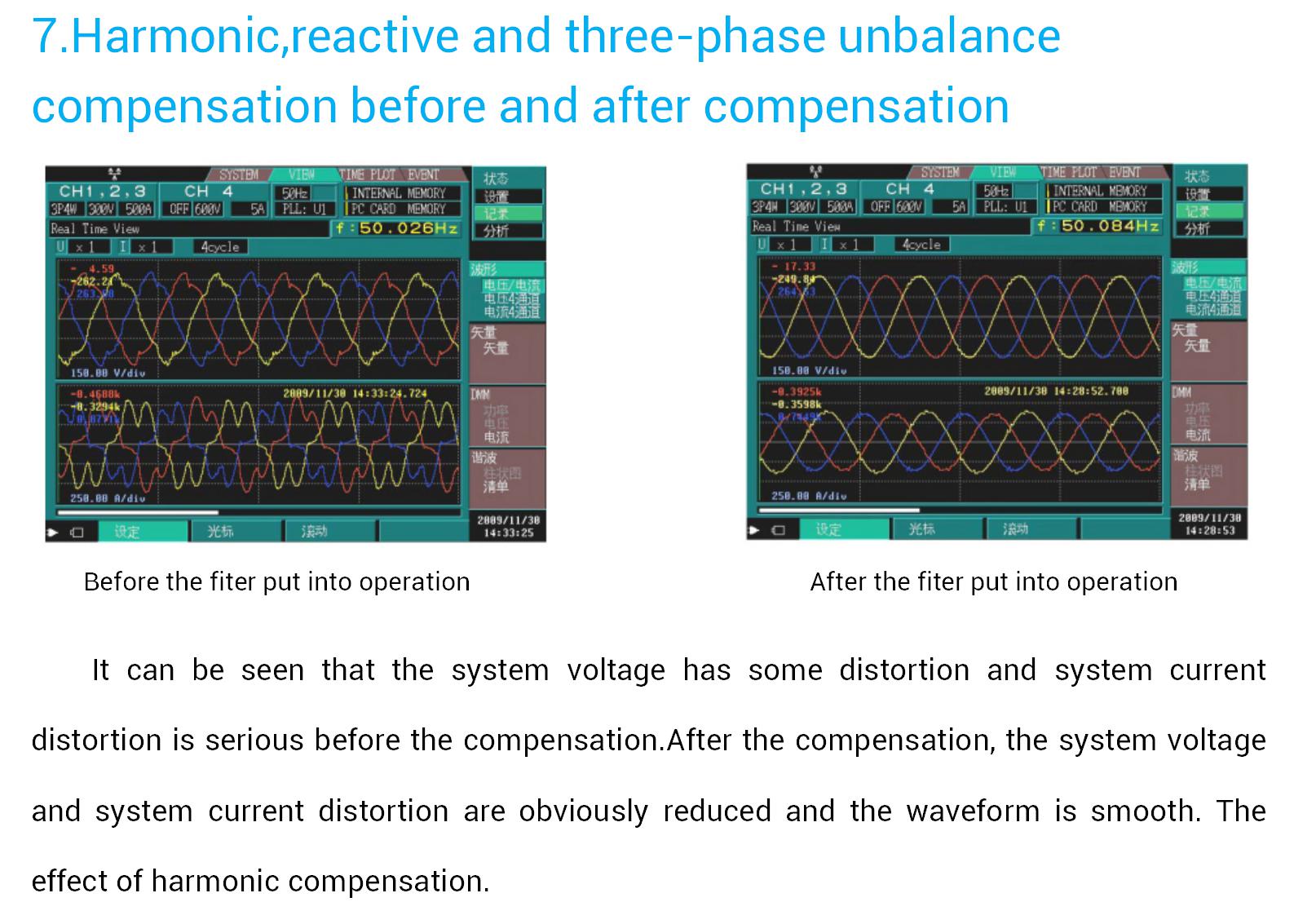

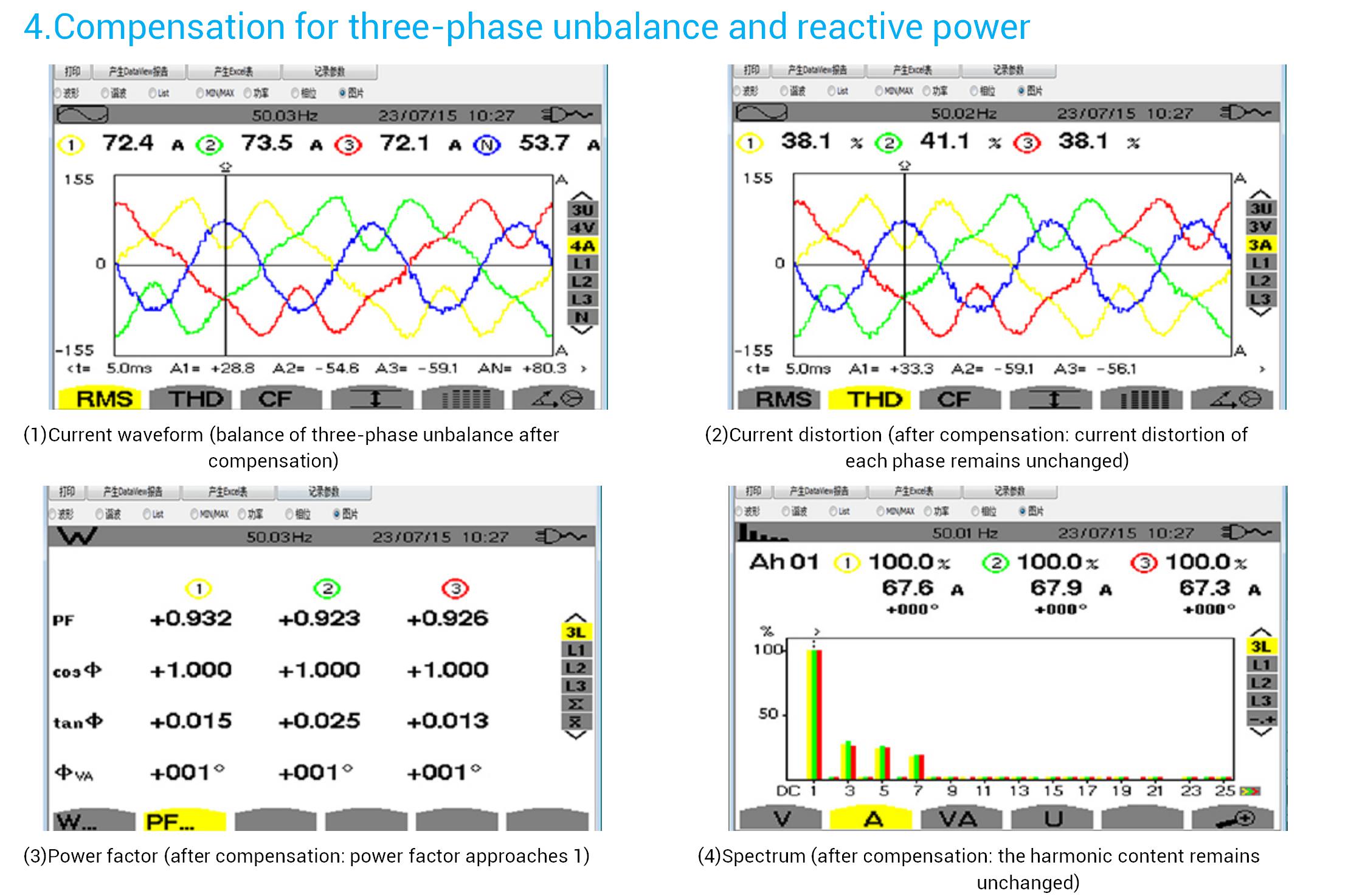

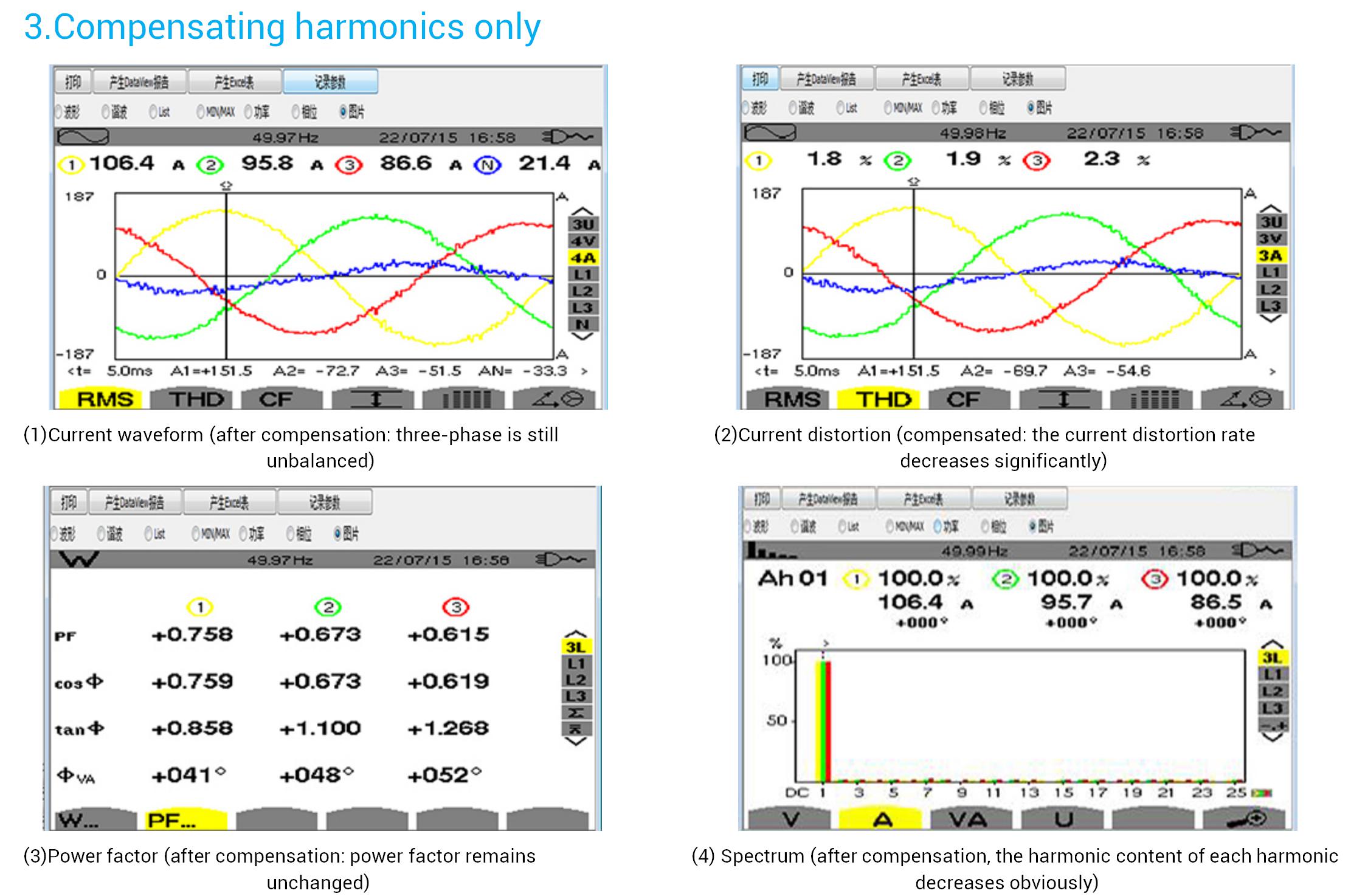

  • Support function:Filter out harmonic, reactive power compensation, unbalanced management
  • Target power factor:-1~1 Adjustable
  • Fast response time:<50us
  • Full response time:<15ms
  • Noise index:<65dB
  • Installation method:rack-mounted
  • Communication Interface:RS485、Network port (optional)
  • Protocol:Modbus protocol, TCP / IP
  • Module display:Multi-function touch color screen
  • Operating temperature:-10℃~+40℃
  • Protection class:P20,The rest can be customized

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China

Shangruo Technology  Static Var Generator SR-SVG-030-RE


Shangruo Technology  Static Var Generator SR-SVG-030-RE

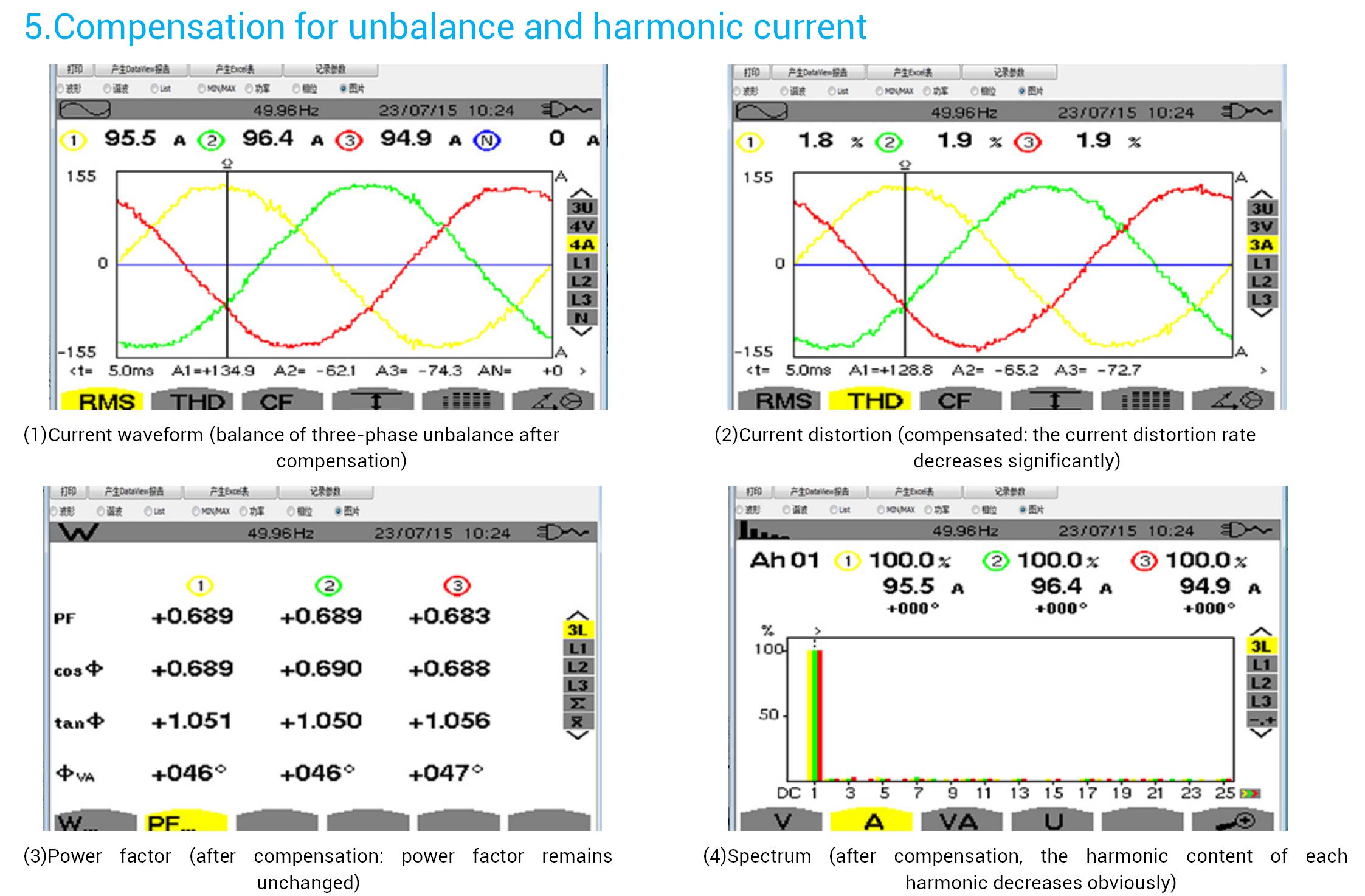

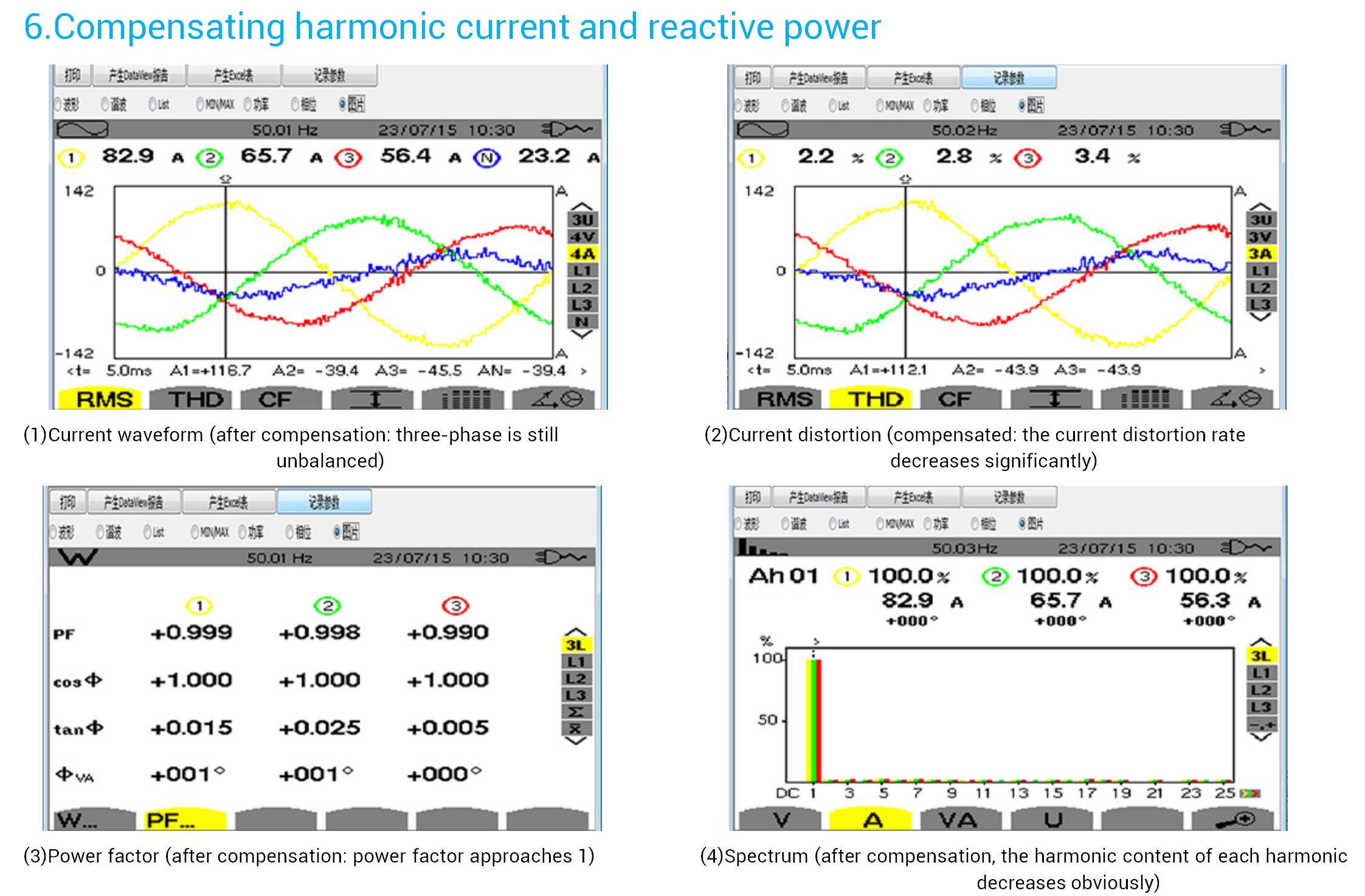

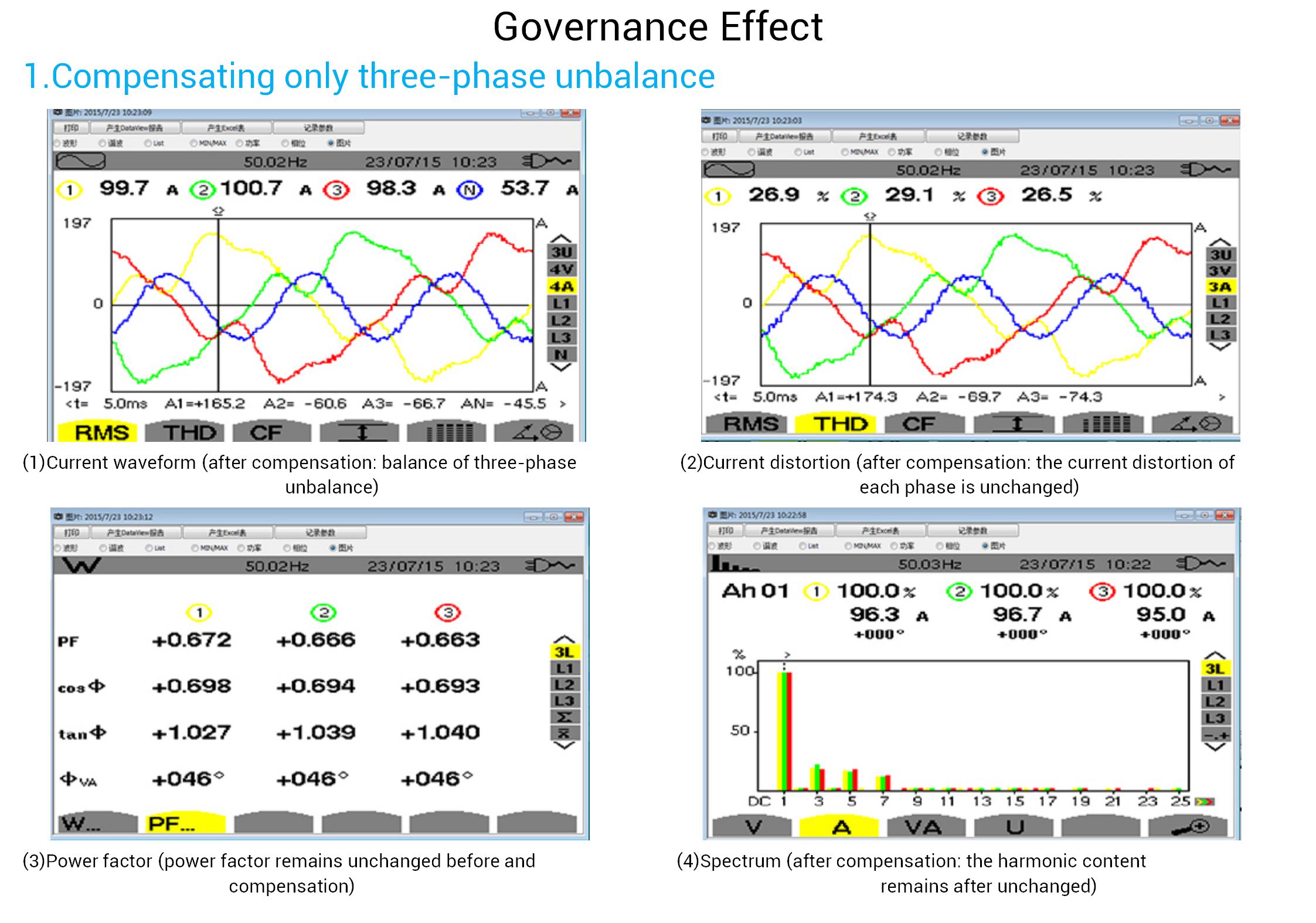

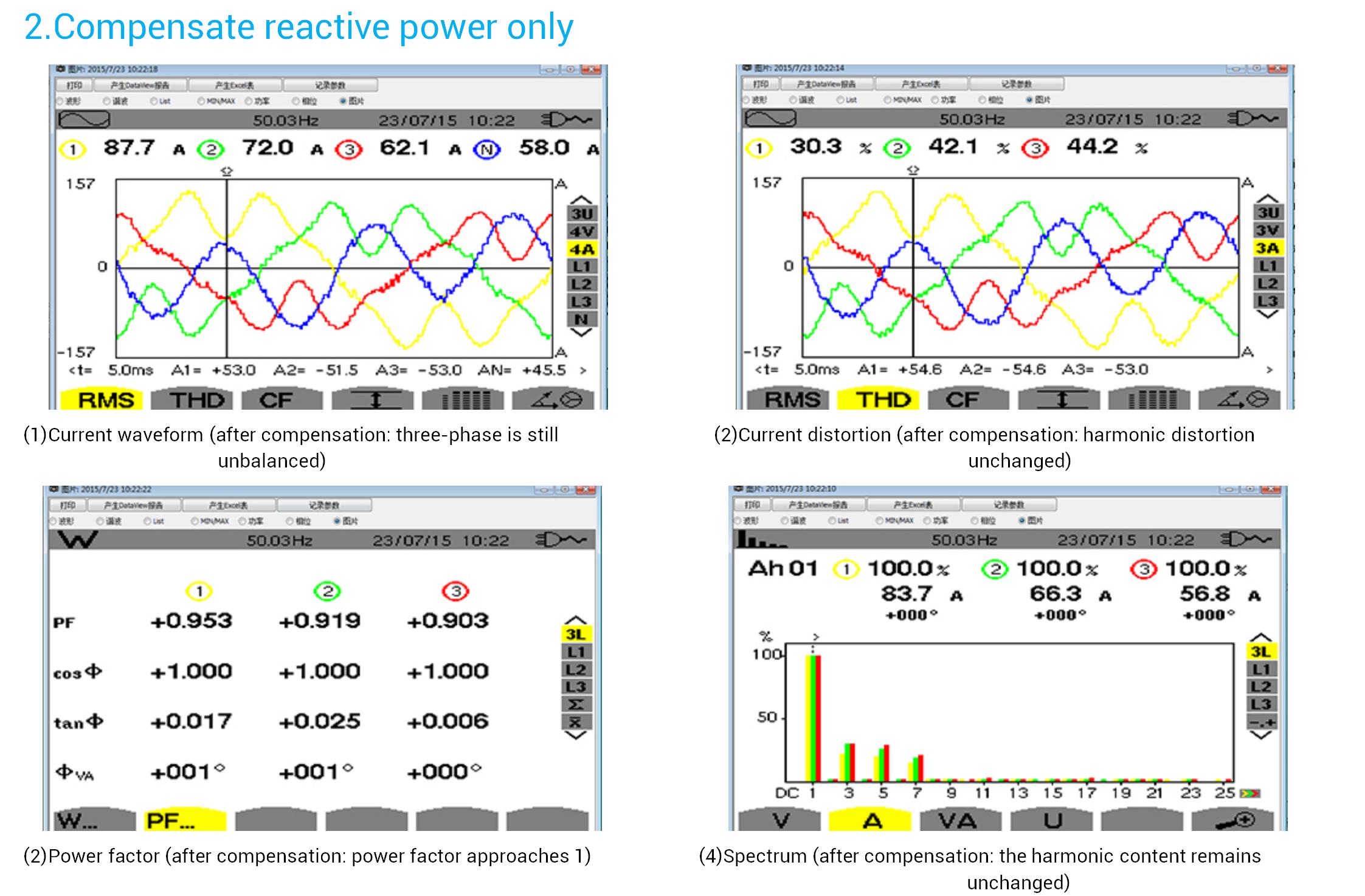

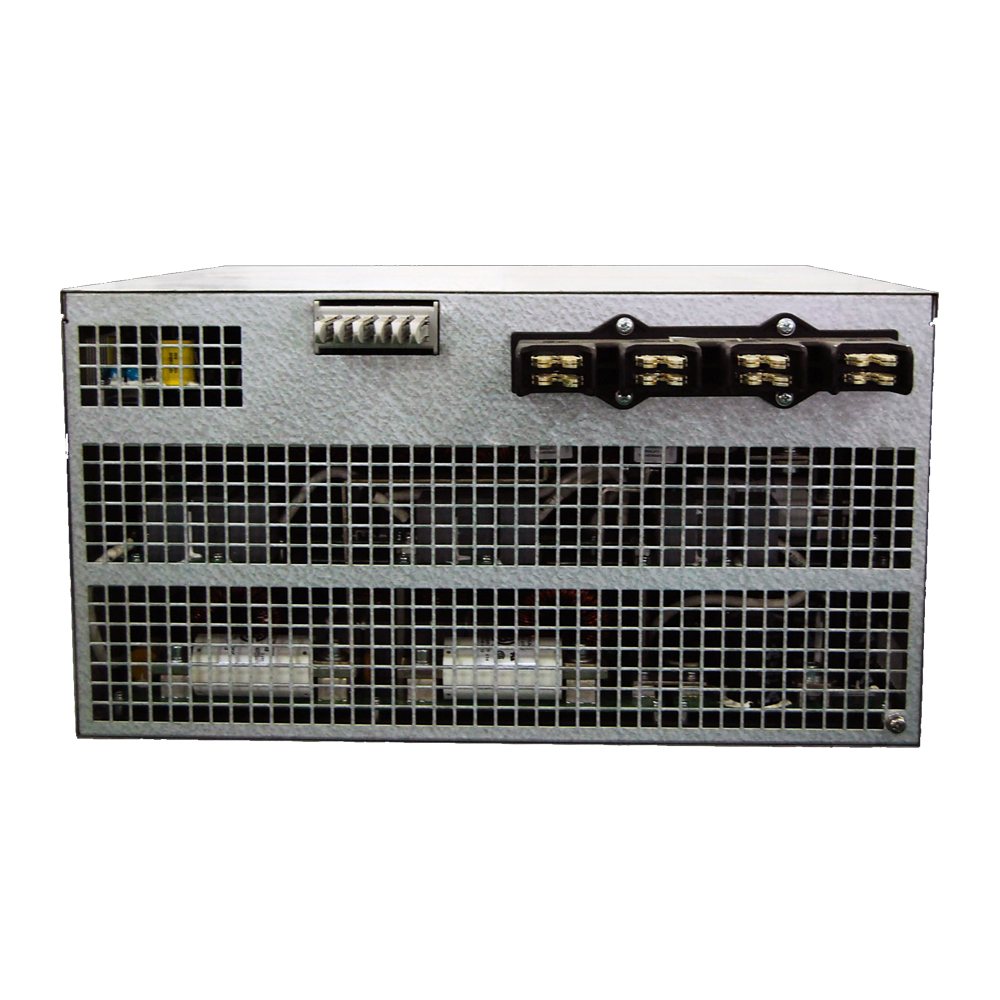

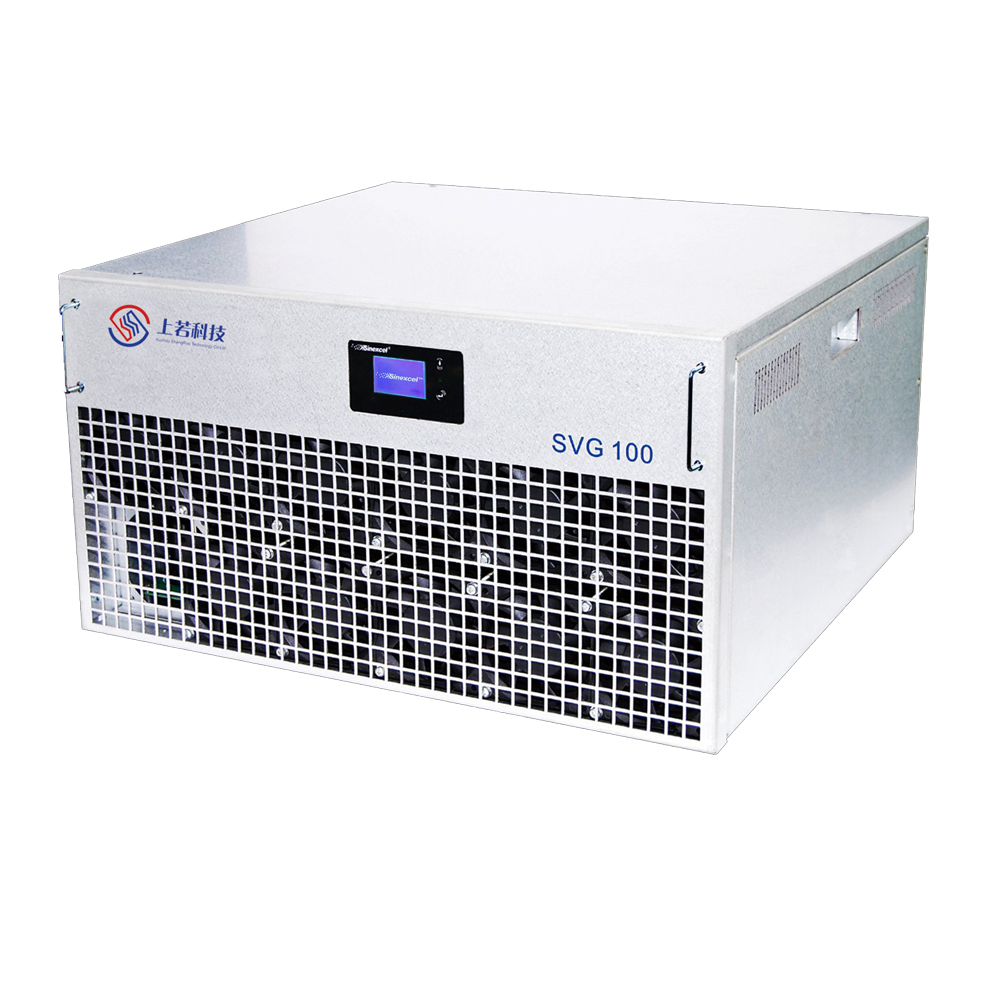

                                       Product Show
Shangruo Technology  Static Var Generator SR-SVG-030-RE


Shangruo Technology  Static Var Generator SR-SVG-030-RE

Shangruo Technology  Static Var Generator SR-SVG-030-RE

Shangruo Technology  Static Var Generator SR-SVG-030-RE

Shangruo Technology  Static Var Generator SR-SVG-030-RE


Shangruo Technology  Static Var Generator SR-SVG-030-RE

Shangruo Technology  Static Var Generator SR-SVG-030-RE

Shangruo Technology  Static Var Generator SR-SVG-030-RE

Shangruo Technology  Static Var Generator SR-SVG-030-RE

Shangruo Technology  Static Var Generator SR-SVG-030-RE

Shangruo Technology  Static Var Generator SR-SVG-030-RE

Shangruo Technology  Static Var Generator SR-SVG-030-RE

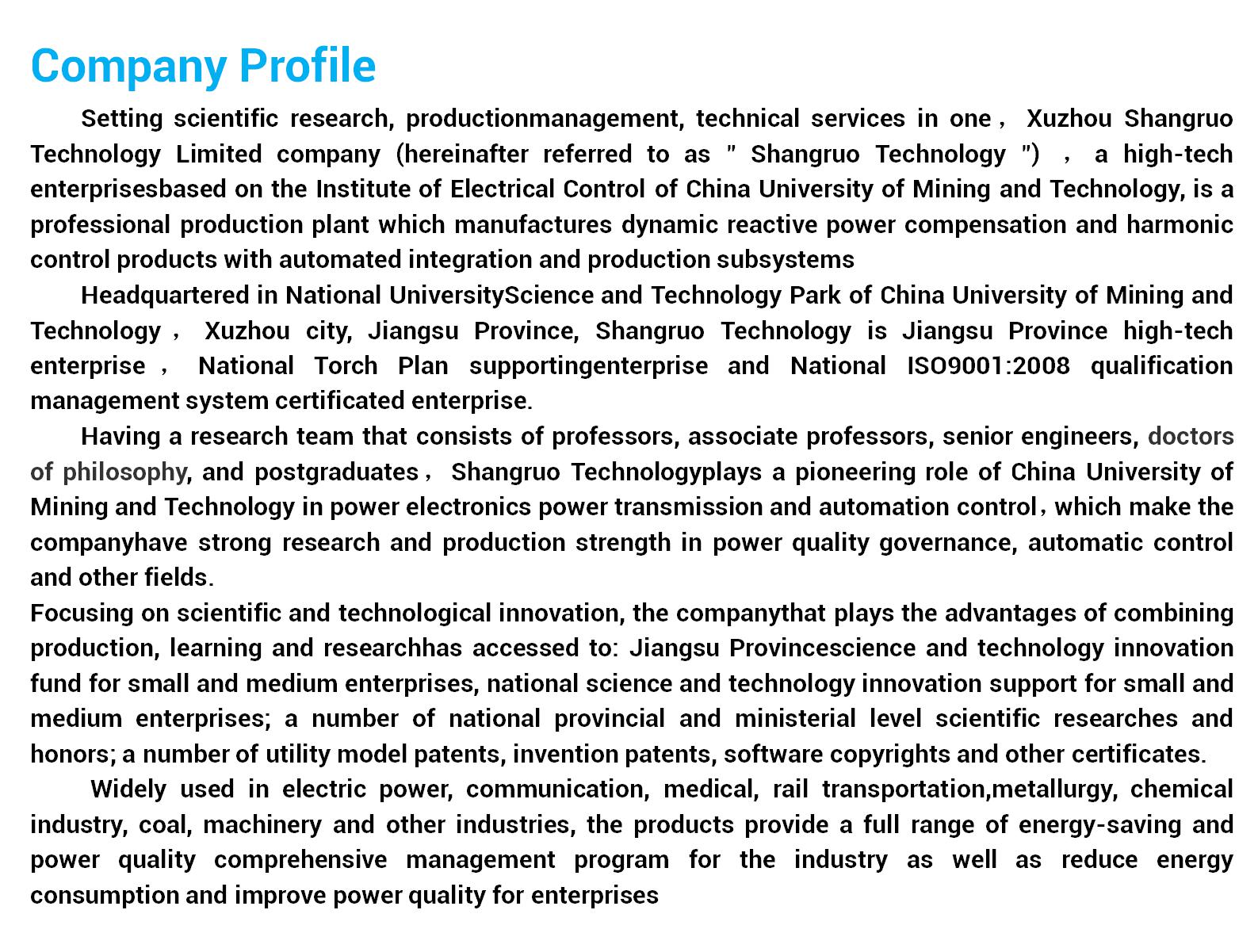

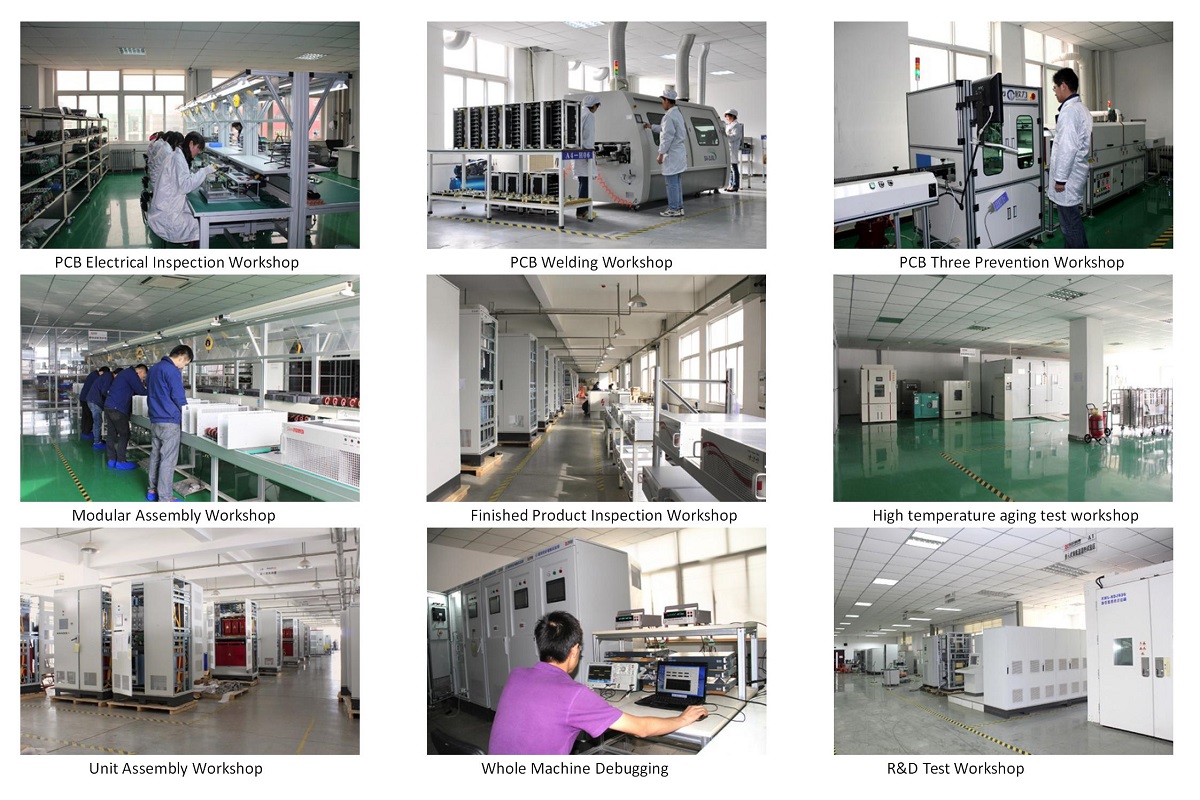

                                  Company Profile
