XCMG Skid Steer Loader for Asphalt Concrete Road Paving and Milling

$10000.00-$20000.00 1 / EA (Min. Order)
Model: XC770K
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Skid Steer Loader for Asphalt Concrete Road Paving and Milling

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • Product PDF

Summary

  • Dimension(Long*Breadth*High):3610*2000*1960 mm
  • Type:Wheel skid steer loader
  • Place of Origin:Xuzhou, China
  • Model Number:XC770CK
  • Brand Name:XCMG
  • Certification:CE / ISO

Specifications

  • Weight:3700.000kg
  • Condition:New
  • Moving Type:Wheel
  • Milling depth:170mm
  • Maximum paving width:1.65m

XCMG Skid Steer Loader for Asphalt Concrete Road Paving and Milling

XCMG Skid Steer Loader for Asphalt Concrete Paving and Milling.

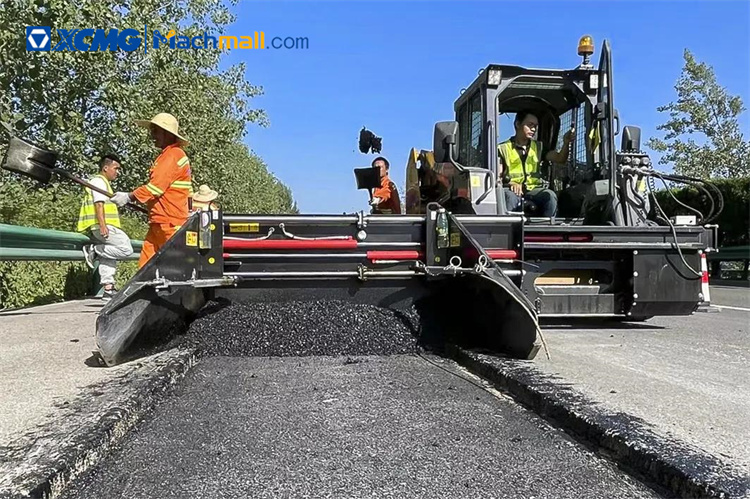

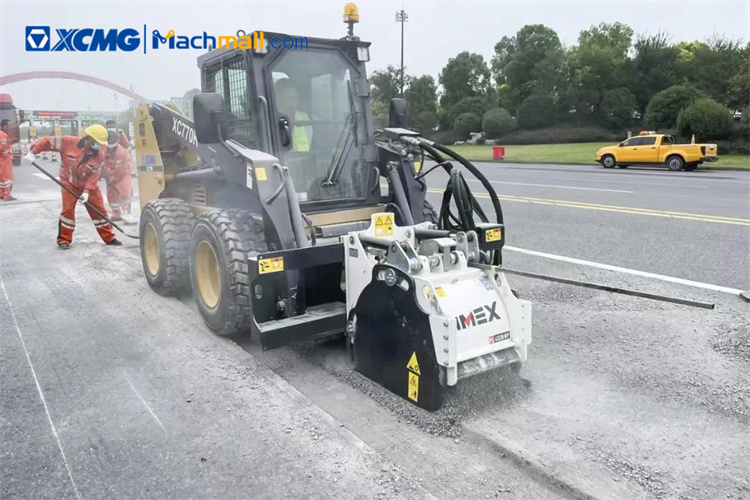

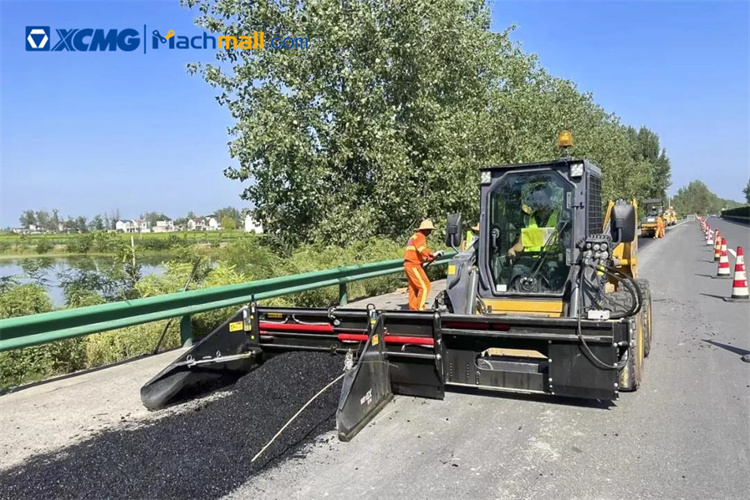

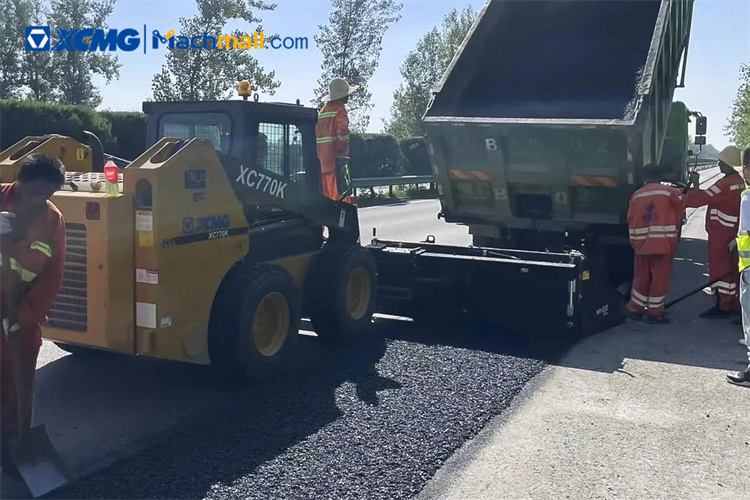

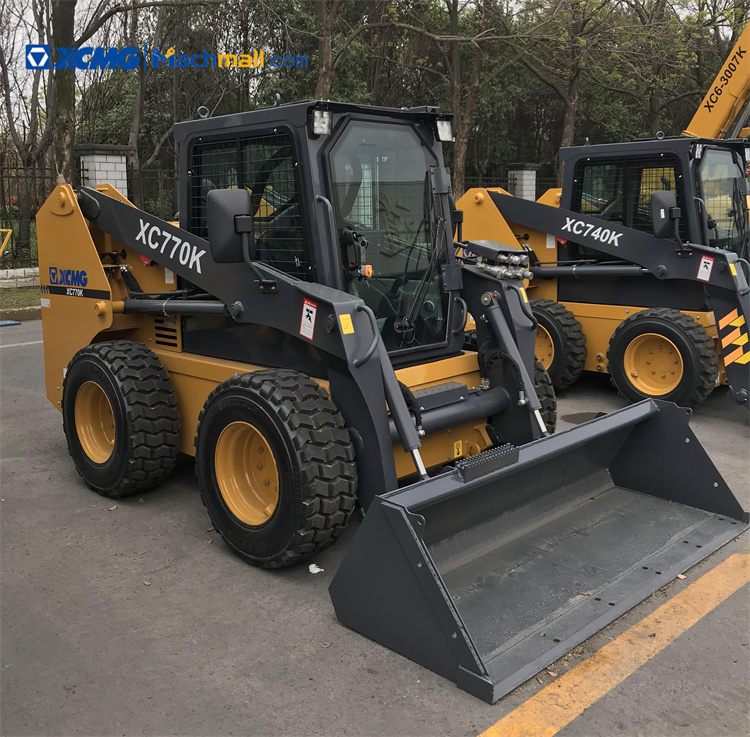

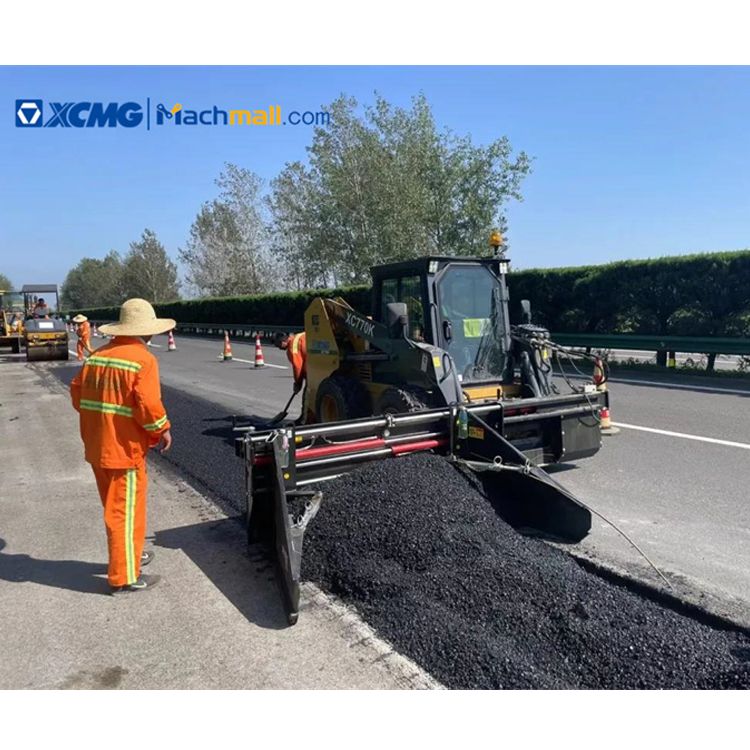

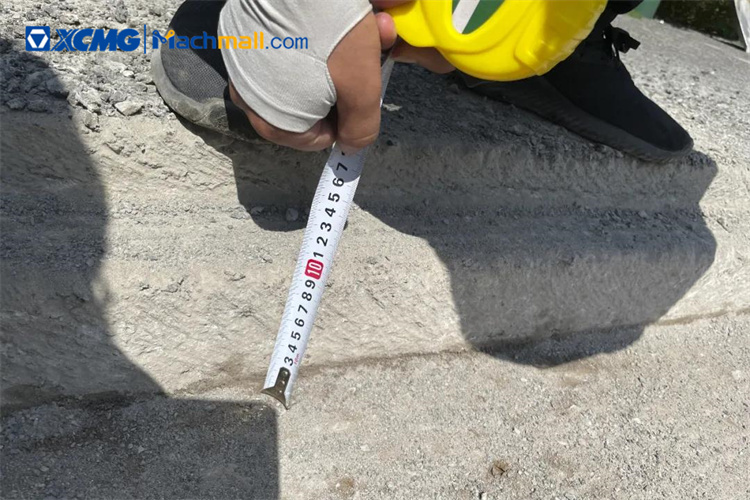

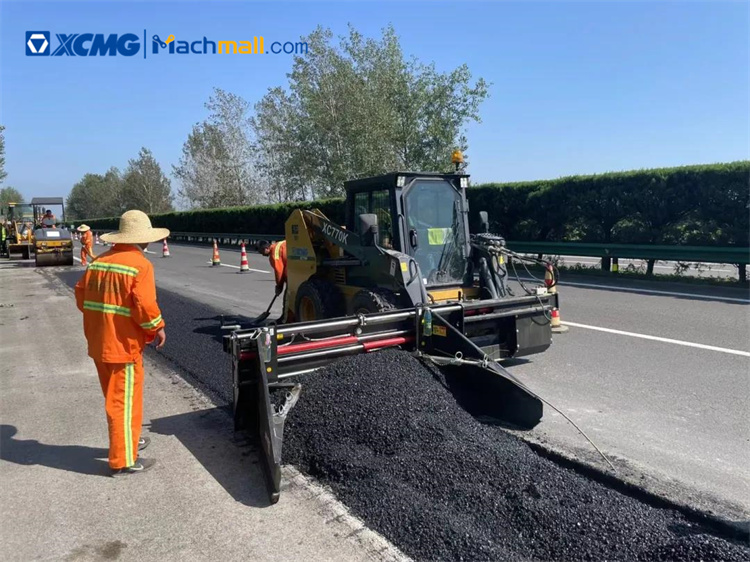

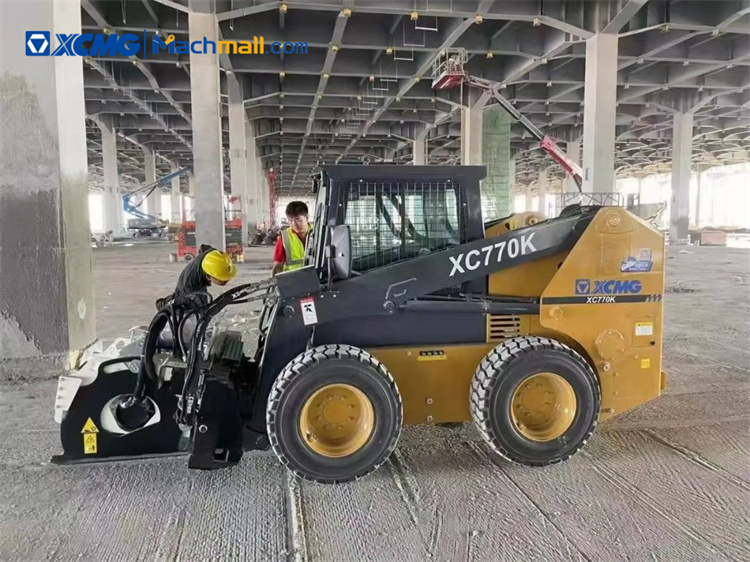

XCMG XC770K skid steer loader can efficiently adopt various attachments, suitable for asphalt and concrete road maintenance. The milling machine motor can reach 61 horsepower, which can meet the high-level construction with a milling width of 45 cm and a maximum milling depth of 17 cm. has a maximum paving width of 1.65 meters, and the side slab angle can be adjusted arbitrarily.



With high-power engine, XCMG XC770K has strong horsepower and high fuel efficiency. The increased flow of the whole machine provides a strong power guarantee for efficient operation of attachments; the enlarged wheelbase ensures stability and safety under high loads.

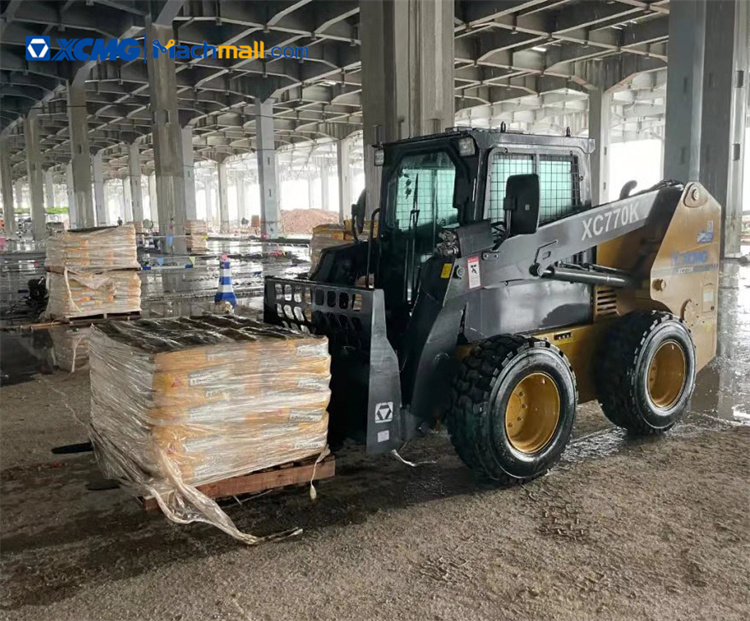

XCMG XC770K skid steer loader has the characteristics of one machine and multiple functions. Its quick-change device can quickly switch between different attachments during road maintenance, and efficiently complete different tasks, greatly reducing the user’s investment in single-function equipment.



The construction efficiency is increased by more than 5 times than that of manual labor, which greatly reduces the construction cost. Compared with the operation of large-scale paving equipment, it occupies a smaller lane space and minimizes the hidden traffic hazards caused by closed roads.



XCMG Skid Steer Loader for Asphalt Concrete Road Paving and Milling

Description



Unit

Parameter value

Rated load



kg

1080

Tipping load



kg

2160

Operating weight



kg

3450

3700

3650

Maximum breakout force



kN

22

Engine

Rated power

Hp/kw

82.2/61.3

80/60

80/60



Rated speed

rpm

2500

2300

2400



Cooling mode



Water-cooling

Performance parameter

Operation mode



Pilot hydraulic control & multi-function electronic control



Tire standard



12-16.5



Maximum speed

Km/h

12.5

Hydraulic system

Hydraulic flow rate

L/min

95

87.4

91.2



Optional large flow



142.5

131

136.8



Hydraulic pressure

bar

210

Maximum operating height



mm

4180

Bucket hinge pin height



mm

3205

Cabin top height



mm

1960

Maximum horizontal height of bucket bottom



mm

2997

Length without bucket



mm

2660

Length with bucket



mm

3610

Toppling angle



.

40

Maximum unloading height



mm

2450

Ground-bucket angle



.

30

Rotating angle of bucket at highest point



.

83

Unloading distance



mm

570

Wheel base



mm

1188

Departure angle



.

25

Ground clearance



mm

205

Front radius of turning circle (without bucket )



mm

1320

Front radius of turning circle (with bucket)



mm

2230

Rear radius of turning circle



mm

1715

Length of tail



mm

1055

Wheel track



mm

1500

Tire edge width



mm

1807

Bucket edge width



mm

2000

Bucket capacity (stacking height)



m3

0.6

Bucket capacity (tiling)



m3

0.47

Diesel tank capacity



L

95

Capacity of hydraulic oil tank



L

70
