Summary
Specifications
- Weight:50.000kg
- Condition:New
- Key Word:120 Ton Hydraulic Pressing
- Pressure:120Ton
- Application :FORKLIFT Tire Change
- Place of Origin:Jiangsu, China
Factory Direct Supply Solid Tire Press Machine Truck Rubber Tyre Changer 120 Ton Hydraulic Pressing
Product parameters:
| Specification | |||||
| Model | Unit | TP80 | TP120 | TP160 | TP200 |
| Max. Capacity | Ton | 80 | 120 | 160 | 200 |
| Max. Diameter of Rim | mm | 381 | 508 | 508 | 508 |
| Piston Diameter | mm | 200 | 250 | 250 | 280 |
| Piston Rod Diameter | mm | 110 | 180 | 180 | 180 |
| Oil Capacity | L | 30 | 50 | 50 | 60 |
| Motor | Kw | 5.5 | 7.5 | 7.5 | 11 |
| Overall Dimension | mm | 1640*700*2170 | 2080*850*2200 | 2080*850*2200 | 2100*930*2153 |
| Pakcing Size | mm | 1710*800*2170 | 2150*950*220 | 2150*950*2200 | 2200*1000*2170 |
| Max. Operating Pressure | Mpa | 21 | 25 | 32 | 32 |
| Working Stroke | mm | 400 | 400 | 400 | 400 |
| Self-weight(excluding tools) | Kg | 1100 | 1610 | 1650 | 1900 |
| Tools for 2-piece rim tyre | |||||
| Type | Max. Tyre Dimension(mm) | Cage (pcs) | Pusher Ring (pcs) | Flange Ring (pcs) | |
| Tool-II | 508 | 4 | 11 | 6 | |
| Tooling for 3-piece & 4-piece rim tyre | |||||
| Type | Max. Tyre Dimension(mm) | Cage (pcs) | Pusher Ring (pcs) | Base Plate (pcs) | Cone (pcs) |
| Tool-III | 508 | 6 | 6 | 3 | 6 |

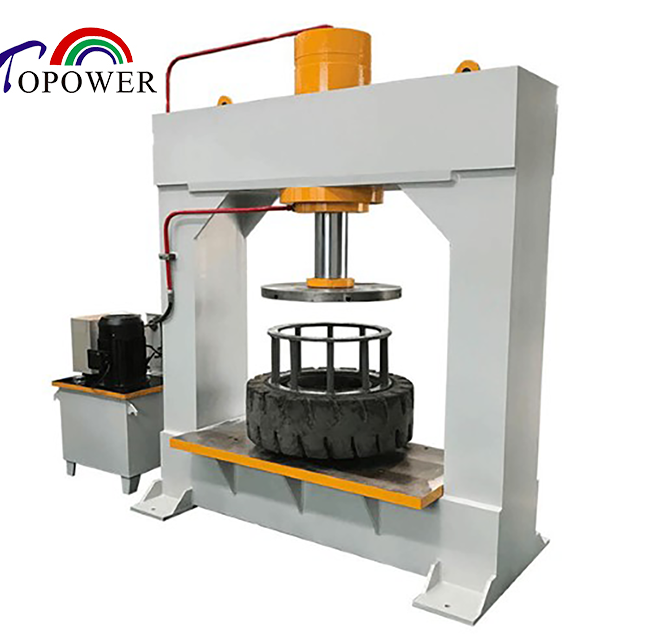

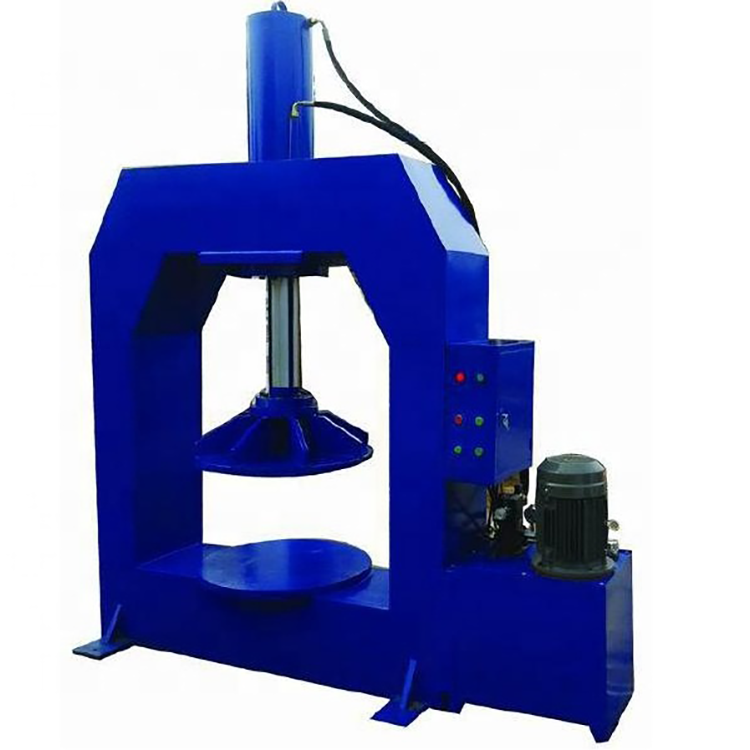

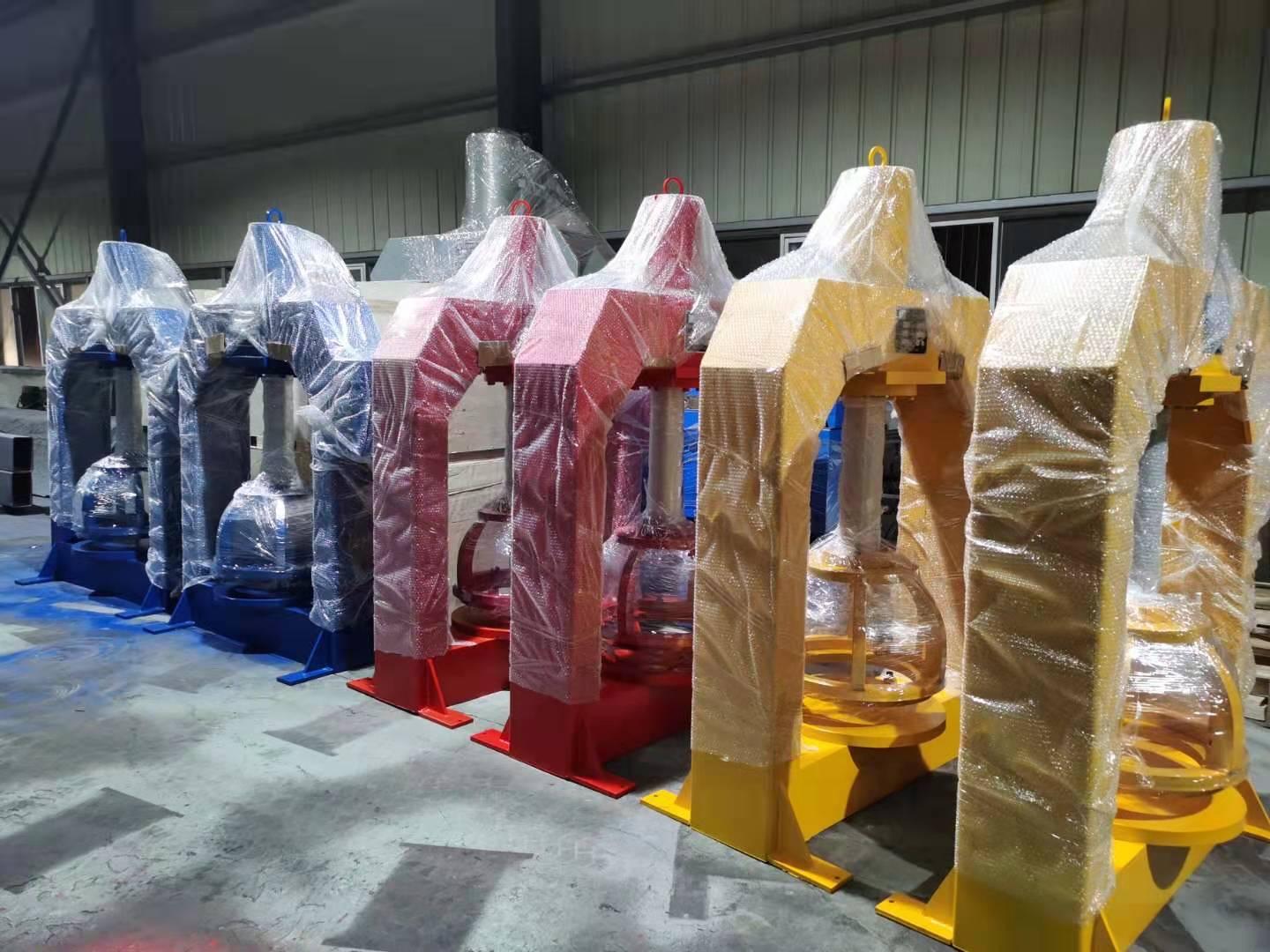

Product pictures:

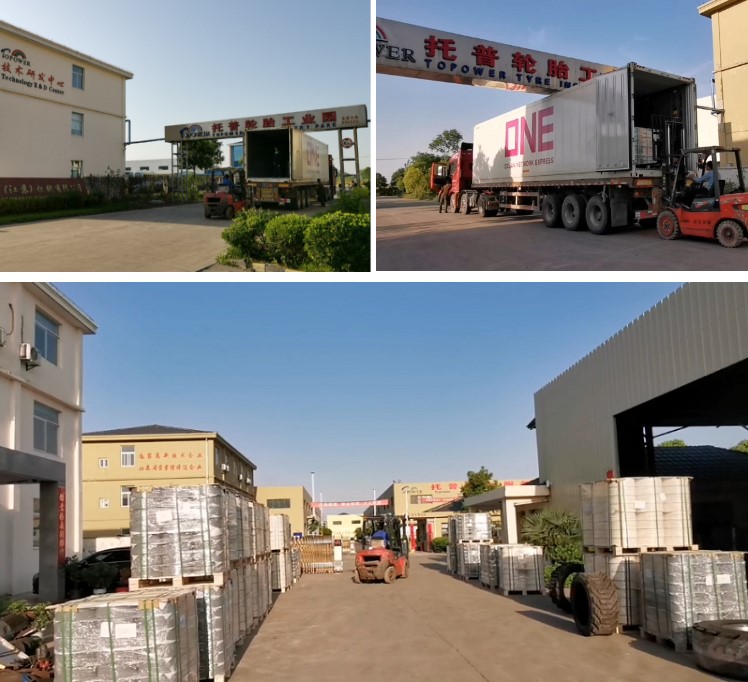

Company profile :
Jiangsu Topower Tyre CO., LTD. was established at Yancheng, China in 2012. The factory mainly produces specialist solid tires in Industrial, OTR and press on classes as well as lift platform, spongy rubber tires and rubber machinery parts.
Using advanced technology from our independent research & development centre, Topower was awarded the "Quality Trustworthy Enterprise in Jiangsu Province" in 2014 and was identified as "High-tech Enterprise in Jiangsu Province" &"Jiangsu Province Graduate Student Workstations" in 2015.
As one of China's National High-tech Enterprises and leaders in solid tire manufacturing, Topower has 23 patents for solid tire technology. As a membe of many international associations including International Powered Access Federation (IPAF) accreditation to ISO9001, ISO14001,OHSAS 18001 establishes Topower as an industry leader.
Operating in many mines, steel mills, port terminals, construction sites, Topower products provide excellent performance and value. Being puncture resistant & maintenance free lonig life on lift trucks, airport tugs, aerial platforms, heavy duty transport and other industrial vehicles yield profitable outcomes for our clients.
Topower tires are exported to more than 60 countries from the Americas to Oceania, Europe Africa and Middle East.
''Top quality tire, Powerful safeguard", Topower Tires, the tire that works for you!
We here sincerely invite you to visit !
