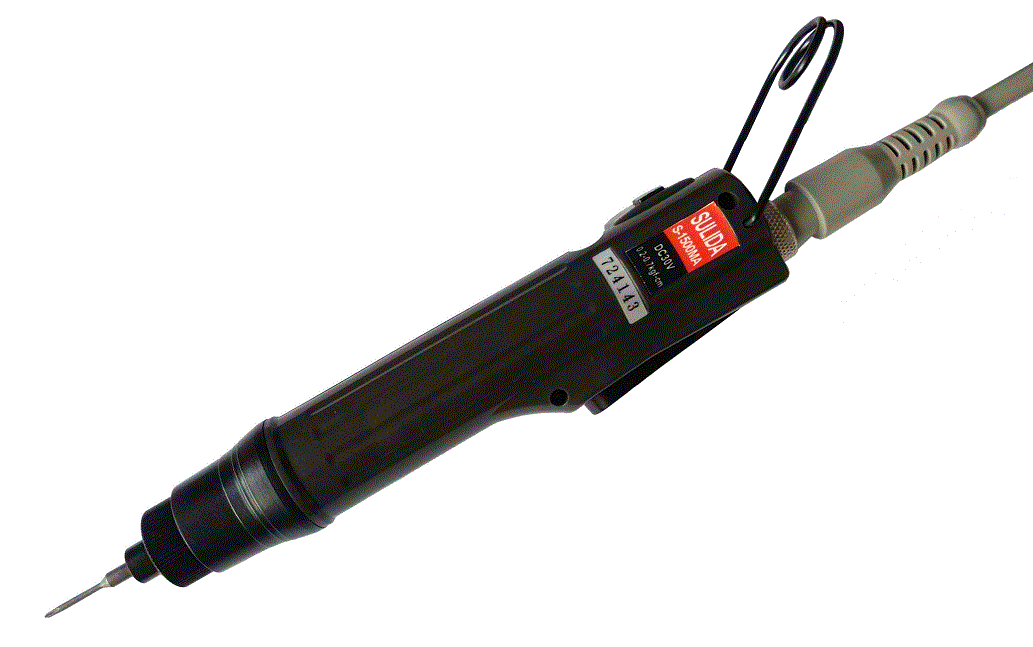

Sulida s-1500m automatic electric screwdriver
Specifications
- weight:5.000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Main features:
Swiss aerospace grade servo motor, original high efficiency winding technology, coreless rotor structure, imported from Switzerland. Fast reaction, small volume, high stability, super long life (20000 hours).
Ultra small volume, light weight, even if the female workers operate for a long time, it is not easy to fatigue.
Low inertia, low impact; high torque accuracy (± 3%).
Low noise, low electromagnetic interference, the lowest temperature rising speed after long-time use, not feel hot.
Meet the working requirements of dust-free room without carbon powder pollution.
technical parameter
No load speed (r.p.m) 800
Torque (KGF cm) 0.2-2
Length (mm) 223
Weight (g) 260
Torque accuracy (%) ± 3
Applicable screw (φ) mechanical screw 0.8-2.0 self tapping screw 0.8-1.7
Working voltage (DC) 30V
Applicable cutter head (φ mm) φ 4
* all series can be ordered ESD type, all series can be ordered 1 / 4 hexagon cutter head.
Scope of application
This product is suitable for the assembly of mobile phones, digital cameras and other precision products.
