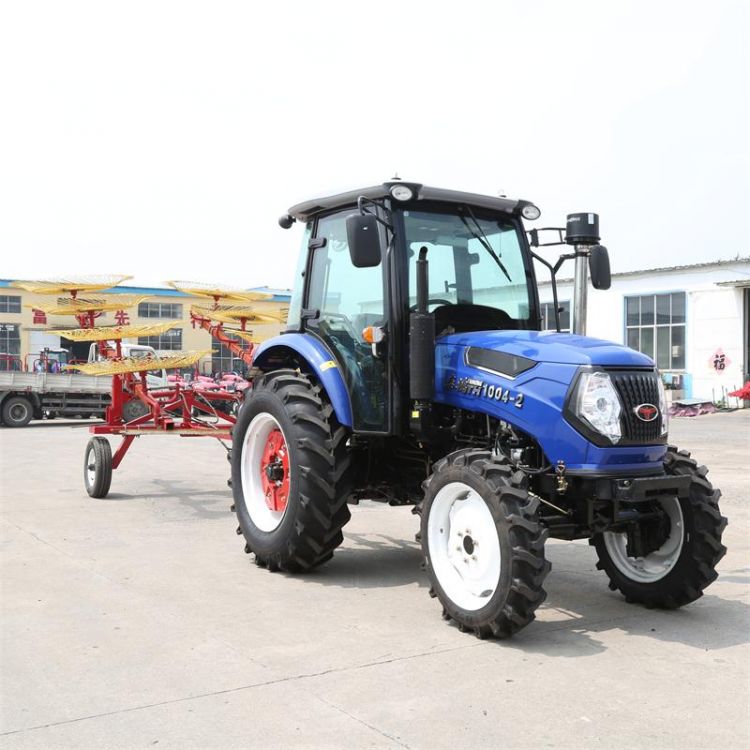

Made in China 100HP 4*4 Wheeled Walking Tractor Agricultural Machinery Lawn Farm

$8000.00-$12000.00 1 / set (Min. Order)
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Made in China 100HP 4*4 Wheeled Walking Tractor Agricultural Machinery Lawn Farm

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Place of Origin:China
  • Model Number:TH1004-2
  • Brand Name:Taihong
  • Power(W):73.5kw
  • Drive Type:Wheel Drive
  • Usage:farm tractor,garden tractor
  • By wheel:4 Wheel drive
  • Type:NEW
  • Certification:CE.ISO.CCC

Specifications

  • Weight:1870.000kg
  • Condition:New
  • Moving Type:Wheel


Made in China 100HP 4*4 Wheeled Walking Tractor Agricultural Machinery Lawn Farm

Characteristic
(1) Strong power, low fuel consumption
(2) High tranmission efficiency, compact, small turning radius
(3) Low noise,big traction and flexble steering
(4)Good stability and easy start performance


Product Parameters

Main Technical Data of TH1004 Tractor
Tractor parametersModel NOTH1004
Type4 x 4 wheeled drive
L x W x H(mm)3740 x 1400 x 2210
Wheel base(mm)2020
Front wheel tread(mm)1150,1050(step adjustable)
Rear wheel tread(mm)960-1400(stepless adjustable)
Min ground clearance300mm
Dry mass(kg)1870
ClutchDry type double action
SteeringCycloidal rotary valve steering

Engine dataEngine model4TD100
Engine typeInline,cooled water,four stroke
Engine Rated power73.5kw
Engine Rated speed2400(r/min)
Fueldiesel

TyreFront Tyre6.50-16
Rear Tyre11.2-24

PTOTransmission box12f + 12r shifts
Suspension typeRear three point suspension category  ii
Pto speed540/760 r /min
Pto shift & spline size35 spline
Lifting force(N)17640


Made in China 100HP 4*4 Wheeled Walking Tractor Agricultural Machinery Lawn Farm

About us

Weifang Taihong Tractor Co.,Ltd established in 1990, with coverage of 206677 square meters, is one of the most professional tractor manufacturer in China. With 20 years development, Taihong is capable of producing tractor from 25hp to 240hp and has a large market share at home and abroad. Taihong has its own foundry, casting, machinery processing center. Some parts are made by itself to realize the whole quality control from spare parts.
The products are certified by ISO9001, SGS, CCC.
