Summary
- Rated Load:8200kg
- Dimension(Long*Breadth*High):6075*2350*3520 mm
- Type:Backhoe Loade
- Place of Origin:Jiangsu, China
- Model Number:XC870HK
- Brand Name:XCMG
- Certification:CE/ISO9001
Specifications
- Weight:8200.000kg
- Condition:New
- Moving Type:Other
- Bucket capacity:1m3
- Max. digging radius:5420mm
- Max. digging depth:4320mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

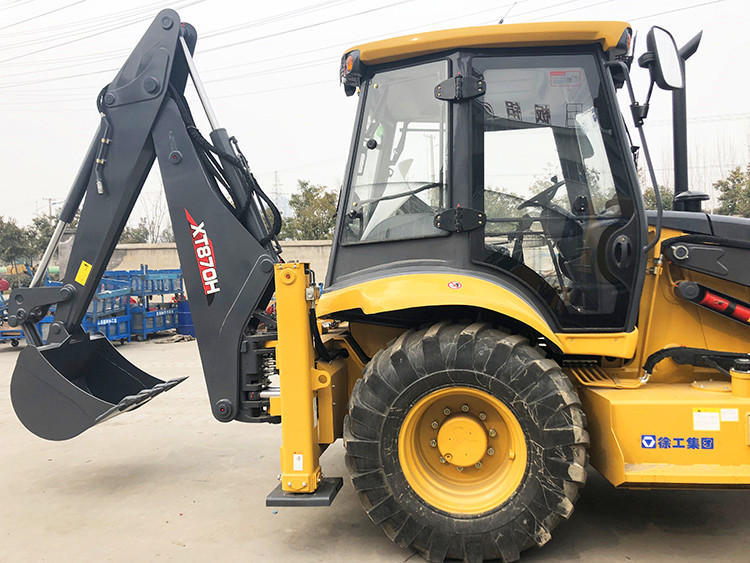

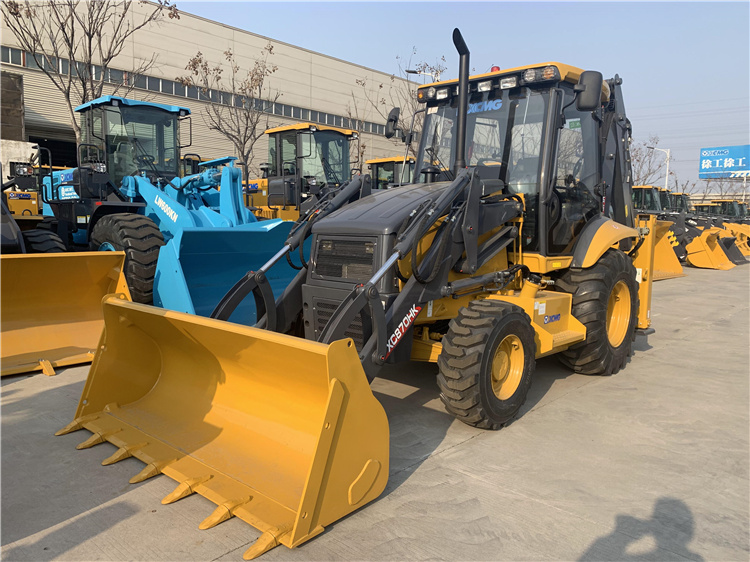

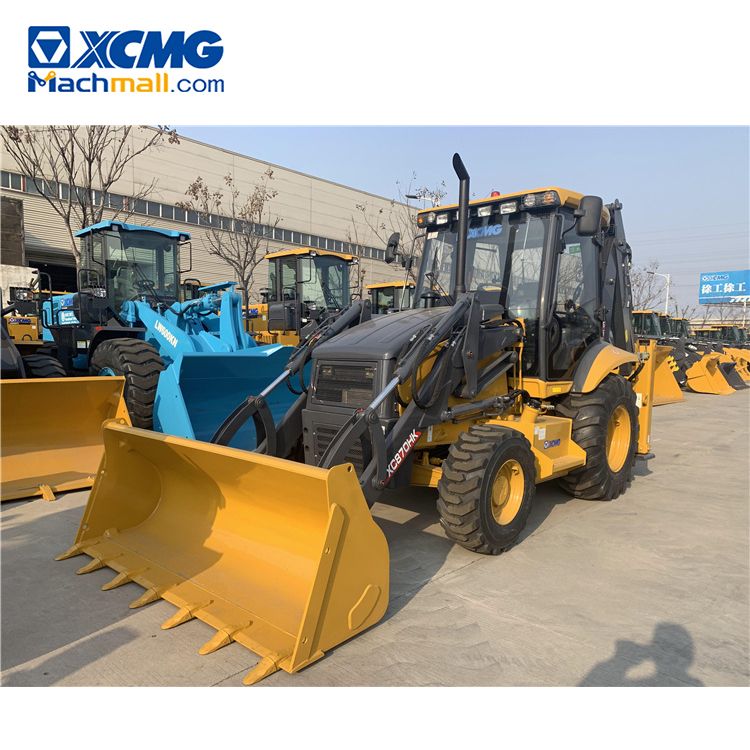

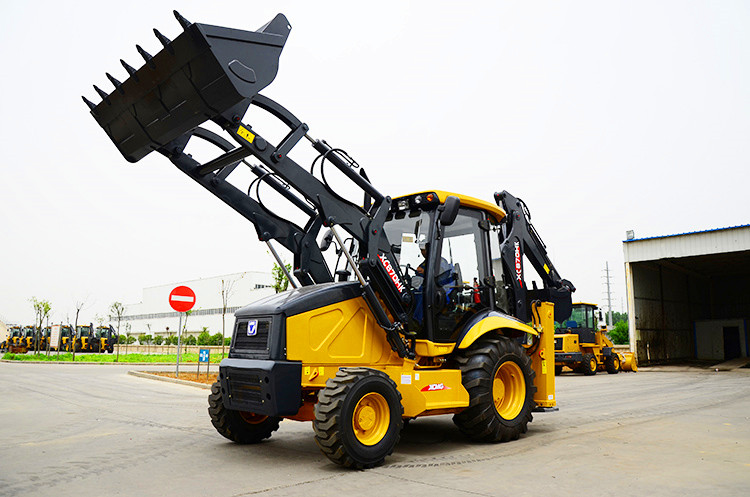

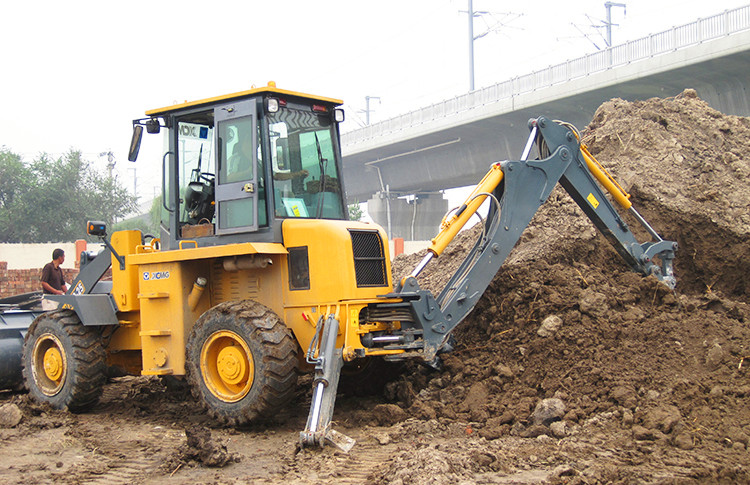

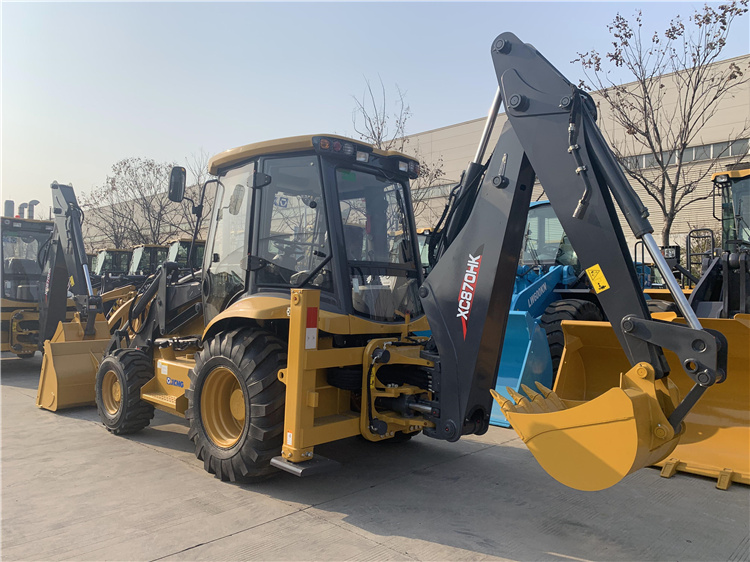

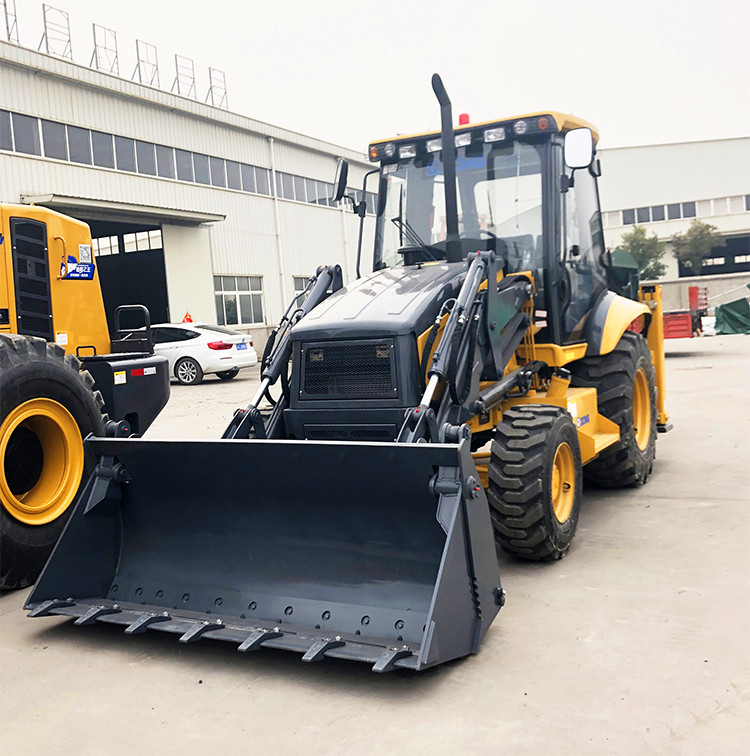

XCMG Manufacturer XC870HK 2.5 ton Small Towable Backhoe.
XCMG towable backhoe XC870HK is upgraded on the basis of the mature equipment and technical performances of present products, including the upgrade of engine emission, lightweight upgrade of structural parts, and optimization of working device parameters, to further improve the comfort, safety, maintainability, reliability, supportability, and economy of the product.
Performance Characteristics:
1. Performance features
* The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed. * The domestic leading hydraulic system distribution technology features high energy-saving and efficiency. The maximum flow is 154L/min to meet the configuration demands of more attachments.
* The double pump confluence system with unloading function can automatically or manually switch over the individual pump based on the working condition and unload the high pressure by auxiliary pump, featuring high intelligence and energy-saving.
2. High Strength and High efficiency for Extensive Adaptability
* The high strength structural design features high operation efficiency, with the breakout force up to 63kN.
* The design optimized and industry leading 8-link working device features good levelness of bucket and rapid operations.
3. Operation Safety and Control Comfort

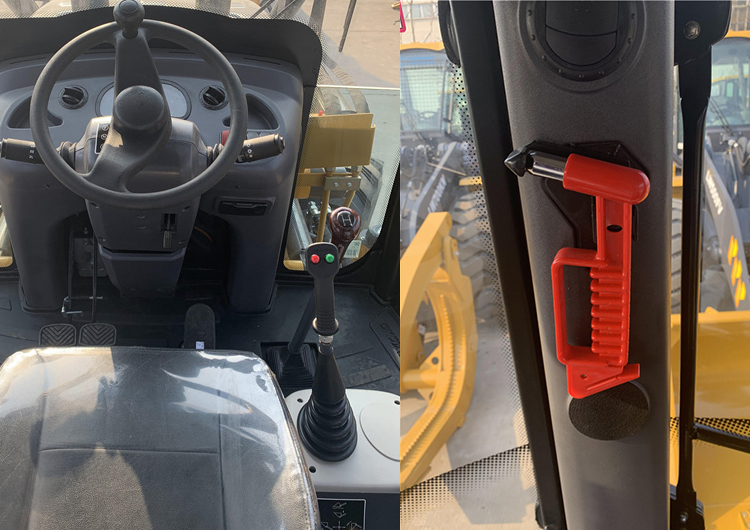

The 360° panoramic view luxury cab with air conditioning system features large space, good sound and heat insulation, and good shock absorption. With openable side windows and rear window, the cab realizes broader visual field and comfortable operations.
|
Description |
Unit |
Parameter value |
|
|
Chassis type |
|
integrated |
|
|
Drive style |
|
4 drive/2 drive |
|
|
Digging working device |
|
side |
|
|
Outline dimensions（L×W×H） |
mm |
6075×2350×3520 |
|
|
Total weight |
kg |
8200 |
|
|
Max. travel speed |
km/h |
≥40 |
|
|
Wheelbase |
mm |
2180 |
|
|
Engine |
Power |
kW |
82(Cummins) 74(Cummins) 74.9(Deutz dalian) 70(weichai ) |
|
Supplier |
|
tier 3 tier 2 tier 3 tier 2 |
|
|
Loading device |
Bucket capacity |
m³ |
1 |
|
Rated load |
kg |
2500 |
|
|
Max. breakout |
kN |
66 |
|
|
Max. discharge height |
mm |
2770 |
|
|
Max. discharge distance |
mm |
755 |
|
|
System pressure |
Mpa |
24 |
|
|
Digging device |
Bucket capacity |
m³ |
0.25 |
|
Max. digging radius |
mm |
5420 |
|
|
Max. digging depth |
mm |
4320 |
|
|
Max. digging force |
kN |
63 |
|
|
System pressure |
Mpa |
24 |
|
