XCMG Track Type Full Hydraulic Water Well Drilling Rig for sale
Summary
- Certification:ISO, CE
- Dimension(L*W*H):5900*1800*2400mm
- Weight:9ton
- Power(W):92kw
- Model Number:XSL3/160A
- Brand Name:XCMG
- Place of Origin:Xuhzhou, China
- Power Type:Diesel
- Type:Track Type Full Hydraulic Water Well Drilling Rig
Specifications
- weight:9000.000kg
- Condition:New
- Moving Type:Other
- Max. Drilling Depth:300m
- Max Passing diameter:Ф330mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

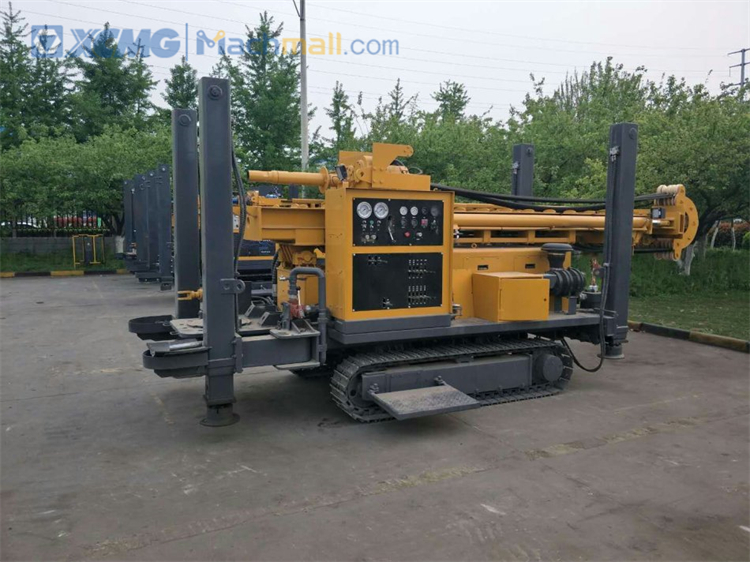

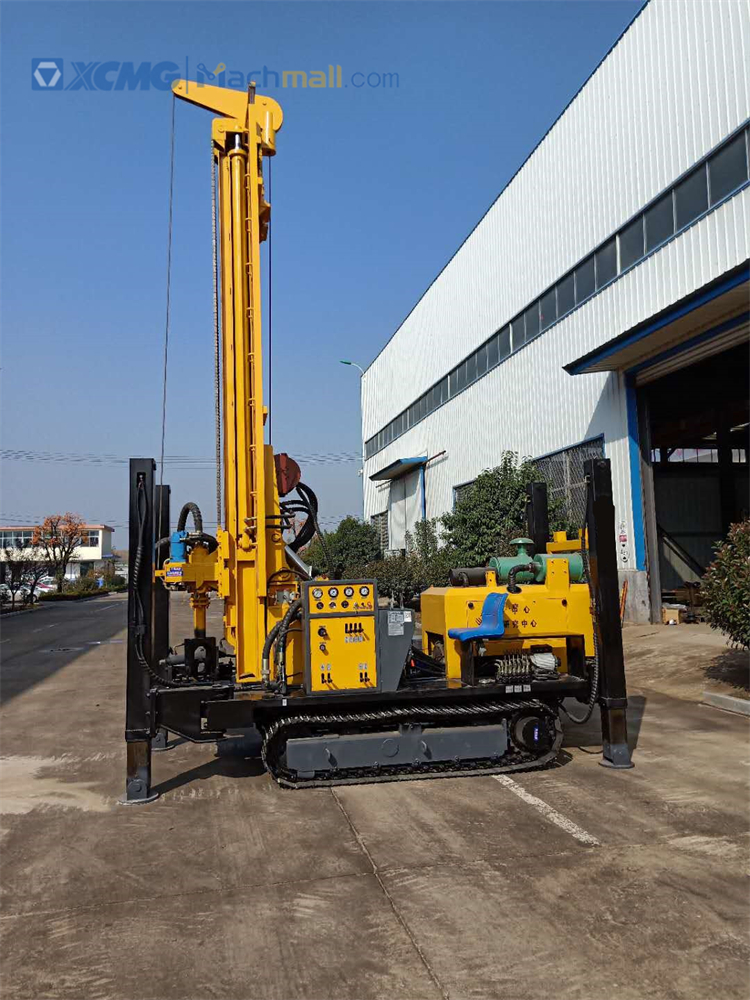

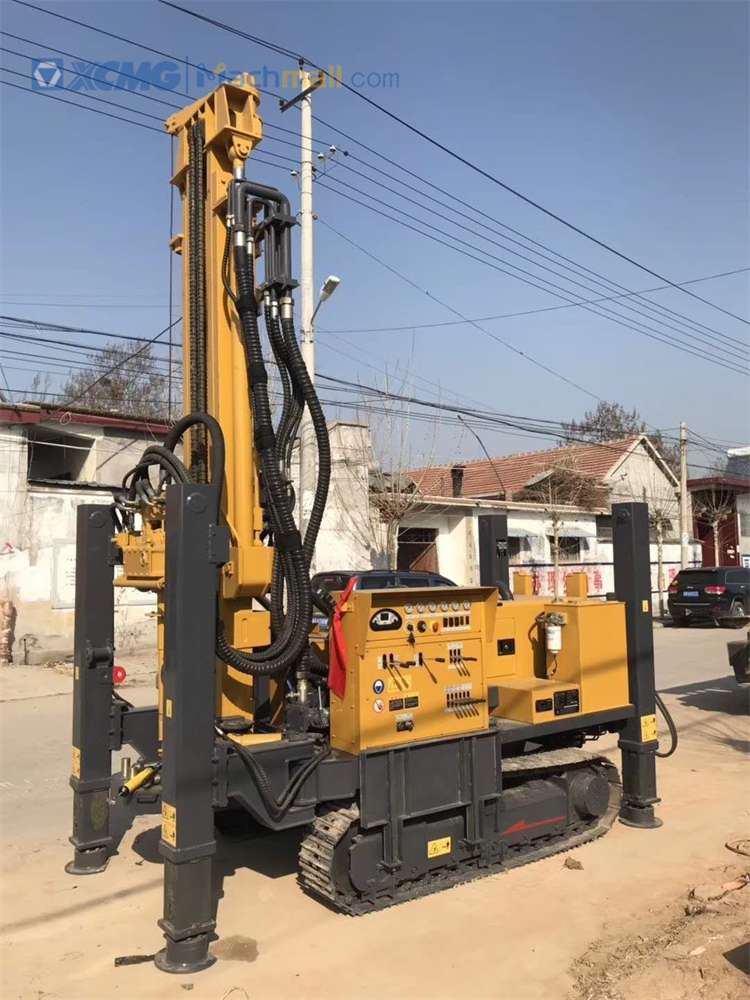

XCMG Track Type Full Hydraulic Water Well Drilling Rig.

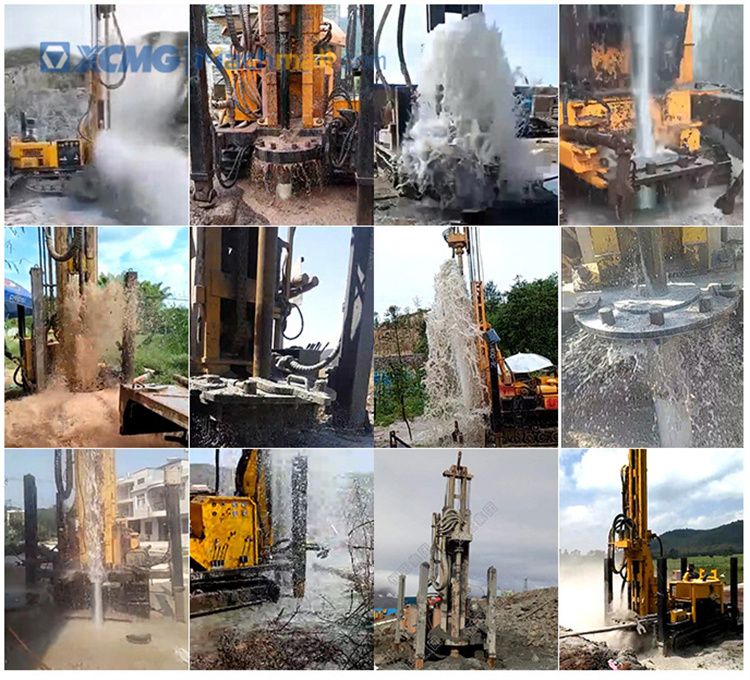

XCMG XSL3/160A 9 ton 300m water well drilling rig is a track type full hydraulic top drive water well drilling rig, mainly used in drilling water wells, geothermal air conditioning holes, detection wells, dewatering wells and other drilling operations. The drilling rig can adopt various construction techniques such as air down-the-hole hammer drilling and mud drilling, and has the advantages of fast drilling speed and good hole forming effect.
Products Highlights
1. Yuchai III stage engine
Electronic control of fuel injection, lower fuel consumption and more environmentally friendly;
Adopt electronic control technology to effectively reduce the phenomenon of traveling, turning, and white smoke;
The engine fault code can be automatically displayed, which is convenient for maintenance.
2. Mature and reliable hydraulic top drive head
The main shaft adopts large-capacity bearings, and the drilling accuracy is higher;
Spindle seal adopts multi-group seal design to ensure the sealing effect;
Water-air dual working condition rotary joint, strong construction adaptability.

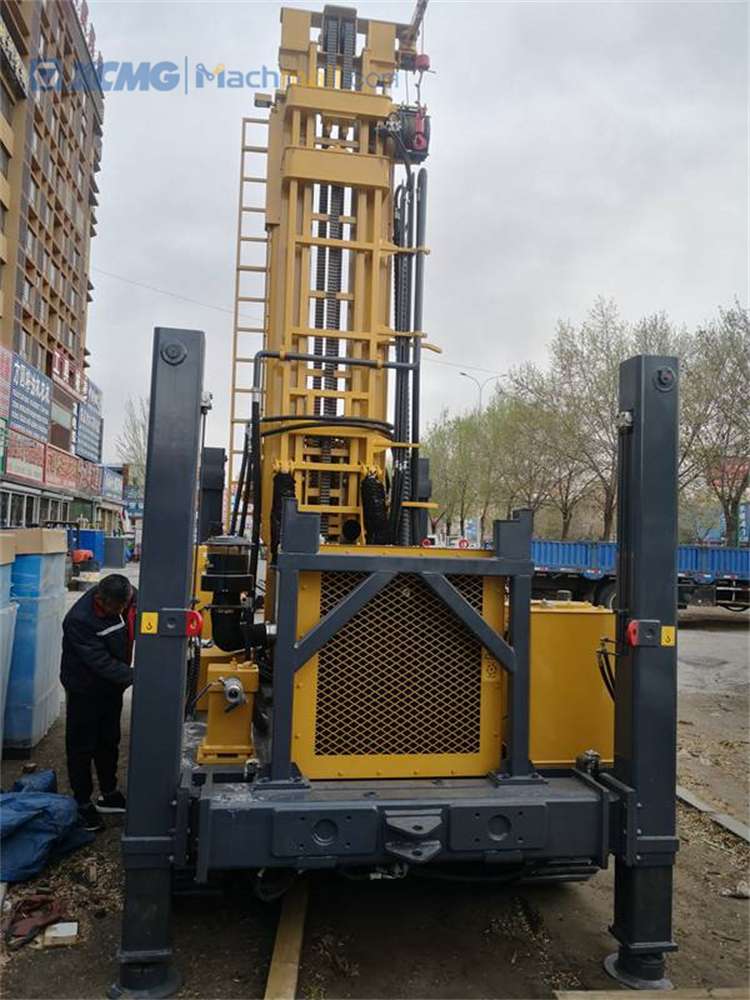

3. Roller sliding telescopic drill mast
Large variable amplitude telescopic drill mast, high construction stability;
The power head and the inner section of the drill mast use rollers to slide, with low wear and high drilling accuracy.
4. Unique hydraulic matching technology
Multi-pump combined and split flow technology to minimize system heating and fuel consumption;
Integrated fine feed system, low pressure loss, can accurately adjust the drilling pressure according to the weight of the drilling tool in the hole;
The rotating power head is controlled by a single handle at high speed, which is comfortable and efficient.
5. Safe and intimate detail design
The desert storm air filter system is suitable for air DTH hammer construction in complex environments;
The winch is prioritized, the drill pipe and drilling tool can be handled during the drilling process, and the auxiliary time is short;
Hydraulic control gas valve, optimized manifold layout, less energy loss.
6. Large appreciation space
Optional generators, foam pumps, centrifugal pumps to meet the value-added needs of users.
|
Drilling capacity |
Drilling depth |
m |
300（Ф89） |
|
|
Max Passing diameter |
mm |
Ф330 |
|
feed system |
Max lifting capacity |
kN |
200 |
|
|
Max feed force |
kN |
80 |
|
|
|
|
|
|
|
Max lifting speed |
m/min |
30 |
|
|
Max lowering speed |
m/min |
60 |
|
|
Stroke |
mm |
6600 |
|
power head |
max torque |
Nm |
8300/4150 |
|
|
Max speed |
r/min |
80/160 |
|
|
spindle diameter |
mm |
Ф45 |
|
engine |
model |
/ |
YC4A125-T300 |
|
|
Rated power |
kW |
92 |
|
|
r/min |
2200 |
|
|
winch |
lifting power |
kN |
15 |
|
maximum delivery |
L/min |
18 |
|
|
|
Max pressure |
MPa |
15 |
|
Manifold |
mm |
Ф55 |
|
|
|
Max pressure |
MPa |
8 |
|
generator |
power |
kW |
16 |
|
|
V |
400 |
|
|
|
frequency |
Hz |
50 |
|
chasis |
Max running speed |
km/h |
2.9 |
|
|
Max gradability |
° |
21 |
|
Max track clearance |
|
mm |
1300 |
|
Max inner stop of front outrigger |
|
mm |
2470 |
|
Max inner stop of rear outrigger |
|
mm |
2700 |
|
Working dimension |
|
mm |
4280×3130×9300 |
|
Transportation dimension |
|
mm |
5900×1800×2400 |
|
Total Weight |
|
t |
9 |
