XCMG Used Milling Drilling Machines XR360 Plate Drilling Machine OEM Manufacturer

$363200.00-$380500.00 1 / EA (Min. Order)
Model: XR360
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Used Milling Drilling Machines XR360 Plate Drilling Machine  OEM Manufacturer

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

Specifications

  • Weight:92000.000kg
  • Max. drilling depth:102m
  • Place of Origin:Xuzhou,Jiangsu China

XCMG Used Milling Drilling Machines XR360 Plate Drilling Machine  OEM Manufacturer



XCMG Used Milling Drilling Machines XR360 Plate Drilling Machine OEM Manufacturer

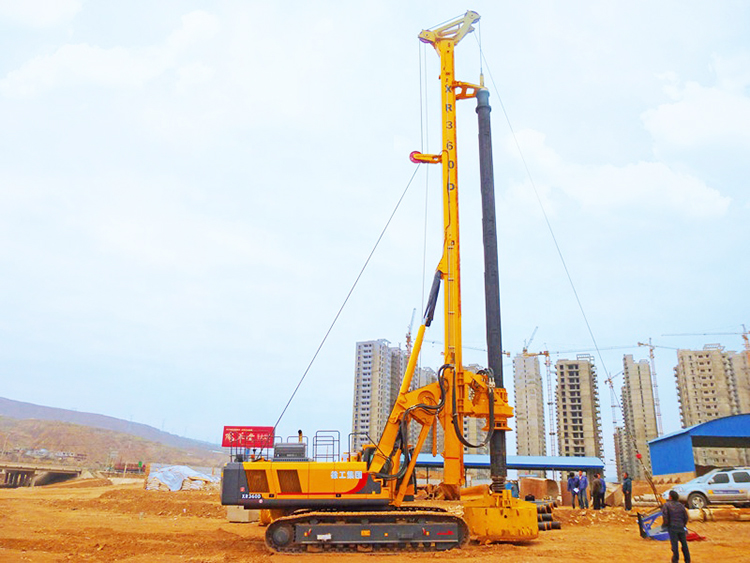

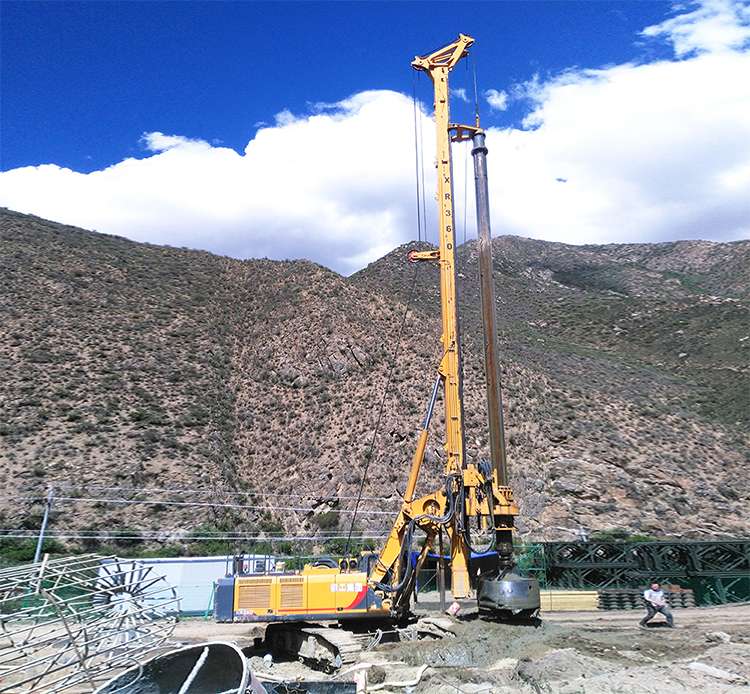

The special hydraulic chassis for the rotating drill with extensible crawler is provided with the excellent stability and is convenient to transport. The imported Cummins turbo-supercharged engine (meeting EUIII standard) is powerful, and has sufficient power reserve, which can be operated in plateau. Its noise and emission meet the national standards. The constant power and the best output enable the complete machine to function at its best.



Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.




Type
Unit
Parameter
Max. drilling diameter
m
2.5
Max. drilling depth
m
102
Engine
Model
/
QSM11-C400
Power
kW
298
Rotary drive
Max. output torque
kN.m
360
Rotary speed
r/min
5-20
Crowd cylinder
Max. pull-down piston push
kN
240
Max. pull-down piston pull
kN
320
Max. pull-down piston stroke
m
6
Main winch
Max. pulling force
kN
320
Max. speed
m/min
72
Auxiliary winch
Max. pulling force
kN
100
Max. speed
m/min
65
Mast inclination
Lateral/ forwards/ backwards
°
±4/5/15
Undercarrige
Max. traveling speed
km/h
1.5
Max. grade ability
%
35
Min. clearance
mm
445
Track shoe width
mm
800
Distance between tracks
mm
3500-4800
Hydraulic system
Working pressure
MPa
32
Overall weight
Max. traveling speed of the overall unit
t
92
Dimension
Working condition
mm
11000*4800*24586
Transportation condition
mm
17380*3500*3810

XCMG Used Milling Drilling Machines XR360 Plate Drilling Machine  OEM ManufacturerXCMG Used Milling Drilling Machines XR360 Plate Drilling Machine  OEM ManufacturerXCMG Used Milling Drilling Machines XR360 Plate Drilling Machine  OEM ManufacturerXCMG Used Milling Drilling Machines XR360 Plate Drilling Machine  OEM ManufacturerXCMG Used Milling Drilling Machines XR360 Plate Drilling Machine  OEM ManufacturerXCMG Used Milling Drilling Machines XR360 Plate Drilling Machine  OEM ManufacturerXCMG Used Milling Drilling Machines XR360 Plate Drilling Machine  OEM Manufacturer


Q&A

1.What’s the warranty policy for XCMG reconditioned machines?

The warranty policy does not cover the covering parts and wearing parts. For engine, gearbox, hydraulic pump, distriutor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.



2.How about the quality of your machine?

The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.



3.Are you the original manufacturer?

Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.



4.Can you satisfy my special requirement?

As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).



5.What is accpetable payment terms?

Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.



If any other questions, please feel free to contact with us.
