- Product Brochure
- Rated Load:1300kg
- Dimension(Long* Breadth * High):6150 x 2060 x 2930mm

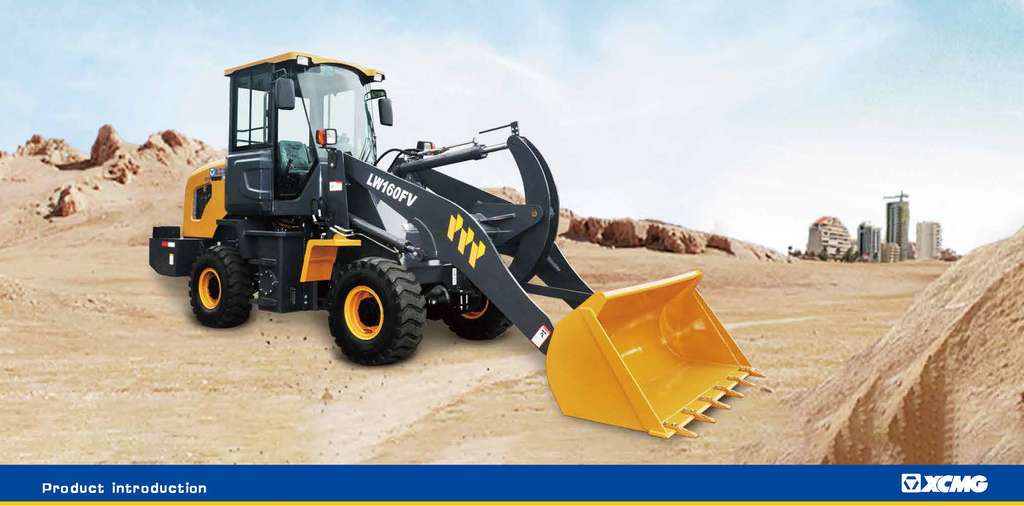

- Type:wheel loader
- Place of Origin:China
- Model Number:LW160FV
- Brand Name:XCMG
- Product Name:G5DC5770048F71
- Display online time:2020-05-12
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:3 Months
- Moving Type:other

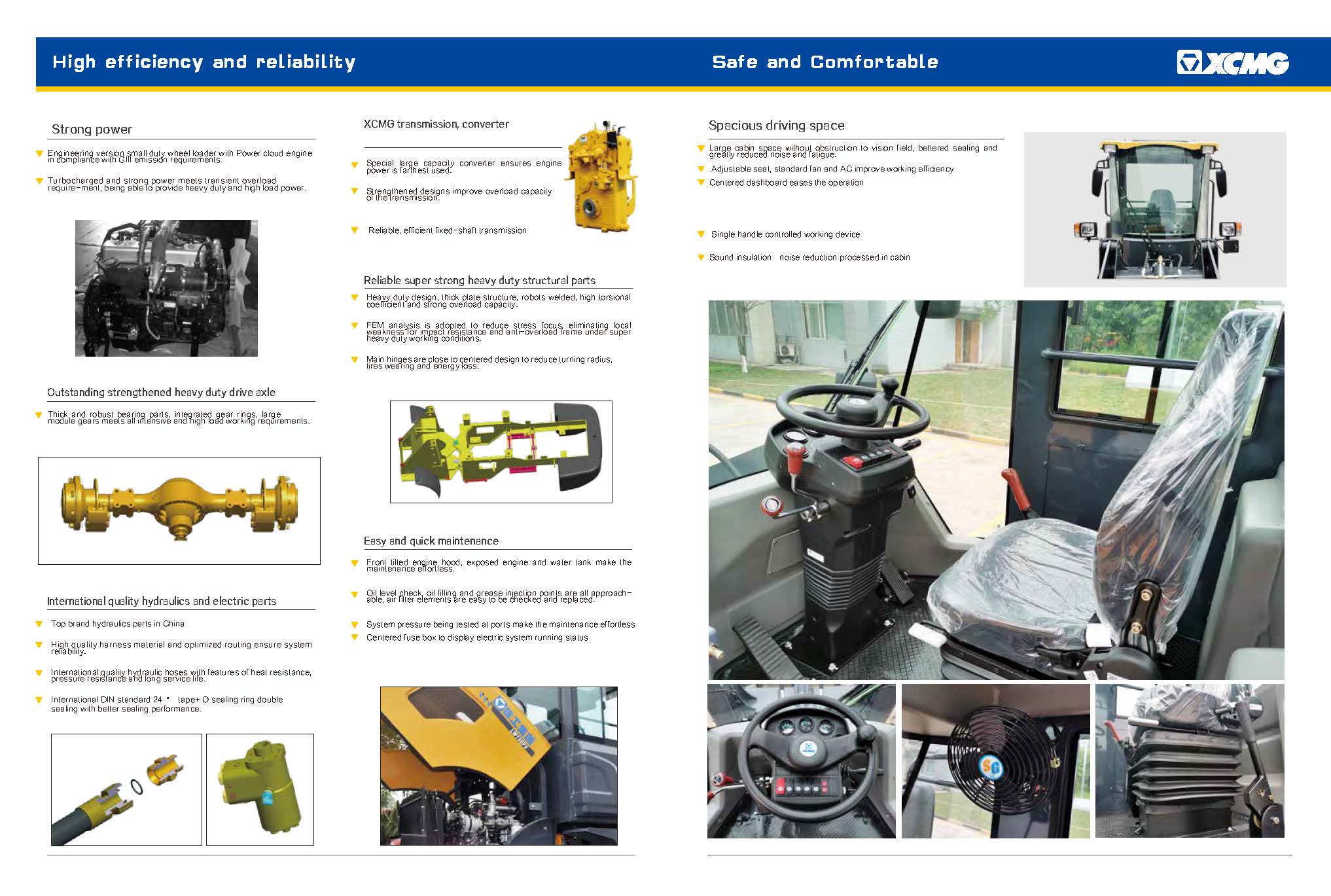

lEngineering version small duty wheel loader with Power cloud engine in compliance with GIII emission requirements.
lTurbocharged and strong power meets transient overload requirement, being able to provide heavy duty and high load power.
lThick and robust bearing parts, integrated gear rings, large module gears meets all intensive and high load working requirements.
lTop brand hydraulics parts in China
lHigh quality harness material and optimized routing ensure system reliability.
lInternational quality hydraulic hoses with features of heat resistance, pressure resistance and long service life.
lInternational DIN standard 24 ° tape+ O sealing ring double sealing with better sealing performance.
lSpecial large capacity converter ensures engine power is farthest used.
lStrengthened designs improve overload capacity of the transmission.
lReliable, efficient fixed-shaft transmission
lHeavy duty design, thick plate structure, robots welded, high torsional coefficient and strong overload capacity.
lFEM analysis is adopted to reduce stress focus, eliminating local weakness for impact resistance and anti-overload frame under super heavy duty working conditions.
lMain hinges are close to centered design to reduce turning radius, tires wearing and energy loss.
lFront tilted engine hood, exposed engine and water tank make the maintenance effortless.
lOil level check, oil filling and grease injection points are all approachable, air filter elements are easy to be checked and replaced.
lSystem pressure being tested at ports make the maintenance effortless
lCentered fuse box to display electric system running status
lLarge cabin space without obstruction to vision field, bettered sealing and greatly reduced noise and fatigue.
lAdjustable seat, standard fan and AC improve working efficiency
lCentered dashboard eases the operation
lSingle handle controlled working device
lSound insulationnoise reduction processed in cabin
