- Rated Load:2500kg
- Dimension(Long* Breadth * High):6540x2150x3100
- Type:Wheel Loader
- Place of Origin:Shandong, China

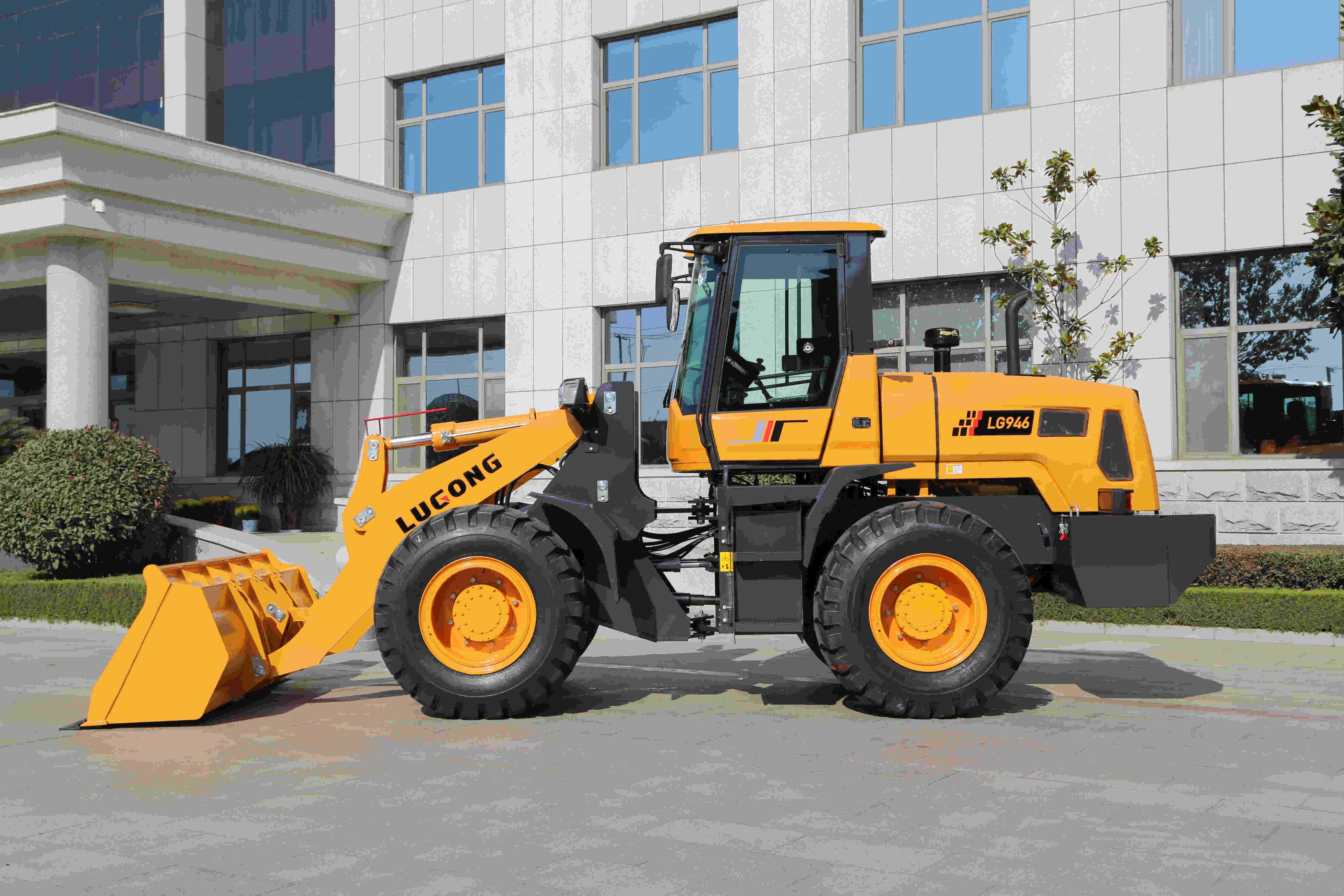

- Model Number:LG946
- Brand Name:LUGONG
- Engine Brand:Other
- Rated Load:1-2 ton
- Bucket Capacity:2.5 - 3.5m³
|main technical parameters||transmission|
|bucket capacity||1.3m³||type||hydraulic torque converter|
|rated load||2500kg||box||automatic 300|
|machine weight||7200kg（+420）||gear shift||F1/R1,double H/L|
|overall dimension (mm)||6540x2150x3100mm||axle||AWD, LG2.8T big hub reduction|
|wheel track||1680mm||tyre size||17.5-25|
|bucket width||2400mm||working hydraulic system|
|Max. dumping height||3800mm||operating type||mechanical single joystick|
|Max. dumping height||650mm||lifting time||6.5S|
|turning radius||6000mm||falling time||5.5S|
|Min. ground clearance||428mm||braking system|
|Engine||service brake||air hydraulic disc brake|
|model||Yuchai 6102 turbo||parking brake||hand operated caliper brake|
|pattern||in-line,6 cylinder||optional: A/C, Cabin heater, forklift|
|rated power/speed||92kw/126HP/2400||Pallet fork, log grapple, grass fork|
*First-rate manufacturer of Compact Wheel Loader;
*Founded in 2000. Land 200,000 Sq. meters;
*Employee more than 1100;
*Sales more than 40,000 Loaders in 2020
MORE ABOUT US
1. Drawing stamping , electrophoresis painting and arc design.
2.Design of three-layer articulation beam
*Three-layer articulation steering design uniform stress, prevent deformation;
*Lengthened and widened hinge plate wedge in column get better chassis strength, more durability;
*Trajectory coincidence technology reduce engine load and tire wear, get small turning circle and more flexible operation.
- *Patented axle, speed ratio changed from 6:37 to 7:41, stronger power.
- *Casting process, compared with other brands in the same specification, the weight is increased by 200kg, stronger and more durable.
- *Frame is welded by high-strength rectangular materials.
- *drawing stamping process
- *arc design
- *electrophoresis painting: high anticorrosion
- *no dead angle of vision with one sheet of front glass
- *air-damped seat; Germany tech. Design
- *high-efficiency conditioner

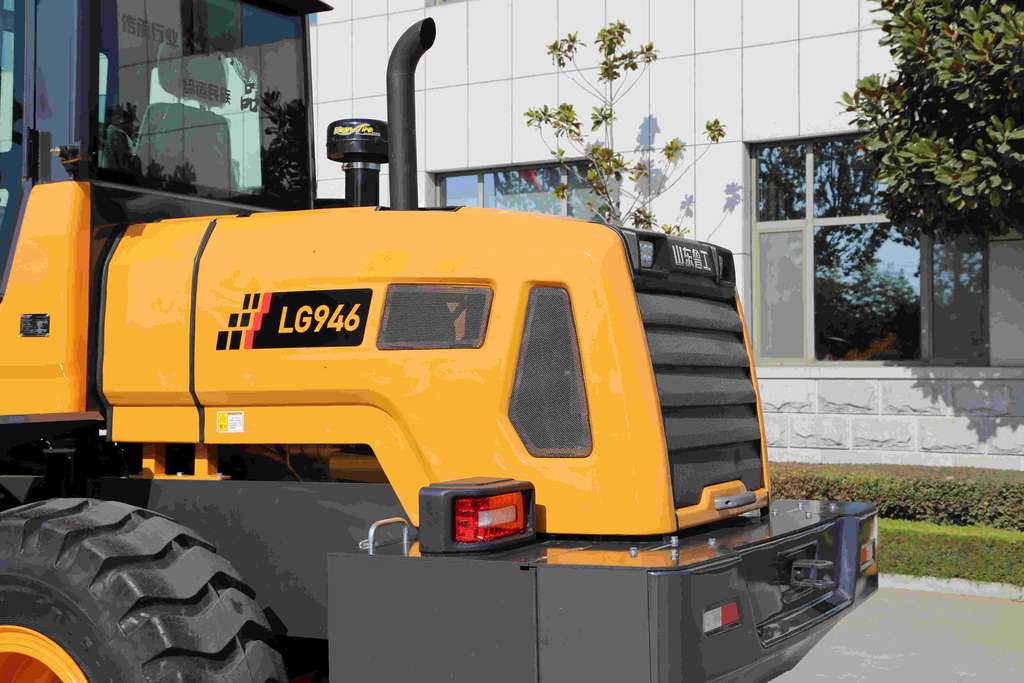

*High level water tank, Large hole grid with 32mm double-row radiating pipe increase radiation effect and not be blocked;
*Tank temperature not exceed 80ºC even continuous working 20 hours at surface temperature 50ºC.
*Drawing stamping sheet metal gets high structural strength;
*Arc design brings good visual effect;
*Electro-coating ensures excellent anti-corrosion property.
7. More Detail
*Separate design of front and rear brake pumps avoid brake failure;
*Integrated design of pump and valve, cancel flexile hose, increase steering performance and safety;
*H type joint with two sealing ring ensure lifelong no leakage.
*New LED lights bring better brightness and longer life;
*Pickling and phosphating treated oil tank avoid block in hydraulic system;
*Fast joint on air cylinder for blowing dust gun, inflation and grease gun;
*Muffler covered with heat resistant material avoid body scalding and components ageing;
*Shanghai "Steel" brand 18PR Nylon tire.
optional: A/C, Cabin heater, forklift
