Wheeled Excavators | XCMG XE150WB 14 ton Excavator with Cummins Engine

$50000.00-$70000.00 1 / EA (Min. Order)
Model: XE150WB
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Wheeled Excavators | XCMG XE150WB 14 ton Excavator with Cummins Engine

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos

Summary

  • Max Digging Radius:7780mm
  • Machine Weight: 15318KG
  • Maximum Digging Depth:4630mm
  • Maximum Digging Height:8190mm
  • Bucket Capacity: 0.58cbm
  • Operating Weight: 15318KG
  • Model Number:XE150WB
  • Brand Name:XCMG
  • Place of Origin:Xuzhou,China

Specifications

  • Weight:15318.000kg
  • Condition:New
  • Moving Type:Wheel
  • Rated Speed:5.2/3.4 km/h
  • Max.torque/engine:586N.m

Wheeled Excavators | XCMG XE150WB 14 ton Excavator with Cummins Engine

Wheeled Excavators | XCMG XE150WB 14 ton Excavator with Cummins Engine.

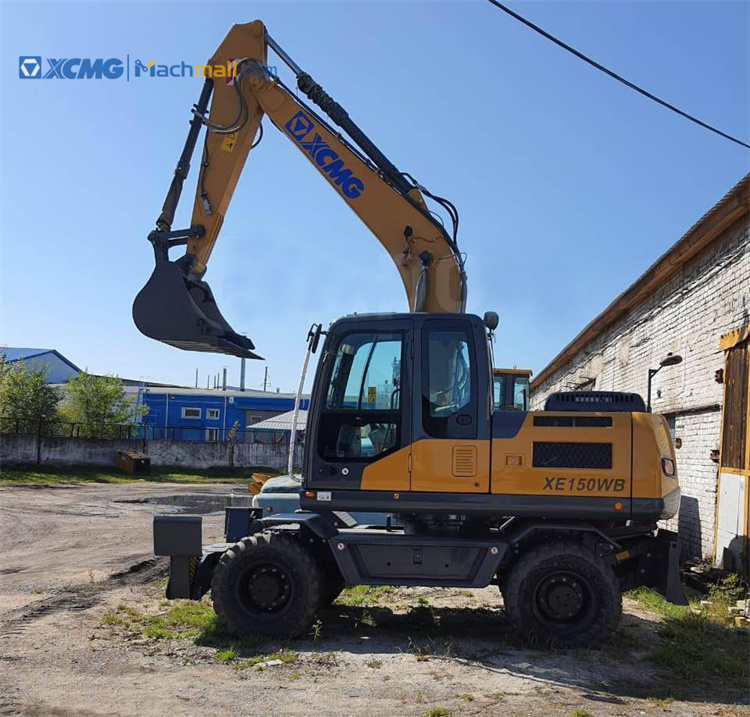

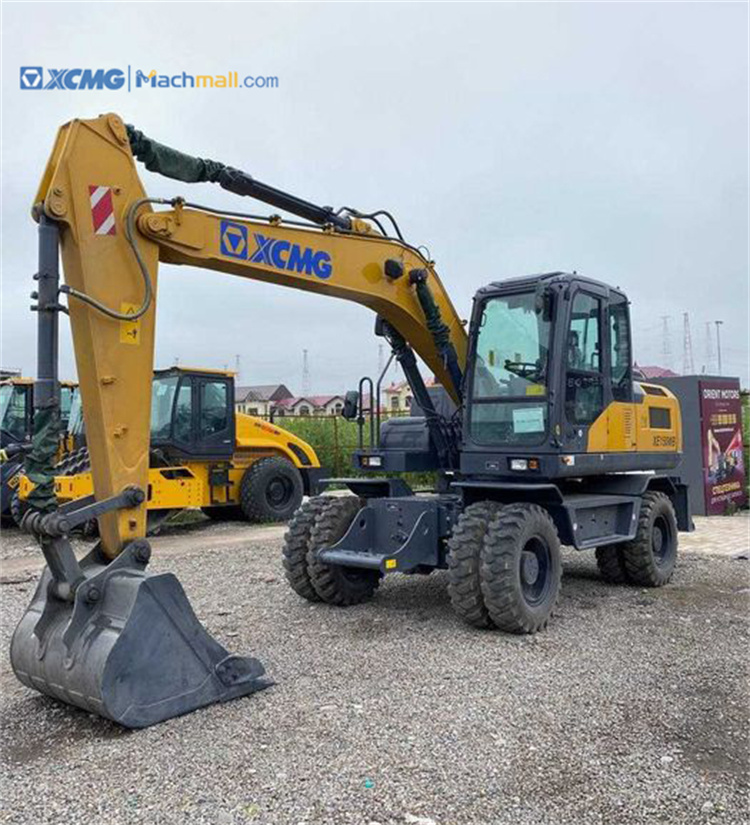

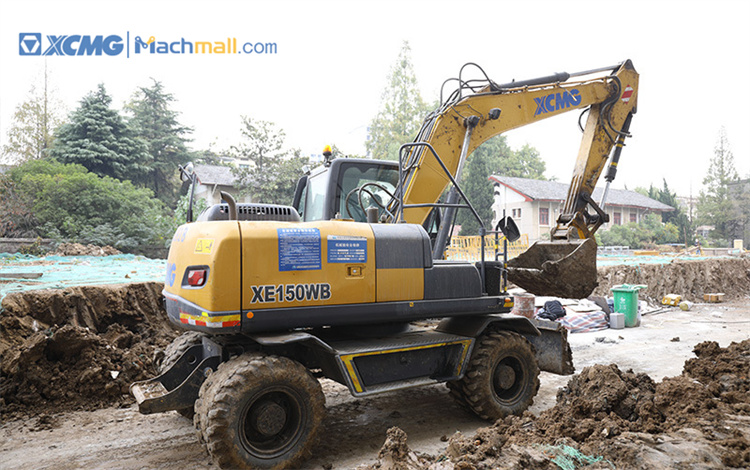

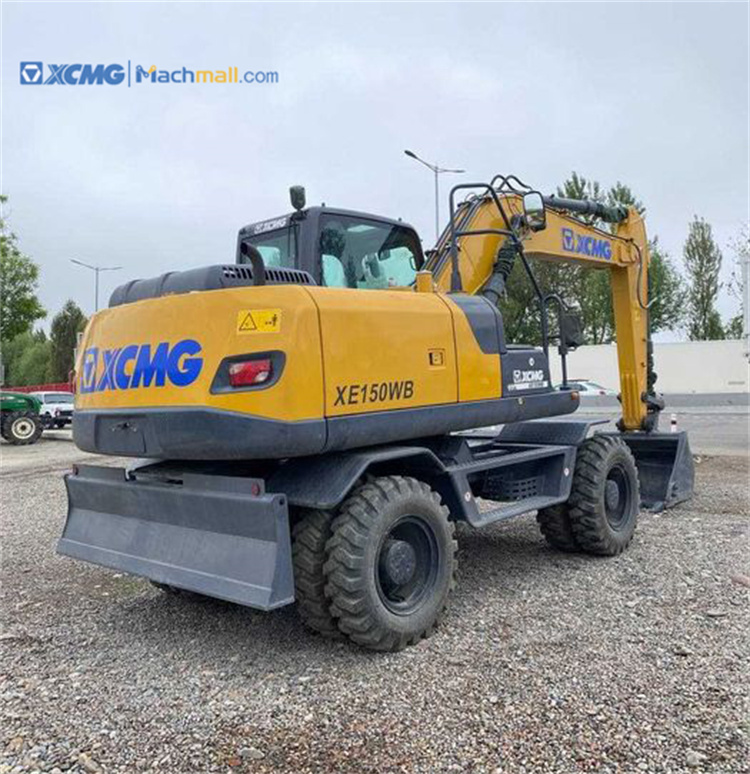

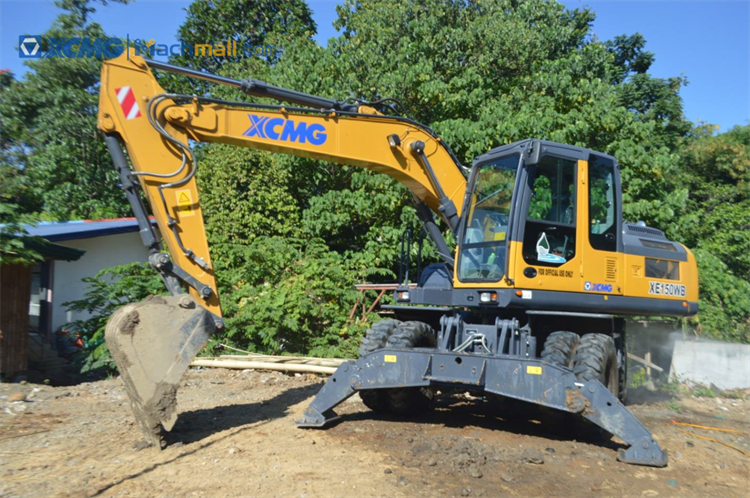

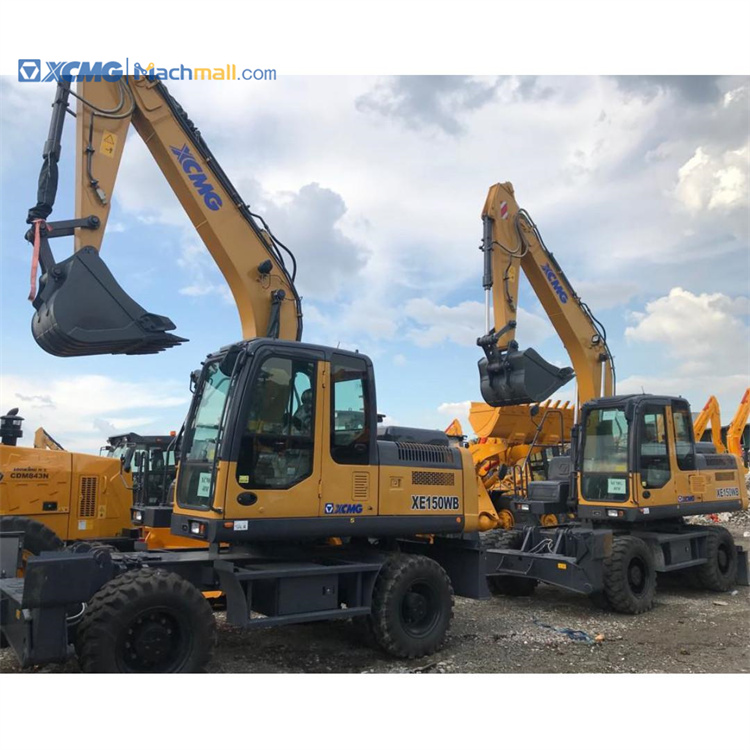

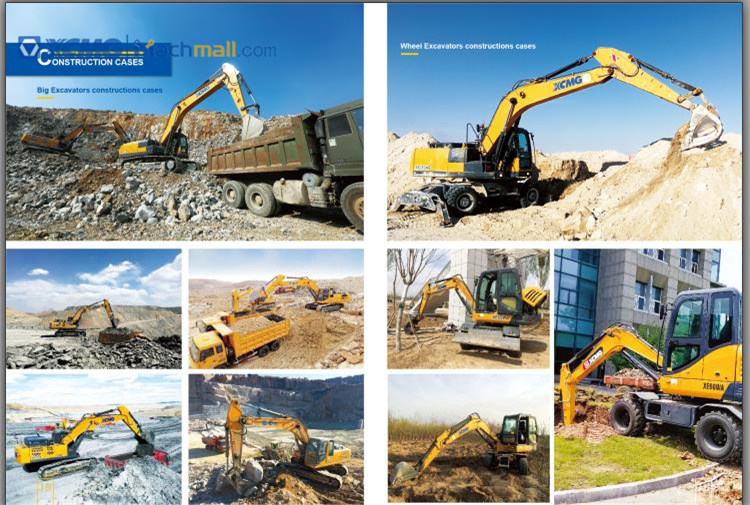

XCMG XE150WB wheeled excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements. It plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.

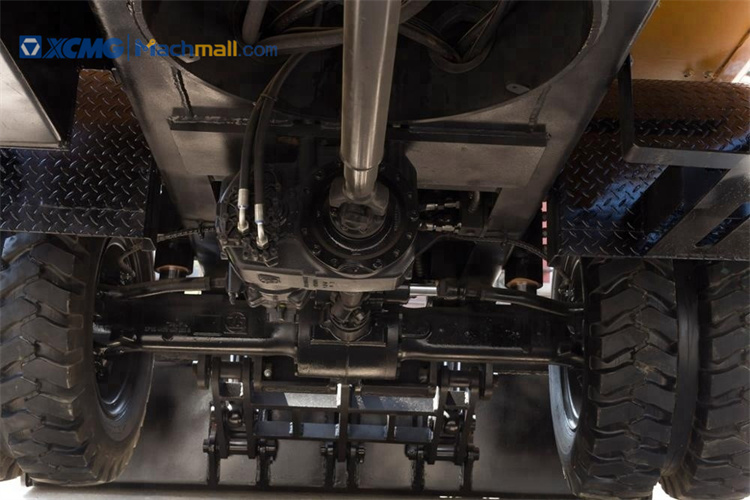

XE150WB wheeled excavator has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.



Advantages and Highlights:

1. Equipped with a new generation of high-efficiency direct injection engine.

2. Using highly professional design and analysis tools, combined with bench tests, to ensure that our machines are strong and durable.

3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

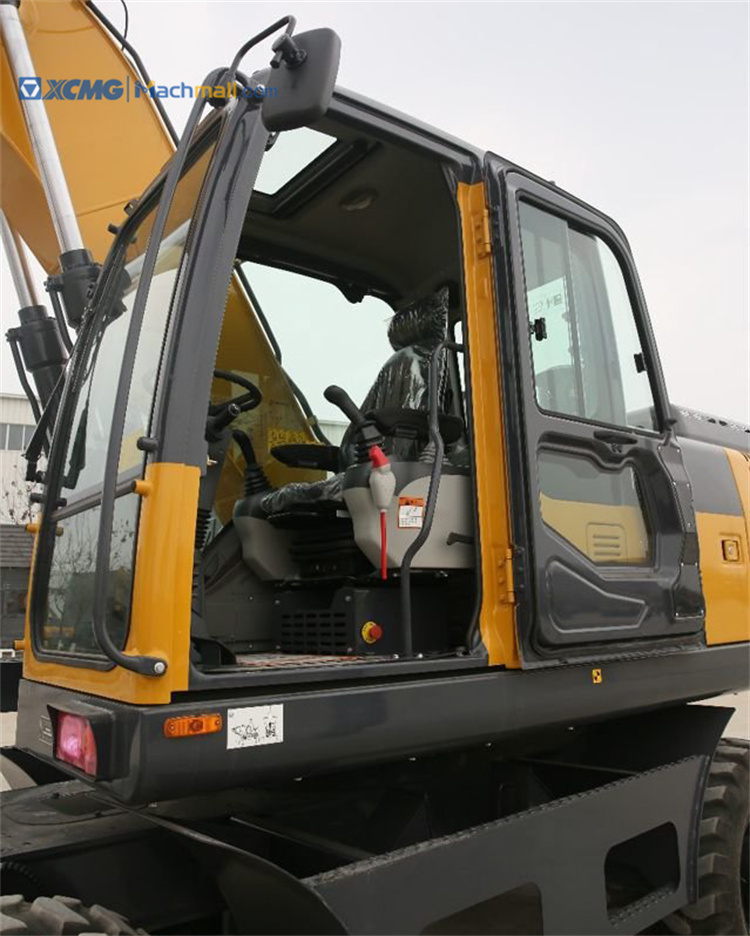

4. Fully functional, ergonomically designed man-machine driving and driving environment, equipped with high intensity cab certified with ROPS.



Wheeled Excavators | XCMG XE150WB 14 ton Excavator with Cummins Engine

Engine model

/

QSB4.5

Output power of engine

Kw/r/min

104/2000

Max.torque/engine

N.m

586

Displacement

L

4.5

Fuel tank capacity

L

250

Rated flow of main pump

L/min

2x160

Pressure of main safety valve

Mpa

31.4/34.3

Hydraulic tank capacity

L

135

Slewing speed

r/min

13.7

Digging capacity of bcuket

KN

60

Digging capacity of bcuket rod

KN

65

Min.turning radius

mm

6500

Gradient capability

%

70

A Total length

mm

6482

B Total width

mm

2552

C Total heigth

mm

3158

Counterweight ground clearance

mm

1230

Min.ground clearance

mm

359

Min.tail swing radius

mm

2300

Wheelbase

mm

2800

Track gauge

mm

1920

Total width of chassis

mm

2495

Distance between front axle and turning center

mm

1700

Hood height

mm

2430

The maximum digging depth of dozer

mm

112
