XCMG 1.5T Gasoline and LPG Forklift FGL15T NISSAN Engine
Summary
- Fork Width:120mm
- Fork Length:920mm
- Rated Loading Capacity:1500kg
- Type:Powered Pallet Truck
- Model Number:FGL15T
- Brand Name:XCMG
- Place of Origin:China
- Min. Lifting Height:3000mm
- Max. Lifting Height:6000mm
- Power Souce:gasoline and LPG
- Overall Dimensions:2250*1090*2025mm
Specifications
- weight:2590.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

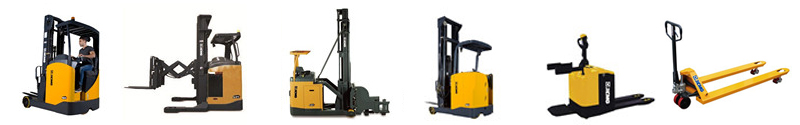

Series products:
1 Counter balance forklift:
Diesel forklift: 1.5t - 16.0t
Gasoline/LPG forklift: 1.5t - 5.0t
Electric 3-wheel forklift: 1.3t - 2.0t
Electric 4-wheel forklift: 1.5t - 5.0t
2 Reach truck
Sit-on reach truck: 1.2t - 2.0t
Stand-on reach truck: 1.3t - 2.5t
Double deep reach truck: 1.5t
3 Warehouse equipment
Electric stacker: 1.0t - 1.6t
Electric pallet truck: 1.5t - 3.0t
Man-down VNA: 1.3t
Man-up VNA: 1.5t
Hand pallet truck:2.5t-3.0t
XCMG 1.5T gasoline and LPG Forklift FGL15T NISSAN Engine
Load capacity:1500kg
Engine:NISSAN K21
Mast option:2 stage mast lifting height from 3000mm to 6000mm;3 stage full free mast lifting height from 3000mm to 6000mm
Tyre option:Pneumatic tyres, Sollid tyres, Double front tyres, Non-marking solid tyres
Advantages:
1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating safety.
General | Manufacturer | XCMG | |||
Model | FL15T-JB | FG15T-JB | FGL15T-JB | ||
(FL15-JB) | (FG15-JB) | (FGL15-JB) | |||
Power Type | Gasoline/LPG | ||||
Rated Load Capacity | Q(kg) | 1500 | |||
Load Centre | C(mm) | 500 | |||
Characteristic & Dimension | Rated Lift Height | H3(mm) | 3000 | ||
Free Lift Height | H2(mm) | 100 | |||
Fork Size(L×W×T) | mm | 920×120×35 | |||
Mast Tilt Angle(F/R,α°/β°） | deg | 6°/12° | |||
Fork overhang(wheel center to fork face) | X1(mm) | 409 | |||
Rear Overhang | X2(mm) | 450 | |||
Ground Clearance(Bottom of Mast) | H7(mm) | 110 | |||
Length to Face of Fork(Without Fork) | L1(mm) | 2250 | |||
Overall Width | B1(mm) | 1090 | |||
Mast Lowered height | H1(mm) | 2025 | |||
Mast Extended Height(with backrest) | H4(mm) | 4055 | |||
Overhead Guard Height | H5(mm) | 2178 | |||
Turning Radius(outside) | Wa(mm) | 2030 | |||
Min.Aisle width for pallets | Ast(mm) | 3560 | |||
Performance | Travel Speed(No load) | Km/h | 14.5 | ||
Lifting Speed(Full load) | mm/sec | 560 | |||
Lowering Speed(Full load) | mm/sec | 450 | |||
Max.Drawbar pull(Full load) | KN | 17(14.5) | |||
Max.gradeability(Full load) | % | 20 | |||
Chassis | Tyre(Front×2) | mm | 6.50-10-10PR | ||
Tyre(Rear×2) | mm | 5.0-8-10PR | |||
Front Tread | B2(mm) | 890 | |||
Rear Tread | B3(mm) | 920 | |||
Wheelbase | Y(mm) | 1410 | |||
Weight | Total Weight | kg | 2590 | ||
Front Axle Weight Distribution(Full Load) | kg | 3610 | |||
Rear Axle Weight Distribution(Full Load) | kg | 480 | |||
Front Axle Weight Distribution(No Load) | kg | 1160 | |||
Rear Axle Weight Distribution(No Load) | kg | 1430 | |||
Power & Transmission | Battery | V/Ah | 12/60 | ||
Engine Model | K21 | ||||
Engine Manufacturer | NISSAN | ||||
Rated Output/r.p.m. | kw | 31.5/2300 | |||
Rated Torque/r.p.m | N·m | 144/1600 | |||
No.of Cylinder | 4 | ||||
Bore x Stroke | mm | 89/83 | |||
Displacement | cc | 2065 | |||
Fuel tank capacity | L | 45 | |||
Transmission Type | Powershift(manaul) | ||||
Transmission Stage(FWD/RVS) | 1/1(2/2) | ||||
Operating Pressure (For Attachments) | MPa | 14.5 | |||
