Summary
- Weight:6900kg
- Table Size:1830×760×1150mm
- Rated Loading Capacity:230kg
- Power:38/(3000)kW/(r/min)
- Model Number:GTBZ14J
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
- Max. Lifting Height:14.05m
- Overall Dimension(L*W*H):6690×2260×2130mm
Details
- Product Name:G5B63FFB1DFB87
- Display online time:2019-11-07
- weight:6900.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Max. Working Height:15.75m
- Max. Platform Height:14.05m
- Max. Working Range:8.22m
- Rotation Angle of Platform:355°
- Max. Travel Speed:6.1km/h
- Max. Tail Wagging:0mm
- Min. Turning Radius:4.5m
- Max. Grade Ability:0.45
- Min. Ground Clearance:250mm

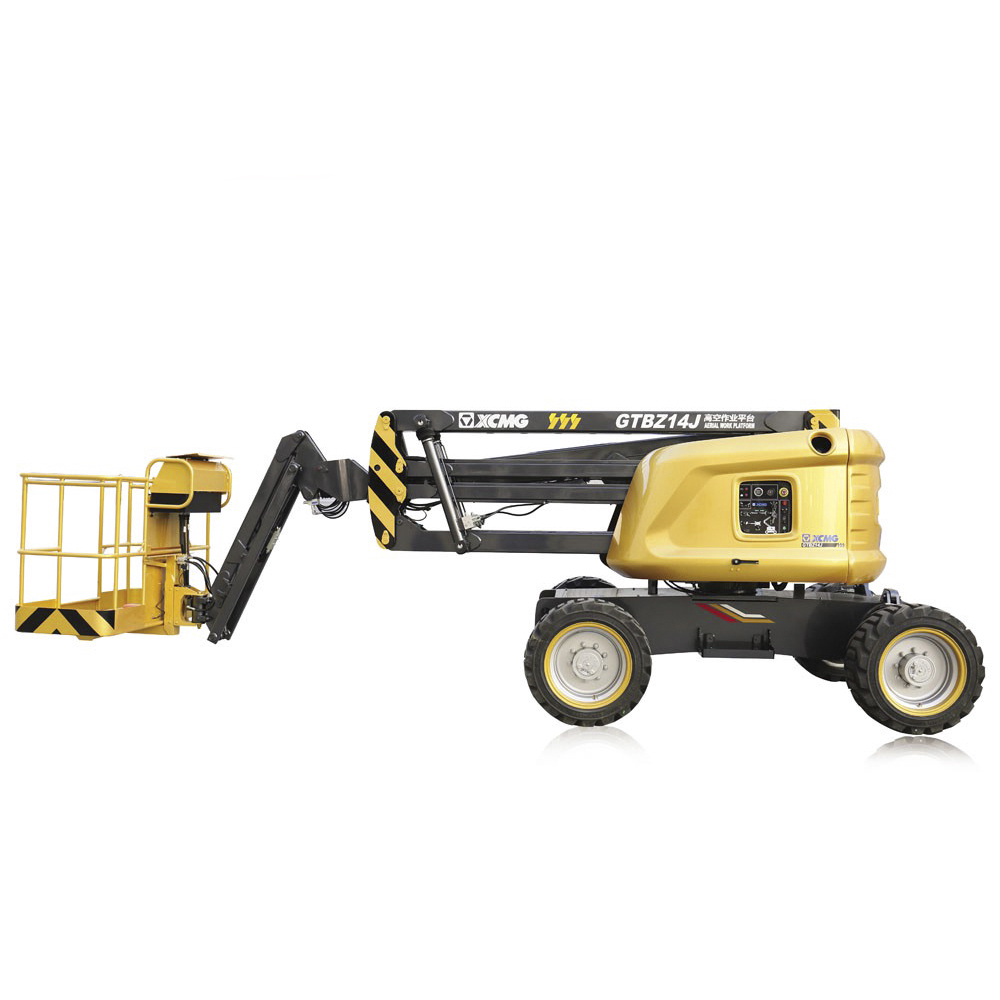

GTBZ14J Articulated Boom Type Aerial Work Platform
1.Flexibility and efficiency
“Σ-type” double link jib has characteristics of compact structure and
flexible extension, which can achieve vertical lifting and horizontal extension
and has very strong obstacle climbing ability;180° rotatable platform provides bigger
operation range;Narrow-type rotary table with compact structurecanachieve “zero
tail wagging” and improve operation efficiency.
2.Super strong site adaptability
Cross-country type chassis, four-wheel drive system, pouring-type
cross-country wide tyre, full-time axle balanced system and 38kw strong power
are configured so that the equipment has excellent terrain adaptability.
3.Advanced performance, safety
and reliability
Full-range operation, visual and friendly control panel and easy operation;
Electro-hydraulic proportional system control is accurate and efficient.
Protective measures such as chassis incline protection, platform overload
alarming, emergency landing, safety speed limit, flexibility start-stop
technology, etc. are provided.
Description |
Unit |
Parameter value |
|
Overall length |
mm |
6690 |
|
Overall width |
mm |
2260 |
|
Overall Height |
mm |
2130 |
|
Wheel Base |
mm |
2100 |
|
Maximum Working Height |
m |
15.75 |
|
Maximum Platform Height |
m |
14.05 |
|
Maximum Working Range |
m |
8.22 |
|
Maximum Load Capacity |
kg |
230 |
|
1stBoom luffing Range |
° |
0~+60
|
|
2ndBoom luffing Range |
° |
-8~+75
|
|
Crank Arm Luffing Range |
° |
-60~+80
|
|
Rotation Angle of Rotating Platform |
° |
355 |
|
Maximum Tail Wagging |
mm |
0 |
|
Platform Size |
mm |
1830×760×1150 |
|
Platform turning angle |
° |
180 |
|
Total Weight |
kg |
6900 |
|
Maximum Travel Speed |
km/h |
6.1 |
|
Minimum Turning Radius |
m |
4.5 |
|
Minimum Ground Clearance |
mm |
250 |
|
Maximum Grade Ability |
% |
45 |
|
Tire Specification |
315/55D20 |
||
Engine Model |
Perkins
|
||
Rated Power of Engine |
kW/(r/min) |
38/(3000) |
Response Time : Within 24 hours
