- Summary
- Specifications
- Model Number:XCA1600
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
- Max. Lifting Height:138/155m
- Max. Lifting Load:1600ton
- Application:Wind Turbine
- weight:92000.000kg
- Condition:New
- Moving Type:Wheel
- Dimension:21568*3000*4000mm
- Type: All terrain crane
- Max. Gradeability:60%
XCMG Manufacturer XCA1600 1600 ton Truck Crane for Wind Turbine.

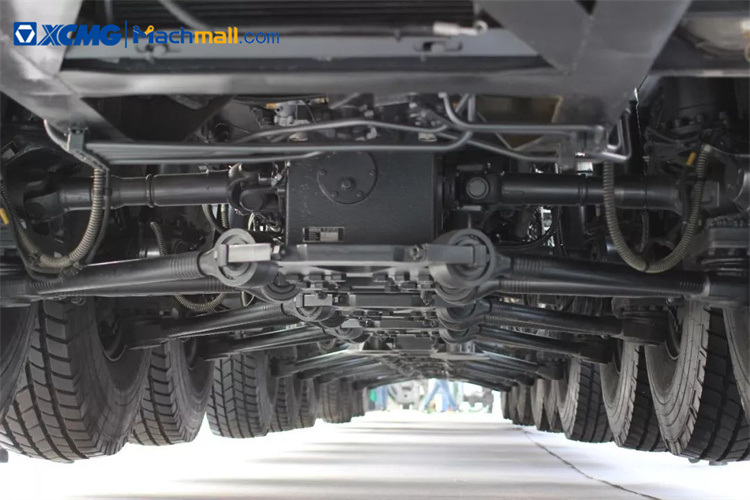

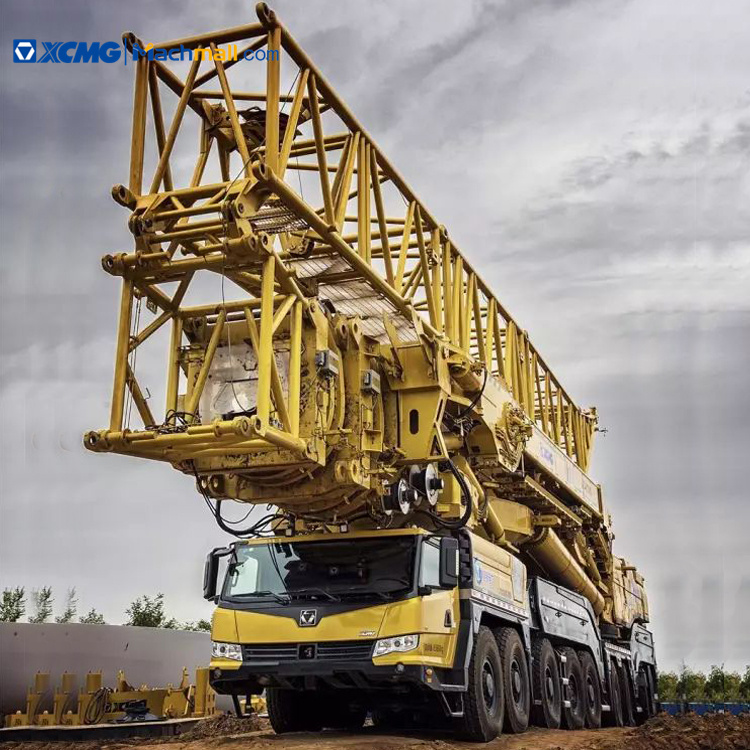

XCMG 1600 ton truck crane adopts nine-axle all-terrain chassis and eight-axle drive and its heavy-duty transition and climbing capacity is up to 60%.

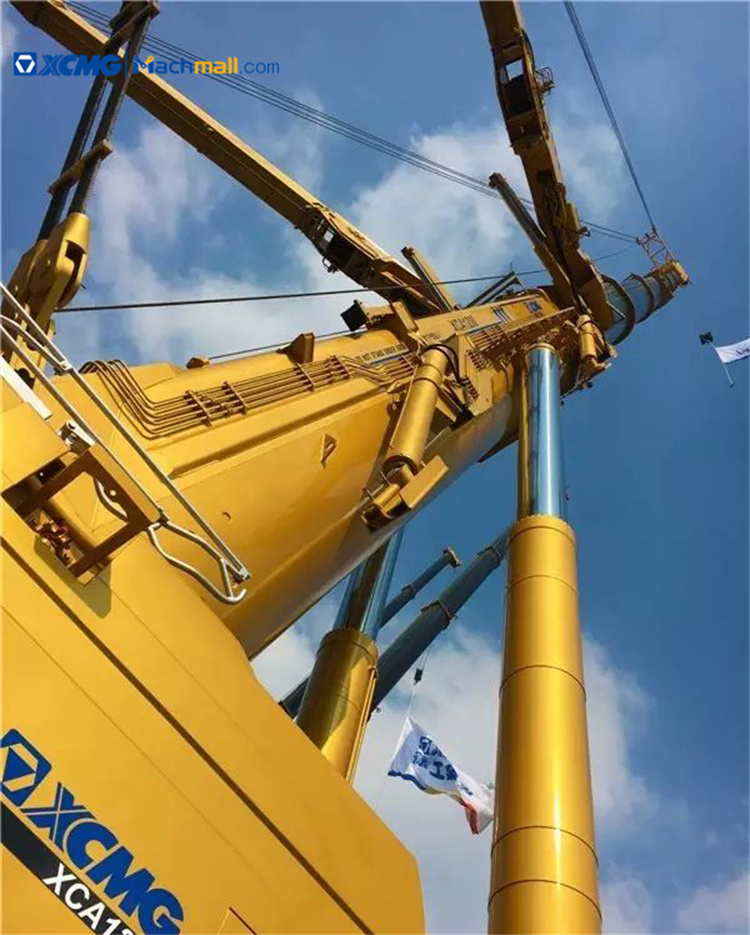

The seven-section main boom is 92.4 meters long, and the self-folding wind power boom is 48-102 meters long; the wind power boom is 27.5-51.5 meters long.

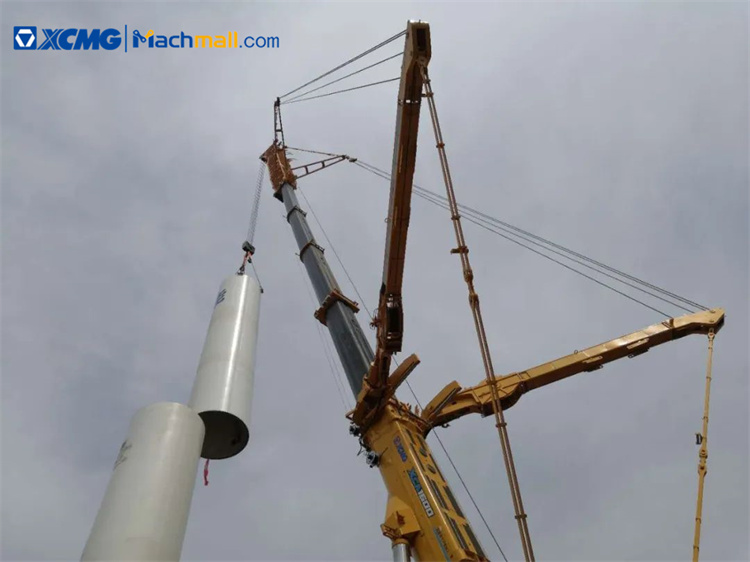

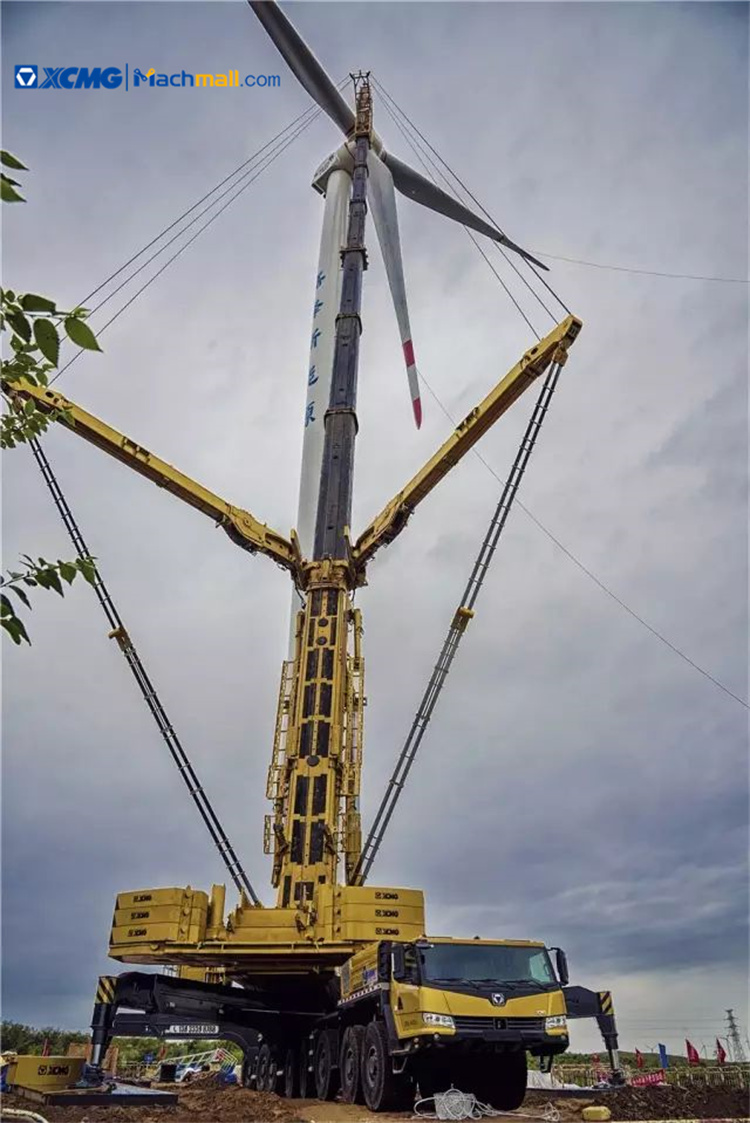

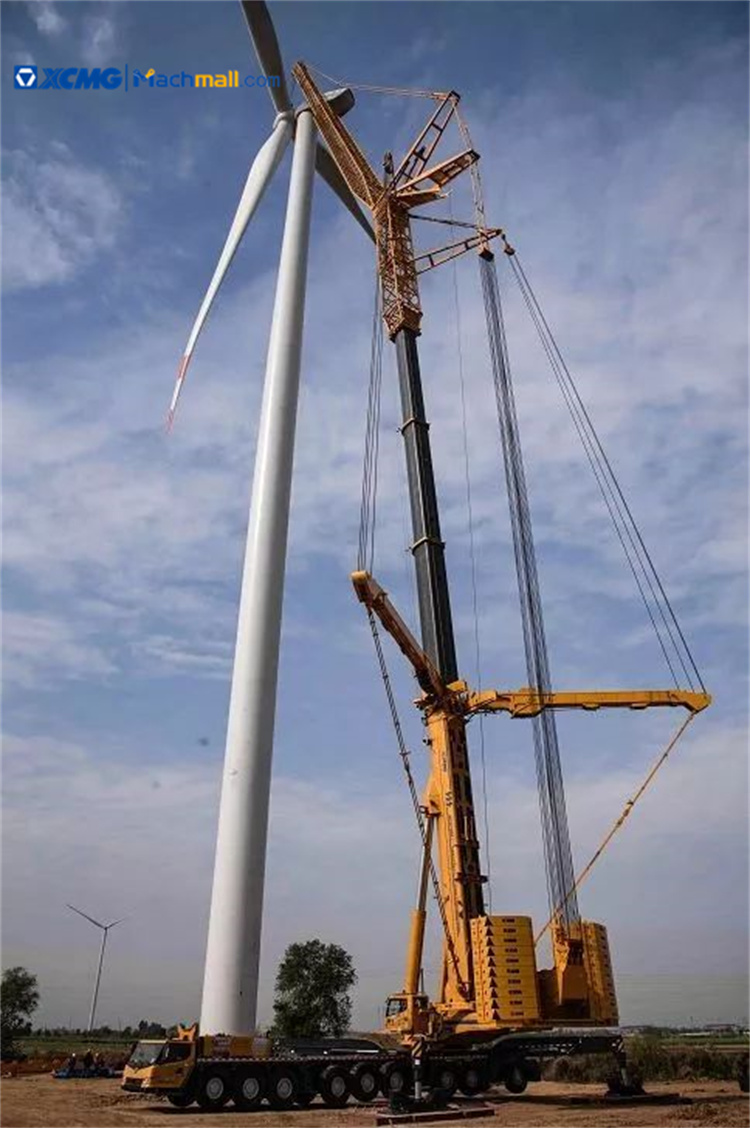

XCMG 1600 ton truck crane can lift an 81-ton wind turbine at height of 140 meters, a 93-ton wind turbine at the height of 120 meters and a 137-ton wind turbine at a height of 100 meters, realizing full coverage of wind power conditions.
|
Dimension |
Unit |
XCA1600 |
|
Overall length |
mm |
21568 |
|
Overall width |
mm |
3000 |
|
Overall height |
mm |
4000 |
|
Weight |
kg |
92000 |
|
Overall weight in transport |
kg |
96000 |
|
Engine model |
/ |
OM460LA.E3A/5 |
|
OM502LA.E3B |
||
|
Engine rated power |
kW/(r/min) |
295/1800 |
|
482.2/1800 |
||
|
Max. rated total lifting capacity |
t |
1600 |
|
Base boom |
m |
92.4 |
|
Fully extended boom+ jib |
m |
138/155 |
