- Summary
- Specifications
Summary
- Rated Load:1000-1200kg
- Dimension(Long* Breadth * High):5890×2060×2900mm
- Type:front loader
- Place of Origin:China
- Model Number:LW156FV
- Brand Name:XCMG
- Certification: CE/ISO9001
Specifications
- Weight:4450.000kg
- Condition:New
- Moving Type:Wheel
- Engine Brand:SHANGCHAI
- Rated Load:1-2 ton
- Bucket Capacity:0.5 - 2m³
- Bucket capacity:0.7m³
- Machine weight:4450-4650kg
- Maximum hoisted hinge pin height:3730-4190mm
- Maximum breakout force:44kN
- Wheel base:2300mm
- Tread:1500mm
- Unloading distance:785-1070mm
- Engine Model:YN27GBZ
- Rated Power:55kW
- Rated Speed:2400rpm
- Tipping load:2000-2400kg

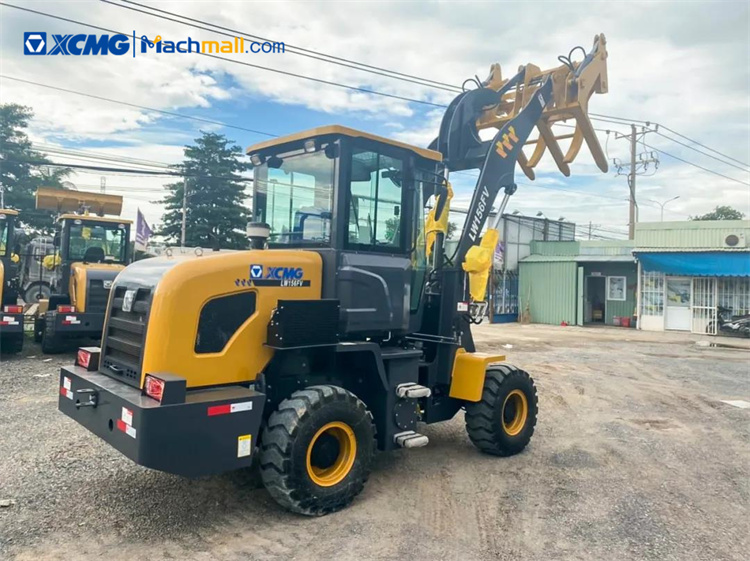

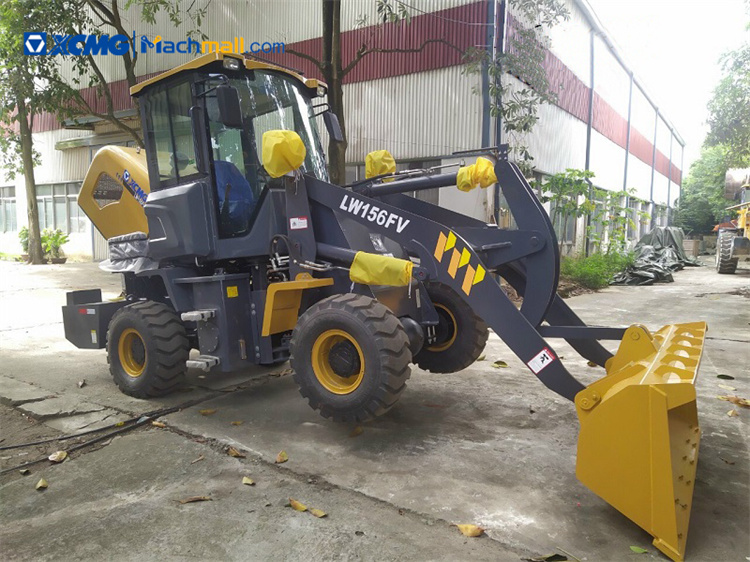

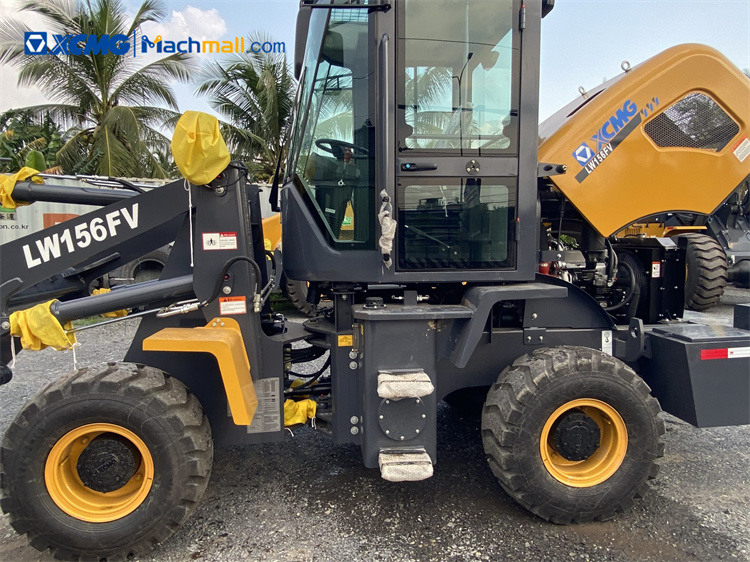

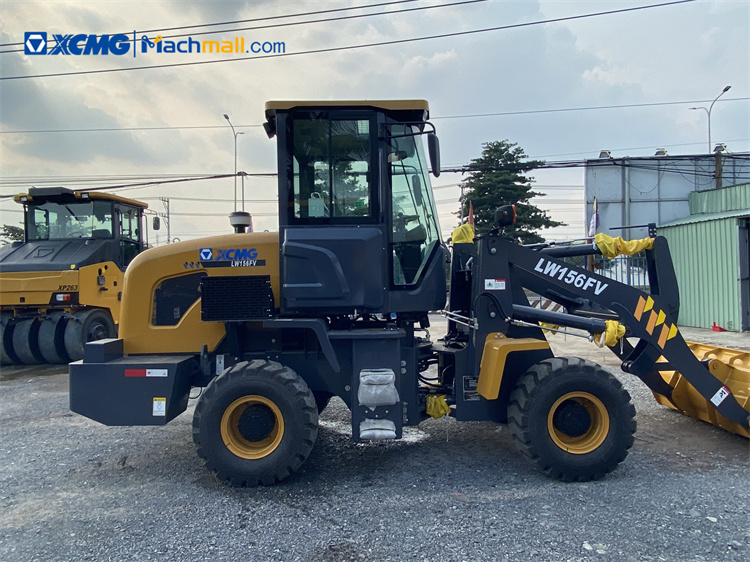

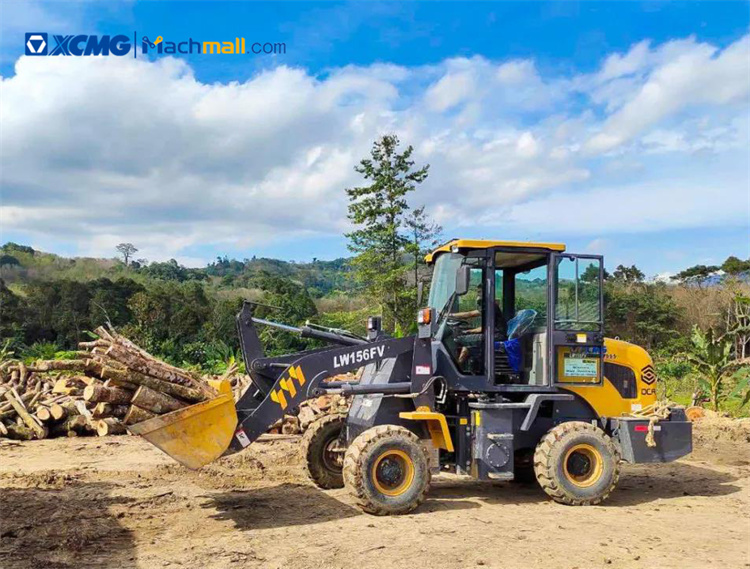

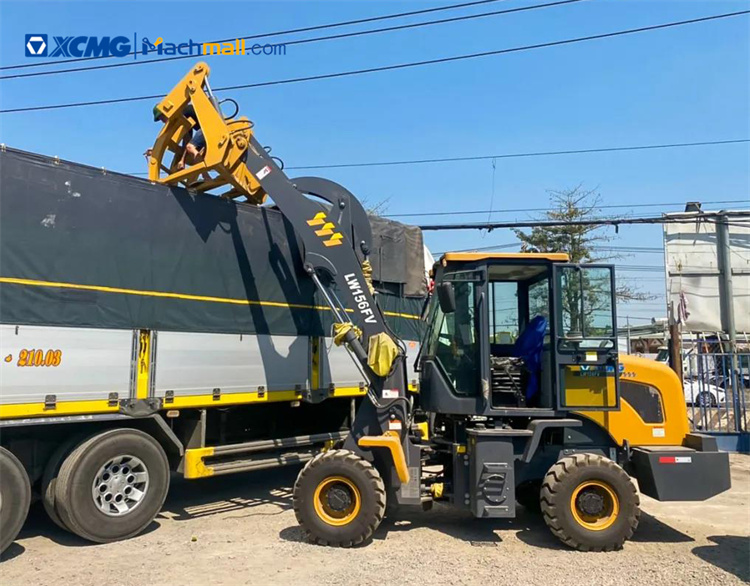

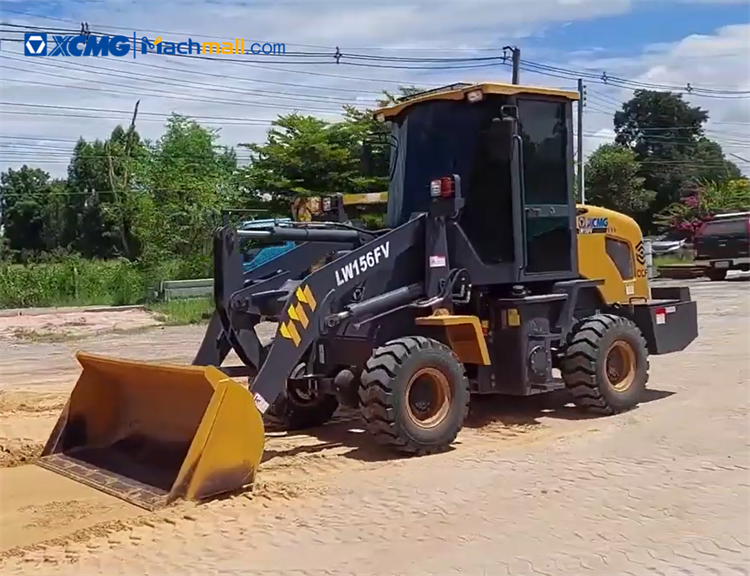

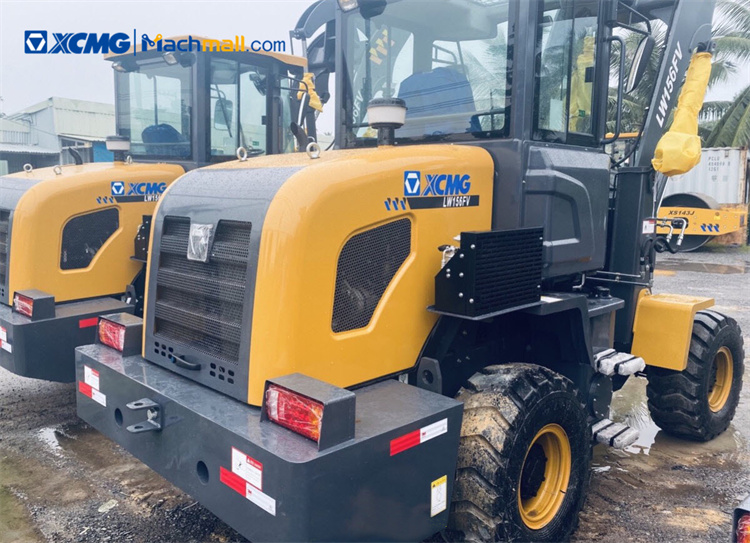

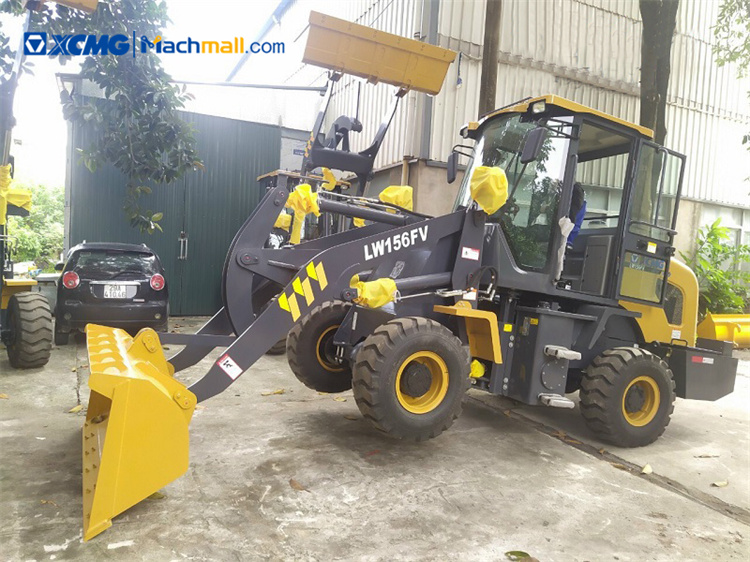

XCMG 2020 New Model Wheel Loader LW156FV.
XCMG new model wheel loader LW156FV is equipped with national two-stage engine, high-quality split type double change, four-wheel drive, full hydraulic steering, strong power, higher efficiency and stronger environmental adaptability. The replacement period of the hydraulic oil is extended to be 2000h, which is far beyond the same industry level and greatly reduces the using cost.
Performances and specialties:
* The replacement period of the hydraulic oil is extended to be 2000h, which is far beyond the same industry level and greatly reduces the using cost.
* The unloading height is more than 3m, which meets all kinds of operation. As the overall oil cylinder and pin is tempered and quenched, the hardness leads in the industry and its reliability is high.
Model characteristics:
* Overloaded transmission parts are special. Streamlined appearance and wide-field glass are attractive.

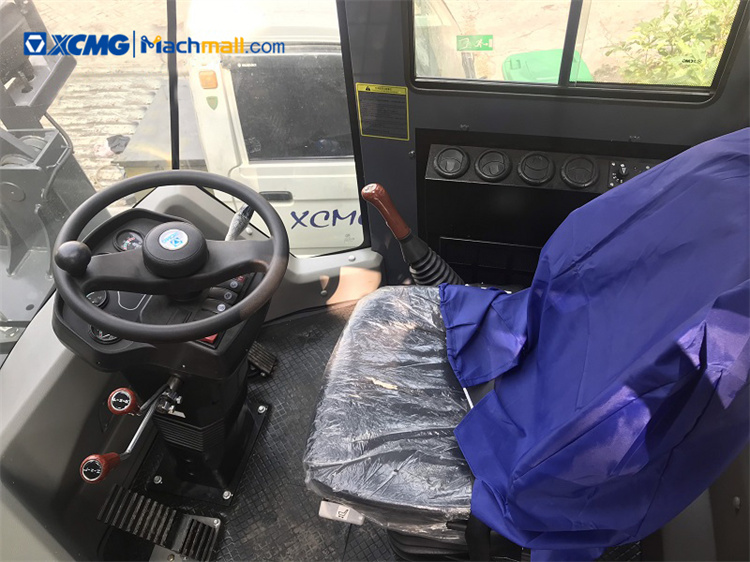

* Due to people-oriented design, it is safe and fatigue-reducing, which creates the excellent operating environment for you. It is operated by the single handle, the seat is adjustable, and it is operated comfortably.
* Double seal with 24° coneseal ring is adopted for the joint. The sealing performance is better, and the performance is more reliable; the pipelines are cleared up centrally and the pipeline route is more rational.

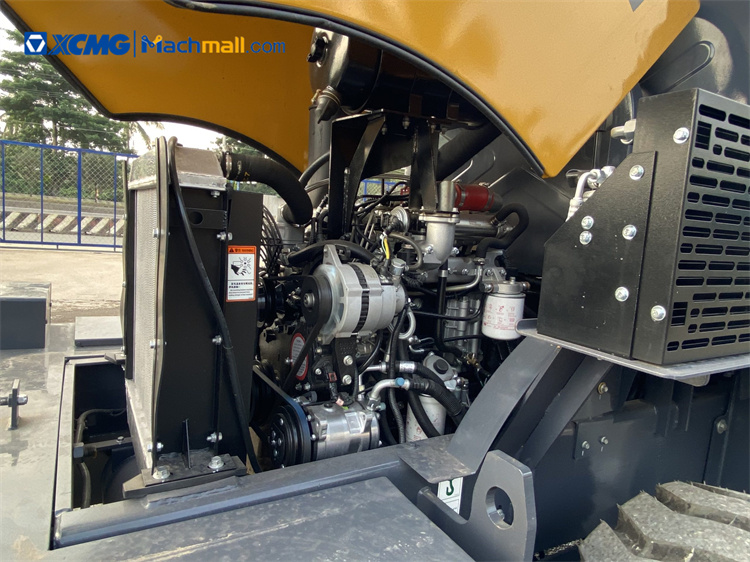

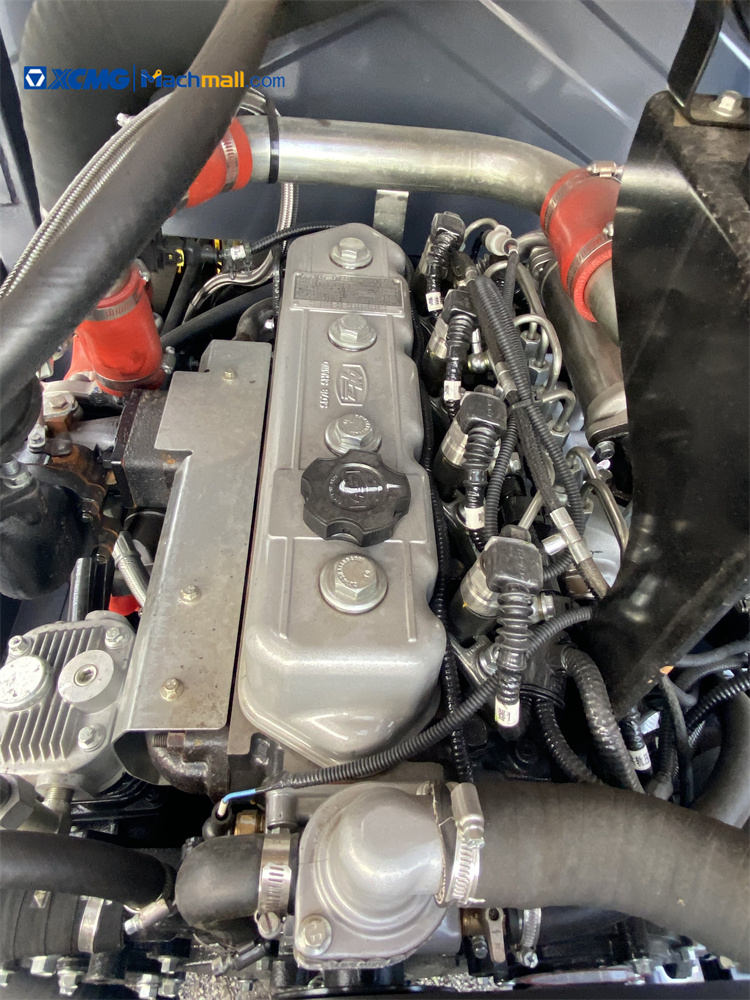

* National III engine has strong power and high efficiency. Due to electronic high-pressure and common-rail technology, oil consumption is reduced.

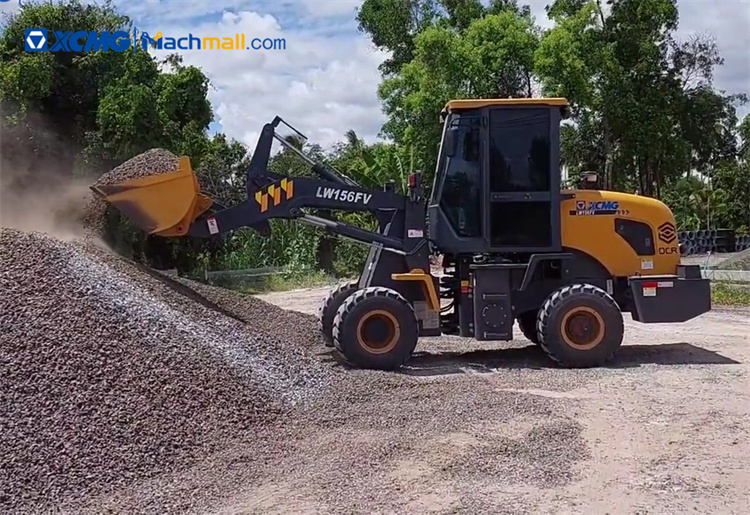

* Due to CAE optimized working device, it can be automatically flattened and operates smoothly. During continuous operation, the bucket can be easily inserted into the material pile, which saves labor and becomes efficient.
|
Item |
Short boom |
Standard boom |
Long boom |
Units |
|
|
Rated load |
1200 |
1100 |
1000 |
kg |
|
|
Tipping load |
2400 |
2200 |
2000 |
kg |
|
|
Unloading height |
Bucket flat height |
3470 |
3740 |
3870 |
mm |
|
Standard |
3000 |
3300 |
3500 |
mm |
|
|
Unloading distance |
785 |
830 |
1070 |
mm |
|
|
Rated bucket capacity |
0.7 |
m3 |
|||
|
Overall mass |
4450 |
4550 |
4650 |
kg |
|
|
Wheel base |
2300 |
mm |
|||
|
Tread |
1500 |
mm |
|||
|
Maximum hoisted hinge pin height |
3730 |
3920 |
4190 |
mm |
|
|
Maximum breakout force |
44 |
kN |
|||
|
Maximum traction |
40 |
||||
|
Boom hoisting time |
5.5 |
s |
|||
|
Three items and time |
9 |
s |
|||
|
Minimum turning radius (tire center) |
4620 |
mm |
|||
|
Articulation angle |
35 |
° |
|||
|
Climbing capacity |
25 |
° |
|||
|
Minimum ground clearance |
260 |
mm |
|||
|
Tire specification |
16/70-16 |
- |
|||
|
Overall dimensions (length*width*height) |
5890*2060*2900 |
6140*2060*2900 |
6390*2060*2900 |
mm |
|
|
Engine |
Model |
YN27GBZ |
- |
||
|
Rated power/speed |
55/2400 |
kW/rpm |
|||
|
Driving speed |
First positin (drive/back) |
8 |
km/h |
||
|
Second position (drive/back) |
20.5 |
km/h |
|||
