XCMG Official  22m  Aerial Ladder Work Platform Fire Truck YT22K1 for sale

Share:
XCMG Official 22m Aerial Ladder Work Platform Fire Truck YT22K1 for sale
FOB for Special Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official  22m  Aerial Ladder Work Platform Fire Truck YT22K1 for sale
  • Product
  • Summary
  • Details
Product
Summary
  • Model Number:YT22K1
  • Brand Name:XCMG
  • Place of Origin:China
  • Size:9820×2500×3810mm
  • Fuel Type:Diesel
  • Emission Standard:Euro 4
  • Tank Capacity:1000kg
  • Horsepower:375hp
  • Transmission Type:Manual
  • Type:Ladder
  • Drive Wheel:4×2
  • Certification:ISO9001/CCC
  • Max. Work Height:22m
Details
  • Product Name:G5B63F718E111E
  • Display online time:2019-11-18
  • weight:19200.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Max. Working Height:22m
  • Max. Platform Capacity:300kg
  • Max. Working Range:18m
  • Water monitor rated flow:40L/s
  • Water monitor rated pressure:≤0.8MPa
  • Water monitor rated spray range:≥60m
  • Max. Travel Speed:≥110km/h
  • Min. Turning diameter:≤17m
  • Max. Grade Ability:≥25%
  • Braking distance (speed is 30Km/h):≤10m

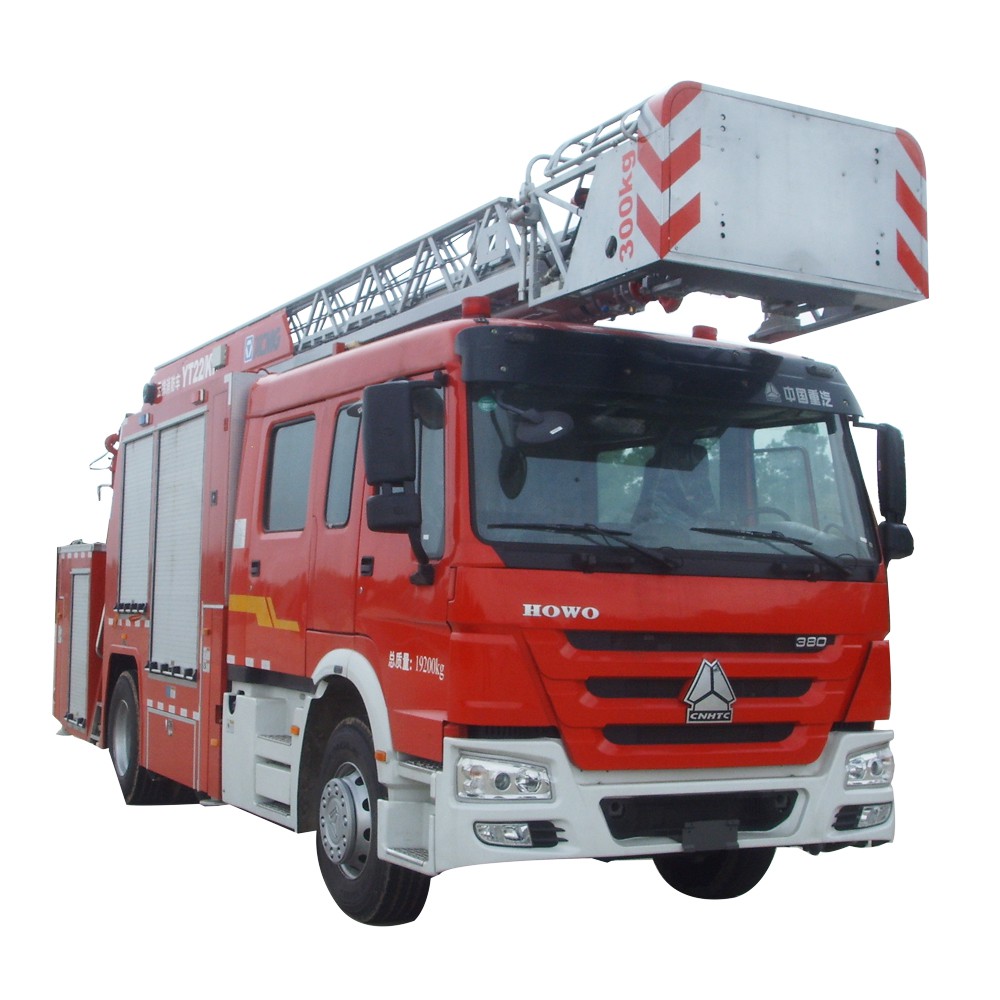

YT22K1 Ladder Fire Truck
1. Strong rescue performance, various rescue modes
2. Complete fire fighting system, outstanding fire fighting ability
3. Strong power, excellent maneuvering performance, and special chassis for multi-passenger fire truck
4. Strong function expansion, fully satisfies the needs of different customers


Description

Unit

Parameter value

Overall length

mm

9820

Overall width

mm

2500

Overall Height

mm

3810

Full mass

kg

19200

Max. Speed

km/h

110

Min. Turning diameter

m

17

Approach angle

21°

Departure angle

6°

Maximum gradeability

%

25

Outrigger span

Longitudinal span

mm

4980

Horizontal span

5000

Work platform load

kg

300

Maximum working height

m

22

Maximum working radius

m

18

Elevating angle of boom

Ladder-12° ~ 75°

Slewing range

360° full-rotation

Spread time of outrigger

s

30

Time for lifting the boom to rated height and rotating 90°

s

550

Maximum slewing speed

r/min

0.51.5

Fire fighting pump

Rated flow

L/s

50

Rated pressure

MPa

1.2

Fire monitor

Model

PSKD40D electric-controlled fire monitor

PS30-50D manual fire monitor

Rated flow

L/s

40

40

Rated power

MPa

0.8

0.8

Reach

m

60

60
