XCMG 3T Diesel Forklift FD30T for Sale

  • XCMG 3T Diesel Forklift FD30T for Sale
  • XCMG 3T Diesel Forklift FD30T for Sale
  • XCMG 3T Diesel Forklift FD30T for Sale
  • XCMG 3T Diesel Forklift FD30T for Sale
  • XCMG 3T Diesel Forklift FD30T for Sale

Share:
XCMG 3T Diesel Forklift FD30T for Sale
FOB for OEM Reference Price:Get Latest Price
$8266.00-$8266.00 1 / Set (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG 3T Diesel Forklift FD30T for Sale
  • Summary
  • Details
Summary
  • Fork Width:125mm
  • Fork Length:1070mm
  • Rated Loading Capacity:3000kg
  • Type:Powered Pallet Truck
  • Model Number:FD30T
  • Brand Name:XCMG
  • Place of Origin:China
  • Min. Lifting Height:3000mm
  • Max. Lifting Height:7000mm
  • Power Souce:Diesel
  • Overall Dimensions:2773*1225*2235mm
Details
  • Product Name:G5B640D4F27C00
  • Display online time:2019-12-27
  • weight:4340.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel

XCMG 3T Diesel Forklift FD30T for Sale


XCMG 3T Diesel Forklift FD30T for Sale

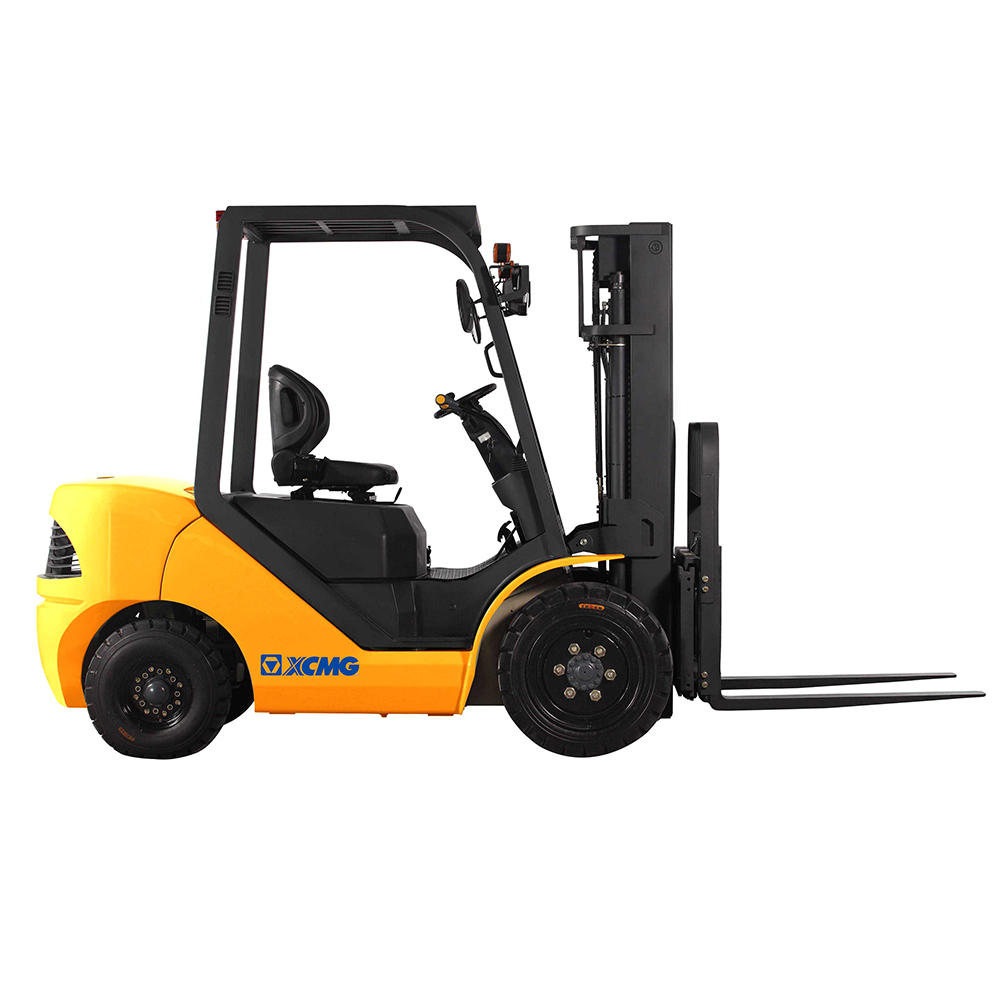

XCMG 3T Diesel Forklift

1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating safety.

XCMG 3T Diesel Forklift FD30T for Sale



XCMG 3T Diesel Forklift FD30T for Sale


XCMG 3T Diesel Forklift FD30T for Sale


Model



FD30T-B

FD30T-C

FD30T-EN

FD30T-AW

FD30T-F

FD30T-JBN

FD30T-JE

FD30T-JM

FD30T-K

FD30T-JD

(FD30-B)

(FD30-C)

(FD30-E)

(FD30-A)

(FD30-F)

(FD30-JBN)

(FD30-JE)

(FD30-JM)

(FD30-K)

(FD30-JD)

Power type



Diesel

Rated load capacity

Q(kg)

3000

Load Centre

C(mm)

500

Rated Lift Height

H3(mm)

3000

Free Lift Height

H2(mm)

100

Fork Seize(L×W×T)

mm

1070×125×45

Mast Tilt Angle(F/R,α°/β°)

deg

6°/12°

Fork Overhang(Wheel Center to fork face)

×1(mm)

484

Rear overhang

×2(mm)

595

Ground clearance(Bottom of mast)

H7(mm)

145

Length to Face of Fork(without fork)



L1(mm)

2773

Overall Width

B1(mm)

1225

Mast Lowered Height

H1(mm)

2070

Mast Extended Height(with backrest)

H4(mm)

4070

Overhead Guard Height

H5(mm)

2235

Turning radius(outside)

Wa(mm)

2450

Min.Aisle width for pallets

Ast(mm)

4205

Travel speed(no load)

Km/h

19

Lifting speed(full load)

mm/sec

430

Lowering Speed(full load)

mm/sec

450

Max.Drawbar Pull(full load/no load)

KN

16(15.7)

18.5(14.8)

26(21)

26(21)

26(21)

26(21)

Max.Grade ability(Full Load)

%

20

Tyre(Front×2)

mm

28×9-15-12PR

Tyre(Rear×2)

mm

6.50-10-10PR

Front Tread

B2(mm)

1000

Rear Tread

B3(mm)

980

Wheelbase

Y(mm)

1700

Total Weight

kg

4340

Front Axle Weight Distribution(Full Load)

kg

6490

Rear Axle Weight distribution(Full Load)

kg

820

Front Axle Weight Distribution(No Load)

kg

1764

Rear Axle Weight distribution(No Load)

kg

2546

Battery

V/Ah

12/90

Engine Model



A490BPG-109

A498BPG-521

A498BT1-35

C490BPG-237

C490BPG-37(EUIII)

C240PKJ30(EUIII)

4TNE98(EUIII&EPAIII)

Mitsubishi S4S)

JE493G-634

4TNV94L-NHZ)

Engine Manufacturer



XINCHAI

XINCHAI

XINCHAI

XINCHAI

XINCHAI

ISUZU

YANMAR

MITSUBISHI

ISUZU

YANMAR

Rated Output/r.p.m.

kw

37/2650

45/2500

36.8/2500

36.8/2500

36.8/2650

34.5/2500

44.4/2300

35.3/2250

39/2500

34.1/2400

Rated Torque/r.p.m.

N·m

148/1800-1900

193/1600-1800

193/1600-1800

156/1800

156/1800

139/1800

187-207/1700

177/1700

165/1800

200/1375

No. Of Cylinder





Bore x Stroke

mm

90×100

98×105

98×105

90×105

90×105

86×102

98×110

94×120

93×102

94×110

Displacement

cc

2540

3168

3168

2670

2670

2369

3318

3331

2800

3053

Fuel Tank Capacity

L

50

Transmission Type



Powershift(Manual)

Transmission Stage(FWD/RVS)



1/1(2/2)

Operation Pressure(For Attachments)

MPa

17.5
