XCMG 8m Aerial Work Platform Hydraulic Scissor Platform XG0807HDW On Sale

Chat Now 1 / EA (Min. Order)
Model: XG0807HDW
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 8m Aerial Work Platform Hydraulic Scissor Platform XG0807HDW On Sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:1550kg
  • Overall Dimension:1900*830*2160mm
  • Table Size:1670*740mm
  • Max Lifting Height:7.8m
  • Min Lifting Height:1.05m
  • Rated Loading Capacity:230kg
  • Power: 3.3kW
  • Lift Drive / Actuation:Electric Motor
  • Lift Mechanism: Scissor Lift
  • Model Number:XG0807HDW
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001

Specifications

  • Weight:1550.000kg
  • Condition:New
  • Moving Type:Other

XCMG 8m Aerial Work Platform Hydraulic Scissor Platform XG0807HDW On Sale

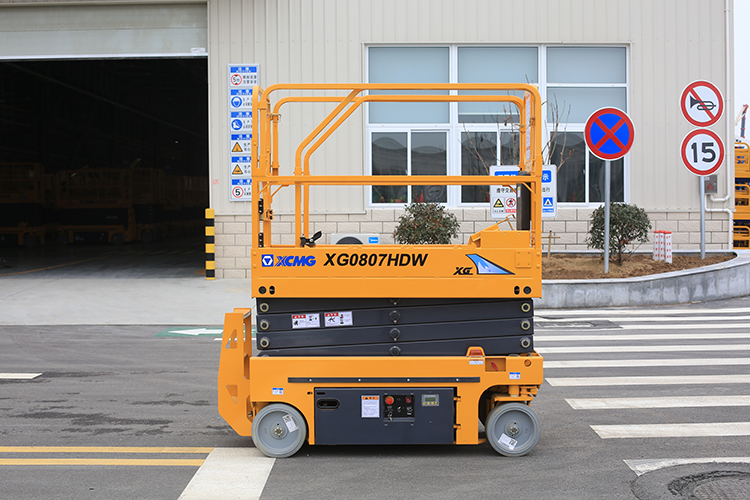

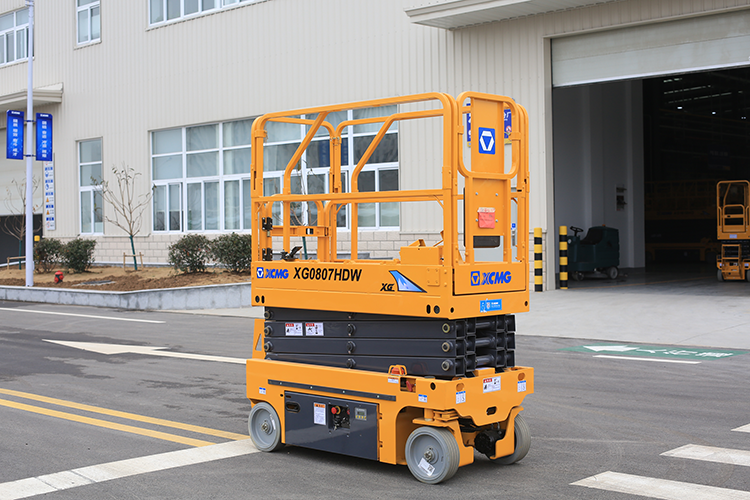

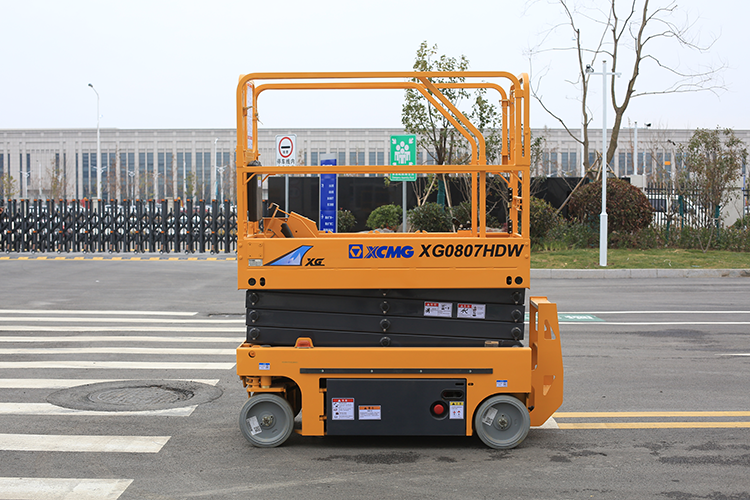

8m hydraulic scissor platform XG0807HDW XCMG aerial work platform.



XCMG aerial work platform XG0807HDW  developed by XCMG has the work height at 8m, the vehicle width at 0.78m, the rated load at 230kg, max. gradeability at 25%. xcmg aerial work platform XG0807HDW  features compact structure, advanced performance, completed safety devices, especially suitable for construction.



In addition, xcmg aerial work platform XG0807HDW  is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.



Advantages and features:



1.XCMG aerial work platform XG0807HDW effective and energy-saving electric-drive system features zero emission and low noise.

Together with the traceless tires, enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.



2.Feature the humanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.



3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier.



4."Zero Turning Radius "is unique and enable machine to corner in narrow room.



5.XCMG aerial work platform XG0807HDW max. payload at 230kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.





Item
Unit
Parameter
Dimension of machine
Length (without ladder)
mm
1900(1680)
Width
mm
830
Height(platform folded)
mm
2160(1830)
Wheelbase
mm
1360
Wheel track
mm
660
Min. ground clearance (Pit protector ascending/descending)
mm
70/20
Dimension of working platform
Length
mm
1670
Width
mm
740
Height
mm
1235
Extension length of the auxiliary platform
mm
900
Centroid position of machine
Horizontal distance to front shaft
mm
750
Height of centroid
mm
570
Total mass of machine
kg
1550
Max. height of platform
m
5.8
Min. height of platform
m
1.05
Max. working height
m
7.8
Minimum turning radius (inner wheel/outer wheel)
m
0/1.75
Rated load
kg
230
Payload of extended platform
kg
115
Lifting time
s
13-30
Lowering time
s
25-35
Drive speed(lowered)
km/h
3.9
Drive speed(elevated)
km/h
0.8
Max. gradeability
%
25
Tilt warning angle (side/forward and backward)
°
1.5/3
Lifting /traveling motor
Model
-
-
Rated power
kW
3.3
Manufacturer
-
-
Battery
Model
-
T105/DT106/3-EV-225
Voltage
v
24
Capacity
Ah
225
Manufacturer
-
Trojan/Leoch
Tire models
-
Traceless and solid/323×100
