XCMG Official Manufacturer CYTJ45 Tunneling Jumbo Drill Machine For Sale

  • XCMG Official Manufacturer CYTJ45 Tunneling Jumbo Drill Machine For Sale
  • XCMG Official Manufacturer CYTJ45 Tunneling Jumbo Drill Machine For Sale

Share:
XCMG Official Manufacturer CYTJ45 Tunneling Jumbo Drill Machine For Sale
FOB for Sanitary Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: CYTJ45
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official Manufacturer CYTJ45 Tunneling Jumbo Drill Machine For Sale
XCMG Official Manufacturer CYTJ45 Tunneling Jumbo Drill Machine For Sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Overall Dimension(L*W*H):11400×1750×2410
  • Weight:12500kg
  • Model Number:CYTJ45
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
Details
  • Product Name:357636-CYTJ45
  • Display online time:2021-02-08
  • weight:12500.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Maximum operation cover area:35 m²
  • Maximum operation height:6630 mm
  • Maximum operation width:6600 mm
  • Turning radius:2800/4900

XCMG Official Manufacturer CYTJ45 Tunneling Jumbo Drill Machine For Sale

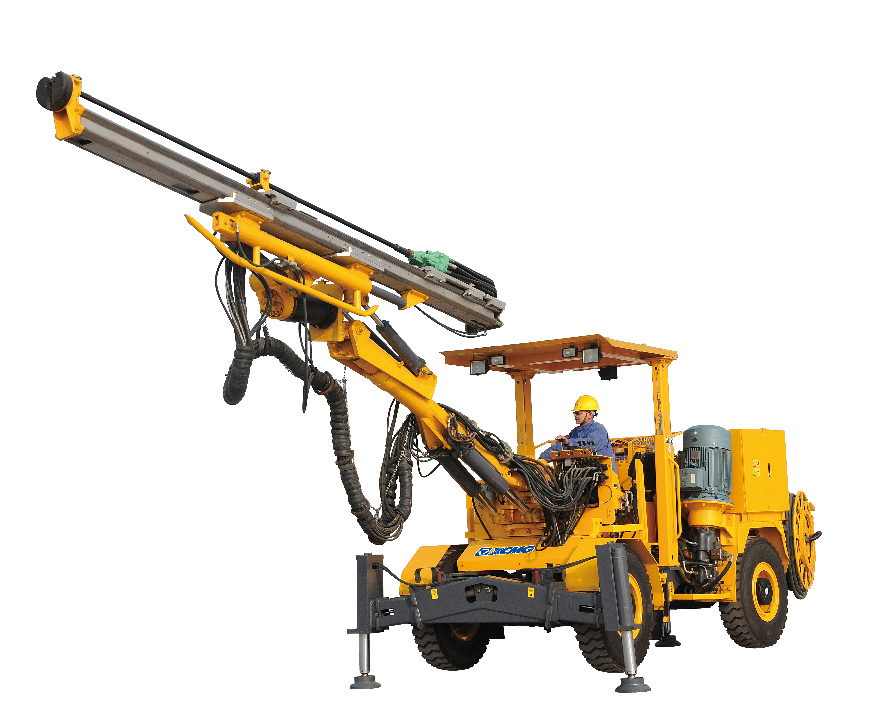

XCMG Official Manufacturer CYTJ45 Tunneling Jumbo Drill Machine.



It’s mainly applicable for the tunneling operations of metal mines and diversified underground roadways and tunnels (Such as electricity and water utilities).
Maximum operation area coverage: 35m2.


* Drill jambo
The hydraulic drill jambo adopts special structural process on the basis of the domestic tunneling process to realize super-strong anti-bending capability, high drilling speed, and low drilling tool consumption and effectively improve the working performance of tunnel side hole drilling.

* Propeller
The lightweight high-strength alloy girder features high anti-bending, anti-distortion, and anti-fatigue performances and longer life.

* Drill boom
The all-directional paralleling-maintained drill booms of proprietary technology features accurate positioning. The drill booms adopt equal-strength structure design to realize reasonable structure, high strength, and long life.
* Drilling system
The three-stage anti-seizure, anti-empty-drilling, and automatic return functions of drilling tool are provided to effectively improve the drilling efficiency and reduce the consumption of drilling tool.

* Hydraulic system
The electronic control design is applied for the auxiliary motions, including outriggers and roof lamp to simplify the pipelines and ease the maintenances.

XCMG Official Manufacturer CYTJ45 Tunneling Jumbo Drill Machine For Sale



Item
Unit
Parameter
Maximum operation cover area
m3
32
Maximum operation height
mm
6080
Maximum operation width
mm
6110
Drill boom extended length
mm
1250
Drill boom lifting angle
°
65/-30
Tit angle for propeller
°
±45
Propeller tit angle
°
360
Propeller compensation length
mm
1250
Maximum propulsive force
kN
12
Drill hole depth
mm
3405
Impact power of gadder
kW
13
Impact frequency of gadder
Hz
62
Swing torque of gadder
N.m
325
Diameter for dill hole
mm
φ32-φ38
Water flushing pressure
bar
8-10
Gas lubrication pressure
bar
3
Total installed power
kW
65
External power supply
V/Hz
380/50
Maximum traveling speed
km/h
13
Maximum gradability
°
14
Engine power
kW
56
Transport dimension
mm
12000*2100*2300
Curb weight
kg
12900
