- Summary
- Specifications
Summary
- Model Number:DG32K2
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size: 9650*2500*3880mm
- Max Work Height:32m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Horsepower:251 - 350hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:4x2
- Certification:CE/ISO9001
Specifications
- Weight:18100.000kg
- Condition:New
- Moving Type:Other
- Work platform load:400kg

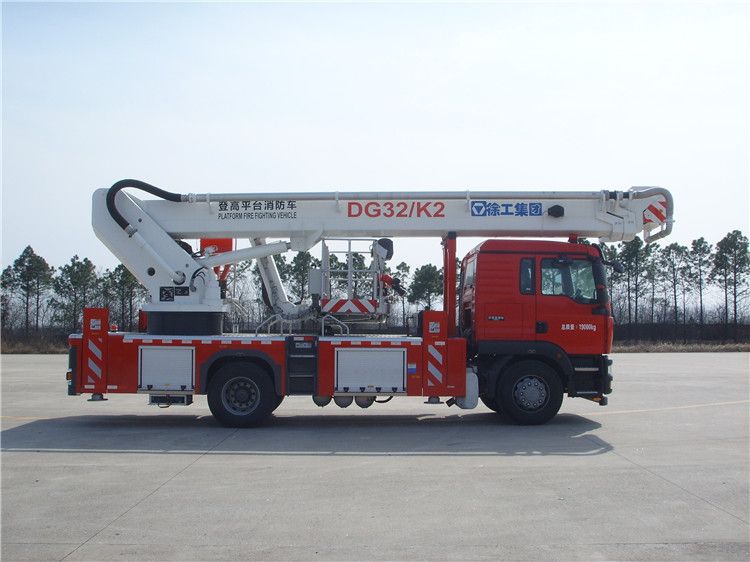

rescue fire truck 32m DG32K2 China mini aerial platform fire truck.
XCMG DG32K2 aerial platform fire truck uses ZZ5206N501GE1 national- V chassis. It is a high-altitude rescue-oriented and fire extinguishment-assisted compact fire-fighting car. It is fast and efficient, flexible with great rescue capacity.
Advantages and highlights:
1. The chassis of this vehicle adopts the chassis of SINOTRUK SITRAK ZZ5206N501GE1, it adopts the electronic control module control and hydraulic assisted shift, the operation is stable and reliable.
2. Achieve high altitude and ground fire extinguishing operations. The water inlet and control valve are fully equipped and easy to operate.
3. It uses CAN bus PLC control. The electronic amplitude limiter equipped makes the whole operation simple, safe and reliable.
4. The system has high reliability, stable operation and good micro-motion.
|
Items |
Parameters |
|||
|
Size parameters |
Boundary dimension |
Length |
mm |
9650 |
|
Width |
mm |
2500 |
||
|
Height |
mm |
3880 |
||
|
Wheel base |
mm |
4500 |
||
|
Wheel track |
mm |
1998/1830 |
||
|
Front overhang/rear overhang |
mm |
1430/2710 |
||
|
Driving parameters |
Maximum speed |
km/h |
90 |
|
|
Minimum turning diameter |
m |
17 |
||
|
Braking distance (full load, initial braking speed 30km/h) m |
≤10 |
|||
|
Approach / departure angle |
° |
16/10 |
||
|
Maximum gradeability |
% |
25 |
||
|
Quality parameters |
Curb weight |
Total mass |
kg |
17880 |
|
First shaft |
kg |
6010 |
||
|
Second shaft |
kg |
11870 |
||
|
Maximum allowable total mass |
Total mass |
kg |
18030 |
|
|
First shaft |
kg |
6180 |
||
|
Second shaft |
kg |
11850 |
||
|
Chassis parameters |
Model |
ZZ5206N501GE1 |
||
|
Drive type |
4×2 |
|||
|
Manufacturer |
SINOTRUK |
|||
|
Engine |
Model |
MC07.28-50 |
||
|
Fuel types and labels |
Diesel/0#(In winter:-10#) |
|||
|
Emission Standards |
National V |
|||
|
Displacement L |
6.78 |
|||
|
Maximum net power |
kW |
203 |
||
|
Rated power/speed |
kW/(r/min) |
206/2300 |
||
|
Maximum torque/speed |
N·m/(r/min) |
1100/1200~1800 |
||
|
Manufacturer |
SINOTRUK |
|||
|
Number of leaf springs (front/back) |
3/5 |
|||
|
Tire specifications |
295/80R22.5 |
|||
|
Spare tire specification |
295/80R22.5 |
|||
|
Number of tires (number of spare tires) |
6(1) |
|||
|
Passengers |
people |
2 |
||
