Summary
- Model Number:DG34M2
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:12350*4000*2500mm
- Max Work Height:34m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Tank Capacity:Water 5500kg
- Horsepower:351 - 450hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:6x4
- Certification:CE/ISO9001
Specifications
- Weight:32500.000kg
- Condition:New
- Moving Type:Other
- Work platform load:400kg
- Maximum gradeability:25%
- Maximum speed:90km/h

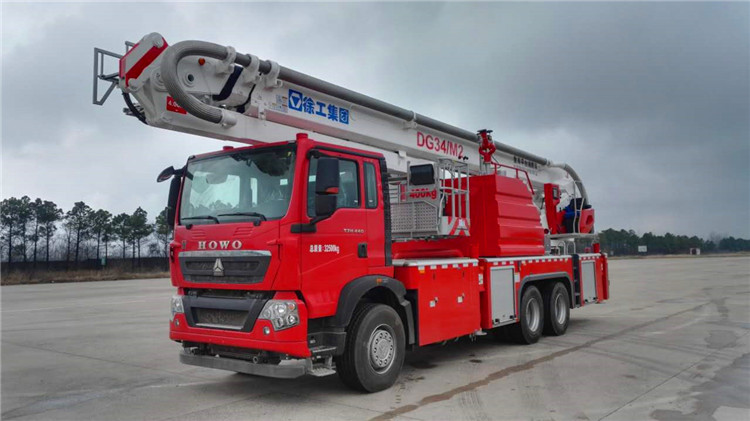

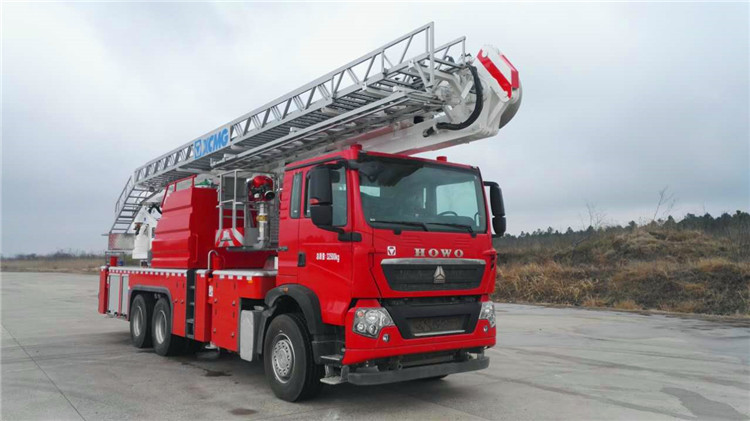

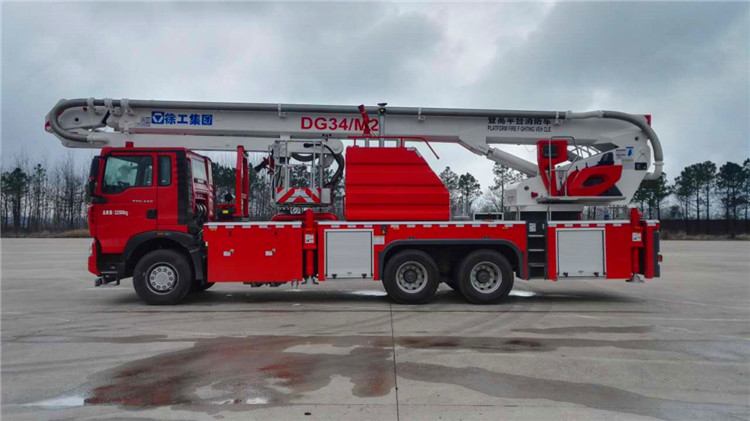

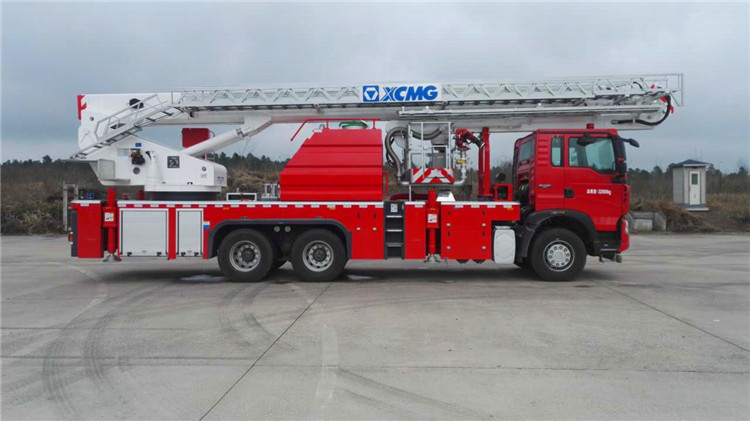

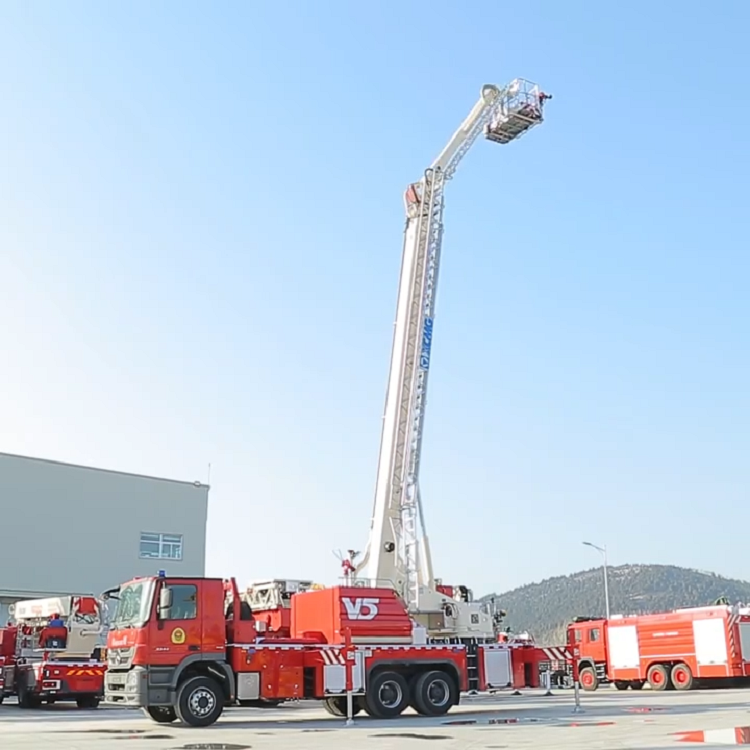

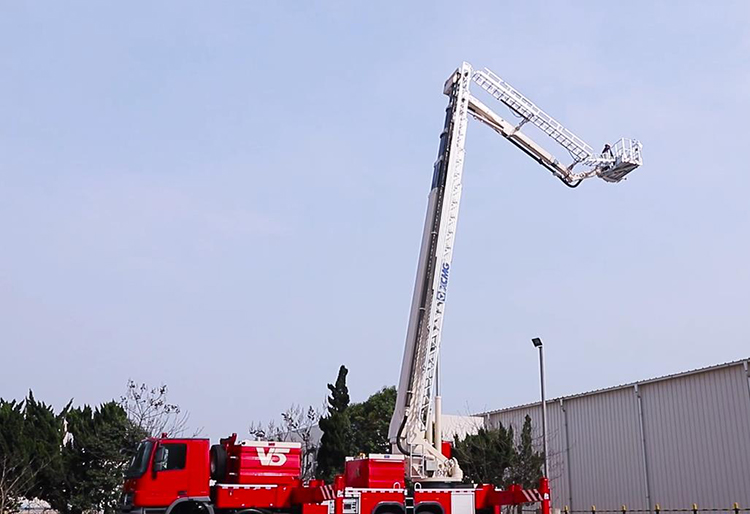

34m small fire truck DG34M2 China multifunction aerial
platform fire truck.
XCMG DG34M2 aerial platform fire truck is the main battle
vehicle integrates three functions of fire tanker, aerial spray truck, foam
truck and aerial truck.
This is widely applied in fire fighting and rescue
operation in cities and towns, mine, oil field and plant as well as other
medium and high-rise buildings, in addition, it also is the first choice for
medium and high-rise building fires, rescue of persons in distress and
properties.
Advantages and highlights:
1.This aerial platform fire truck adopts howo 6×4
chassis, 3 sections of telescopic booms and one section of flexible boom.
2.Electric control and hydraulic drive adopted in each
moving mechanism brings the vehicle features of easy operation, flexible
movement, safety and reliability and strong practicability.
3.It makes operation quick, labor-saving, convenient and
stable, also brings large speed regulating range, flexible fine motion and
exact movements.
4.It is with excellent aerial obstacle-crossing capacity,
which has the wider operation scope.
|
Boundary dimension |
12350×2500×4000mm |
||
|
Full mass |
32500kg |
||
|
Maximum speed |
≥90km/h
(electronic speed limit) |
||
|
Minimum turning diameter |
≤20m |
||
|
Approach angle |
≥17° |
||
|
Departure angle |
≥9° |
||
|
Maximum gradeability |
≥25% |
||
|
Outrigger span |
Longitudinal span |
6200mm |
|
|
Horizontal
span |
5850mm |
||
|
Work platform load |
400kg |
||
|
Maximum working height |
34m |
||
|
Maximum operating radius |
21m |
||
|
Elevating angle of boom |
The elevating
angle of telescopic boom is -3°~82° |
||
|
The elevating angle of folding boom and telescopic boom is 0°~175° |
|||
|
Rotation scope |
360°
full-rotation |
||
|
Spread time of outrigger |
≤25s |
||
|
Time for lifting the boom to rated height and rotating 90° |
≤100s |
||
|
Maximum slewing speed |
0.5~1.5r/min |
||
|
Fire pump |
Rated flow |
≥50 L/s |
|
|
Rated pressure |
≥1.4MPa |
||
|
Fire fighting gun |
Model |
PSKD80 |
PS30-50D |
|
Rated flow |
50 L/s (±8%) |
40L /s (±8%) |
|
|
Rated pressure |
≤0.8MPa |
≤0.8MPa |
|
|
Range |
≥65m |
≥60m |
|
