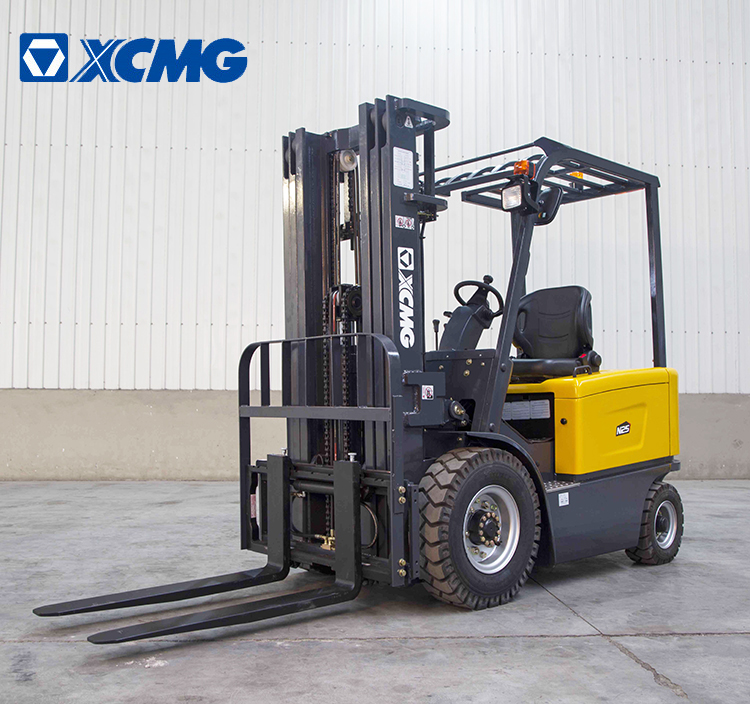

China XCMG 2.5 ton small electric forklifts FB25-AZ1 forklift wheels truck for sale
.jpg)
Summary
- Fork Width:120mm
- Fork Length:1070mm
- Rated Loading Capacity:2500kg
- Power Source:Diesel Engine
- Model Number:FB25-AZ1
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:2500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
China XCMG 2.5 ton small electric forklifts FB25-AZ1
forklift wheels truck.
Performance Characteristics:
1.
Full AC System
2.
OPS System
3.
Comfortable Operator Space
4.
Side-way Battery Change System
5.
Lower Energy Consumption and Energy Regeneration Function
6.
Easy-to-read operator display
7.
Front Dual AC Motor Traction System
8.
World Class Gear Box System
9.
Automatic Maintenance Alarm
10.Zero-Emission,Zero-Pollution,Low-Level
Vibration, Low-Level Vibration, Low Operation Cost, High Efficiency ,High
Quality, these are the reasons for you to choose a XCMG Electric Forklift.
|
Model |
FB25-AZ1 |
|
|
Rated Load Capacity |
Q(kg) |
2500 |
|
Load Centre |
C(mm) |
500 |
|
Lift Height |
H3(mm) |
3000 |
|
Free Lift |
H2(mm) |
100 |
|
Fork Size (L×W×T) |
L/W/T(mm) |
1070×120×40 |
|
F/B(α°/β°) |
Deg |
6°/12° |
|
Length (To Fork Face) |
L1(mm) |
2380 |
|
Width |
B1(mm) |
1150 |
|
Mast Lowered Height |
H1(mm) |
2055 |
|
Mast Extended Height (With
Backrest) |
H4(mm) |
4070 |
|
Overhead Guard Height |
H5(mm) |
2125 |
|
Turning Radius |
Wa(mm) |
2080 |
|
Fork Overhang (Wheel Center to Fork
Face) |
X(mm) |
478 |
|
Front Tread |
B2(mm) |
970 |
|
Rear Tread |
B3(mm) |
950 |
|
Ground Clearance |
H6(mm) |
120 |
|
Wheelbase |
Y(mm) |
1500 |
|
Fork Spread (Min/Max) |
(mm) |
250/1040 |
|
Travel Speed (Full Load) |
km/h |
12 |
|
Travel Speed (No Load) |
km/h |
13 |
|
Lifting Speed (Full Load) |
mm/s |
300 |
|
Lifting Speed (No Load) |
mm/s |
420 |
|
Max.Gradeability (Full Load) |
% |
18 |
|
Max.Gradeability (No Load) |
% |
20 |
|
Total Weight (Include Battery Box) |
kg |
4660 |
|
Tyre (Front x 2) |
7.00-12-12PR |
|
|
Tyre (Rear x 2) |
18×7-8-14PR |
|
|
Diver Motor |
kw |
11 |
|
Pump Motor |
kw |
11 |
|
Battery (Standard) |
V/Ah |
48/620 |
|
Controller Type |
AC |
|
|
Controller Manufacturer |
ZAPI |
