XCMG Fully Automatic QT10-15 Concrete block and paver making machine

QT10-15 block making machine is one of the most popular machine for hollow block, solid block,interlocking paver, curb stone production in the market.

The pallet size for QT10-15 is 1100x950mm or 1100x900mm according to the size of concrete products to be made by customer.

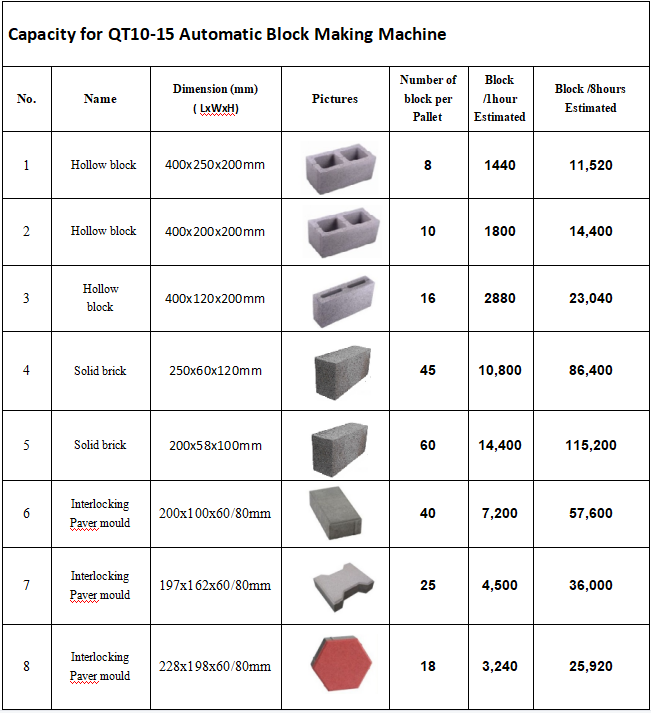

This powerful concrete brick, block and paver making machine is capable of producing 8inch hollow block at 10pcs per drop,around 14000pcs per shift at 8 hours.

For making rectangular paver at 200x100x60mm,the output is 36pcs per drop,at 1000 square meter per shift.

QT10-15 is a well constructed block making machine features Schneider electrical parts, Japanese Yuken hydraulic valves,SIEMENS motor for hydraulic station to ensure the stable performance of plant, and the SIEMENS PLC in control cabinet,with Two SIEMENS vibration motor,ensuring the best compaction for producing the high quality brick,blocks and paver.

 Vibration System

Vibration table consists with dynamic table and static table.  When vibration begin,dynamic table vibrate,static table remain static. The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products.

Feeding System

Motor use SIEMENS motors or other Famous brand Chinese motor, which control two mixing shafts.  Feeding frame, bottom plate and mixing blade are made of high-duty steel, the location of bottom plate can be adjusted.  The raking teeth is a complete piece bolted to the feeding cart shaft,easy to be changed during maintenance.

Hydraulic Station

Hydraulic pumps and hydraulic valves adopt international brands Japanese YUKEN Brand,with double proportional and single proportional valve as well as relief valve.  The flow and pressure for the hydraulic can be adjusted according to different concrete block production. Tube uses 'Flange Connection', convenient installation and maintenance.  Multi-point pressure detection point, convenient detection.  Digital temperature and blockage alarm function.  Motor and pump connection, flange connection, good coaxial.  Dynamic proportional valve and constant power pump, speed regulation, voltage regulation, energy saving.

 Control system

Germany Siemens PLC control system, Siemens touchscreen, SCHNEIDER relay and Contactor,easy operation,low failure ratio, machine running stability and high reliability. Use the most-advanced industrial internet technology, realize remote trouble-shooting & maintenance.  REMOTE control device being installed in control system, allow to do remote control for customer, convenient for machine maintenance and troubleshooting.

Company Information

3 Global Call Centers

134 Spare Parts Service Centers

Over 300 Dealers

Over 2,000 Service Outlets

XCMG is the largest manufacturer of construction machinery in China, and also a multinational company with global influence, which is devoted to providing global customers with complete solutions and top-notch service for construction machinery.
XCMG have established a global R&D system with a total of six centers across China, the US, Germany, Brazil and India, with China national technology center at its core. In addition to a number of manufacturing bases across China, the US, Germany, the Netherlands, Poland, Austria, Brazil, India, and Uzbekistan, we also have three equipment brands (XCMG, Schwing, and CHIMACH), and several component brands including FT, AMCA, and Hirschmann.

300 Overseas Dealer

30 Overseas Company

2000 Overseas Service & Parts Center

15 Overseas Manufacturing Bases & KD Factory

40 Overseas Office

6 R&D Center

Our Certificates

Certificate of

TÜV Rheinland

Certificate of

TÜV NORD

EC

Conformity Certificate

EAC

Conformity Certificate

Certificate of

TÜV SÜD America

GSO

Conformity Certificate

Client Visit

XCMG New Product Promotion and
User Experience Day Held in Brazil.

Fiji's Prime Minister Josaia Bainimarama
operated in person XCMG's products
and spoke highly of it.

Algerian Customers Favor
XCMG's Small Machinery

XCMG shows uo at 10th CCFS

President Morales and Ambassador Shen
conduct "Fire Cupping Baptism",
an Indian tradition, to launch the excavators.

XZ5000 Horizontal Directional Driller
with the Largest Tonnage of
China "Married" to Malaysia

Office of the Import and Export Company
of XCMG in Peru Held a Successful Footbal
Match

Snapshot of XCMG's delegation presenting
gifts to the municipal government of Guarulhos
City, Stateof Sao Paulo.

African Clients Give Thumps-up
to XCMG

President of the Plan & Budget Committee
of Iranian Ministry of Energy Leads a Team
to Visit XCMG

Seminar on Business Officials and Entrepreneurs
from Developing Countries held in XCMG

The Seminar Participants Visit XCMG
Hosting Machinery Sector

XCMG on Exhibition

Production Environment

Our Services

Global Service Team

Overseas Spare Parts Centers

Overseas Service Training

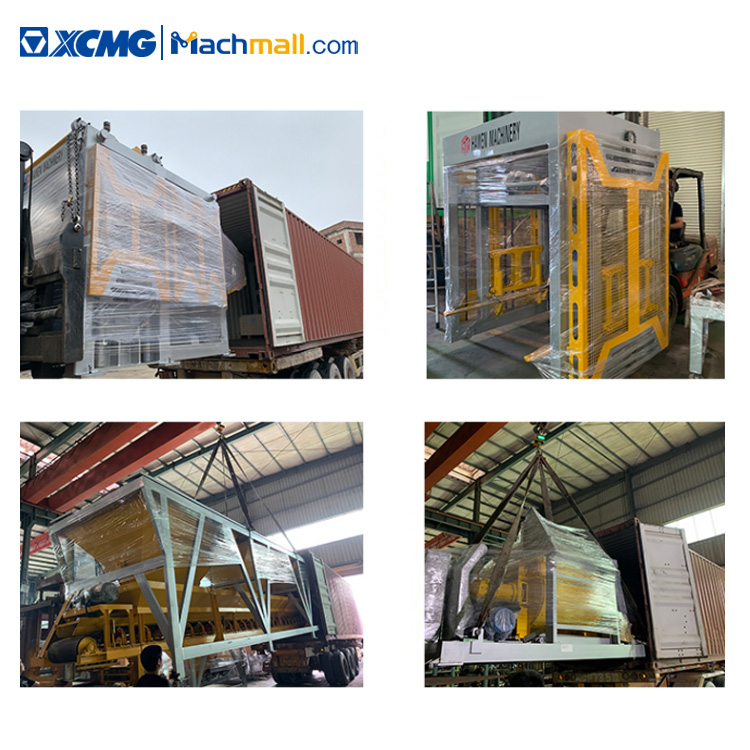

Packaging & Shipping
