- Summary
- Details
- Product Name:G5FB380CB13ADE
- Display online time:2020-11-17
- weight:15770.000kg
- Overall dimension:11980*2490*2840mm
- Platform size:1800*900*1150mm
- Total mass:15770kg
- Maximum working height:28m
- Maximum platform height:26m
- Maximum carrying weight:450kg
- Maximum speed:5.6km/h
- Engine:Cummins
- Power:58/(2400)kW/(r/min)
- Quantity:10
- production date:2010-07
28m cheap telescopic boom lift GKS28 stock discount lift
table equipment.

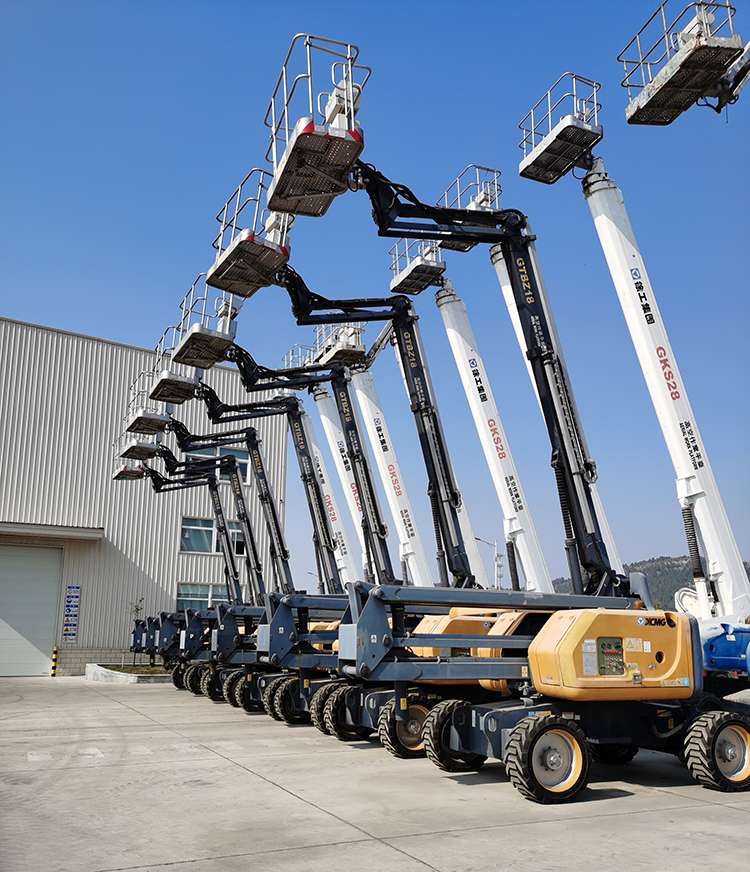

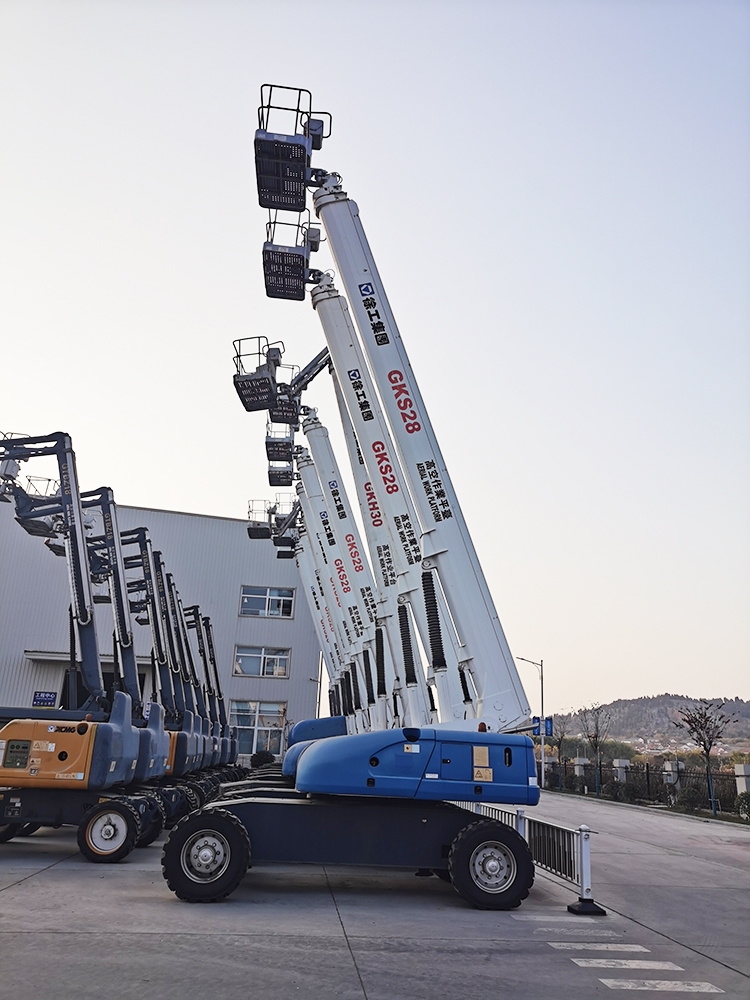

The XCMG GKS28 aerial work platform has a width of 2490
mm and a height of 2840 mm. It uses a Cummins engine with a rated power of 58
kW. And the operation is simple and reliable, the operation speed is fast, and
the work efficiency is high.
Advantages and highlights:
1. The walking mode adopts full hydraulic drive.
2. The electro-hydraulic proportional control technology
used in the vehicle.
3. The working platform has a rotating buffer function.
4. The whole vehicle has an emergency power source
device.
5. Complete safety protection devices provide users with
reliable and comprehensive safety protection.
|
Item |
Unit |
GKS28 |
|
Overall dimension |
mm |
11980*2490*2840 |
|
Platform size |
mm |
1800*900*1150 |
|
Total mass |
kg |
15770 |
|
Maximum working height |
m |
28 |
|
Maximum platform height |
m |
26 |
|
Maximum working range |
m |
11.9 |
|
Maximum speed |
km/h |
5.6 |
|
Maximum carrying
weight |
kg |
450 |
|
Maximum gradeability |
% |
45 |
|
Engine |
/ |
Cummins |
|
Power |
kW/(r/min) |
58/(2400) |
|
Minimum ground clearance |
mm |
230 |
|
Quantity |
/ |
10 |
