- Summary
- Specifications
Summary
Specifications
- Weight:7000.000kg
- Condition:New
- Moving Type:Other
- Dimension(L*W*H): 6880*2375*3150mm
- Minimum turning radius:5.7m
- Reverse Speed(km/h):25
- Brand Name:XCMG
- Certification:ISO
- Ground clearance (front axle):550mm
- Rated power/speed:75/2400kw/rpm
- Tractive effort f=0:39.2N

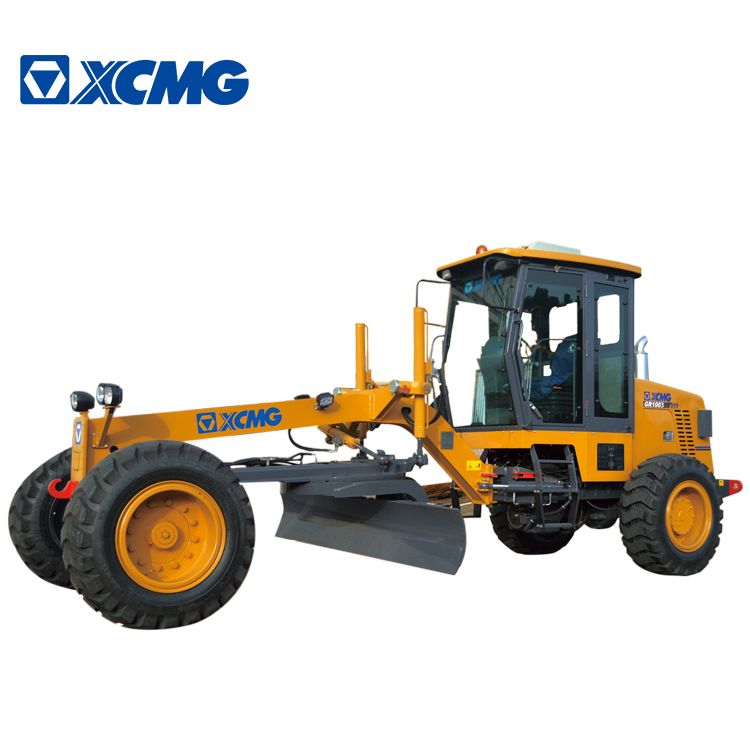

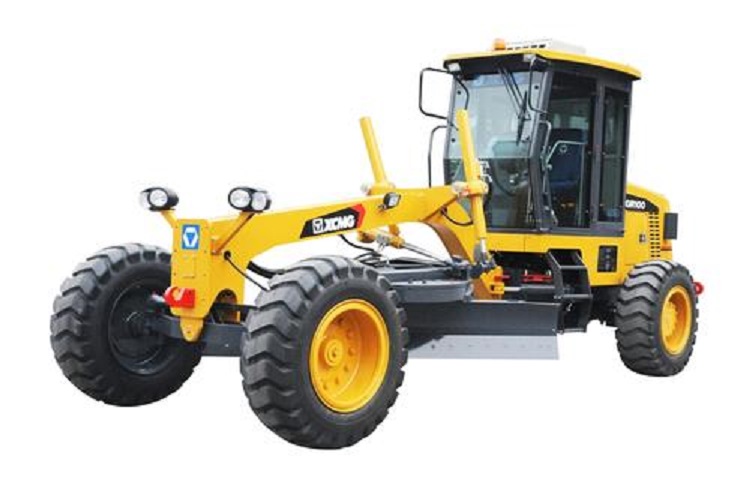

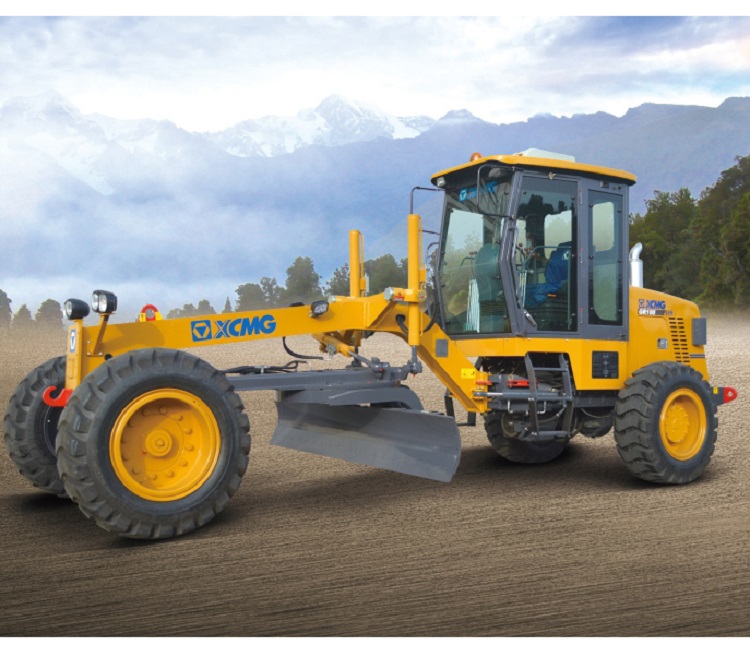

XCMG Official 100HP GR100 Motor Grader mini small Grader Motor road machine.
GR100 of
motor grader are mainly used in the operation of road surface leveling, ditch
digging, slope leveling, bulldozing, scarification and snow removing on the
road, airport and farmland. The motor grader is the necessary construction
machinery for defense construction, mine construction, urban and rural road
construction and irrigation works and farmland improvement.
Features of XCM-G Motor Grader GR100 With ZF Gear Box
•New appearance.
•The adopted articulated frame assists the front wheel to steer, featuring
small turning radius and flexibility.
hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3
Reverse gears.
•The adopted international matched hydraulic parts ensure the reliable
operation.
• The blade movement is hydraulic controlled fully.
•The rear axle is three-way drive axle with NO-SPIN self -locking differential.
•The reasonable distribution of the adjustable operation panel, seat, lever and
instrument guarantees the comfortable and convenient operation.
•The luxury and beautiful cab features wide visibility and good sealing.
•The machine can be equipped with front bulldozing plate, rear scarifier, front
harrow and auto-leveling system.
|
Model |
Model |
GR100 |
|
|
engine |
4BY3.9 |
||
|
rated power/speed |
kw/rpm |
74/2200 |
|
|
performance spexification |
traveling speed forward |
km/h |
5,8,11,17,24,38 |
|
traveling speed reveres |
km/h |
5,11,24 |
|
|
(f=0.8) traclive force |
kn |
41.6 |
|
|
Operating spexification |
max.gradeablilty |
% |
30 |
|
Min.tuming radius using articulation |
m |
5.9 |
|
|
Maximum lift above ground |
mm |
300 |
|
|
Maximum depth of cutting |
mm |
350 |
|
|
Maximum balde position angle |
. |
45 |
|
|
Blade cutting angle |
. |
28-70 |
|
|
Blade |
Circle rebersing rotation |
. |
120 |
|
Molo board width×height |
mm |
3048×450 |
|
|
Dimension(L×W×H) |
mm |
6880×2375×3150 |
|
|
Operating weight (Standard) |
kg |
7000 |
