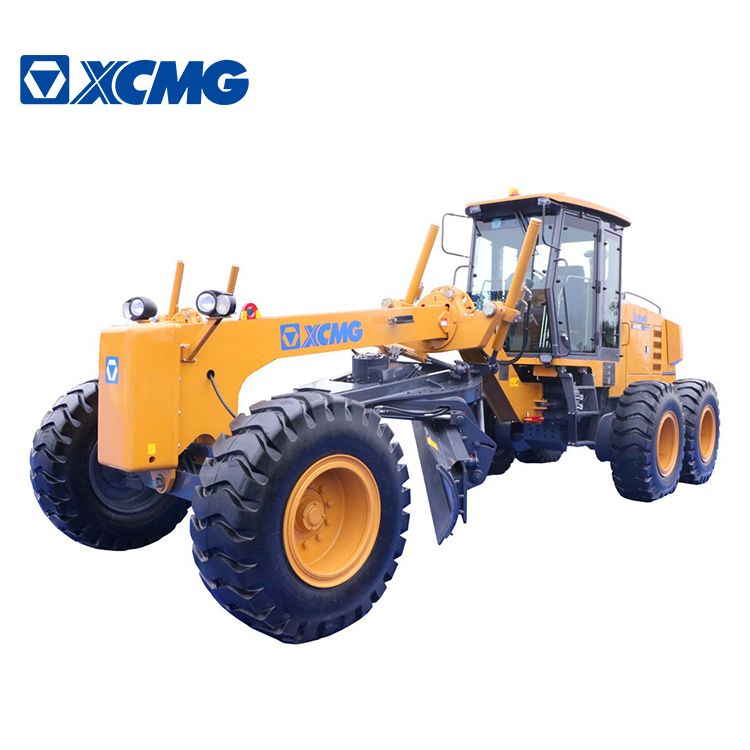

XCMG Official motor grader GR1603 170HP China new motor grader spare parts price

.jpg)

Specifications
- Weight:13000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official motor grader GR1603 170HP China new motor grader spare parts.
GR1603 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland. The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.

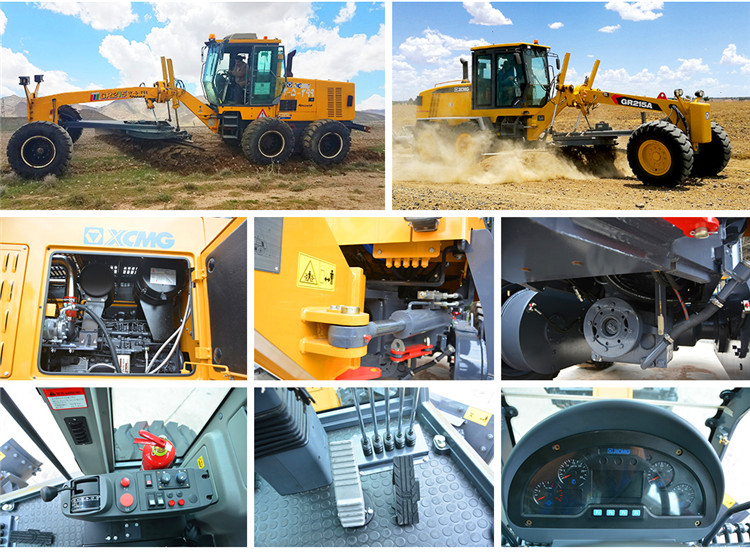

Advantages and Highlights:
1. Strong power: Cummins efficient engine and hydraulic torque converter, the optimal torque converter achieves the best matching of torque converter and engine, reducing the start time, increase the work of torque output at low speed, strong and powerful.
2. Safe and reliable: full hydraulic braking system, load sensing steering system, international supporting key, components, ensuring safe and reliable.
3. Maneuverability: single oil cylinder large steering angle front axle is XCMG patented technology, combined with articulated frame, small turning radius guarantees the flexible maneuvering.
4. Control comfortability: diamond shape cabin with bearing damping at six points, control structure is optimized, reduce the control force and operating stroke, operating force decreases by 30%,the control is more flexible and comfortable.
5. Advanced processing technology: all important parts and components are welded by international advanced welding equipment, which is characterized by high weld strength, uniform welding line and high welding quality.
6. Maintenance accessbility: adopting the backflip hydraulic lift hood, the machine cover is has large opening, easy for maintenance and repair of the machine.
Item |
GR1603 |
||
Basic parameters |
Engine model |
QSB5.9 |
|
Rated power/speed |
125kW/2200rpm |
||
Overall dimension (standard) |
8420x2380x3150 |
||
Total weight (standard) |
13000kg |
||
Tire specification |
13.00-24TG RP12 |
||
Ground clearance (front axle) |
654 mm |
||
Tread |
2020mm |
||
Space of front and rear axles |
5780mm |
||
Performance parameters |
Forward velocity |
5,8,13,18,30,47km/h |
|
Reverse speed |
5,13,30km/h |
||
Tractive effort f=0.75 |
73 kN |
||
Maximum gradeability |
25% |
||
Tire inflation pressure |
260kPa |
||
Working system pressure |
19MPa |
||
Transmission pressure |
1.3-1.8Mpa |
||
Working parameters |
Maximum steering angle of front wheel |
±48° |
|
Maximum slant angle of front wheel |
±17° |
||
Maximum oscillating angle of front axle |
±16° |
||
Maximum oscillating angle of equilibrium box |
±15° |
||
Maximum steering angle of frame |
±27° |
||
Minimum turning radius |
6.6m |
||
Scrape knife |
Maximum lift height |
410mm |
|
Maximum cutting depth |
515mm |
||
Maximum tilt angle |
90° |
||
Cutting angle |
54°-90° |
||
Angle of revolution |
360° |
||
Length & chord height |
3660x610mm |
||
Oil filling amount |
Coolant |
50L |
|
Fuel tank |
280L |
||
Engine |
18L |
||
Transmission |
26L |
||
Balancing box |
46L |
||
Drive axle |
28L |
||
Hydraulic oil |
96L |
