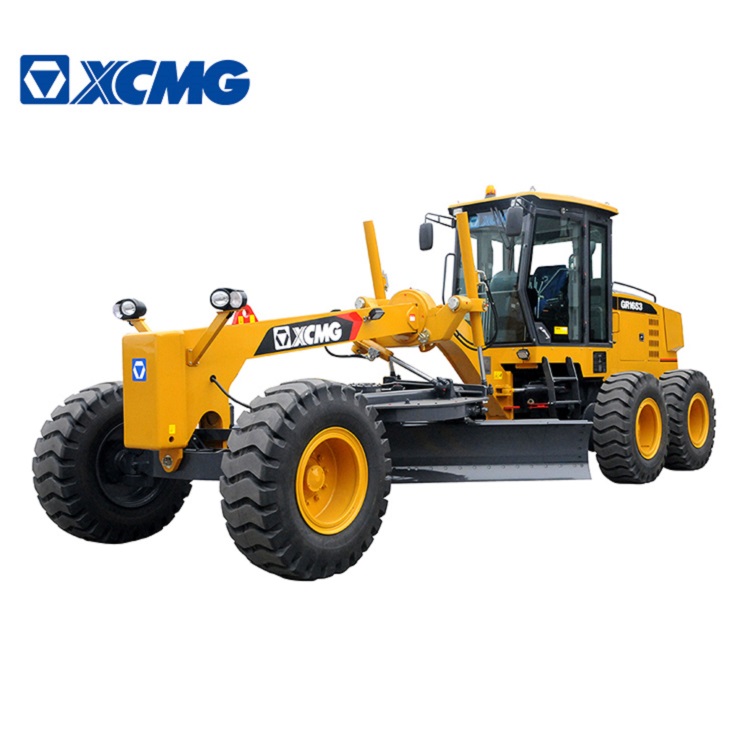

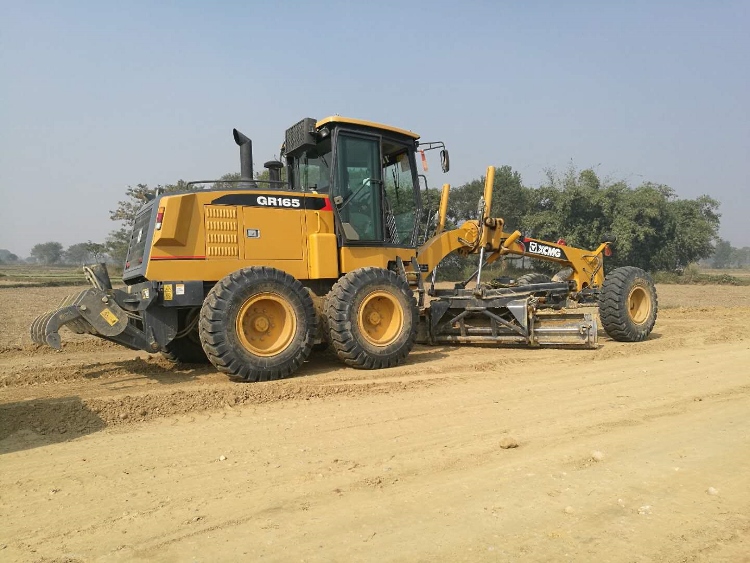

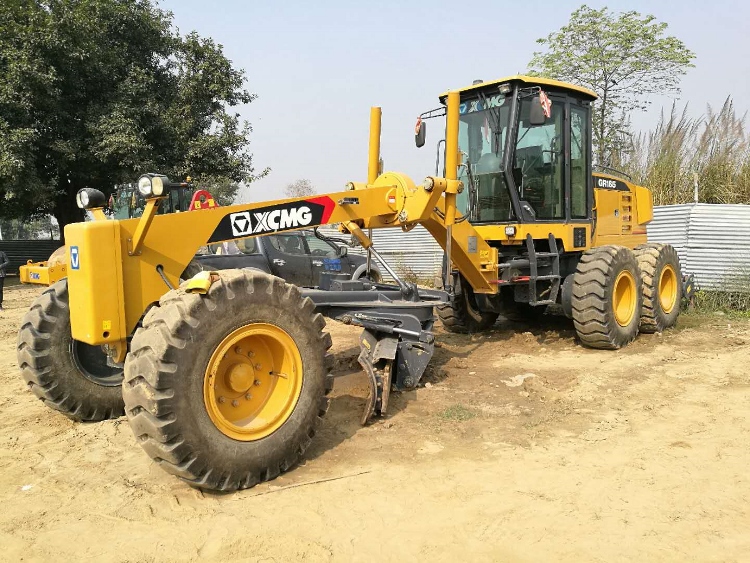

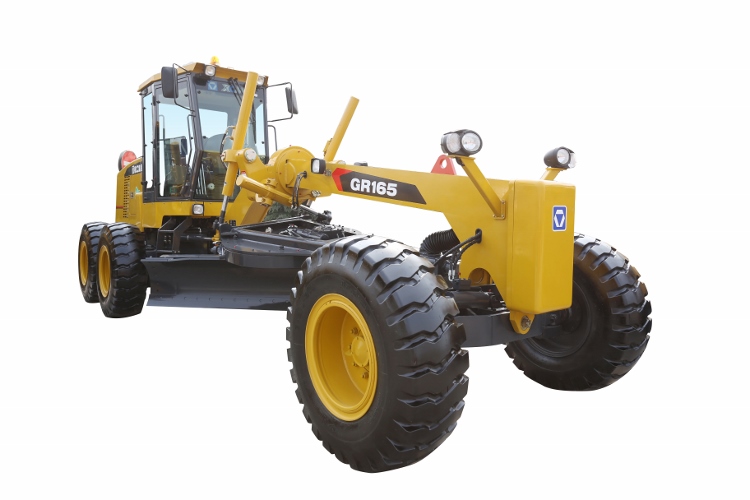

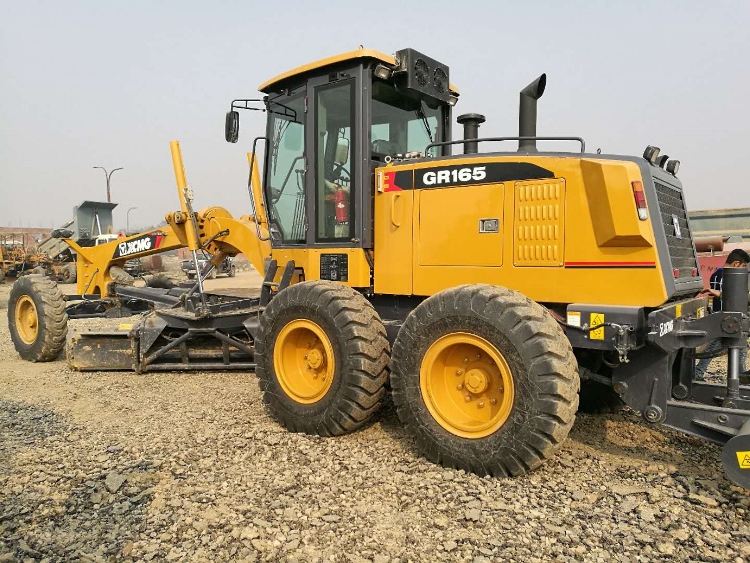

XCMG Road Machinery 170HP small motor grader GR165 motor graders.

Main parameters:

Operating weight:15 tons

Moldboard: 3965×610mm

Detailed configuration:

* Cummins 6BTA5.9-C180-II engine, 130kW.

* Meritor driving axle,

* Air Conditioner driving cabin,

* Imported differential mechanism.

Advantages:

Strong power, Comfortable driving environment. Adopt imported hydraulic parts. Great working performance.

Optional parts

* Front moldboard

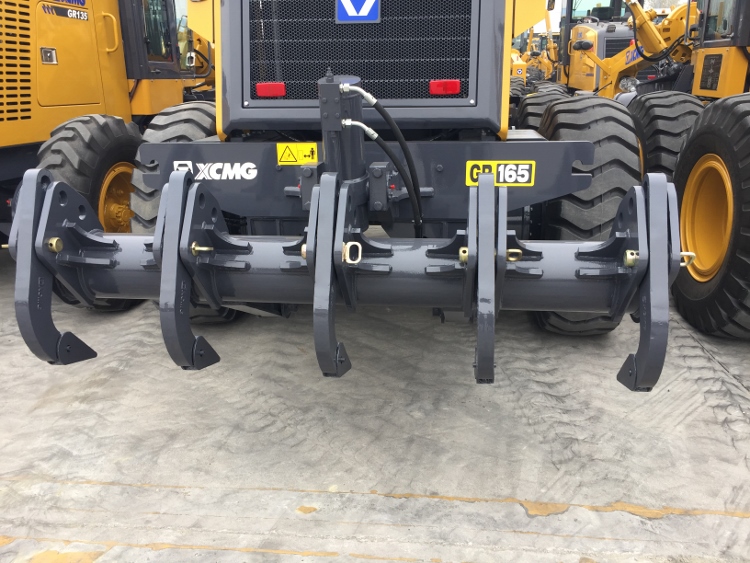

* Rear scarifier

* Shovel blade

The GR165 adopts Dongfeng Cummins 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.

The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.

Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%.

Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.

Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.

The gearbox and torque converter are electronically controlled power shifting and fixed shaft gearboxes. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.

Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one-wheel slips, the other wheel can still transmit its original torque.

The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
