XCMG 550hp Heavy Road Machinery For Construction GR5505 New Motor Graders RC For Sale



Specifications
- Weight:63000.000kg
- Condition:New
- Moving Type:Other
- Rated power/speed:399/2100kW/rpm
- Traction force (f=0.75):380kN
- Min.turing radius:12.5m
- Moldboard width×height:7300X1067mm
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

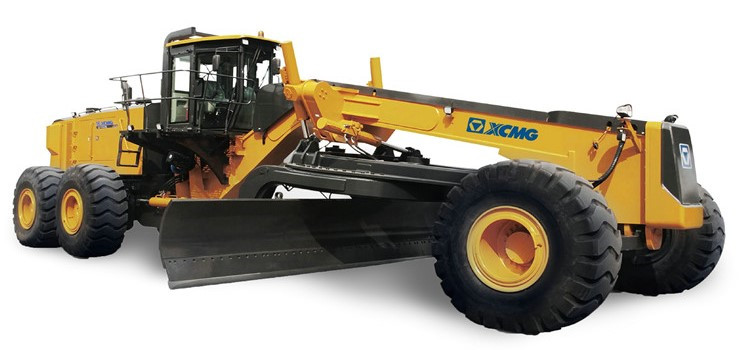

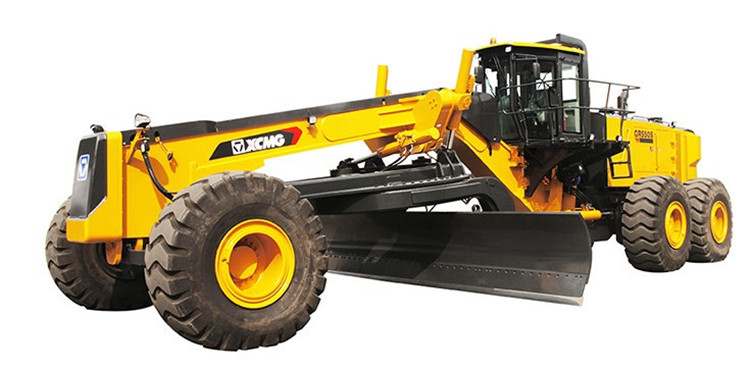

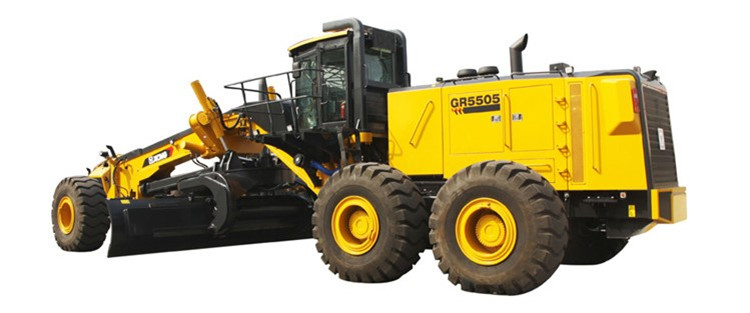

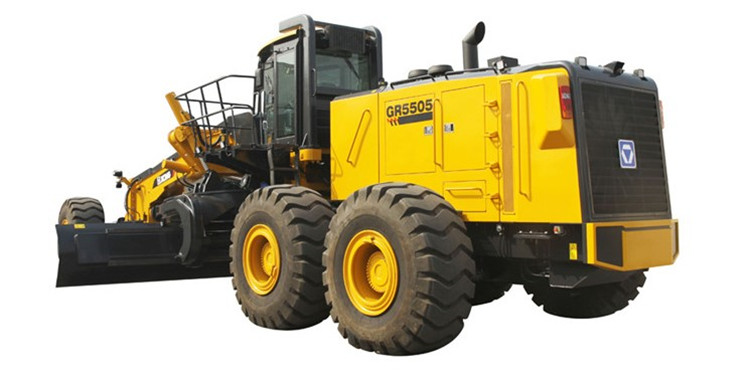

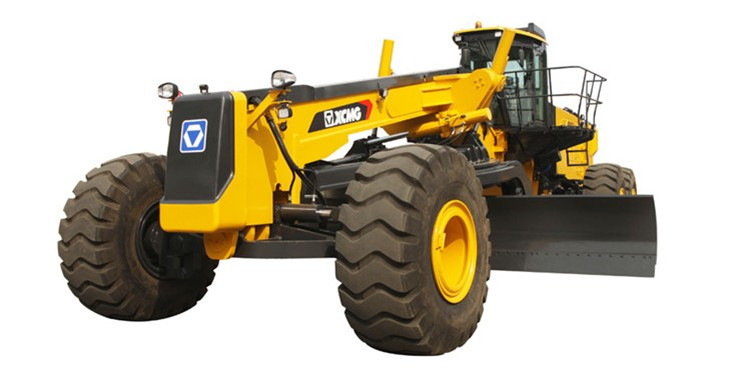

XCMG 550hp Heavy Road Machinery For Construction GR5505 New Motor Graders RC For Sale.
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Advantages and Highlights:
1. The friction-disc worm gearbox with overload protection is developed for the mining heavy load condition, which can slip automatically and protect the safety of the machine and personal.
2. Load sensing hydraulic system is equipped with variable piston pump and load sensing multi-way valve, in order to improve operation comfort, the pilot independent electrical proportional valve, the main directional valve and relief valve are proportional valves.
3. The service brake is a double-loop hydraulic braking system.
4. For serious environment condition, to analyze the matching analysis of the cooling system, conduct flow field analysis to power compartment machine, reasonable layout of the cooling holes, seal the clearance around the radiator, form the"chimney effect" of air duct design, reduce the hot air vortex. At the same time, the optimized hood design, spray anti-vertigo paint, beautiful shape.
5. The same time using ROPS&FOPS cabin to meet ISO standard. Equipped with air conditioning, adjustable suspension seat, equipped with wipers and defrosting vents to improve the comfort of operation.
6. Spacious cabin design, three-dimensional air duct, good driving experience. Double handle operation can be selected on the handle operation, reducing the labor intensity by about 80%.
Model |
GR5505 |
||
Engine |
Engine model |
QSX15 |
|
Rated power/speed |
kw/rpm |
399/2100 |
|
Traveling speed forward |
km/h |
4.7/6.2/9.1/11.9/17.3 |
|
/22.5/33/42.7 |
|||
Performance |
Traveling speed reverse |
km/h |
4.7/0.1/17.3/33 |
(f=0.75)Tracliveforce |
kN |
380 |
|
Max.gradeability |
% |
25 |
|
Min.turning radius using articulation |
m |
7.3 |
|
Maximum lift above ground |
mm |
450 |
|
Operating specification |
Maximum depth of cutting |
mm |
500 |
Maximum blade position angle |
° |
90 |
|
Blade cutting angle |
° |
28~70 |
|
Blade |
Circle reversing rotation |
° |
360 |
Molo board width x height |
mm |
7300 1607 |
|
Dimension(LxWxH) |
mm |
14300*4200*4600 |
|
Operating weight(Standard) |
kg |
63000 |
