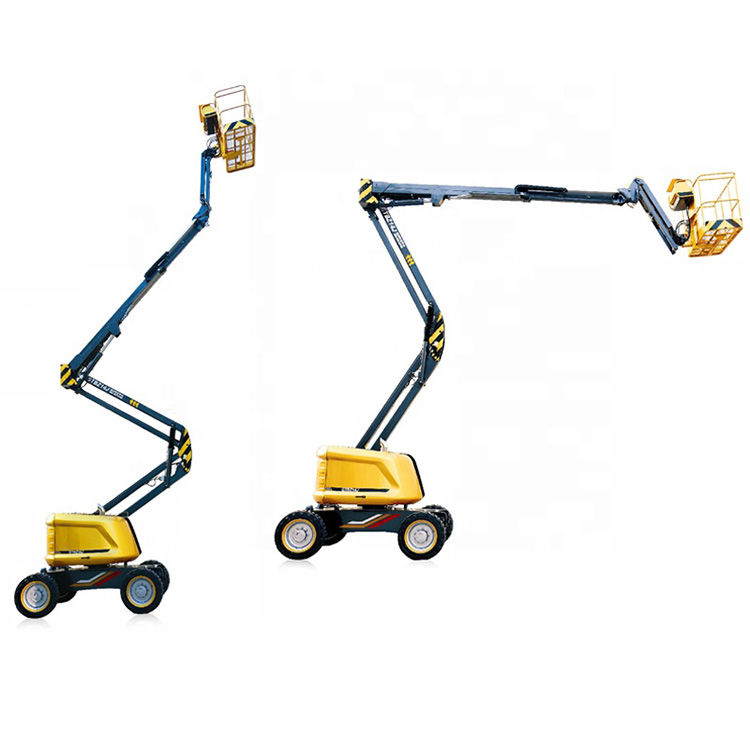

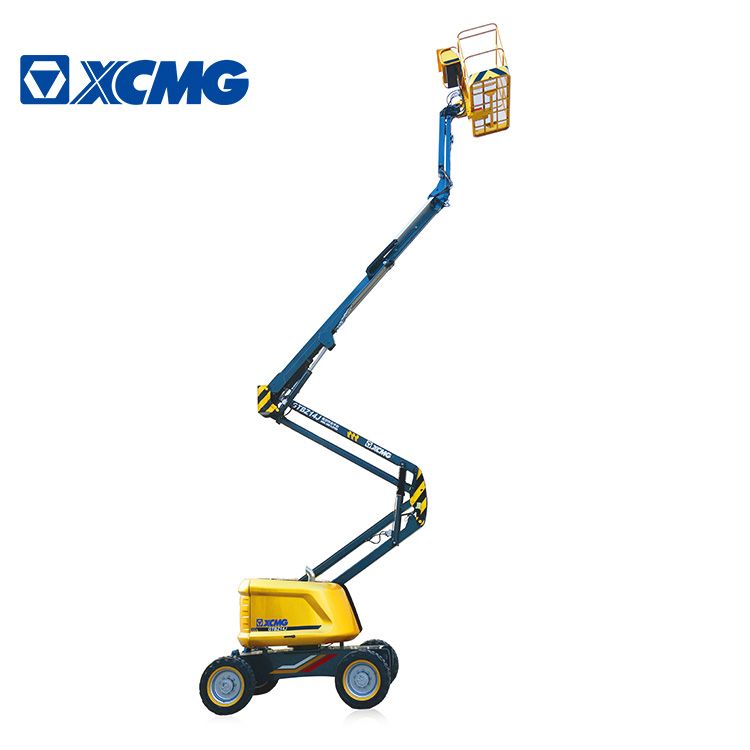

XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift

  • XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift
  • XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift
  • XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift
  • XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift
  • XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift
  • XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift

Share:
XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift
FOB for OEM Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: GTBZ14JD
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift
XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Weight:6500 kg
  • Overall Dimension:6.42*1.75*2 m
  • Table Size:1.4*0.77*1.15 m
  • Max Lifting Height:14M
  • Rated Loading Capacity:230 kg
  • Power:4kw
  • Lift Drive / Actuation:Electric Motor
  • Lift Mechanism:Articulated Lift
  • Model Number:GTBZ14JD
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Certification:CE/ISO9001
Details
  • Product Name:G5FD085E971D85
  • Display online time:2020-12-09
  • weight:6500.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other

XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift

XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift.



14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.

(1) Flexibility and efficiency
"Σ-type"double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range; Narrow-type rotary table with compact structure canachieve"zero tail wagging"and improve operation efficiency

(2) Super strong site adaptability
Cross-country type chassis,four-wheel drive system, pouring-type cross-country wide tyre,full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.

(3) Advanced performance, safety andreliability
Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing,safety speed limit, flexibility start-stop technology, etc. are provided.

XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift

Item

GTBZ14JD

Overall Length(mm)

6690

Overall Width(mm)

2260

Overall Height(mm)

2130

Wheel Base(mm)

2100

Maximum Working Height(m)

15.75

Maximum Platform Height(m)

14.05

Maximum Working Range(m)

8.22

Maximum Load Capacity(kg)

230

1st Boom luffing Range(°)

0~+60

2nd Boom luffing Range(°)

-8~+75

Crank Arm Luffing Range(°)

-60~+80

Rotation Angle of Rotating Platform(°)

355

Maximum Tail Wagging(mm)

0

Platform Size(mm)

1830*760*1150

Platform turning angle(°)

180

Total Weight(kg)

6900

Maximum Travel Speed(km/h)

6.1

Minimum Turning Radius(m)

4.5

Minimum Ground Clearance(mm)

250

Maximum Grade Ability(%)

45

Tire Specification

315/55D20

Engine Model

Perkins404D-22

Rated Power of Engine(kW/(r/min))

38/(3000)

XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift

XCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform LiftXCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform LiftXCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform LiftXCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform LiftXCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform LiftXCMG Official GTBZ14JD 14m Small Electric Self-Propelled Articulating Boom Platform Lift
