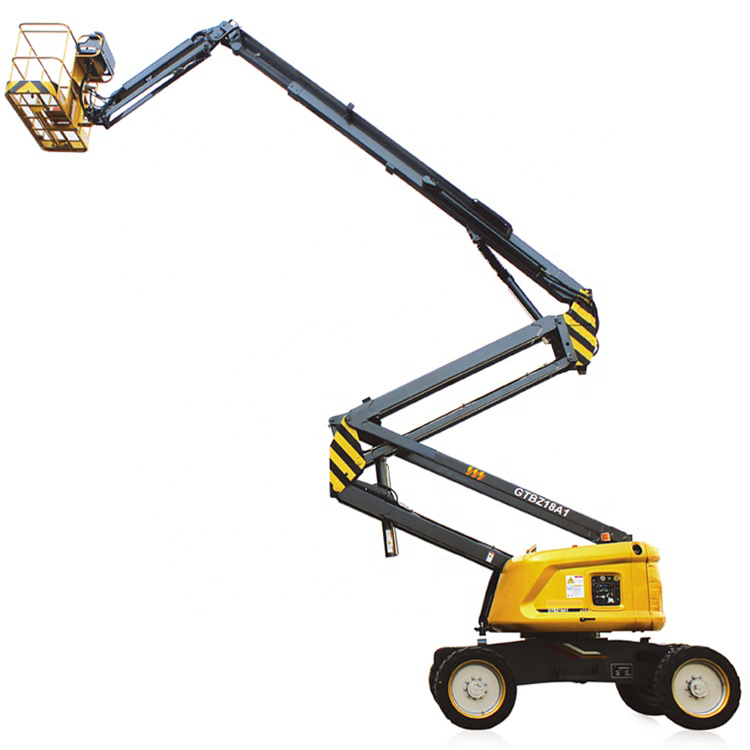

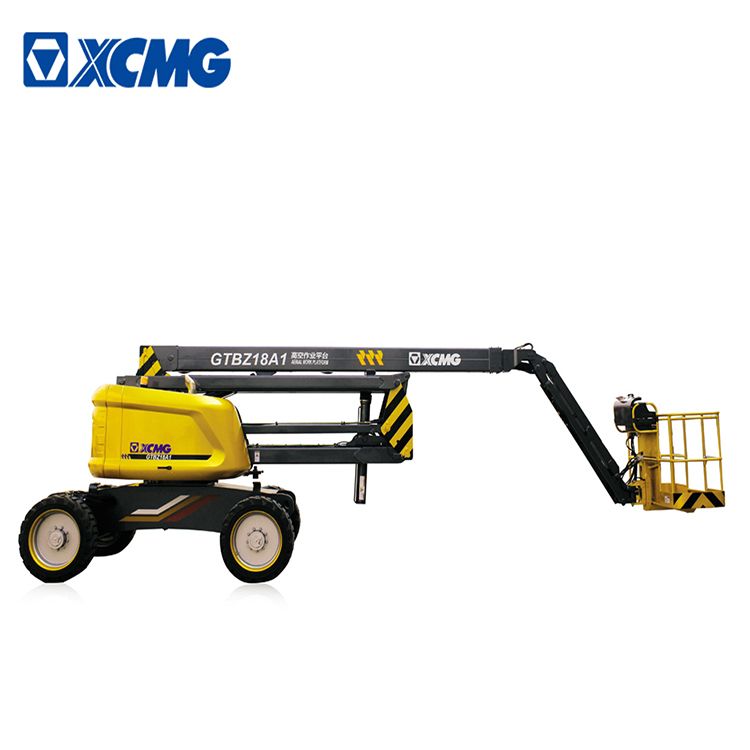

XCMG 18m articulated boom lift GTBZ18A1 self-propelled articulating boom lift for sale

XCMG articulated boom lift 18m aerial work platform truck GTBZ18A1.

For 18m level “Σ” type linkage folded hybrid boom aerial work platform GTBZ18A1, its readability, operating performance and humanization has reached to the advanced level in the industry.

The linkage folded hybrid arm has compact structure and flexible stretching, which is easy to get to the unreachable areas; The model manipulation is simple, safe, reliable, accurate and efficient, which can meet the requirements of the construction, petrochemical, venues, leasing and other industry users.

1.Strong Road Adaptability

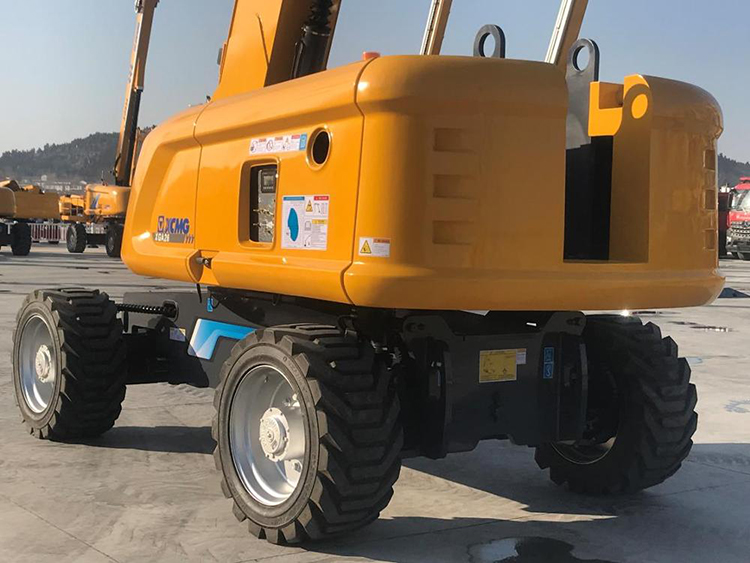

With four-wheel drive, off-road wide tires and new axle floating technology, the drive is superior, and the road adaptability is strong, with the maximum grade ability of 45%, reaching to the highest level in the industry.

2.Accurate and Efficient Operation

”Σ” type linkage folded hybrid boom design; the overall layout is compact and tail swing is small, which is easy to store and access to the narrow space to work; the extending of the body is flexible, without regional restrictions and with a wide operating range. It has upward, downward and crossed precise multidirectional positioning functions and excellent extending features.

3.Compactness and flexibility

The complete machine is arranged compactly and crank boom recovery gesture is adopted during transportation with transportation length of only 7m; meanwhile, it adopts tailless wagging design, which is convenient for storage and entering into narrow space for operation.

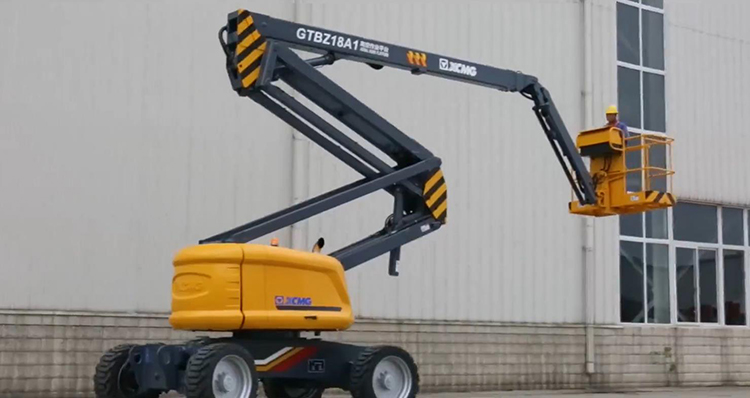

XCMG 18m articulated boom lift GTBZ18A1 self-propelled articulating boom lift for sale

Item	Unit	Parameter
a. Overall length	mm	9080
b. Overall width	mm	2490
c. Overall height	mm	2680
d. Wheelbase	mm	2500
Maximum working height	m	20.3
Maximum platform height	m	18.6
Maximum working range	m	11.9
Maximum load weight	kg	230
No.1 arm luffing range	°	0 ~ +70
No.2 arm luffing range	°	0 ~ +75
Crank arm luffing range	°	-65 ~ 70
The swing angle of the rotary table	°	360
Maximum tail wagging	mm	0
Platform size	mm	1830×760×1150
The swing angle of the platform	°	180
Machine weight	kg	10600
Maximum travelling speed	km/h	6
Minimum turning radius	m	6
Minimum ground clearance	mm	230
Maximum gradeability	%	45
Tyre size		355/55D625
Motor model		Perkins 404D-22
Motor model		Deutz D2011L03i
Rated power of motor	kW/(r/min)	38KW/3000rpm,
Rated power of motor	kW/(r/min)	36.3 KW/2800rpm
