XCMG official 22m hydraulic mobile telescopic boom lift GTBZ22S equipment factory price for sale

Chat Now 1 / EA (Min. Order)
Model: GTBZ22S
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG official 22m hydraulic mobile telescopic boom lift GTBZ22S equipment factory price for sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:12500kg
  • Overall Dimension: 10150*2490*2800 mm
  • Table Size: 2400*900 mm
  • Max Lifting Height:23.7m
  • Rated Loading Capacity:230 kg (unlimited) / 340kg (limited)
  • Power:43KW/2600 r/min
  • Lift Drive / Actuation:Hydraulic
  • Lift Mechanism:Telescoping Lift
  • Model Number:GTBZ22S
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Certification:CE

Specifications

  • Weight:12501.000kg
  • Condition:New
  • Moving Type:Other

XCMG official 22m hydraulic mobile telescopic boom lift GTBZ22S equipment factory price for sale

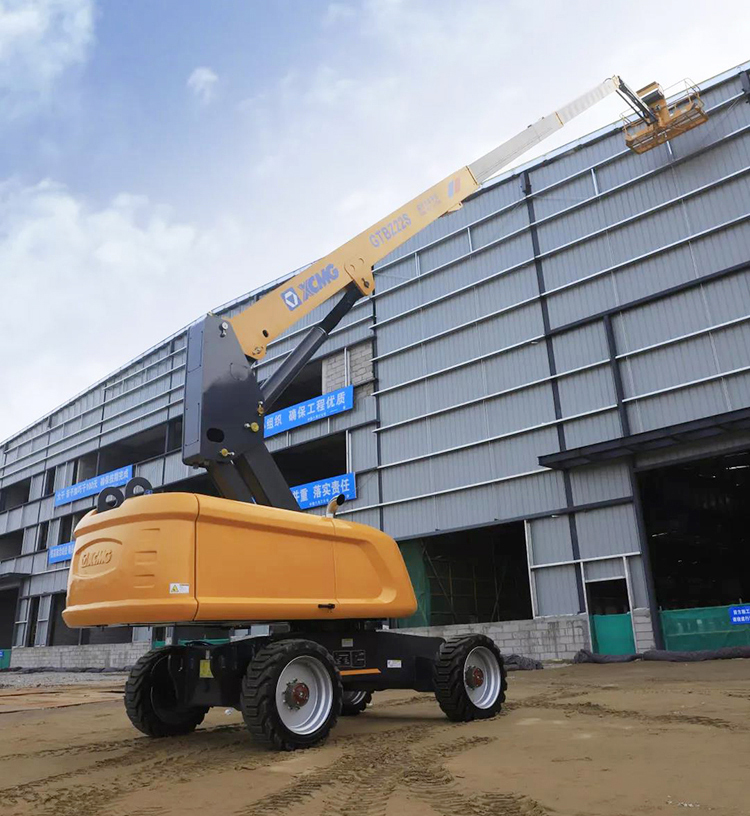

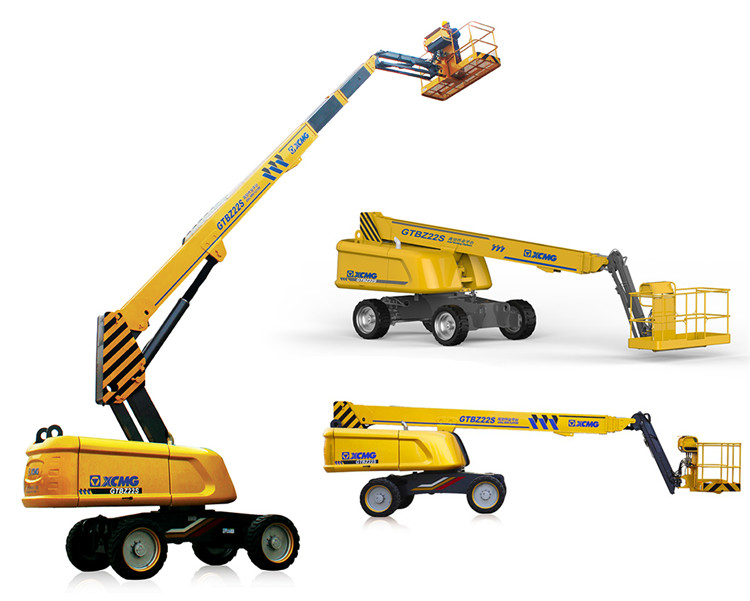

22m hydraulic mobile telescopic boom lift equipment GTBZ22S.

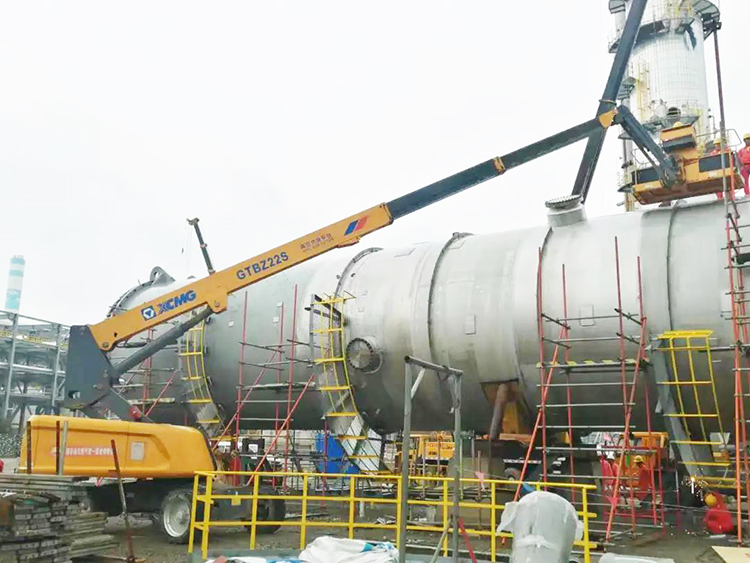

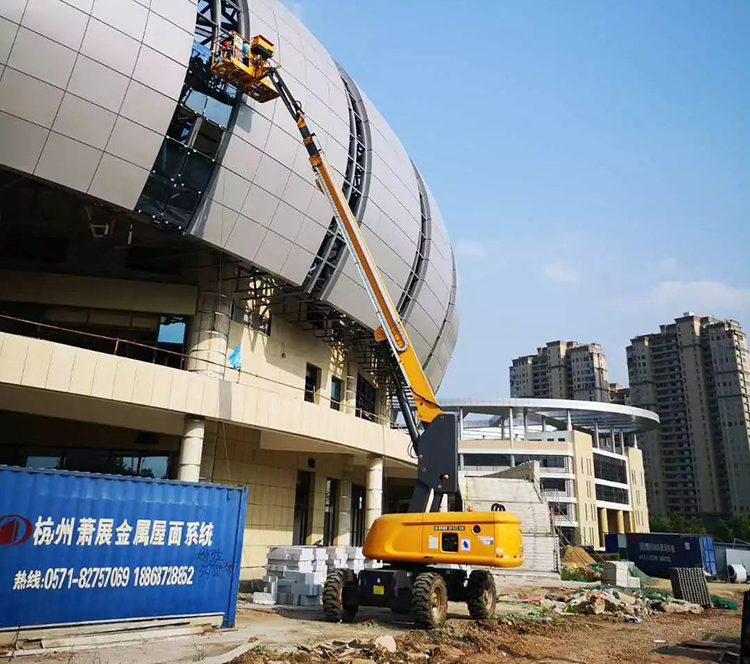

It is the highest-efficiency straight boom aerial work platform applied at the elevation of 22 meters. Being four-wheel driven, it has the top-ranking grade ability among the industry; provided with the double-operating-radius curve, the machine has the industry-leading operating altitude/radius and carrying capacity. This type of machine, not only simple and high efficiency, but also safe and reliable, may satisfy the diversified demands of different industrial users engaged in building construction, bridge and equipment maintenance, shipbuilding, petrochemical engineering, lease etc.



Model features:

Main configuration: Four-wheel drive, two-wheel steering, axle balance, and foam per fusion tires.

(1) Maximum running speed 6km/h;

(2) Maximum climbing rate of 45% - the highest level in the industry;

(3) Axle balance system - substantially increase the ability of vehicles through the rugged road;

(4) Select built-in reducer of motor and reducer integrated, with two speed of fast speed and low speed to meet the driving requirements of vehicle in different environments. In the ramp, the travelling mechanism is equipped with self-braking function, while setting the clutch device, to facilitate the drag in the event of failure.

XCMG official 22m hydraulic mobile telescopic boom lift GTBZ22S equipment factory price for sale

Project

Unit

Parameters

a Overall length of complete machine

mm

10150

b Overall width of complete machine

mm

2490

c Overall height of complete machine

mm

2800

d Wheelbase

mm

2500

Maximum working altitude

m

23.7

Maximum platform height

m

22

Maximum working range

m

18.3

Maximum bearing weight

kg

230 (unlimited) / 340 (limited)

Boom range

°

-5~+75

Rotation angle of rotary table

°

360

Maximum tail pendulum

mm

1550

Size of platform

mm

2400×900

Rotation angle of platform

°

180

Total weight

kg

12500

Maximum running speed

km/h

6

Minimum turning radius

m

6

Minimum ground clearance

mm

230

Maximum grade ability

%

45

Tire specification

-

355/55D625

Engine model

-

Perkins 404D-22T/Deutz D2011 L04i

Rated power of engine

kW/(r/min)

43/(2600)
41/(2300)
